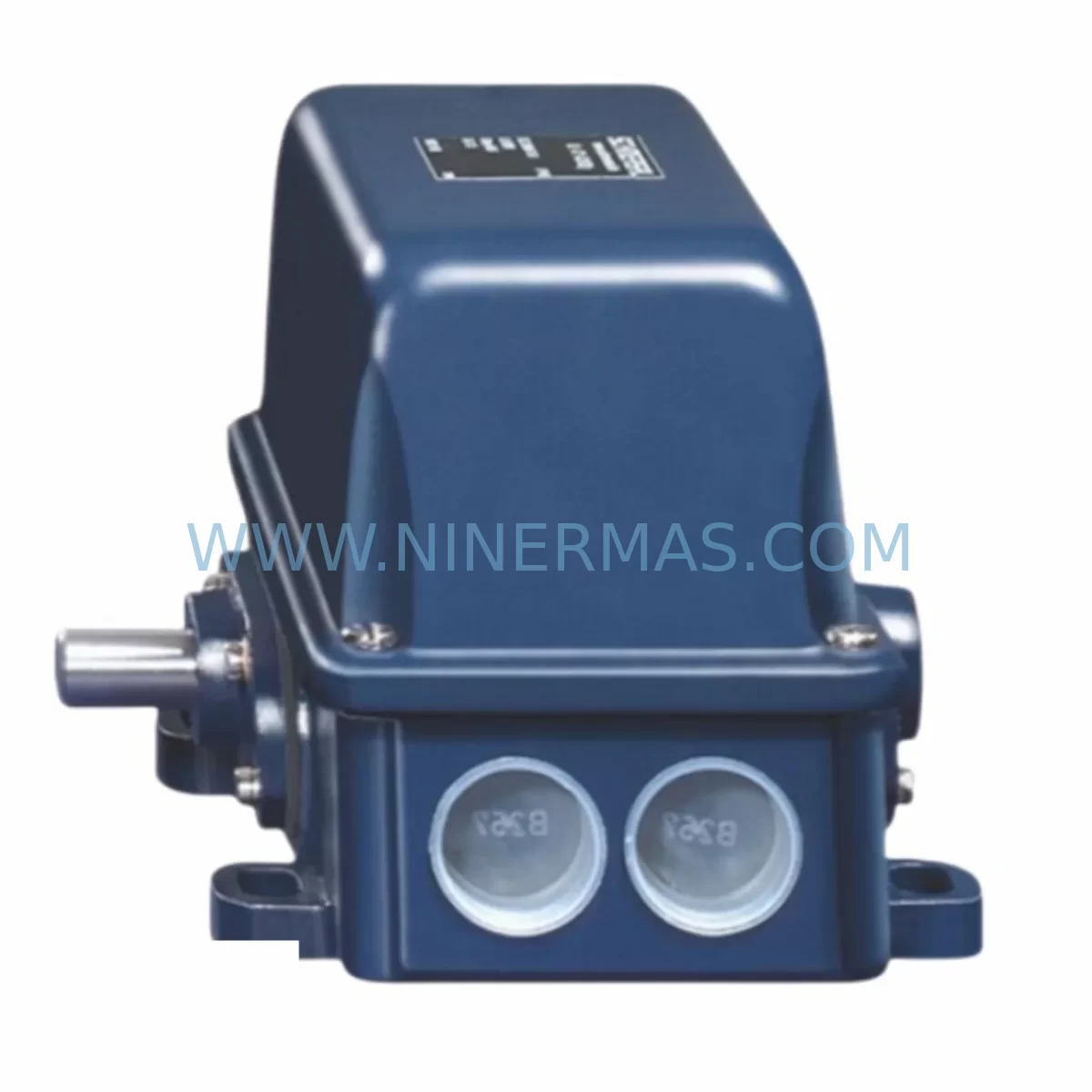

SCHMERSAL TA471-02/02Y-H-840 Safety Heavy Position Switch

SCHMERSAL TA471-02/02Y-H-840 Safety Heavy Position Switch: Reliable Control for Critical Industrial Sites

The SCHMERSAL TA471-02/02Y-H-840 is a heavy-duty safety position switch engineered for demanding industrial environments where control loop integrity and personnel protection are non-negotiable. Designed and manufactured by SCHMERSAL — a globally recognized leader in industrial safety switching technology — this unit delivers robust, repeatable actuation performance across the full spectrum of critical automation and safety interlock applications. At NINERMAS, we stock the TA471-02/02Y-H-840 as a verified OEM-compatible spare, fully tested prior to shipment and backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets, a single point of failure in a position feedback loop can cascade into unplanned downtime, equipment damage, or — in the worst case — a safety incident. The SCHMERSAL TA471-02/02Y-H-840 is built to eliminate exactly these risks. Its positive-opening NC contacts ensure that even under spring fatigue or contact welding conditions, the safety circuit opens reliably — a critical requirement in emergency stop (E-stop) loops and guard door interlocking systems.

When integrating the TA471-02/02Y-H-840 into a control cabinet, it is commonly paired with a SCHMERSAL SRB301ST safety relay module to form a certified Category 3 or Category 4 safety circuit per ISO 13849-1. The safety relay monitors the dual-channel NC output of the position switch and provides forced-guided relay contacts for downstream actuator control — preventing any single-fault condition from bypassing the safety function.

For power supply stability in the same cabinet, a PHOENIX CONTACT QUINT-PS/1AC/24DC/10 DIN-rail power supply or equivalent 24 VDC regulated SMPS with SFB (Selective Fuse Breaking) technology is recommended. Stable, clean DC power is essential to prevent signal drift in the position switch’s output circuit, particularly in environments with frequent motor starts, VFD switching transients, or capacitor bank switching surges.

In high-EMI environments — such as those near large servo drives, frequency inverters, or arc welding stations — the TA471-02/02Y-H-840’s die-cast zinc housing provides inherent shielding. However, for complete signal integrity, it should be wired using shielded twisted-pair (STP) control cable (e.g., LAPP ÖLFLEX CLASSIC 110 CY or equivalent), with the shield grounded at one end to the cabinet PE busbar. Surge protection devices such as a PHOENIX CONTACT PT 2X2-24DC-ST surge arrester on the signal lines further protect against transient overvoltage events from nearby lightning strikes or capacitive coupling.

For applications requiring position monitoring of pneumatic or hydraulic actuators, the TA471-02/02Y-H-840 is frequently used alongside FESTO SME-8M-DS-24V-K-2.5-OE proximity sensors or SICK IM18-12BPS-ZC1 inductive proximity switches to provide redundant position confirmation — a best practice in SIL 2 interlock loops. The combination of a mechanical safety position switch and a non-contact inductive sensor provides both positive-opening mechanical confirmation and electronic feedback, satisfying the diverse redundancy requirements of modern functional safety standards.

Where the TA471 is deployed in a safety PLC architecture, it typically interfaces with a Siemens ET 200SP F-DI 8x24VDC HF fail-safe digital input module or a Pilz PSSuniversal PLC safety I/O module. These fail-safe input modules perform internal plausibility checks on the dual-channel switch signal, detecting discrepancies caused by short circuits, cross-faults, or contact bounce — and triggering a safe state before any hazardous motion can occur.

For cabinet-level surge and overvoltage protection, a DEHN DEHNguard DG M TNS 275 surge protection device at the incoming power feed, combined with WAGO 281-series terminal block fuse holders on individual branch circuits, creates a layered protection architecture that shields the TA471 and all associated control components from grid-borne transients. This is especially important in outdoor substations, port crane control rooms, and mining surface installations where the power grid quality is variable.

Critical Industrial Safety Applications

The SCHMERSAL TA471-02/02Y-H-840 is deployed across a wide range of critical industrial sectors where position feedback accuracy and safety interlock reliability are paramount:

Petrochemical & Refinery Plants: Used in valve position monitoring for emergency shutdown (ESD) systems, confirming full-open or full-close status of isolation valves in hazardous area boundaries. The IP67 rating and robust zinc housing withstand hydrocarbon vapors, high humidity, and frequent wash-down cycles.

Electric Power Generation & Transmission: Deployed in turbine governor control panels and high-voltage switchgear interlocking systems to confirm breaker positions and prevent unauthorized energization of isolated circuits. The positive-opening contacts provide the mandatory forced-opening action required by IEC 61511 functional safety standards for power plant SIS loops.

Mining & Mineral Processing: Installed on conveyor belt take-up frames, crusher feed gates, and skip hoist limit positions. The heavy-duty die-cast housing resists coal dust ingress, rock particle impact, and the constant vibration generated by crushing and screening equipment — environments where standard limit switches fail prematurely.

Water & Wastewater Treatment: Applied in sluice gate position monitoring, pump station valve interlocking, and screen filter access guard systems. The IP67 sealing ensures reliable operation in permanently damp, chemically aggressive environments typical of chlorination and aeration facilities.

Metallurgy & Steel Mills: Used in rolling mill pass-line guard interlocks, ladle transfer car end-stop detection, and furnace door position monitoring. The switch’s tolerance for radiant heat, scale dust, and mechanical shock makes it a preferred choice for hot-end automation in steel and aluminum processing.

Port & Marine Crane Systems: Installed as hoist upper/lower limit switches and slewing end-stop detectors on ship-to-shore (STS) cranes, rubber-tyred gantry (RTG) cranes, and offshore platform lifting equipment. Salt spray resistance and vibration tolerance are critical in these coastal and marine environments.

Continuous Process Manufacturing: Integrated into packaging line guard door interlocks, robotic cell perimeter fencing, and automated guided vehicle (AGV) docking station position confirmation — wherever a Category 3 or Category 4 safety function is required to protect operators from moving machinery.

Safety and Quality FAQ

Q1: Does the SCHMERSAL TA471-02/02Y-H-840 come with a warranty?
Yes. Every unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and premature failure under normal operating conditions. Our warranty process is straightforward — contact us at sale@ninermas.com with your order reference and a fault description, and we will arrange a replacement or credit promptly.

Q2: How is the TA471-02/02Y-H-840 tested before shipment?
All units undergo pre-shipment functional verification including contact continuity testing, insulation resistance checks, and mechanical actuation cycle testing. We do not ship untested stock. Each unit is individually inspected to confirm it meets the original SCHMERSAL specification before dispatch.

Q3: Is the TA471-02/02Y-H-840 a direct drop-in replacement for the original SCHMERSAL unit?
Yes. The TA471-02/02Y-H-840 supplied by NINERMAS is an OEM-compatible spare that matches the original SCHMERSAL dimensional envelope, contact configuration, and electrical ratings. It is designed for direct replacement without modification to existing wiring, mounting brackets, or safety relay channel assignments. Always verify your existing wiring diagram against the datasheet before installation.

Q4: Can NINERMAS support long-term or scheduled procurement for the TA471-02/02Y-H-840?
Absolutely. We specialize in long-lifecycle spare parts programs for industrial automation components. For customers with planned maintenance schedules, annual shutdown programs, or multi-site procurement requirements, we offer stock reservation, scheduled delivery, and volume pricing arrangements. Contact our team to discuss a tailored supply agreement that ensures you always have critical spares available when needed.
