SCHENCK VSE20100 VLW20150 VSB20100 Spare Part

SCHENCK VSE20100 VLW20150 VSB20100 Service-Ready Spare Part for Industrial Maintenance

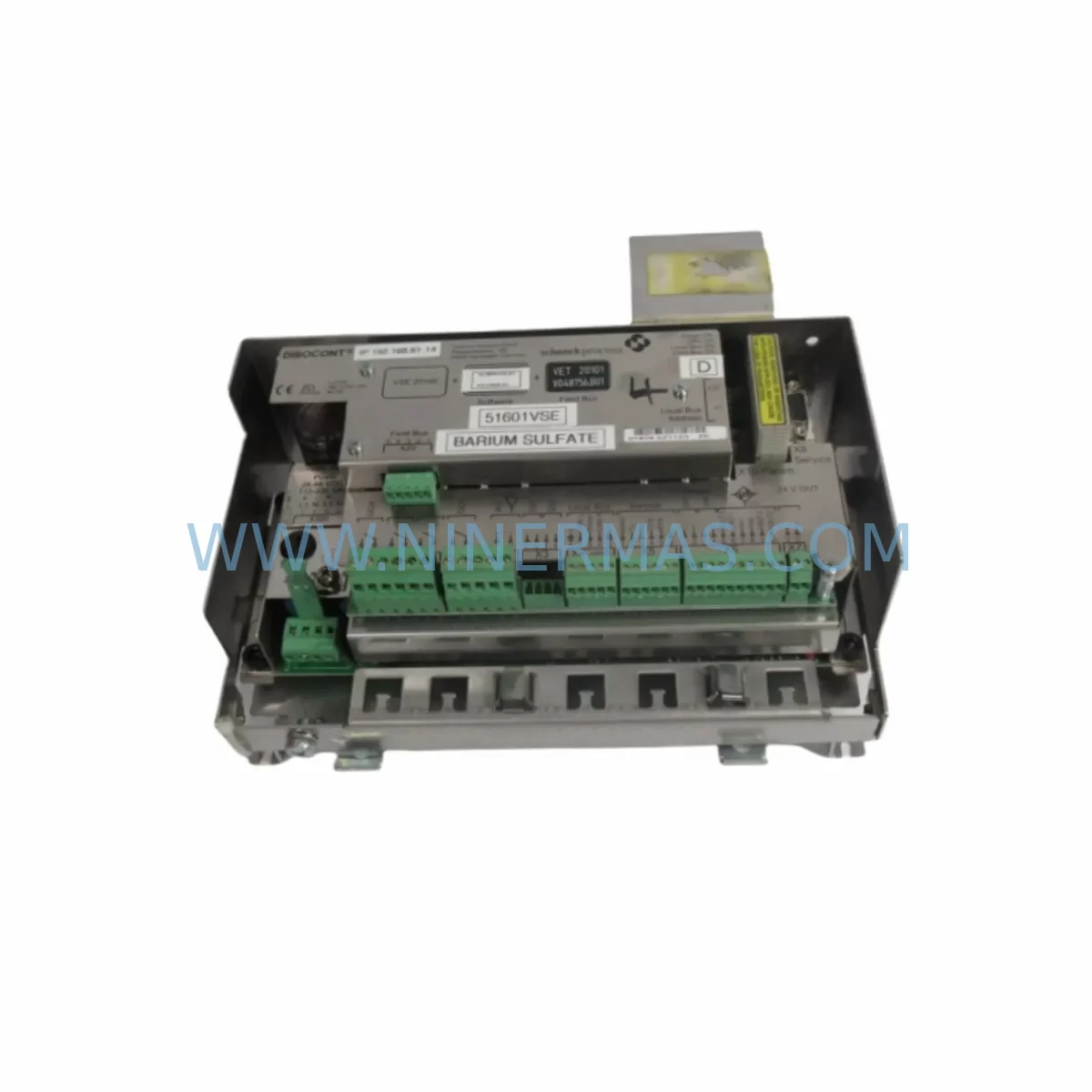

The SCHENCK VSE20100, VLW20150, and VSB20100 are core components of the Disocont series — SCHENCK Process’s established platform for continuous weighing, belt scale control, and gravimetric feeding in bulk material handling systems. These modules are widely deployed in cement plants, mining operations, chemical processing lines, power generation facilities, and food-grade production environments where precise mass flow measurement and reliable dosing control are non-negotiable.

For maintenance engineers managing aging Disocont installations, sourcing verified spare parts for the VSE20100 evaluation electronics unit, the VLW20150 weighing controller board, and the VSB20100 supply board is a critical priority. Unplanned failure of any one of these components can halt an entire conveying or dosing line, triggering costly production downtime. Keeping certified replacement units in your on-site spare parts inventory is the most effective strategy for minimizing mean time to repair (MTTR) and protecting operational continuity.

The VSE20100 serves as the signal evaluation and processing core of the Disocont weighing terminal. It interfaces directly with load cell inputs, processes weight signals, and communicates measured values to the control system. When this board degrades — often indicated by erratic weight readings, calibration drift, or communication faults — a like-for-like replacement is essential to restore measurement accuracy without requiring full system reconfiguration. Alongside it, the VLW20150 weighing controller module manages the closed-loop control logic for belt speed and feed rate, while the VSB20100 supply board provides regulated power distribution to the internal electronics stack.

Procurement engineers should note that these components are not universally interchangeable across all Disocont firmware revisions. Before ordering, confirm the installed firmware version on the Disocont terminal, the hardware revision of the existing boards, and whether the replacement unit requires a parameter upload from the existing configuration backup. In many field replacement scenarios, the SCHENCK Disocont parameter set — stored on the terminal’s internal memory or on a PC via the DisoTools configuration software — can be transferred directly to the replacement board, significantly reducing commissioning time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for Disocont-based weighing systems should extend beyond the VSE20100, VLW20150, and VSB20100 boards themselves. Maintenance engineers conducting annual inspections or responding to fault alarms should simultaneously assess the condition of the load cell junction box wiring and the load cell signal cables connecting the belt scale to the Disocont terminal. Degraded shielding or moisture ingress in these cables is a common root cause of signal noise that is often misdiagnosed as a board-level fault.

The PROFIBUS-DP communication cable and its termination resistors should be inspected whenever the VLW20150 is replaced, as communication faults can persist if the fieldbus segment is improperly terminated after the board swap. If the Disocont terminal communicates upstream to a Siemens S7-300 or S7-400 PLC — a common architecture in cement and mining plants — verify that the PROFIBUS address assignment on the replacement VLW20150 matches the original configuration before powering up.

The internal 24 VDC power rail supplied by the VSB20100 feeds not only the evaluation electronics but also any installed I/O expansion modules within the Disocont terminal. If the VSB20100 has failed, inspect the downstream I/O modules for signs of voltage stress before reinstalling. In systems where the Disocont terminal is housed in a control cabinet alongside a Siemens ET 200S distributed I/O rack or a Phoenix Contact terminal block assembly, verify that the cabinet’s main power supply — typically a SITOP PSU100S or equivalent DIN-rail power supply — is delivering stable voltage before concluding that the VSB20100 itself is the fault source.

For facilities running multiple belt scales or feeders in parallel, it is advisable to maintain at least one spare set of VSE20100, VLW20150, and VSB20100 boards per production line. Pairing this with a spare Disocont operator panel and a backup copy of the DisoTools parameter file ensures that any single-point failure can be resolved within one shift without waiting for international shipment lead times. Facilities that have standardized on SCHENCK Disocont across multiple lines should also consider stocking a spare PROFIBUS repeater and a set of surge protection modules for the load cell inputs, as these low-cost components are frequently overlooked until they cause a system-wide fault.

Site Replacement Workflow

Before beginning a board replacement on a live Disocont system, the maintenance team should follow a structured isolation and backup procedure to protect both personnel safety and system data integrity. The first step is to export the current parameter set from the Disocont terminal using DisoTools or the terminal’s built-in parameter backup function. This file contains all calibration data, setpoints, alarm thresholds, and communication parameters — losing it can add hours to the recommissioning process.

Once the parameter backup is confirmed, isolate the Disocont terminal from the PROFIBUS network by removing the bus connector, then power down the terminal via the main isolator. Remove the faulty board — whether the VSE20100, VLW20150, or VSB20100 — by releasing the DIN-rail locking tabs and carefully disconnecting any ribbon cables or terminal connectors. Install the replacement board, ensuring that any hardware DIP switches or jumper settings match the original board’s configuration. For the VSB20100, verify that the AC input voltage selector (if present) is set correctly for the local supply voltage before energizing.

After physical installation, restore power and upload the saved parameter set to the replacement board. Perform a zero calibration and span check on the belt scale or feeder before reconnecting the PROFIBUS cable. Monitor the first 15–30 minutes of operation closely for any residual calibration drift or communication errors. Document the replacement in the site maintenance log, including the serial numbers of both the removed and installed boards, to support future warranty claims and audit trails.

This workflow minimizes production downtime to typically under two hours for an experienced maintenance team, provided the replacement board and parameter backup are both available on-site. For facilities where downtime costs are measured in thousands of dollars per hour, maintaining a pre-configured hot-spare board — with the parameter set already loaded — can reduce this window to under 30 minutes.

Spare Parts Support FAQ

Q1: Are the VSE20100, VLW20150, and VSB20100 compatible with both Disocont Tersus and older Disocont V5 terminals?
Compatibility depends on the hardware revision and firmware version of your installed terminal. In most cases, boards from the same hardware generation are interchangeable, but we recommend confirming the exact terminal model and firmware revision before ordering. Our technical team can assist with compatibility verification based on your nameplate data.

Q2: Do replacement boards require recalibration after installation?
If the original parameter set is successfully restored to the replacement VSE20100 or VLW20150, a full recalibration is typically not required — only a zero check and span verification. The VSB20100 supply board does not store calibration data and requires no parameter restore. However, if the parameter backup is unavailable, a full calibration procedure will be necessary.

Q3: What is the lead time and shipping process for these spare parts?
All units are pre-tested and shipped with an inspection report. Standard lead time is 3–7 business days for in-stock items, with expedited options available for urgent maintenance situations. Each unit is individually packaged with ESD protection and includes a certificate of conformity. Long-term supply agreements are available for facilities requiring guaranteed stock availability.

Q4: What warranty coverage applies to these replacement boards?
All VSE20100, VLW20150, and VSB20100 units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and priority replacement dispatch to minimize any secondary downtime impact.
