SANRITZ SC2120-3 SC2120 Service-Ready Spare Part

SANRITZ SC2120-3 SC2120 Service-Ready Spare Part: Minimizing Downtime Risk in Industrial Control Systems

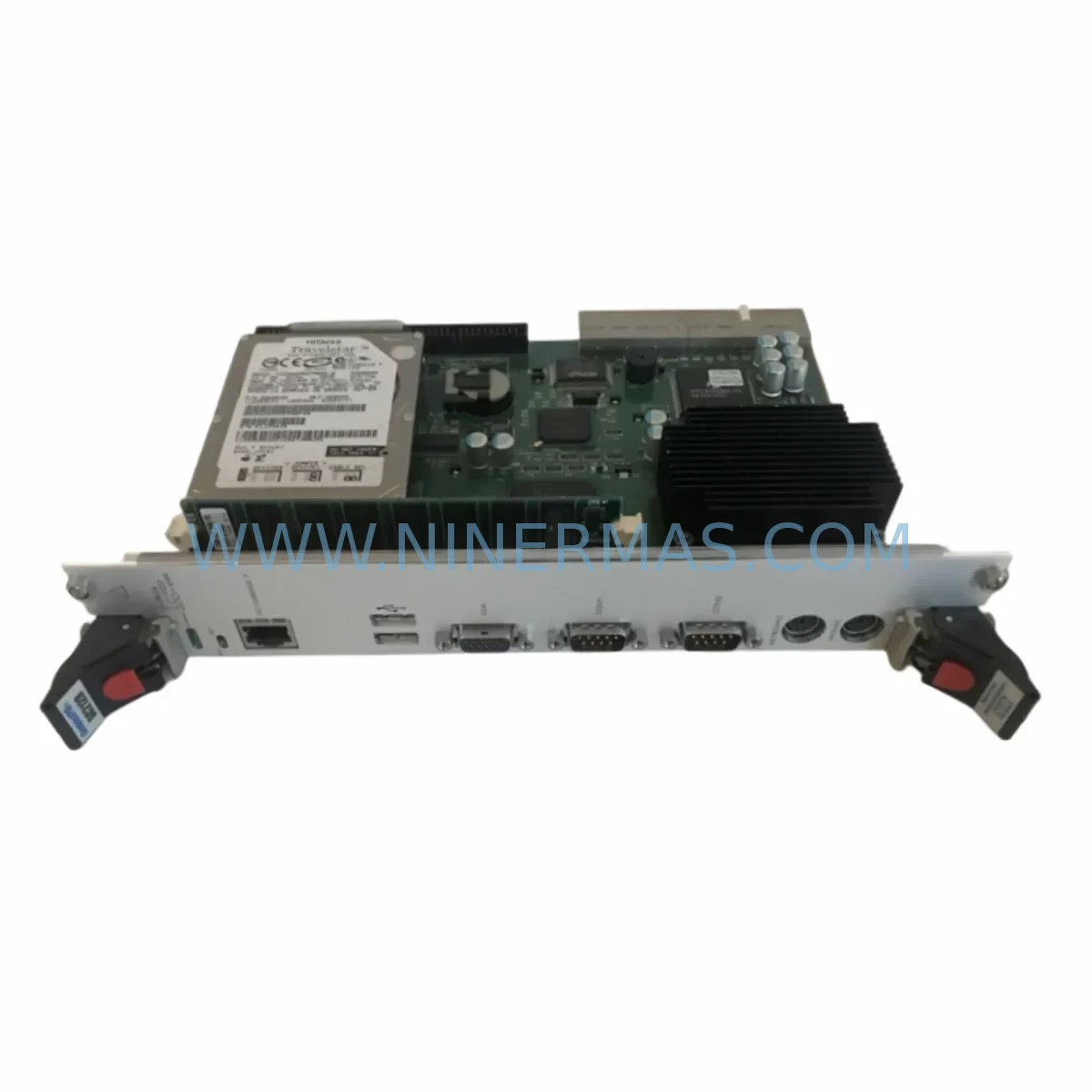

The SANRITZ SC2120-3 SC2120 is an original processor board module designed for use in SANRITZ industrial control and automation systems. As a critical CPU-level component within legacy PLC and distributed control architectures, the SC2120-3 governs core logic execution, I/O scanning, and inter-module communication. When this board fails or degrades, the entire control loop is at risk — making rapid, verified spare part replacement essential for any maintenance team managing continuous production environments.

At NINERMAS, we supply the SANRITZ SC2120-3 SC2120 as a service-ready original spare part, pre-tested before shipment and backed by a 12-month warranty. Our sourcing network covers original and equivalent-grade components for end-of-life and hard-to-find industrial boards, ensuring your facility can maintain long-term operational continuity without dependency on a single supply chain.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SANRITZ SC2120-3 SC2120 processor board is rarely an isolated task. In practice, a fault at the CPU level often signals broader stress across the control cabinet. Maintenance engineers and procurement teams should treat this replacement as a trigger for a comprehensive cabinet inspection to prevent cascading failures and unplanned downtime.

When servicing the SC2120-3, it is strongly recommended to simultaneously inspect and — where service life is approaching — pre-stock the following associated components:

• SC2120 Series Power Supply Module — The processor board is directly dependent on stable DC bus voltage. A degraded power supply module can cause intermittent CPU resets that mimic processor board failure. Verify output voltage ripple and replace if outside tolerance.
• SC2120 Digital Input (DI) Module — I/O modules in the same rack share the backplane bus with the processor. Faulty DI modules can generate spurious interrupts that overload the CPU. Inspect all DI channels for signal integrity.
• SC2120 Digital Output (DO) Module — Output modules driving contactors, solenoids, or relay coils are subject to inductive kickback. Inspect DO modules for burned output channels and replace proactively during CPU-level maintenance windows.
• SC2120 Analog Input (AI) Module — In process control applications, AI modules feeding the SC2120-3 with 4–20 mA or 0–10 V signals should be calibrated and verified for drift. Signal errors at the analog layer can cause the processor to execute incorrect control logic.
• SC2120 Communication Module — If the SC2120-3 is networked via RS-485, Modbus, or a proprietary fieldbus, the communication module should be inspected for connector corrosion and firmware version compatibility with the replacement processor board.
• Backplane / Rack Assembly — The SC2120 series backplane carries all inter-module data and power. Inspect backplane connectors for oxidation, bent pins, or mechanical stress. A damaged backplane can cause a new processor board to fail prematurely.
• 24 VDC Industrial Power Supply (external) — Upstream panel-mount power supplies feeding the SC2120 rack should be load-tested. Brands such as MEAN WELL, Phoenix Contact, or equivalent industrial-grade units should be verified for output stability under full rack load.
• Intermediate Relay / Output Relay Module — Relay modules interfacing the SC2120 DO outputs with field devices (motors, valves, actuators) should be inspected for contact wear. Relay coil failures can back-feed noise into the output module and ultimately stress the processor.
• Terminal Block and Wiring Harness — Field wiring terminations at the I/O terminal blocks should be re-torqued and inspected for insulation degradation, especially in high-vibration or high-temperature environments. Loose terminals are a leading cause of intermittent faults misdiagnosed as processor board failures.
• Signal Isolator / Barrier Module — In hazardous area or long-distance signal applications, Zener barriers or galvanic isolators protecting the SC2120 analog inputs should be tested for isolation resistance and replaced on a scheduled basis.

Maintaining a cold-standby inventory of the SC2120-3 alongside these associated modules significantly reduces mean time to repair (MTTR) and supports a proactive maintenance strategy aligned with annual shutdown planning.

Site Replacement Workflow

Replacing the SANRITZ SC2120-3 SC2120 processor board on-site requires a structured approach to avoid configuration loss, communication errors, or extended downtime. The following workflow is recommended for maintenance engineers executing an emergency or planned replacement:

1. Pre-replacement backup: Before powering down, back up the existing program, parameter settings, and I/O configuration from the SC2120-3 using the system programming tool or HMI upload function. Confirm the backup file is readable and complete.
2. Power isolation: De-energize the control cabinet following site lockout/tagout (LOTO) procedures. Verify zero-voltage state at the rack power supply before handling the processor board.
3. Board extraction: Release the SC2120-3 from the backplane using the ejector levers. Avoid touching the PCB edge connectors. Place the removed board in an anti-static bag for return or failure analysis.
4. Compatibility verification: Confirm the replacement SC2120-3 SC2120 board matches the firmware revision and hardware variant of the original. Check the label on the board against the system documentation. Contact NINERMAS if revision clarification is required.
5. Installation and seating: Insert the replacement board into the correct slot, ensuring full backplane connector engagement. Secure the retention screws or locking levers as specified in the SANRITZ SC2120 series hardware manual.
6. Program restore and commissioning: Power up the rack and restore the backed-up program. Verify all I/O points, communication links, and control logic outputs before returning the system to automatic mode.
7. Post-replacement monitoring: Monitor the system for 24–48 hours post-replacement for any watchdog faults, communication errors, or unexpected output behavior. Log the replacement in the site maintenance record.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios. NINERMAS ships the SC2120-3 SC2120 with a pre-shipment test report, reducing commissioning risk and supporting faster return to production.

Spare Parts Support FAQ

Q1: Is the SANRITZ SC2120-3 SC2120 an original part or a compatible substitute?
The SC2120-3 SC2120 supplied by NINERMAS is sourced as an original SANRITZ spare part. We do not supply uncertified clones or unmarked substitutes. Each unit undergoes pre-shipment functional testing, and a test report is available upon request. For applications where the original part is confirmed end-of-life by SANRITZ, we can advise on verified compatible alternatives on a case-by-case basis.

Q2: What is the warranty coverage and what does it include?
All SANRITZ SC2120-3 SC2120 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return merchandise authorization (RMA) and a replacement or repair is dispatched within the agreed lead time.

Q3: How do I confirm compatibility before ordering, especially for older SC2120 system variants?
Compatibility for the SC2120-3 depends on the specific SC2120 series chassis revision and firmware baseline in your installation. We recommend providing your existing board’s label information (including any revision suffix) and your system’s software version when enquiring. NINERMAS technical support can cross-reference this against our sourcing database to confirm a compatible match before order placement, eliminating the risk of receiving an incompatible revision.

Q4: Can NINERMAS support long-term supply for the SC2120-3 SC2120 beyond a single order?
Yes. NINERMAS operates a long-term spare parts supply model specifically designed for legacy and end-of-life industrial components. We can establish a standing supply agreement for the SC2120-3 SC2120, including reserved stock allocation, scheduled delivery, and priority access during periods of market scarcity. This is particularly relevant for facilities operating multiple SC2120-series systems or planning multi-year maintenance contracts. Contact our team to discuss a tailored supply arrangement.
