SanRex UF3-0150F Retrofit-Compatible SCR Controller

SanRex UF3-0150F Retrofit-Compatible SCR Controller: Legacy System Compatibility and Smooth Upgrade

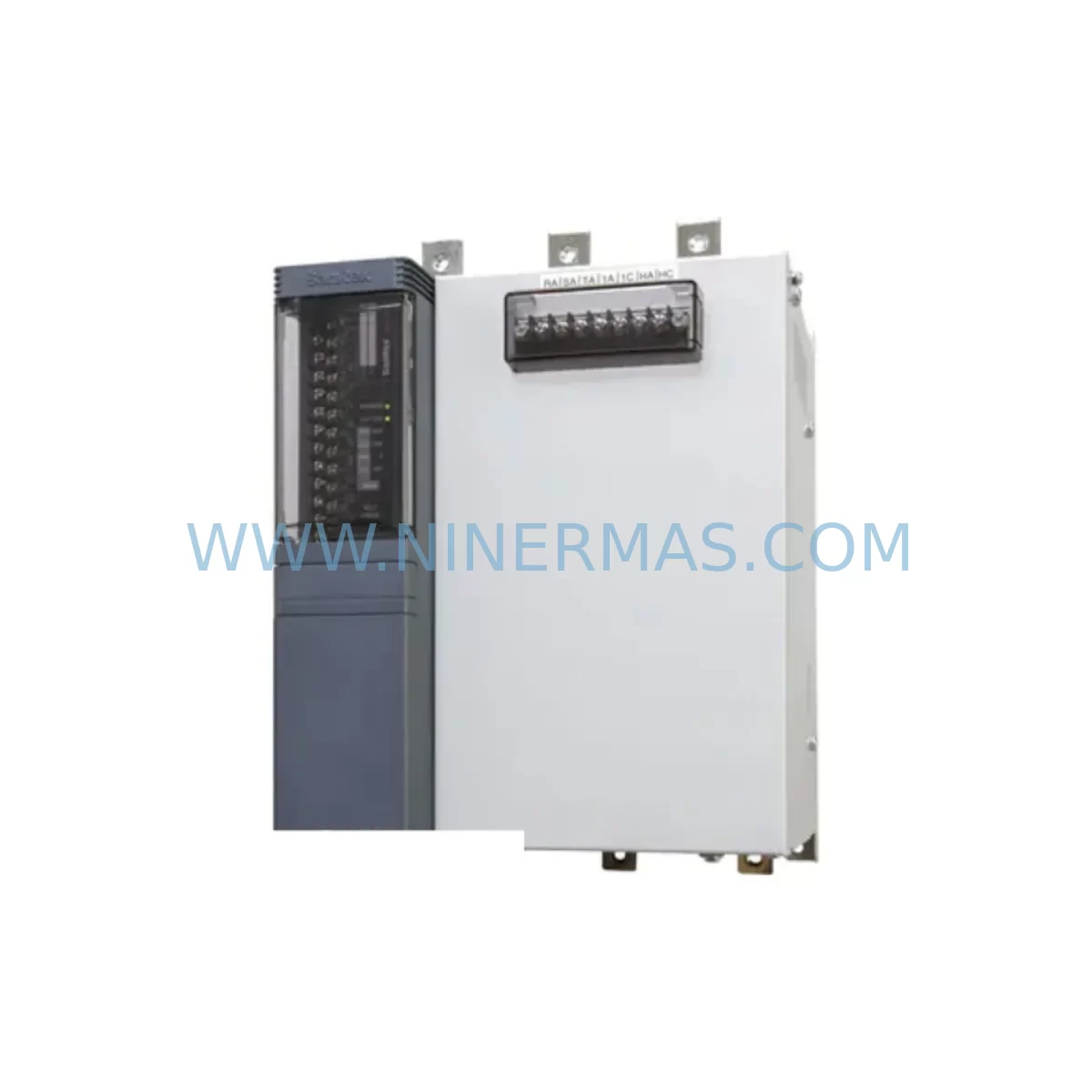

The SanRex UF3-0150F is a 150A three-phase SCR (Silicon Controlled Rectifier) thyristor power controller from SanRex’s established UF3 series — a platform widely deployed across industrial heating, resistance welding, motor soft-start, and process temperature control applications. As original UF3-0150F units reach end-of-service life and OEM support is discontinued, plant engineers and maintenance teams face the critical challenge of sourcing a verified retrofit-compatible replacement that preserves existing wiring infrastructure, panel space, and control logic without triggering a full system redesign.

NINERMAS supplies the UF3-0150F as a direct retrofit solution for legacy automation systems, backed by pre-shipment functional testing, documented compatibility verification, and a 12-month warranty. Each unit is inspected against original SanRex UF3 series specifications before dispatch, ensuring that your replacement arrives ready for installation with minimal commissioning time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the UF3-0150F within a live production environment requires a structured approach that accounts for the full scope of the control cabinet and upstream/downstream dependencies. In most legacy installations, the UF3-0150F operates as part of a coordinated power control loop that may include a SanRex temperature controller (such as a DCL or SDC series unit) providing the 4–20mA setpoint signal, a dedicated SCR trigger board, and upstream circuit protection in the form of semiconductor fuses or fast-acting MCCBs rated for thyristor protection.

Before removing the original unit, engineers should photograph and document all terminal wiring — particularly the main power terminals (T1/T2/T3 input, U/V/W load output), the control signal terminals, and any fault output or alarm relay connections. In systems where the UF3-0150F is mounted on a shared backplane or within a multi-zone heating cabinet, adjacent modules such as SanRex UF3-0075F or UF3-0300F units may share a common control bus or synchronization signal, and their operation must not be interrupted during the swap.

For installations that include a programmable logic controller — commonly a Mitsubishi MELSEC Q-series, Omron CJ2M, or Siemens S7-300 — the analog output card driving the SCR controller’s setpoint input should be verified for signal integrity before and after replacement. If the PLC program uses a dedicated function block or PID loop for temperature or power regulation, no software changes are typically required for a like-for-like UF3-0150F replacement, provided the control signal range and polarity are preserved.

In systems where the original UF3-0150F was paired with a SanRex current transformer (CT) for load current feedback, the CT ratio and secondary wiring must be confirmed to match the replacement unit’s input specification. Similarly, if the installation includes a power factor correction capacitor bank or harmonic filter on the same bus, the firing mode selection (phase-angle vs. zero-cross) on the replacement unit must replicate the original DIP switch configuration to avoid introducing harmonic disturbances or nuisance tripping of upstream protection devices.

Where the control cabinet also houses an HMI panel — such as a Proface GP4000 series or Schneider Magelis XBTGT — any analog trend displays or alarm setpoints referencing the SCR controller’s output should be verified post-commissioning to confirm that the replacement unit’s gain and offset characteristics match the original. Signal isolators or loop-powered transmitters in the 4–20mA circuit may require zero/span recalibration if the replacement unit presents a different input impedance.

For multi-zone systems, it is advisable to replace one UF3-0150F zone at a time, restoring and verifying each zone before proceeding to the next. This approach limits exposure to simultaneous multi-zone outages and allows the commissioning team to validate wiring, signal levels, and thermal performance zone by zone before returning the full system to production.

Downtime Control During System Migration

Minimizing unplanned downtime during a UF3-0150F replacement begins with pre-staging the replacement unit and all associated consumables — including semiconductor fuses, terminal ferrules, and any required DIN rail adapters — before the maintenance window opens. A pre-shipment functional test report from NINERMAS confirms that the replacement unit has been energized, signal-tested, and verified against UF3 series electrical parameters, reducing the risk of receiving a non-functional unit on the day of installation.

During the changeover, the original PLC program and HMI configuration should be backed up to a laptop or USB memory card before any wiring is disturbed. If the system uses a Mitsubishi GX Works or Omron CX-Programmer project file, a verified backup ensures that the control logic can be restored immediately in the event of an unexpected fault during commissioning. For systems with a SanRex SDC or DCL temperature controller providing the setpoint signal, the controller’s auto-tuning parameters and setpoint ramp rates should also be recorded.

Once the replacement UF3-0150F is installed and wired, a cold-start verification sequence is recommended: apply control power first without main power, confirm that the control signal is received and the firing circuit responds correctly, then apply main power at reduced load before ramping to full production setpoint. This staged energization approach protects both the replacement unit and the connected load from transient stress during the first power-on cycle.

For critical production lines where even a brief interruption is unacceptable, NINERMAS can support advance stock arrangements, allowing a pre-tested UF3-0150F replacement unit to be held on-site as a hot spare. Combined with the 12-month warranty coverage, this approach provides a complete lifecycle safety net for legacy SCR power control infrastructure that is no longer supported by the original manufacturer.

Retrofit Support FAQ

Q1: Is the NINERMAS-supplied UF3-0150F a direct drop-in replacement for the original SanRex unit?
Yes. The replacement unit is sourced and verified to match the UF3-0150F’s rated current (150A), three-phase configuration, control signal input range, firing mode options, and mounting footprint. No panel modifications or wiring changes are required for a standard like-for-like replacement. Customers should document the original DIP switch positions and terminal wiring before removal to ensure the replacement is configured identically.

Q2: What pre-shipment testing is performed on each unit?
Every UF3-0150F supplied by NINERMAS undergoes functional testing prior to dispatch. This includes energization verification, control signal response testing, and a check of the firing circuit across the rated current range. A test report is available upon request. All units are covered by a 12-month warranty against functional defects under normal operating conditions.

Q3: Can the replacement unit be used in systems with a PLC analog output driving the setpoint signal?
Yes. The UF3-0150F accepts standard 4–20mA or 0–10V analog control signals, which are the most common output types from PLC analog output modules used in legacy heating and power control applications. No changes to the PLC program or analog output card configuration are required, provided the signal range and polarity match the original installation. If the system uses a signal isolator or loop-powered transmitter in the control circuit, verify input impedance compatibility after installation.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains inventory of UF3 series SCR power controllers to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For customers with planned maintenance schedules or multi-unit retrofit projects, advance purchase and on-site spare stock arrangements are available. Contact sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and lead times for your specific requirement.
