S.C.E. M68-2000/5 ASSI Retrofit CNC Axis Control Module

S.C.E. M68-2000/5 ASSI Retrofit CNC Axis Control Module: Legacy-Compatible Upgrade for Aging CNC Systems

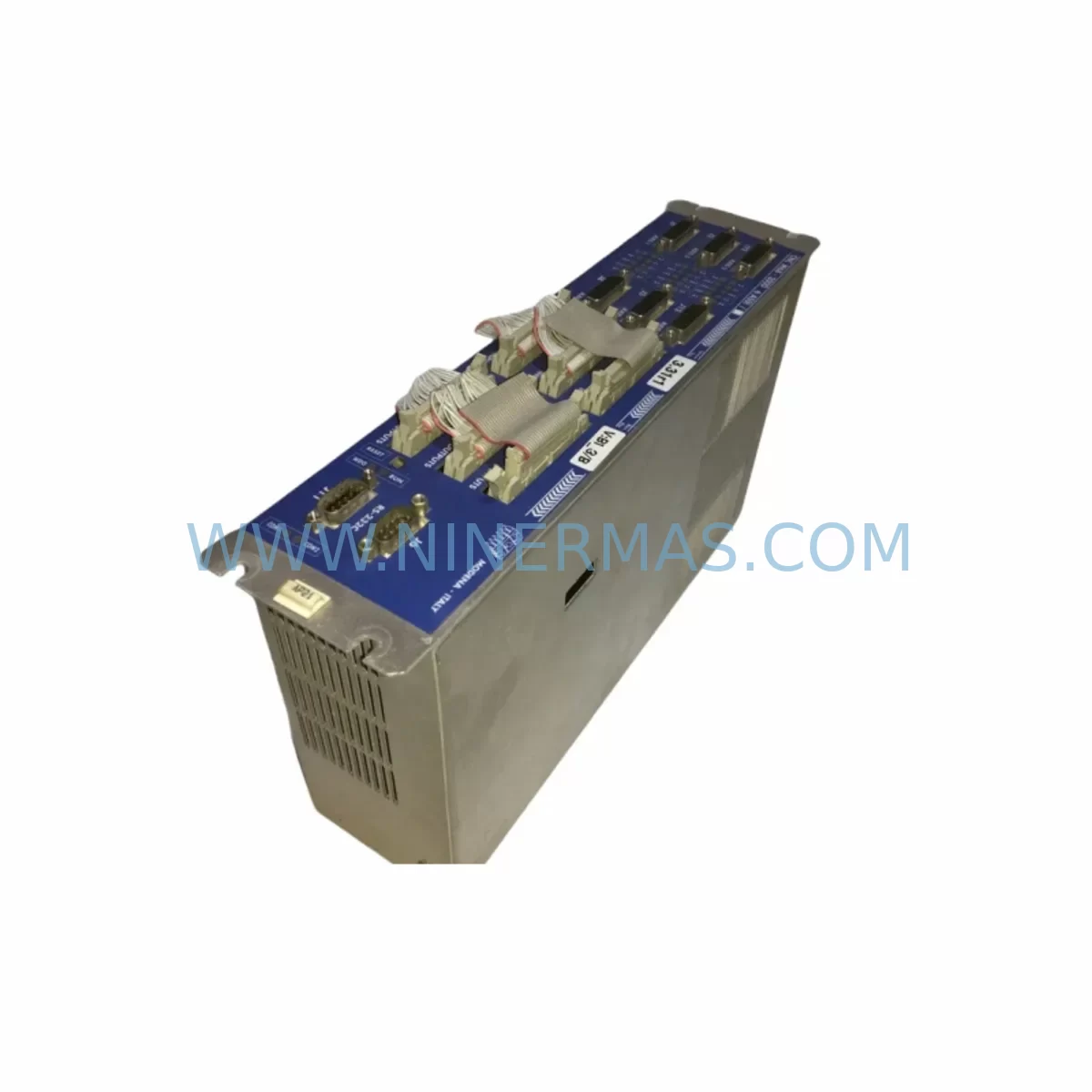

The S.C.E. M68-2000/5 ASSI is a multi-axis CNC control module from S.C.E.’s M68 series, designed for precision axis management in legacy CNC machining centers, milling machines, lathes, and automated production lines. As original equipment manufacturers discontinue support for M68-generation controllers, plant engineers and maintenance teams increasingly rely on verified retrofit-compatible replacements to extend the operational life of existing machinery without committing to full system overhauls. NINERMAS maintains verified stock of the M68-2000/5 ASSI to support exactly these scenarios — providing a direct, tested replacement path backed by a 12-month warranty.

The M68-2000/5 ASSI manages up to 5 controlled axes within the M68 CNC architecture, interfacing with the main CPU board, interpolation logic, and servo drive command outputs. Its role in the control chain makes it a critical spare: failure of this module typically results in complete axis loss, emergency stop conditions, or erratic servo behavior that halts production. Sourcing a verified replacement quickly — with pre-shipment functional testing — is essential to minimizing unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the M68-2000/5 ASSI in a live production environment requires careful pre-planning to avoid configuration loss and extended downtime. Before removing the existing module, engineers should back up all CNC parameters using the system’s parameter save function or a dedicated programming cable connected to the M68 CPU module. The M68 series CPU board typically stores axis configuration, interpolation parameters, and PLC ladder logic — losing this data during a module swap can add hours of re-commissioning time.

The M68 control cabinet often houses several interdependent components that must be verified during a retrofit. The M68 power supply module should be load-tested before the new axis card is installed — an under-rated or aging PSU can cause intermittent faults on the replacement module that are difficult to diagnose. Similarly, the M68 CPU board firmware revision must be confirmed compatible with the M68-2000/5 ASSI hardware revision; mismatched firmware can prevent axis initialization or cause communication errors on the internal backplane bus.

Servo drive wiring is another critical checkpoint. The M68-2000/5 ASSI outputs axis command signals to individual servo amplifier units — typically analog ±10V velocity references or digital pulse/direction signals depending on the machine configuration. Terminal block wiring, shielding continuity, and cable routing should be inspected and documented before the swap. Any degraded wiring discovered during this process should be replaced concurrently to avoid post-commissioning faults.

For machines that include encoder feedback modules or position measurement units connected to the M68 axis card, the feedback signal routing must be verified against the replacement module’s connector layout. Some M68-2000/5 ASSI revisions use slightly different connector pinouts for encoder inputs — always cross-reference the module label and revision marking against the original wiring diagram.

If the CNC system is integrated with an HMI operator panel — whether a dedicated S.C.E. operator terminal or a third-party panel connected via RS-232 or RS-422 — the communication link should be tested after the axis module replacement. HMI screen data, axis labels, and alarm text are typically stored in the HMI or CPU, not the axis module itself, but communication protocol settings may need to be re-confirmed if the replacement module has different default communication parameters.

Machines with I/O expansion modules connected to the M68 backplane should have their I/O address maps verified after the axis card is reseated. The M68 backplane assigns slot addresses sequentially, and any change in module slot position — even temporary — can shift I/O addressing and cause PLC logic errors. Confirm that the M68-2000/5 ASSI is reinstalled in the same backplane slot as the original unit.

Where the CNC system interfaces with external automation — such as a robot controller, pallet changer, or tool magazine controller — the handshake signals between the M68 PLC outputs and the external system should be tested in manual mode before returning the machine to automatic cycle. This is particularly important in transfer line applications where the M68 controller coordinates with upstream and downstream stations via fieldbus communication modules or hardwired I/O.

Finally, installation space should be confirmed before ordering. The M68-2000/5 ASSI occupies a specific number of backplane slots — verify that the target rack has the required adjacent free slots and that no cable management modifications are needed to accommodate the replacement module’s connector access.

Downtime Control During System Migration

Minimizing production downtime during an M68-2000/5 ASSI replacement begins before the machine is powered down. A complete parameter backup — including axis data, PLC program, tool offsets, and work coordinate systems — should be saved to an external storage device or laptop using the appropriate M68 programming interface. This backup is the single most important step: it allows rapid restoration of machine behavior after the module swap without relying on operator memory or paper records.

Once the backup is confirmed, the replacement sequence should be planned to keep the machine offline for the minimum necessary time. Prepare all tools, the replacement M68-2000/5 ASSI module, and any ancillary components — such as replacement terminal connectors or backplane retaining hardware — before powering down. Label all wiring connections photographically before disconnection. This documentation step is frequently skipped under time pressure and consistently leads to wiring errors that extend downtime.

After installing the replacement module and restoring power, perform a controlled axis initialization sequence: enable each axis individually in jog mode before running any automatic cycle. Verify axis direction, travel limits, and encoder feedback sign before proceeding to full-speed testing. If the machine uses a reference point return (home) sequence, execute this carefully and confirm that all axes reach their reference positions within expected tolerances.

For critical production lines where even brief unplanned stops carry significant cost, maintaining a spare M68-2000/5 ASSI module on-site is the most effective downtime control strategy. NINERMAS supplies verified, pre-tested units with full functional test documentation, allowing maintenance teams to execute a swap with confidence that the replacement module is operational before the original is removed from service.

All units supplied by NINERMAS are covered by a 12-month warranty against manufacturing defects and functional failure, with direct technical support available to assist with commissioning questions.

Retrofit Support FAQ

Q: Is the M68-2000/5 ASSI a direct drop-in replacement for my existing unit?
A: In most cases, yes — the M68-2000/5 ASSI is designed as a direct replacement for the same part number within the M68 series backplane. However, hardware revisions exist within the M68-2000/5 ASSI product line. We recommend confirming the revision marking on your existing module and contacting NINERMAS before ordering if you are uncertain about revision compatibility with your specific CPU board version.

Q: What pre-shipment testing is performed on NINERMAS-supplied units?
A: Every M68-2000/5 ASSI unit supplied by NINERMAS undergoes functional testing prior to shipment. Test results are documented and available upon request. Units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q: What wiring and terminal information do I need before installation?
A: You will need the original wiring diagram for your machine’s M68 control cabinet, specifically the connector pinout for the axis module slot. Photograph all existing wiring before removal. Confirm encoder feedback connector pinout, servo command output wiring, and any I/O signals routed through the axis module. If original documentation is unavailable, NINERMAS technical support can assist with general M68 series wiring guidance.

Q: What does the 12-month warranty cover?
A: The NINERMAS 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or operation outside the module’s specified environmental and electrical ratings. Warranty claims are processed directly through NINERMAS with replacement or repair as the resolution path.
