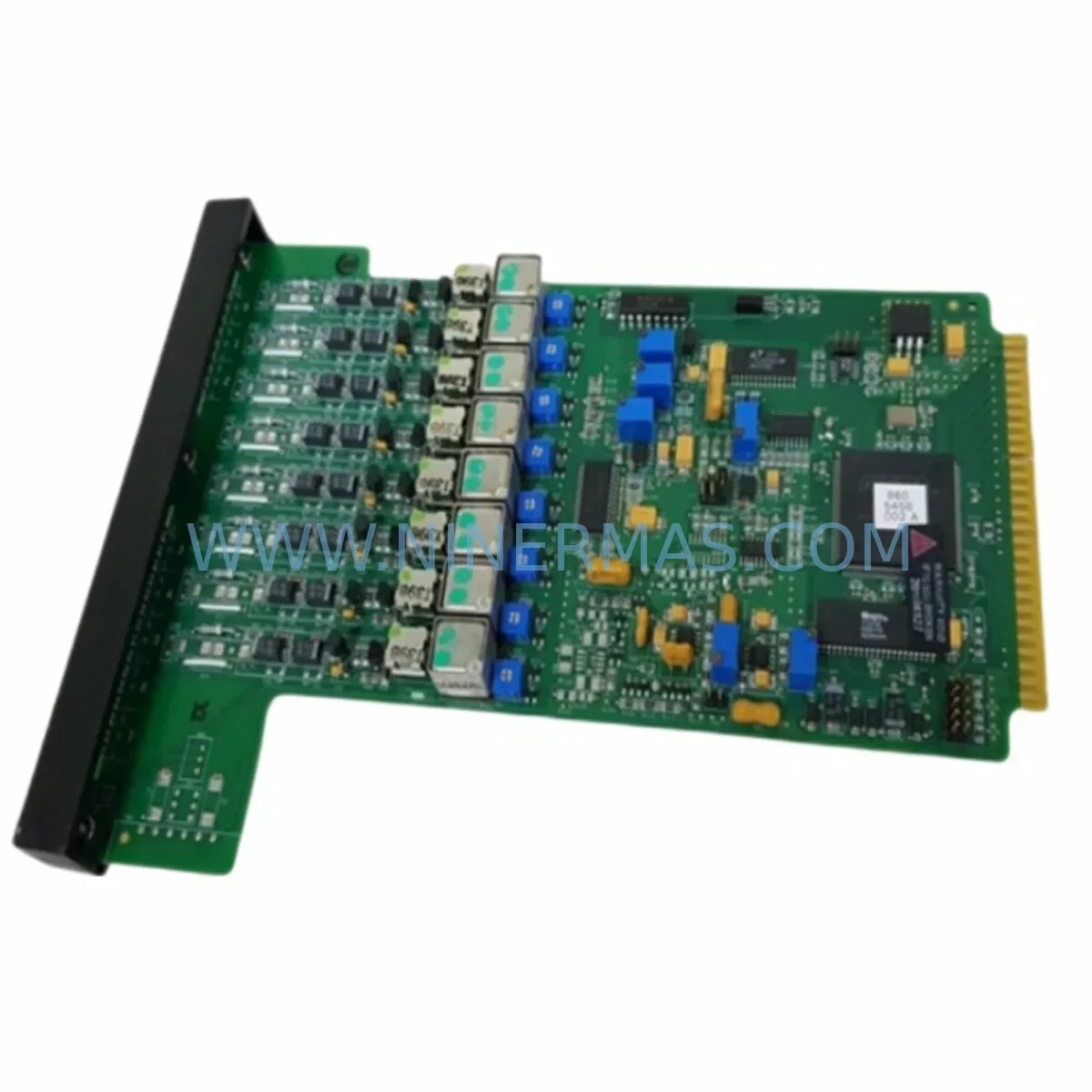

RTP NEQ8436/32-001 Retrofit-Compatible Isolated Thermocouple Card

RTP NEQ8436/32-001 Retrofit-Compatible Isolated Thermocouple Card for Legacy Systems

The RTP NEQ8436/32-001 is an isolated thermocouple input card engineered for the RTP 3000 Series distributed control platform. As process plants extend the operational life of legacy control architectures, this module serves as a critical retrofit-compatible replacement for aging or failed thermocouple input assemblies. Whether you are executing a planned spare parts replenishment, recovering from an unplanned shutdown, or executing a phased control system modernization, the NEQ8436/32-001 provides a direct-fit solution that minimizes engineering rework and commissioning time.

NINERMAS maintains verified stock of the RTP NEQ8436/32-001 with pre-shipment functional testing, documented inspection records, and a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Each unit is dispatched with a test report and traceability documentation to support your site acceptance procedures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the RTP NEQ8436/32-001 within an operating plant requires a structured approach that accounts for the interdependencies between the thermocouple input card and the broader control loop architecture. Before removing the failed or end-of-life module, engineers should document the existing terminal wiring assignments, confirm the thermocouple type and range configured in the host controller, and verify that the replacement unit carries the same hardware revision or a confirmed compatible revision.

In RTP 3000 Series installations, the NEQ8436/32-001 typically occupies a defined slot within the RTP 3000 Series chassis or backplane assembly. The backplane provides both power distribution and communication to the module. Before insertion, confirm that the RTP 3000 Series power supply module — often a redundant pair — is delivering stable DC bus voltage within specification. Insufficient bus power is a common cause of module initialization failures during retrofit operations.

The module address is assigned either via hardware DIP switches or through the RTP configuration software, depending on the firmware generation of the host RTP 3000 Series controller module. Mismatched address assignments will prevent the I/O module from being recognized by the controller scan cycle, resulting in fault alarms and loss of thermocouple readings. Confirm the address map in the existing project file before powering the replacement module.

For plants that have partially migrated to newer control platforms, the NEQ8436/32-001 may coexist in a hybrid architecture alongside RTP 3000 Series analog output modules and RTP 3000 Series digital I/O modules that remain in service. In these configurations, the communication link between the legacy RTP backplane and the new control layer — often bridged via a Modbus RTU or HART gateway module — must be verified to ensure that thermocouple data is correctly mapped to the new historian or DCS tag database.

Terminal wiring for the NEQ8436/32-001 follows the standard RTP field termination convention. If the plant uses a marshalling panel or terminal block assembly between the field junction boxes and the control cabinet, verify that the thermocouple extension cable type matches the thermocouple type configured in the module — mismatched extension cables introduce cold junction errors that are difficult to diagnose after commissioning. For installations where the original field wiring is being reused, inspect the cable insulation and shield continuity before reconnecting.

In safety instrumented system (SIS) applications where the NEQ8436/32-001 is part of a temperature measurement loop feeding a safety logic solver, the replacement procedure must comply with the site’s Management of Change (MOC) process. This typically includes a proof test of the complete measurement loop — from thermocouple element through the NEQ8436/32-001 to the logic solver input — before returning the loop to automatic mode. Coordinate with the process safety engineer to confirm that the SIL rating of the replacement module is consistent with the loop safety requirements.

Where the retrofit scope extends beyond a single module replacement to a broader control cabinet upgrade, the NEQ8436/32-001 is commonly replaced alongside RTP 3000 Series communication interface modules that handle Ethernet or serial links to the supervisory SCADA layer. Upgrading the communication interface at the same time as the thermocouple input card reduces the number of planned outage windows and allows the engineering team to perform a consolidated loop check and HMI tag verification in a single commissioning session.

NINERMAS supports retrofit planning by providing pre-shipment functional test data, module configuration guidance, and access to available spare inventory for associated RTP 3000 Series components. Contact our technical team at sale@ninermas.com to discuss your retrofit scope and confirm part availability before scheduling your maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime during a thermocouple input card replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-stage the replacement NEQ8436/32-001 at the site, complete all documentation reviews — including the existing module address, wiring schedule, and firmware version — and prepare a rollback plan in case the replacement unit does not initialize correctly.

For processes where continuous temperature monitoring is critical to safety or product quality, consider placing the affected control loop in manual mode before removing the failed module. This preserves the last known output state of the associated control valve or actuator and prevents the controller from generating spurious alarms or initiating automatic shutdowns during the module swap. Confirm with the process operator that manual mode is acceptable for the duration of the replacement procedure.

The physical module swap on an RTP 3000 Series backplane is typically completed in under fifteen minutes for a trained technician. The majority of the commissioning time is consumed by loop verification: confirming that the thermocouple signal is correctly received by the replacement module, that the engineering unit conversion is accurate, and that the value displayed on the operator HMI matches the field reference measurement. If the plant uses a redundant thermocouple input configuration, the redundancy switchover logic should be tested before returning the loop to automatic mode.

Program logic changes are generally not required when replacing the NEQ8436/32-001 with an identical part number, provided the module address and configuration parameters are preserved. However, if the replacement is part of a broader migration from the RTP 3000 platform to a new control system, the original ladder logic or function block program must be converted and validated on the new platform before the legacy system is decommissioned. NINERMAS recommends maintaining the legacy RTP system in a standby-ready state until the new system has completed a full production cycle without intervention.

Inventory availability is a key factor in downtime control. NINERMAS maintains stock of the RTP NEQ8436/32-001 and associated RTP 3000 Series spare parts to support emergency dispatch requirements. Standard lead time for stocked units is 3–5 business days for international shipments, with expedited options available for critical shutdowns. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock status before scheduling your maintenance window.

Retrofit Support FAQ

Q1: Is the RTP NEQ8436/32-001 a direct replacement for the original module in my RTP 3000 Series system?
Yes. The NEQ8436/32-001 is designed as a slot-compatible replacement for the RTP 3000 Series backplane. No hardware modification to the chassis or backplane is required. Verify that the module address configuration matches your existing project file before powering the unit.

Q2: What pre-shipment testing does NINERMAS perform on the NEQ8436/32-001?
Each unit undergoes functional verification prior to dispatch, including input channel continuity checks, isolation resistance measurement, and power-on initialization testing. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the NEQ8436/32-001 be used in a safety instrumented system (SIS) application?
The NEQ8436/32-001 is suitable for use in RTP 3000 Series SIS configurations where it was originally specified. For SIL-rated loops, confirm the module’s functional safety documentation against your loop safety requirements and complete a proof test after installation in accordance with your site’s SIS maintenance procedures.

Q4: What is the typical lead time and do you maintain ongoing inventory?
NINERMAS maintains verified stock of the RTP NEQ8436/32-001 to support both planned maintenance and emergency replacement requirements. Standard international lead time is 3–5 business days. For long-term supply commitments or bulk spare parts programs, contact sale@ninermas.com to discuss stocking agreements and fixed lead time arrangements.
