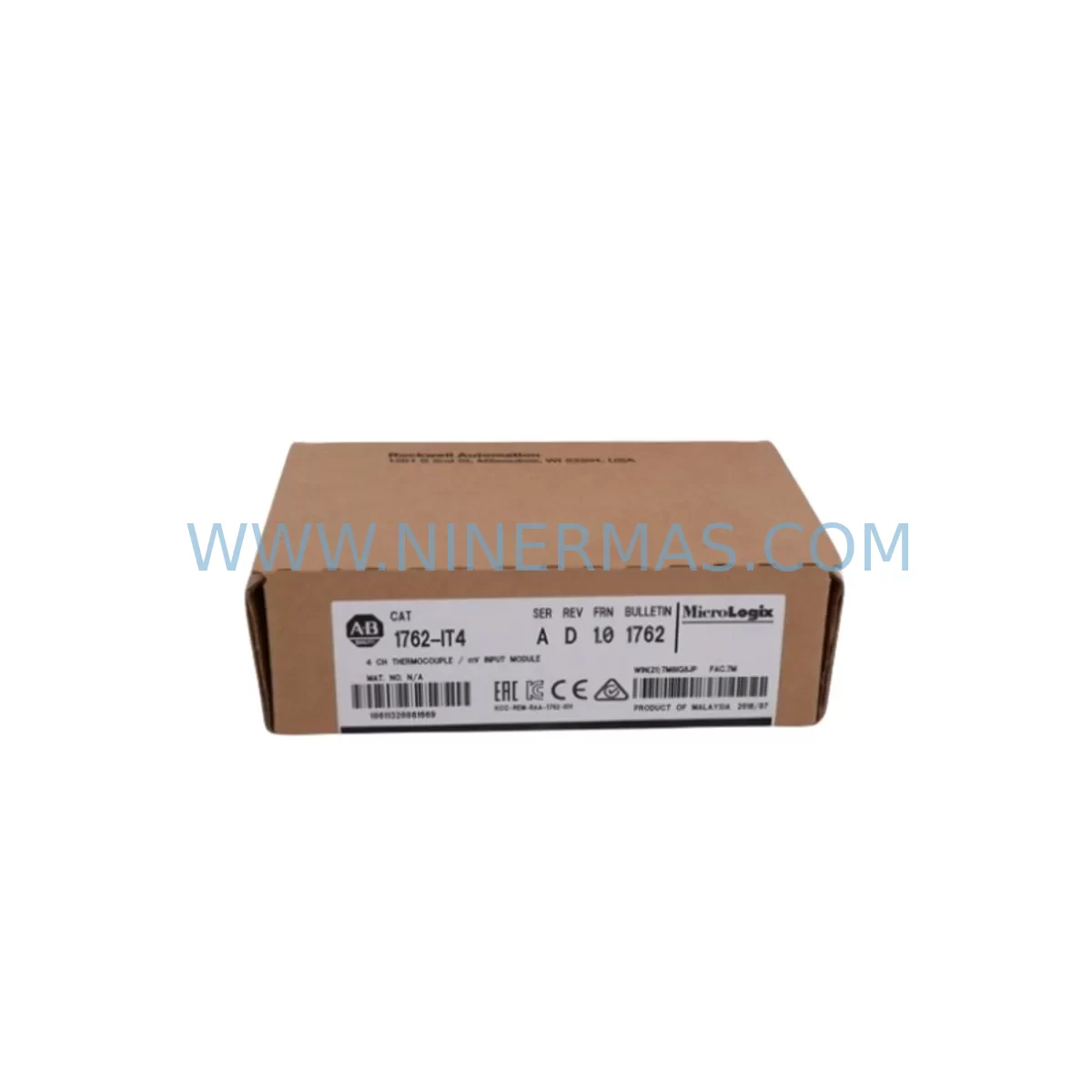

Allen-Bradley 1762-IT4 Safety-Reliable Thermocouple Input for Critical Control Sites

Allen-Bradley 1762-IT4 Safety-Reliable Thermocouple Input for Critical Control Sites

The Allen-Bradley 1762-IT4 is a 4-channel thermocouple and millivolt input module designed for the MicroLogix 1100 and MicroLogix 1400 expansion I/O platform. Built to meet the demanding requirements of continuous industrial production environments, the 1762-IT4 delivers precise analog temperature measurement with high immunity to electrical noise, signal drift, and power fluctuations — making it a trusted component in critical safety and control loops across process industries worldwide.

In facilities where unplanned downtime carries severe operational and safety consequences — including petrochemical reactors, power generation switchgear rooms, mineral processing plants, water treatment control buildings, metallurgical furnace lines, port crane control cabinets, and marine automation panels — the 1762-IT4 provides the measurement stability and fault tolerance that safety engineers and maintenance teams depend on. Its isolated input architecture minimizes ground loop interference, while its wide operating temperature range ensures reliable performance in high-temperature and high-vibration enclosures.

Every unit supplied by NINERMAS undergoes pre-shipment functional testing, including channel-by-channel signal verification, to confirm that the module performs to Allen-Bradley factory specifications before dispatch. A 12-month warranty is included with every order, covering manufacturing defects and functional failures under normal industrial operating conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered MicroLogix-based control cabinet, the 1762-IT4 thermocouple input module operates as part of a layered safety and reliability architecture. Accurate temperature measurement from the 1762-IT4 feeds directly into interlock logic executed by the MicroLogix 1100 or MicroLogix 1400 CPU, enabling the controller to trigger protective shutdowns or alarm outputs before thermal runaway or equipment damage occurs.

To protect the integrity of the 1762-IT4’s analog measurements, the control cabinet should incorporate proper power conditioning. The 1762-IQ8 digital input module and 1762-OW8 relay output module are commonly deployed alongside the 1762-IT4 in the same expansion rack, forming a complete discrete and analog I/O solution for temperature-critical interlocks. For applications requiring additional analog output capability, the 1762-OF4 analog output module complements the 1762-IT4 in closed-loop temperature control strategies.

Power supply stability is critical to measurement accuracy. A dedicated 1762-PA8 or equivalent MicroLogix-compatible power supply module ensures that voltage fluctuations on the plant distribution network do not propagate into the controller backplane and introduce signal drift in the 1762-IT4 channels. Surge protection devices installed at the cabinet entry point further reduce the risk of transient overvoltage events damaging the module’s isolated input circuitry.

In high-EMI environments — such as those adjacent to variable frequency drives (VFDs), large motor starters, or arc furnace control panels — shielded thermocouple extension cables terminated with proper grounding at a single point are essential to preserve the signal integrity that the 1762-IT4’s 16-bit resolution is capable of delivering. Where communication reliability is paramount, the 1761-NET-ENI Ethernet interface or 1761-NET-AIC advanced interface converter can extend MicroLogix connectivity to supervisory SCADA systems without introducing ground loops that could affect analog measurement quality.

For safety loop documentation and lifecycle management, the 1762-IT4 is frequently specified alongside 1762-IQ16 digital input modules for emergency stop and safety interlock monitoring, ensuring that both temperature and discrete safety signals are captured within the same compact MicroLogix platform. This integrated approach reduces wiring complexity, minimizes potential failure points, and simplifies the periodic proof-testing required by functional safety standards such as IEC 61511 in process industries.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The 1762-IT4 is deployed in reactor temperature monitoring loops, heat exchanger control circuits, and fired heater safety interlock systems where thermocouple signal accuracy directly determines whether a high-temperature shutdown is triggered correctly. Its open-wire detection feature ensures that a broken thermocouple does not result in a missed alarm condition — a critical requirement in SIL-rated safety instrumented systems.

Power Generation and Substation Control: In turbine lube oil temperature monitoring, transformer winding temperature supervision, and generator cooling system control, the 1762-IT4 provides the measurement precision needed to protect high-value rotating equipment. Its EMI immunity is particularly valuable in switchgear rooms where high-frequency interference from circuit breaker operations can corrupt analog signals in less robust modules.

Mining and Mineral Processing: Conveyor drive motor temperature monitoring, crusher bearing temperature supervision, and flotation cell heating control are typical applications in mining environments. The 1762-IT4’s wide operating temperature range and vibration resistance make it suitable for installation in control rooms located close to heavy crushing and grinding equipment.

Water and Wastewater Treatment: Pump motor winding temperature monitoring, UV disinfection system temperature control, and sludge digester heating loop management benefit from the 1762-IT4’s accurate millivolt and thermocouple measurement capability. Its compact form factor allows integration into space-constrained MicroLogix panels common in distributed pump station installations.

Metallurgical and Furnace Control: In electric arc furnace electrode temperature monitoring, continuous casting mold cooling water temperature supervision, and heat treatment oven control, the 1762-IT4 handles the high-temperature thermocouple types (R, S, B) required for accurate measurement in extreme thermal environments. Its channel isolation prevents furnace ground currents from corrupting temperature readings.

Port, Marine, and Offshore Applications: Crane drive motor temperature monitoring, ship engine room auxiliary system temperature supervision, and offshore platform process heater control represent marine and port applications where the 1762-IT4’s robustness against humidity, vibration, and salt-air corrosion (when properly enclosed) supports continuous safe operation in harsh maritime environments.

Safety and Quality FAQ

Q1: What warranty is provided with the Allen-Bradley 1762-IT4?
Every 1762-IT4 supplied by NINERMAS includes a 12-month warranty covering manufacturing defects and functional failures under normal industrial operating conditions. Warranty claims are supported with direct technical assistance and replacement dispatch to minimize control system downtime.

Q2: Is the 1762-IT4 tested before shipment?
Yes. Each unit undergoes pre-shipment functional testing including channel-by-channel signal verification across all four thermocouple/mV input channels. This ensures that the module performs to Allen-Bradley factory specifications upon arrival at your facility, reducing commissioning time and eliminating the risk of installing a non-functional spare into a critical control loop.

Q3: Is the 1762-IT4 compatible with both MicroLogix 1100 and MicroLogix 1400?
Yes. The 1762-IT4 is fully compatible with both the MicroLogix 1100 and MicroLogix 1400 expansion I/O systems. It connects via the standard MicroLogix expansion bus and is recognized automatically by RSLogix 500 / Studio 5000 Logix Designer programming software without requiring additional configuration beyond channel type selection.

Q4: Can long-term supply of the 1762-IT4 be assured for ongoing maintenance and spare parts programs?
NINERMAS maintains dedicated inventory of the 1762-IT4 to support planned maintenance schedules, emergency spare parts requirements, and multi-unit control system upgrades. Orders are fulfilled from verified stock with consistent lead times, and our team can assist with lifecycle planning for MicroLogix-based systems approaching end-of-life or requiring modernization to newer Allen-Bradley platforms.
