Rotork MOD 6G Retrofit-Compatible Main PCB for Legacy Systems

Rotork MOD 6G Retrofit-Compatible Main PCB for Legacy Systems

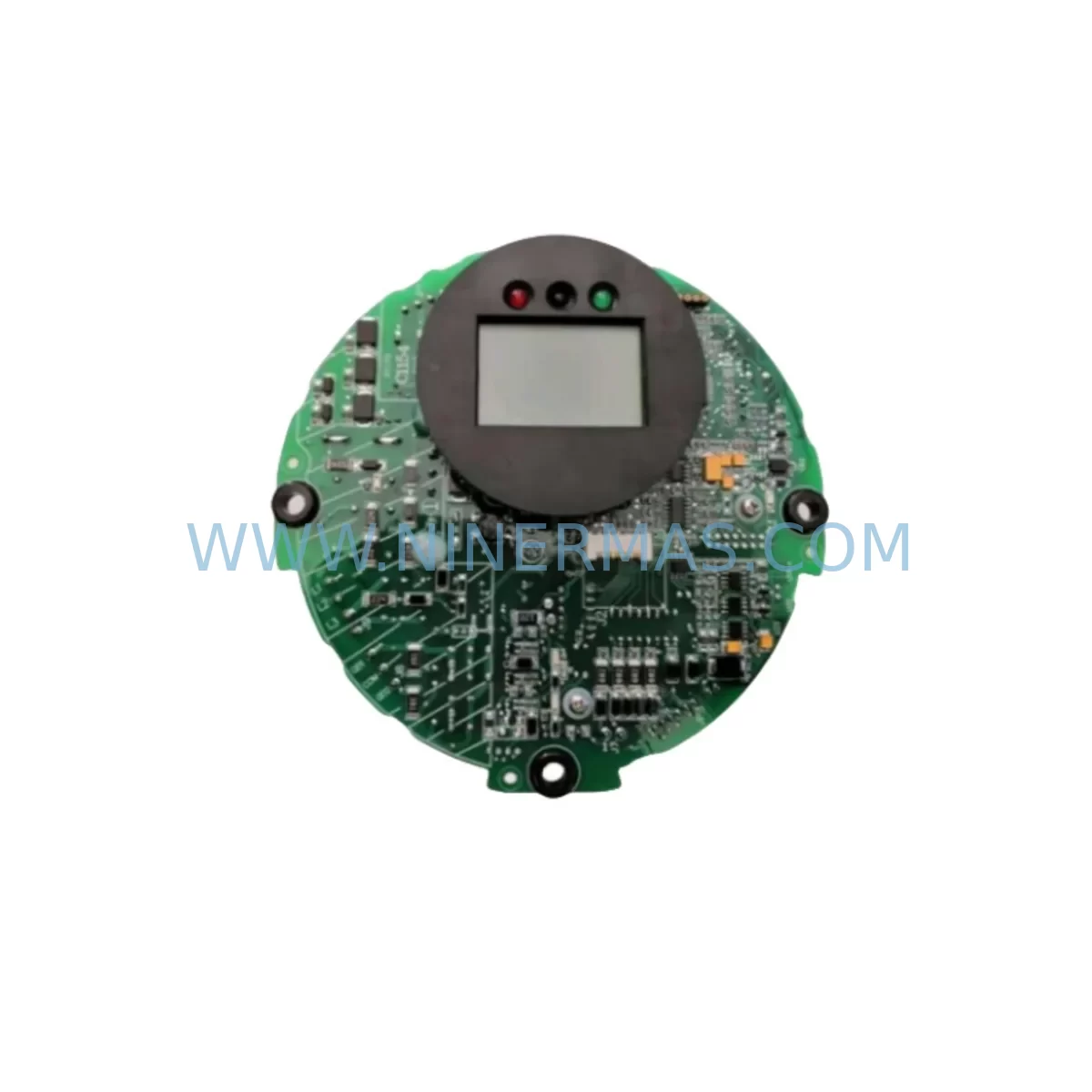

The Rotork MOD 6G main PCB module is a retrofit-ready replacement designed for engineers and maintenance teams managing legacy Rotork electric actuator installations. As original MOD 6G boards reach end-of-life or become unavailable through standard distribution channels, this compatible replacement unit provides a direct, drop-in upgrade path that preserves existing wiring configurations, terminal layouts, and actuator control logic — minimising engineering rework and unplanned downtime during system restoration or planned overhaul.

Rotork’s MOD series has been widely deployed across water treatment, oil & gas, power generation, and process industries. The MOD 6G board sits at the heart of the actuator’s control architecture, governing motor direction, torque limit response, position feedback, and local/remote switching. When this board fails or degrades, the entire actuator becomes inoperable — making fast, reliable replacement critical to maintaining process continuity.

This unit is pre-shipment tested, verified for functional output, and supplied with a 12-month warranty covering manufacturing defects and component failure under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a Rotork MOD 6G main PCB is rarely an isolated task. In most retrofit scenarios, the board failure is a symptom of broader actuator aging, and the replacement window presents an opportunity to audit adjacent components and reduce the risk of repeat failures. Before committing to a board swap, maintenance engineers should inspect the Rotork MOD 5 or MOD 7 control boards if fitted in adjacent actuators on the same valve train — cross-contamination from power surges or moisture ingress often affects multiple units simultaneously.

The actuator’s position transmitter module and torque switch assembly should be checked for wear or drift, as these interact directly with the main PCB’s feedback loop. If the site uses a Rotork Pakscan or HART multiplexer for remote valve monitoring, confirm that the replacement board’s firmware revision is compatible with the field bus polling cycle — mismatched firmware can cause intermittent communication dropouts that are difficult to diagnose after commissioning.

For actuators integrated into a DCS or SCADA system via a Profibus DP or Modbus RTU interface card, the communication module (such as a Rotork IQ-Profibus or IQ-Modbus plug-in card) should be removed and re-seated during the board replacement to eliminate connector oxidation as a fault source. Signal isolators on the 4–20 mA position feedback loop should also be verified — a degraded signal isolator can mask a successful board replacement by introducing loop resistance that mimics a board fault.

Where the actuator is mounted in a multi-drop control cabinet alongside other field devices, confirm that the cabinet’s 24 VDC auxiliary power supply can sustain inrush current during actuator initialisation after the board swap. Undersized power supplies are a common cause of post-replacement instability. If the site uses a Rotork IQ3 or IQT3 series actuator on the same network, note that the MOD 6G board is not cross-compatible with the IQ3 platform — separate spares management is required.

Finally, if the actuator drives a critical isolation or control valve, consider staging a hot-standby spare board on-site. Given the lead times associated with obsolete industrial PCBs, maintaining a buffer stock of MOD 6G boards — alongside related items such as the Rotork MOD 4 display board or MOD 8 power supply board — is a recognised best practice for sites with high actuator density and low tolerance for unplanned outages.

Downtime Control During System Migration

Minimising downtime during a Rotork MOD 6G board replacement requires preparation before the actuator is taken offline. The most effective approach is to document the existing board’s configuration — including torque settings, position limits, and any DIP switch or jumper configurations — using the actuator’s local display or a Rotork Setting Tool before power is removed. This data forms the baseline for post-replacement commissioning and eliminates the need to re-derive settings from process documentation, which is often incomplete for legacy installations.

Where the actuator is part of a live process loop, coordinate the replacement window with the control room to place the valve in a safe manual position and inhibit any automatic control signals from the DCS. Failure to inhibit automatic signals is a leading cause of actuator damage during maintenance — the replacement board may initialise in an unexpected state and respond to a queued control command before the engineer has completed commissioning checks.

After the board is installed and power restored, perform a full stroke test in local mode before returning the actuator to remote control. Verify that the open, close, and mid-travel position signals are correctly reported to the SCADA or DCS, and confirm that torque trip functions are active. If the site uses a Rotork Bluetooth Setting Tool or IQ-Insight software for configuration management, update the actuator’s asset record to reflect the board replacement date and new warranty period. This supports lifecycle planning and ensures the next maintenance interval is correctly scheduled.

For multi-actuator sites undertaking a phased MOD 6G replacement programme, a rolling replacement schedule — replacing boards during planned process shutdowns rather than reactively — significantly reduces total downtime exposure and allows pre-testing of replacement boards in a controlled environment before field installation.

Retrofit Support FAQ

Q1: Is the MOD 6G main PCB a direct drop-in replacement for my existing board?
In most cases, yes — the MOD 6G is designed as a form-fit-function replacement for the original Rotork MOD 6G board. However, you should verify the board revision number and any site-specific modifications (such as additional relay outputs or custom terminal wiring) before installation. If your existing board carries a suffix or variant designation, contact us with the full part number for confirmation.

Q2: What commissioning steps are required after replacing the MOD 6G board?
After installation, re-run the actuator’s torque calibration and position limit setup using the local controls or a Rotork Setting Tool. Verify local/remote switching, confirm position feedback signals at the control system, and perform a full open/close stroke test. If a Profibus, Modbus, or HART communication module is fitted, confirm that the actuator is correctly addressed and responding on the network before returning to service.

Q3: Do you hold stock of the MOD 6G board, and what are typical lead times?
Yes — we maintain in-stock inventory of the MOD 6G to support urgent replacement requirements. Standard orders are dispatched within 1–3 business days following order confirmation and pre-shipment testing. For large-quantity or scheduled maintenance orders, contact us to discuss dedicated stock reservation and phased delivery arrangements.

Q4: What warranty and testing does the MOD 6G replacement board carry?
Every MOD 6G board is functionally tested prior to dispatch to verify correct operation. The unit is supplied with a 12-month warranty covering manufacturing defects and component failure under normal operating conditions. Warranty claims are supported by our technical team, and replacement units can be dispatched on an advance exchange basis to minimise site downtime.
