Rosemount Analytical 1055-01-10-20-30 Service-Ready Spare Part

Rosemount Analytical 1055-01-10-20-30 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

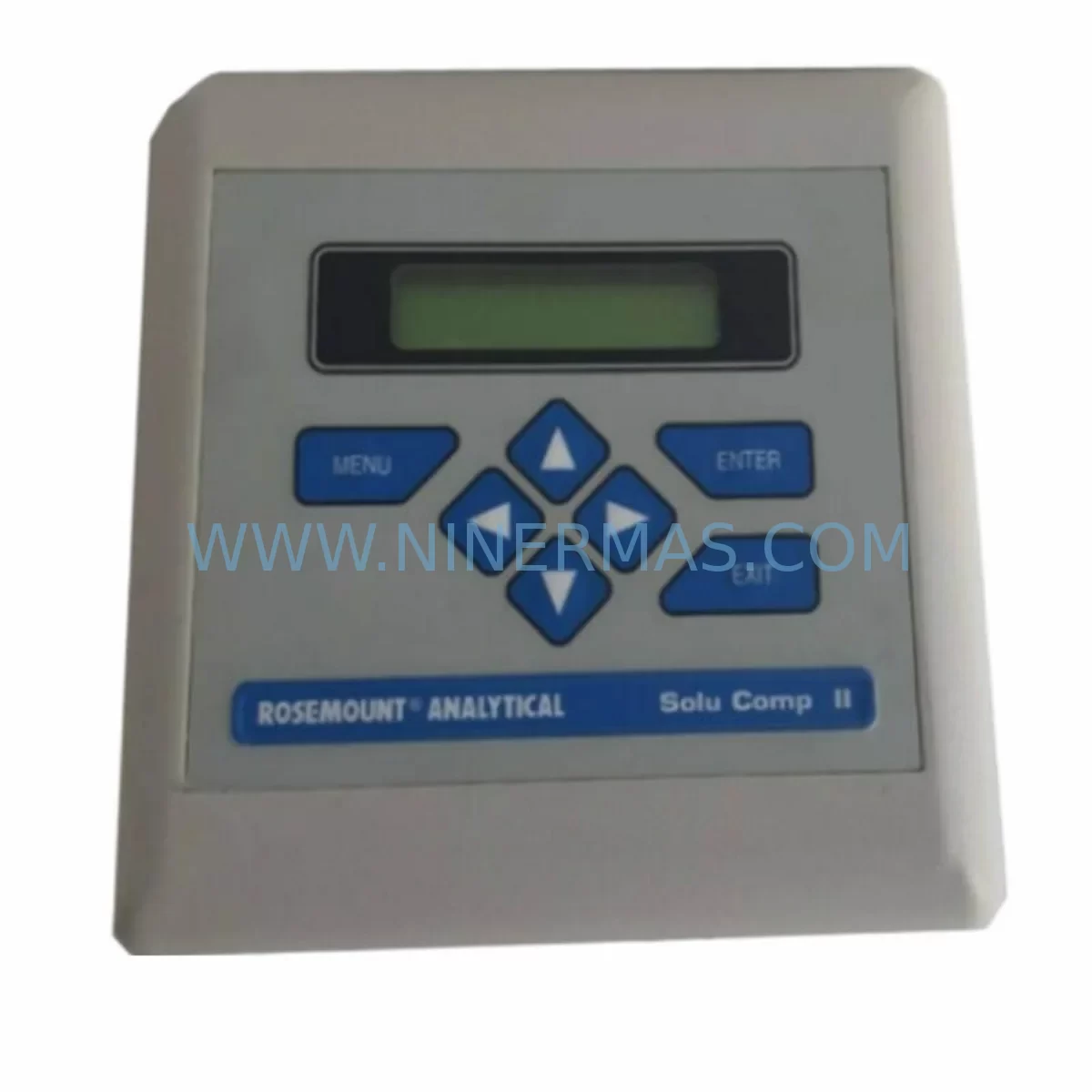

The Rosemount Analytical 1055-01-10-20-30 is a ruggedized dual-input analyzer module engineered for continuous operation in harsh industrial environments. As a direct-replacement spare part, this unit is sourced, inspected, and dispatched to support rapid field substitution — minimizing unplanned downtime in process plants, water treatment facilities, chemical processing lines, and power generation sites where analyzer uptime is mission-critical.

Maintenance engineers and procurement teams managing aging Rosemount 1055 Series installations rely on pre-qualified spare inventory to avoid extended outages. The 1055-01-10-20-30 configuration supports dual-sensor inputs, enabling simultaneous monitoring of two process variables — a capability that makes it a cornerstone component in multi-parameter measurement loops. When this module fails or degrades, the entire measurement chain is compromised, making fast, verified replacement essential.

NINERMAS maintains ready stock of the 1055-01-10-20-30 to support emergency call-outs, scheduled turnarounds, and long-term spare parts programs. Every unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving procurement engineers confidence in both quality and supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 1055-01-10-20-30 analyzer module, a disciplined site inspection of the surrounding measurement loop and control cabinet is strongly recommended. Maintenance engineers should treat this as an opportunity to audit the full signal chain and prevent secondary failures from undermining the newly installed spare.

Begin with the sensor and electrode assembly connected to the analyzer inputs. Rosemount pH and ORP sensors (such as the Rosemount 396P or Rosemount 3900 series electrodes) should be inspected for fouling, cracked reference junctions, or depleted fill solution. A degraded sensor will immediately compromise the accuracy of a new analyzer module, so simultaneous sensor replacement or recalibration is advisable during any planned outage.

Next, verify the 4–20 mA signal wiring and loop integrity. Corroded terminals, loose ferrules, or damaged shielded cable between the analyzer and the DCS/PLC input card can introduce noise or signal drift that mimics analyzer failure. Inspect the terminal blocks and DIN rail assemblies within the control cabinet — particularly any Phoenix Contact or Weidmüller terminal strips that carry the analog output signal to the control system.

The power supply module feeding the 1055 analyzer should be load-tested. Industrial SMPS units (such as 24 VDC rail-mount power supplies from Phoenix Contact QUINT or Siemens SITOP series) can develop output ripple or voltage sag over time, causing intermittent analyzer resets. Replacing or bench-testing the power supply during the same maintenance window eliminates a common root cause of recurring analyzer faults.

For sites where the 1055-01-10-20-30 interfaces with a Rosemount 333 HART Tri-Loop or similar HART signal splitter, verify that the HART communication path remains intact and that the splitter’s analog output channels are correctly scaled. HART multiplexers and signal conditioners are frequently overlooked during analyzer replacements and can cause commissioning delays if found faulty after the new module is installed.

In multi-loop installations, also inspect adjacent signal isolators and barriers — particularly Zener barriers or galvanic isolators protecting intrinsically safe sensor circuits. Units such as the Rosemount 470 Intelligent Transmitter Interface or equivalent MTL/Pepperl+Fuchs isolators should be checked for correct loop resistance and isolation integrity.

Finally, review the relay output wiring from the 1055 module. Alarm relay contacts driving solenoid valves, dosing pumps, or PLC digital inputs should be tested for contact resistance and correct setpoint operation. Relay contacts in analyzer modules are subject to arcing wear, and a replacement module with correctly configured relay setpoints will only perform reliably if the downstream wiring and loads are in good condition.

Procurement engineers building annual spare parts lists for 1055 Series installations should consider stocking: replacement pH/ORP electrodes, a spare 24 VDC power supply module, a set of terminal block connectors, HART signal splitter units, and at minimum one complete 1055-01-10-20-30 analyzer module per critical measurement loop. This inventory strategy supports same-day fault recovery without waiting on international lead times.

Site Replacement Workflow

Step 1 — Isolation & Safety: Place the measurement loop in manual mode at the DCS/PLC. Isolate the 1055 analyzer from its power supply using the dedicated circuit breaker or fused disconnect. Apply LOTO (Lockout/Tagout) per site procedures before opening the field enclosure.

Step 2 — Documentation: Photograph or record all existing wiring connections, terminal assignments, and configuration menu settings (alarm setpoints, output ranges, sensor type selection, temperature compensation mode) before disconnecting the faulty unit. The 1055 Series stores configuration in non-volatile memory, but settings should be documented manually as a backup.

Step 3 — Module Removal: Disconnect sensor cables, analog output wiring, relay output terminals, and power supply connections in sequence. Remove the module from its panel or pipe mount. Retain all mounting hardware for reuse.

Step 4 — Spare Installation: Mount the replacement 1055-01-10-20-30 module. Reconnect all wiring per the documented terminal assignments. Verify that sensor cable shielding is correctly terminated at one end only to prevent ground loops.

Step 5 — Configuration Restore: Power up the module and navigate the configuration menu to restore all setpoints, output ranges, sensor type, and alarm relay assignments. Cross-reference against the pre-removal documentation.

Step 6 — Loop Verification: Perform a wet calibration using buffer solutions (for pH) or conductivity standards. Verify 4–20 mA output at the DCS input card using a calibrated loop calibrator. Confirm relay operation at configured setpoints.

Step 7 — Return to Service: Remove LOTO, restore the loop to automatic control, and monitor the first 30 minutes of operation for stability. Log the replacement in the site CMMS with the new module serial number and warranty start date.

This workflow is compatible with legacy 1055-01-xx-xx-xx variants, allowing direct substitution without panel modifications. The ruggedized housing of the 1055-01-10-20-30 is dimensionally consistent with earlier 1055 Series configurations, eliminating the need for enclosure rework during replacement.

Spare Parts Support FAQ

Q1: Is the 1055-01-10-20-30 a direct replacement for other 1055 Series suffix variants?
The 1055 Series uses a modular suffix structure where positions 3–5 define input type, output configuration, and housing option. The 1055-01-10-20-30 is directly interchangeable with units sharing the same suffix structure. For cross-suffix replacements (e.g., substituting a -20 housing variant with a -30), dimensional and wiring compatibility should be verified against the Rosemount 1055 installation manual before ordering. NINERMAS technical support can assist with compatibility confirmation prior to purchase.

Q2: What pre-shipment testing is performed on each unit?
Every 1055-01-10-20-30 unit shipped by NINERMAS undergoes power-on functional verification, analog output loop check (4–20 mA), relay contact continuity test, and visual inspection for physical damage. Units that do not pass all checks are quarantined and not dispatched. A test record is available upon request for quality-critical procurement requirements.

Q3: Can NINERMAS support long-term or blanket order arrangements for the 1055-01-10-20-30?
Yes. NINERMAS supports annual spare parts programs, blanket purchase orders, and consignment stock arrangements for critical analyzer components. Long-term supply agreements include priority allocation, fixed pricing for the contract period, and dedicated account management. Contact sale@ninermas.com to discuss volume and scheduling requirements.

Q4: What does the 12-month warranty cover, and how are warranty claims handled?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are initiated by contacting sale@ninermas.com with the order reference, unit serial number, and a description of the fault. NINERMAS will arrange return shipping and dispatch a replacement unit upon fault confirmation, targeting a resolution within 10 business days.
