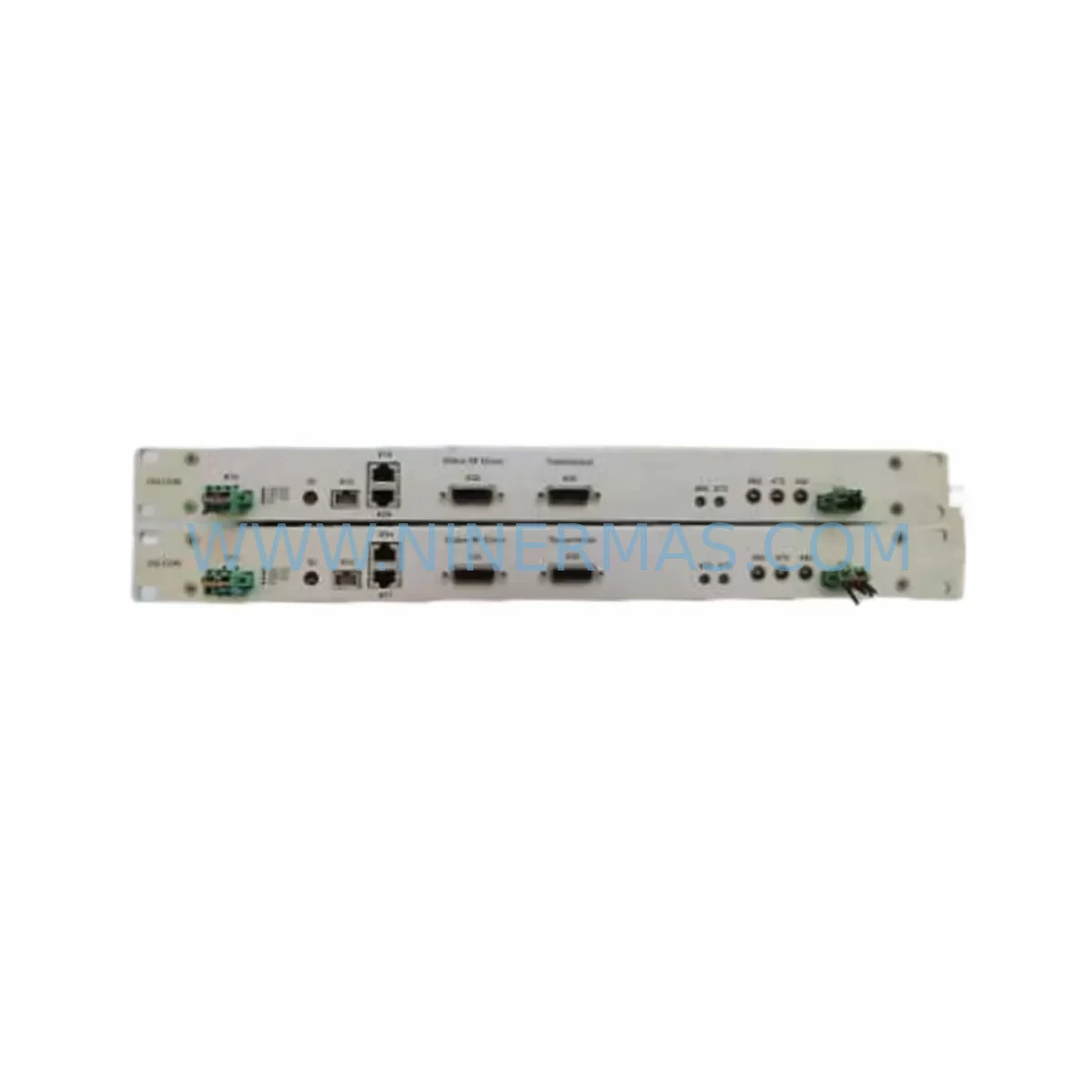

Rofin Sinar 101111198 Retrofit-Compatible Laser Controller

Rofin Sinar 101111198 Retrofit-Compatible Laser Controller for Legacy System Modernization

The Rofin Sinar 101111198 is a retrofit-compatible laser controller designed to serve as a direct replacement for end-of-life and discontinued control modules within Rofin Sinar laser systems. As industrial facilities face increasing pressure to maintain aging laser cutting, welding, and marking lines, the 101111198 provides a reliable, verified upgrade path that preserves existing program logic, minimizes rewiring, and reduces unplanned downtime. Whether you are managing a legacy CO₂ laser platform or modernizing a solid-state laser cabinet, this controller is engineered to integrate smoothly into your existing control architecture.

Procurement teams and maintenance engineers sourcing the 101111198 as a spare or retrofit component can rely on NINERMAS for verified stock, pre-shipment functional testing, and a 12-month warranty covering both parts and workmanship. Our supply chain spans original and OEM-equivalent sources, ensuring availability even for components that have been discontinued from the manufacturer’s active catalog.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the Rofin Sinar 101111198 within an operational laser system requires a structured approach that accounts for the full control chain — not just the controller module itself. Before initiating the swap, maintenance engineers should audit the existing Rofin Sinar DC Series power supply module to confirm that the 24 VDC rail can sustain the replacement controller’s inrush and steady-state current draw. Undersized power rails are a common cause of post-retrofit instability that is frequently misdiagnosed as a controller fault.

Terminal wiring is the next critical checkpoint. The 101111198 uses a defined terminal block layout for analog inputs, digital I/O, and safety interlocks. When migrating from an older revision of the same controller, technicians should photograph and document all existing wiring before disconnection. If the control cabinet also houses a Rofin Sinar I/O expansion module or a signal isolation barrier on thermocouple or encoder feedback lines, these must be verified for signal compatibility with the replacement unit’s input impedance specifications.

Backplane and rack integration is straightforward for same-generation Rofin Sinar platforms, but engineers retrofitting across generations — for example, migrating from an RS-series rack to a newer SC-series backplane — must confirm slot keying, connector pinout, and module address DIP switch settings. The Rofin Sinar SC Series backplane uses a different address scheme than earlier platforms, and incorrect addressing will prevent the controller from being recognized by the host PLC or CNC during startup.

Communication protocol migration is another area requiring careful pre-planning. Many legacy Rofin Sinar installations rely on RS-232 serial links between the laser controller and the machine’s main Siemens SINUMERIK CNC controller or a Beckhoff TwinCAT motion controller. If the retrofit involves upgrading the communication layer to EtherCAT or PROFINET, a protocol gateway module or communication bridge card will be required to maintain compatibility with existing HMI screens and PLC ladder logic without a full program rewrite.

HMI screen bindings should be reviewed before the controller is powered on post-installation. Laser system HMIs — whether running on a Rofin Sinar proprietary panel or a third-party Siemens TP series touch panel — reference specific controller register addresses for power setpoint, pulse frequency, beam shutter status, and fault codes. If the replacement 101111198 uses a revised firmware version, register mapping may have shifted, requiring HMI variable table updates before the system can be safely operated.

For facilities that also need to address I/O capacity during the retrofit, the 101111198 can be paired with a compatible Rofin Sinar digital I/O expansion card to add discrete input/output channels without modifying the main control cabinet wiring harness. This is particularly useful in laser welding cells where additional safety gate interlocks, beam dump sensors, or chiller fault inputs need to be integrated into the control loop.

Finally, installation space must be confirmed before the replacement unit arrives on-site. Control cabinets in older laser systems are often densely populated, and the addition of a DIN rail terminal block expander or a fiber optic communication module alongside the 101111198 may require panel reorganization. NINERMAS recommends requesting a dimensional drawing and connector layout sheet as part of the pre-order technical review to avoid on-site surprises during the maintenance window.

Downtime Control During System Migration

Unplanned downtime during a laser controller replacement is one of the highest-cost risks in industrial maintenance. A structured migration plan for the Rofin Sinar 101111198 should begin with a full backup of the existing controller’s parameter set, including power calibration tables, pulse shaping profiles, and safety interlock configurations. Most Rofin Sinar platforms support parameter export via the service interface or a dedicated programming cable connected to a laptop running the Rofin Sinar service software.

Where possible, the replacement controller should be bench-tested and pre-configured before the production line is taken offline. This means loading the backed-up parameter file, verifying communication link establishment with a test PLC or CNC simulator, and confirming that all I/O channels respond correctly to test signals. A pre-configured spare reduces the live swap window from several hours to under 30 minutes in most cases.

During the live swap, the original program logic in the host PLC — whether running on a Siemens S7-300, a Mitsubishi MELSEC Q Series, or an Allen-Bradley ControlLogix — should not be modified. The controller replacement is a hardware event; program changes should be deferred to a separate, planned maintenance window to avoid compounding variables during commissioning. After the 101111198 is installed and powered, the commissioning sequence should follow the Rofin Sinar startup checklist: communication link verification, I/O scan, laser power ramp test at reduced duty cycle, and full-power validation before returning the line to production.

Maintaining field control continuity during the migration window is critical in multi-axis laser systems where the controller interfaces with servo drives, galvo scanners, or beam delivery optics. If the system uses a Rofin Sinar galvo scan head controller in tandem with the 101111198, both units must be synchronized during startup to prevent beam positioning errors that could damage workpieces or optics. NINERMAS technical support is available to assist with commissioning guidance and parameter verification for customers who require on-call support during the migration window.

Retrofit Support FAQ

Q1: Is the Rofin Sinar 101111198 a direct drop-in replacement for the original module?
In most cases, yes — the 101111198 is designed as a form-fit-function replacement for the original controller position within compatible Rofin Sinar laser platforms. However, customers should verify the firmware revision, terminal block layout, and backplane connector pinout against their specific system BOM before installation. NINERMAS provides a pre-shipment technical datasheet upon request to support this verification step.

Q2: What commissioning steps are required after installing the replacement controller?
After physical installation, the standard commissioning sequence includes: (1) communication link verification between the 101111198 and the host CNC or PLC; (2) I/O channel scan to confirm all digital and analog signals are correctly mapped; (3) parameter file restore from the pre-swap backup; (4) HMI screen binding verification; and (5) a reduced-power laser test cycle before returning to full production duty. NINERMAS includes a commissioning checklist with every shipment.

Q3: How do I confirm wiring compatibility before installation?
Request the terminal block wiring diagram for the 101111198 from NINERMAS prior to ordering. Compare the connector layout against your existing cabinet wiring documentation. Pay particular attention to analog input polarity, safety interlock wiring, and any shielded cable grounding requirements. If your installation includes a signal isolation barrier or an I/O expansion module, verify that the signal levels and impedance specifications are compatible with the replacement controller’s input circuits.

Q4: What does the 12-month warranty cover, and is pre-shipment testing included?
Every Rofin Sinar 101111198 unit supplied by NINERMAS undergoes functional testing prior to dispatch to verify basic operational integrity. The 12-month warranty covers manufacturing defects and workmanship failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. Warranty claims are processed directly through NINERMAS — contact sale@ninermas.com for RMA initiation.
