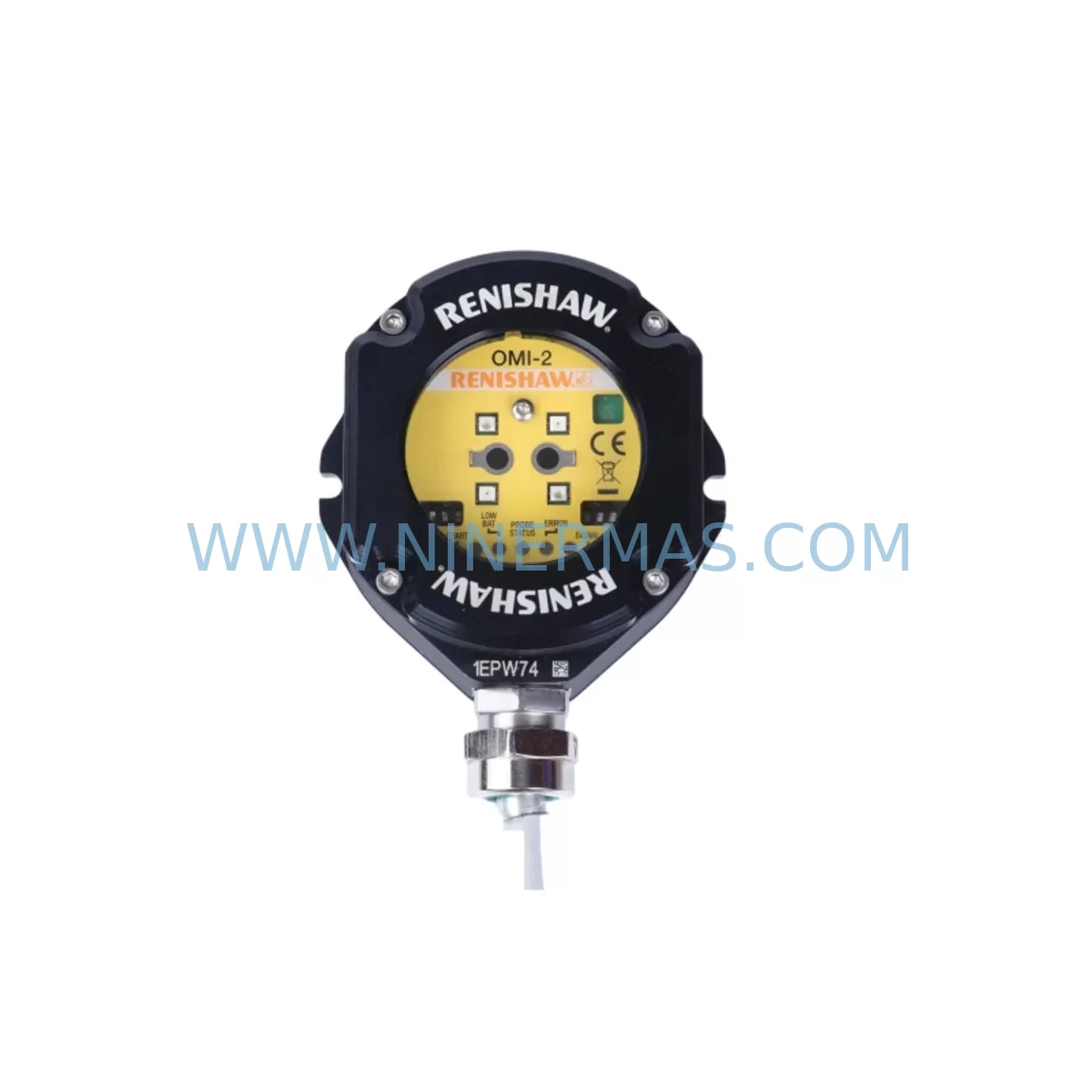

The Renishaw A-2115-0012-4 is an original optical machine interface (OMI) component designed for wireless signal transmission between machine tool probes and CNC controllers. In high-throughput manufacturing environments — automotive body shops, aerospace machining cells, precision mold shops, and energy sector component lines — unplanned downtime caused by a failed OMI receiver or interface module can halt an entire production cell within minutes. Stocking the A-2115-0012-4 as a verified service-ready spare is a proven strategy for reducing mean time to repair (MTTR) and maintaining system uptime across multi-shift operations.

This unit is compatible with the Renishaw OMI 1.5 KTI optical transmission system, which is widely deployed in CNC machining centers using Renishaw on-machine probing. The A-2115-0012-4 supports the optical signal path between the probe transmitter and the machine interface, enabling reliable tool setting, part setup verification, and in-process gauging. When this component degrades or fails, the entire probing loop is interrupted — resulting in missed datum references, scrapped parts, or forced manual inspection cycles that erode throughput.

NINERMAS supplies the A-2115-0012-4 as a tested, original spare with a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm signal integrity and mechanical fit before dispatch. Long-term supply commitments and reserved inventory programs are available for customers managing multi-site maintenance contracts or annual shutdown schedules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a CNC probing system extends well beyond the OMI receiver itself. When replacing the A-2115-0012-4, maintenance engineers should conduct a concurrent inspection of all components in the optical signal chain and the broader machine interface circuit to prevent repeat failures and maximize the value of each planned intervention.

Begin with the probe transmitter unit. If the machine is equipped with an OMP40-2 or OMP60 spindle probe, inspect the transmitter window for contamination, mechanical damage, or misalignment with the OMI receiver axis. A degraded transmitter will cause intermittent signal loss even after the A-2115-0012-4 is replaced. Similarly, if the installation uses an RMP60 radio machine probe or an OSP60 optical scanning probe, verify that the probe body seals and battery contacts are serviceable — these components share the same maintenance window and are often overlooked during reactive repairs.

Next, inspect the MI 12 machine interface or equivalent controller-side interface module. The MI 12 (part reference A-2033-0576) conditions the signal from the OMI and outputs a skip signal to the CNC controller. A faulty MI 12 can mimic OMI failure symptoms, so confirming its status before and after replacing the A-2115-0012-4 is essential for accurate fault isolation. Check the interface cable from the OMI to the MI 12 for chafing, connector corrosion, or pinched routing caused by machine axis movement.

The PSU3 power supply unit, which provides regulated DC power to the OMI system, should also be tested during this maintenance window. Voltage ripple or intermittent output from the PSU3 can cause erratic OMI behavior that is frequently misdiagnosed as a receiver fault. Inspect the junction box (A-2033-0830) for moisture ingress, terminal corrosion, and secure cable terminations. Loose terminals in the junction box are a common source of nuisance faults in high-vibration machining environments.

For installations using the OMI-2T transmitter variant or the OMI-2 receiver (A-2115-0070), confirm that the optical alignment between transmitter and receiver is within the manufacturer’s specified angular tolerance. Misalignment caused by machine crash events or fixture changes is a leading cause of premature OMI component failure. The PHC10-3 probe cable, where used, should be inspected for jacket integrity and connector seating — a damaged probe cable can introduce signal noise that accelerates wear on the OMI optical path.

Maintaining a consolidated spare parts kit that includes the A-2115-0012-4, a spare MI 12 interface, PSU3 power supply, and a set of probe batteries and seals enables a maintenance team to restore full probing functionality within a single shift, regardless of which component has failed. This approach is particularly valuable for facilities operating on tight production schedules where extended diagnostic cycles are not acceptable.

Site Replacement Workflow

Replacing the A-2115-0012-4 in the field follows a structured sequence to minimize downtime and ensure system compatibility is maintained from the first power-on after installation.

Before removing the existing unit, document the current mounting position, cable routing, and optical alignment angle using photographs or a site sketch. This reference is critical for achieving correct alignment of the replacement unit without extended trial-and-error adjustment. Power down the machine and isolate the OMI circuit at the PSU3 or machine control panel before disconnecting any cables.

Remove the failed A-2115-0012-4 and inspect the mounting surface and cable connector for damage. Clean the mounting area and install the replacement unit using the original fastener torque specification. Reconnect the interface cable to the MI 12 and restore power. Use the Renishaw diagnostic LED indicators on the OMI receiver to confirm signal acquisition before running a full probe calibration cycle on the CNC controller.

After calibration, execute a reference part measurement cycle and compare results against the last known-good measurement record. A deviation within the system’s specified repeatability confirms successful replacement. Log the replacement in the machine maintenance record, noting the part number, serial number if available, installation date, and the name of the technician who performed the work. This documentation supports warranty claims and provides traceability for future maintenance planning.

For facilities managing multiple CNC machines with Renishaw probing systems, a standardized replacement workflow reduces the skill dependency of the repair task and enables less experienced technicians to complete the replacement safely and correctly. NINERMAS can supply the A-2115-0012-4 with application-specific installation notes on request.

Spare Parts Support FAQ

Q1: Is the A-2115-0012-4 compatible with all Renishaw OMI 1.5 KTI installations?
The A-2115-0012-4 is designed for use within the Renishaw OMI 1.5 KTI optical transmission system. Compatibility depends on the specific machine interface configuration and probe model in use. Customers are advised to confirm the existing OMI system variant and MI 12 interface version before ordering. NINERMAS technical support can assist with compatibility verification based on the machine model and existing Renishaw system documentation.

Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, mechanical impact, coolant ingress beyond the component’s rated protection level, or use outside the specified operating environment. To initiate a warranty claim, contact NINERMAS with the original order reference, a description of the fault, and photographic evidence of the installation condition. Replacement or repair will be arranged promptly upon assessment.

Q3: How should the A-2115-0012-4 be stored if purchased as a long-term spare?
Store the unit in its original packaging in a clean, dry environment at a stable temperature between 5°C and 40°C, away from direct sunlight and sources of electromagnetic interference. Avoid storing the unit near solvents, cutting fluids, or other chemicals that could degrade the optical window or connector seals. Inspect the unit annually if held in long-term storage and replace the packaging if it shows signs of moisture damage. NINERMAS offers reserved inventory programs for customers who require guaranteed stock availability over multi-year maintenance contracts.

Q4: Can NINERMAS supply the A-2115-0012-4 on an emergency or expedited basis?
Yes. NINERMAS maintains reserved stock of high-demand Renishaw OMI components to support emergency dispatch requirements. Contact the sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock status and arrange expedited shipment. Pre-shipment functional testing is performed on all units regardless of dispatch urgency, ensuring that the replacement part is verified before it leaves the warehouse.
