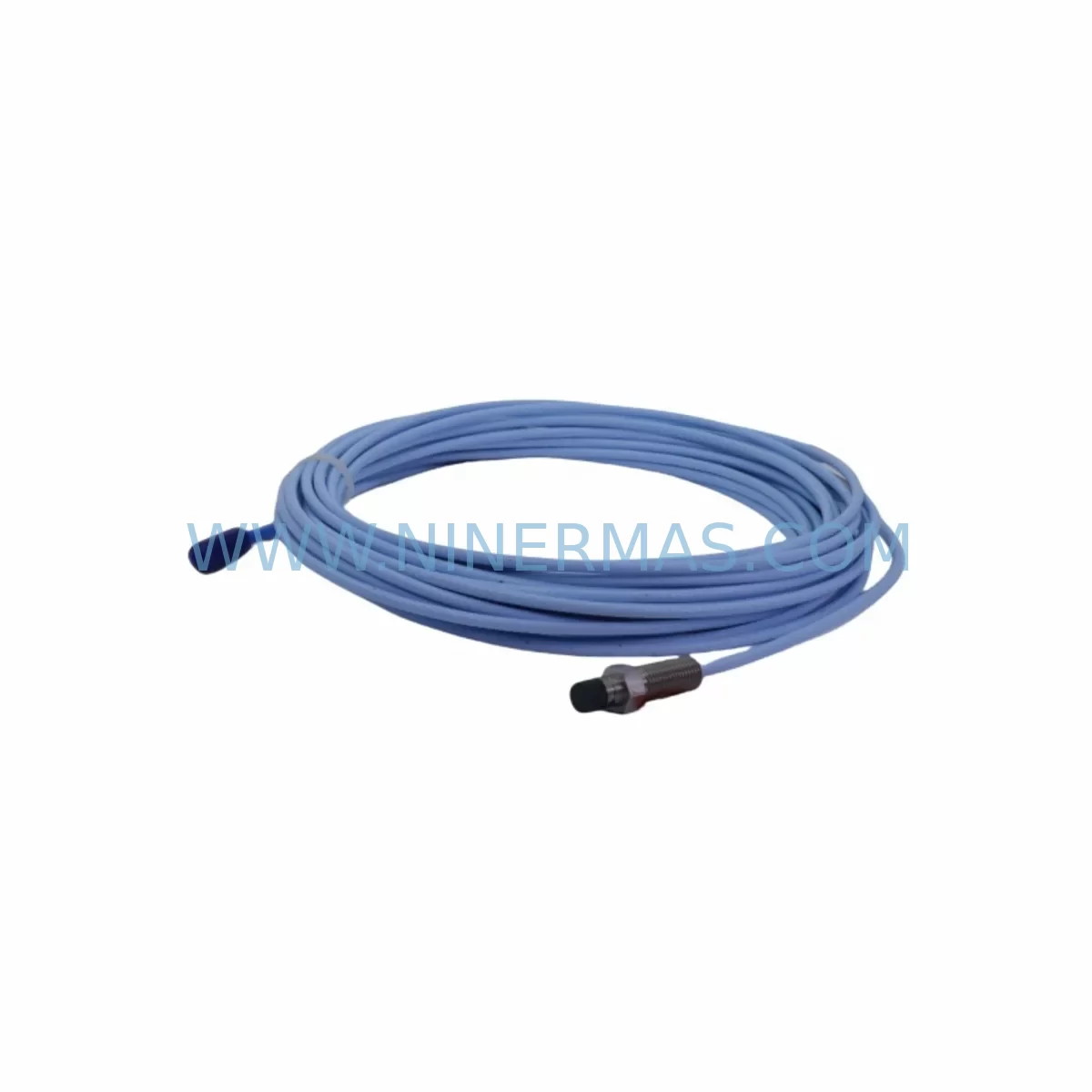

Bently Nevada 330881-16-00-200-06-02 Service-Ready Spare Part

Bently Nevada 330881-16-00-200-06-02 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

The Bently Nevada 330881-16-00-200-06-02 is a ruggedized proximity transducer module engineered for continuous vibration monitoring in demanding industrial environments. As a critical component within the Bently Nevada 3300 Series proximity system, this module provides reliable non-contact measurement of shaft displacement, radial vibration, and axial position — making it indispensable for rotating machinery protection in power generation, oil & gas, petrochemical, and heavy manufacturing facilities.

When this module fails or degrades, the consequences extend far beyond a single sensor. Unplanned downtime on turbines, compressors, pumps, and motors can cost thousands of dollars per hour. Maintaining a verified, service-ready spare of the 330881-16-00-200-06-02 in your critical spare parts inventory is one of the most cost-effective strategies for protecting continuous operation and meeting your plant’s reliability targets.

At NINERMAS, every unit undergoes functional testing and inspection prior to shipment. Each spare is backed by a 12-month warranty, giving maintenance engineers and procurement teams confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330881-16-00-200-06-02 in the field is rarely an isolated task. Experienced maintenance engineers know that a proximity transducer module failure is often a symptom of broader system stress. During any scheduled or emergency replacement, a thorough inspection of the surrounding electrical circuit and monitoring rack is strongly recommended.

Begin by verifying the condition of the Bently Nevada 330130 proximitor extension cable and the 330180 armored proximity probe — these three components form the complete proximity measurement chain, and degradation in the cable or probe will compromise the new module’s performance. Check the cable connectors for corrosion, mechanical damage, and proper seating.

Next, inspect the Bently Nevada 3500/20 rack power supply module that feeds the monitoring system. A marginal or failing power supply can cause intermittent transducer faults that are misdiagnosed as sensor failures. Confirm output voltage stability under load before commissioning the replacement module.

Within the 3500 Series monitoring rack, review the status of adjacent 3500/40M proximitor I/O modules and the 3500/22M transient data interface. These modules share the rack backplane and communicate over the internal rack bus — a failing backplane connector or corrupted I/O module can generate false alarms even after a successful transducer replacement.

For plants running integrated machinery protection systems, also verify the 3500/32 relay output module and associated trip relay wiring. Confirm that alarm and trip setpoints are correctly configured in the Bently Nevada System 1 software after any hardware change. If the facility uses a DCS or PLC integration via 4–20 mA or Modbus, validate the signal loop integrity and confirm that the new module’s output is correctly mapped to the control system historian.

Finally, check the terminal strip and field wiring for proper torque, insulation integrity, and correct polarity. Loose terminations are a leading cause of premature transducer failures in high-vibration environments. A complete inspection at the time of replacement — rather than a simple swap — dramatically reduces the risk of repeat failures and unplanned shutdowns.

Site Replacement Workflow

The 330881-16-00-200-06-02 is designed as a direct field replacement for existing 330881 series installations. The ruggedized housing and standardized connector interface allow maintenance teams to complete the swap without specialized tooling, minimizing the time the machine is offline.

Step 1 — Isolation & Lockout: Follow your site’s LOTO procedure. Confirm the machine is at rest and the monitoring rack is in bypass mode to prevent spurious trips during the replacement.

Step 2 — Documentation: Record the existing gap voltage and vibration baseline from the System 1 historian or local display before disconnecting the old module. This provides a reference for post-installation verification.

Step 3 — Removal: Disconnect the extension cable from the proximitor module. Remove the module from its mounting location, noting the orientation and any mechanical spacers.

Step 4 — Installation: Install the new 330881-16-00-200-06-02 in the same position. Reconnect the extension cable and verify connector seating. Apply thread-locking compound to mounting hardware if specified by your site maintenance standard.

Step 5 — Gap Setting & Verification: Power up the monitoring channel and confirm the gap voltage is within the specified linear range (typically -10 VDC ± 1 VDC for standard installations). Compare the live vibration reading against the pre-replacement baseline.

Step 6 — System Restoration: Remove the rack bypass, confirm alarm and trip functions are active, and update the maintenance management system (CMMS) with the replacement record, new module serial number, and next inspection interval.

This structured workflow ensures system compatibility is maintained, downtime is minimized, and the replacement is fully documented for audit and reliability analysis purposes.

Spare Parts Support FAQ

Q1: Is the 330881-16-00-200-06-02 compatible with both the 3300 and 3500 Series monitoring racks?
The 330881 series proximitor modules are primarily designed for use with Bently Nevada 3300 Series systems. Compatibility with 3500 Series racks depends on the specific I/O module and rack configuration. NINERMAS recommends confirming your rack model and I/O module part number before ordering. Our technical team can assist with compatibility verification prior to purchase.

Q2: How does NINERMAS verify the quality of spare parts before shipment?
Every 330881-16-00-200-06-02 unit shipped by NINERMAS undergoes a pre-shipment functional test to verify electrical performance and output signal integrity. Units are inspected for physical condition, connector integrity, and correct labeling. All shipments include documentation confirming the test result and are covered by a 12-month warranty from the date of shipment.

Q3: What is the recommended spare parts inventory strategy for proximity transducer modules?
For critical rotating machinery — turbines, compressors, and large pumps — industry best practice recommends holding a minimum of one spare proximitor module per monitored machine train, plus additional spares for high-criticality assets. Annual maintenance planning should include a review of spare parts consumption rates and lead times. NINERMAS supports long-term supply agreements to ensure consistent availability of the 330881-16-00-200-06-02 and related 330881 series components.

Q4: Can NINERMAS supply the 330881-16-00-200-06-02 on an ongoing basis for multi-site procurement?
Yes. NINERMAS maintains stock of the 330881-16-00-200-06-02 and related Bently Nevada 3300 Series spare parts to support both emergency replacement and planned annual procurement. We offer flexible order quantities, consolidated shipment for multi-site facilities, and dedicated account support for procurement engineers managing large spare parts programs. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply requirements.
