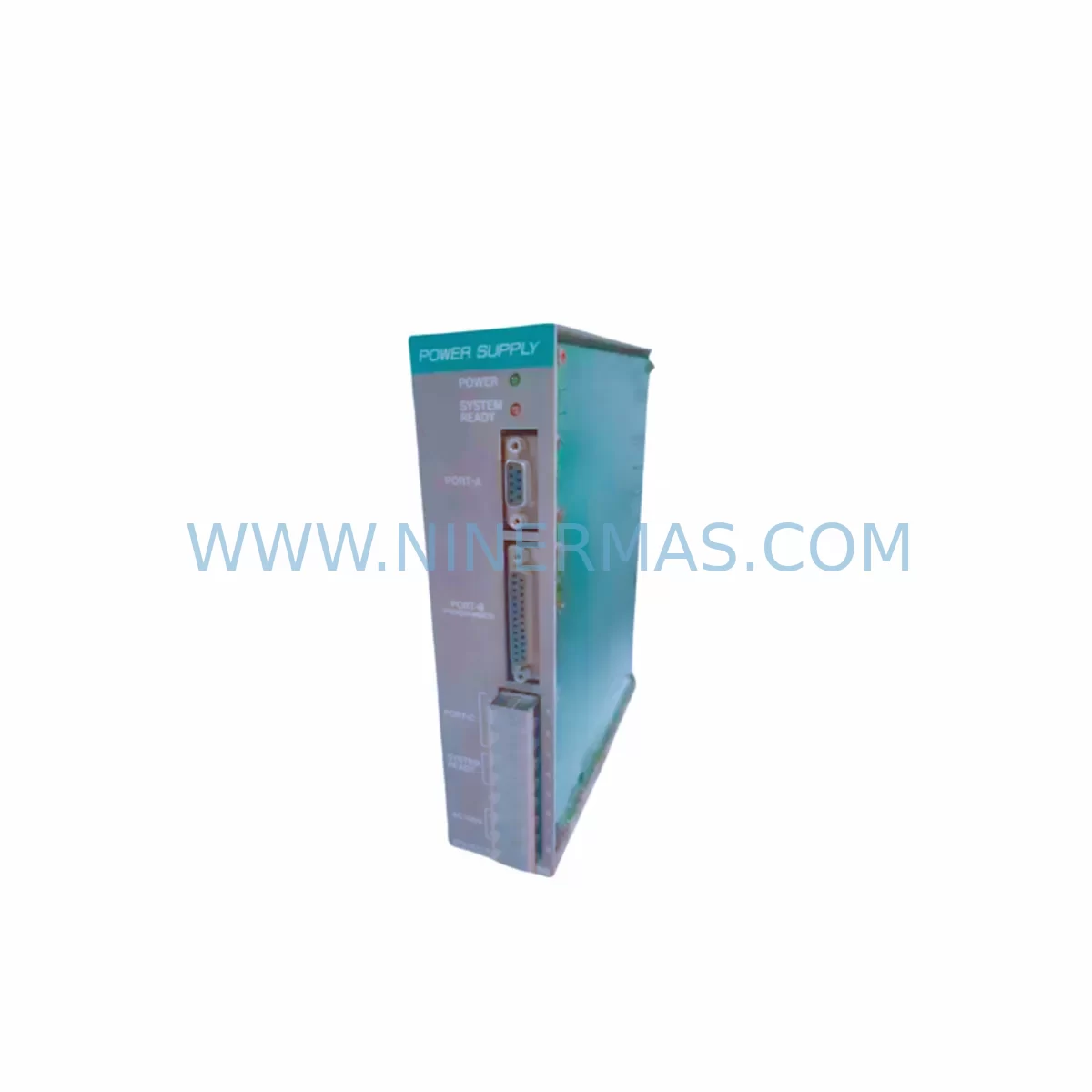

The Reliance WR-D4001 is a ruggedized DC power supply module engineered for demanding industrial environments and long-lifecycle automation platforms. As legacy control systems age beyond their original support windows, the WR-D4001 remains a critical retrofit-compatible component for engineers tasked with sustaining production continuity without full system replacement. Whether you are maintaining a Reliance AutoMate PLC rack, upgrading a GE Series 6 control cabinet, or bridging an aging distributed control system to a modern SCADA interface, the WR-D4001 delivers the stable, regulated DC output required to keep field devices, I/O modules, and communication links operational.

NINERMAS maintains verified stock of the WR-D4001 with a 12-month warranty on every unit shipped, supporting procurement teams that require documented quality assurance for spare-parts programs and insurance audits. Each unit undergoes pre-shipment functional testing to confirm output voltage stability, overcurrent protection response, and terminal integrity before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the replacement unit arrives on-site. When integrating the WR-D4001 into an existing Reliance AutoMate control rack, the first step is a full power budget audit. Engineers must tally the current draw of every module seated in the rack — including analog input cards, discrete output modules, and any co-located Reliance WR-D8002 communication interface modules — to confirm the WR-D4001’s rated output capacity is not exceeded under peak load conditions.

Terminal wiring documentation is equally critical. Legacy installations frequently use hand-labelled wire markers or rely on as-built drawings that have not been updated since original commissioning. Before removing the failed or end-of-life power supply, photograph all terminal connections and cross-reference against the original panel schedule. The WR-D4001’s screw-terminal block accepts AWG 12 through 22 conductors, which is compatible with the majority of field wiring found in 1980s and 1990s-era control cabinets.

Backplane slot alignment must be verified physically. The WR-D4001 is keyed for Reliance AutoMate rack backplanes and will not seat correctly in a GE Fanuc Series 90-30 or Series 90-70 rack. If the broader migration path involves transitioning from a Reliance platform to a GE or Allen-Bradley ControlLogix architecture, the power supply selection must be revisited at the system level. In such cases, the WR-D4001 may serve as an interim bridge supply while the new rack infrastructure — including replacement Allen-Bradley 1756-PA75 power supplies or equivalent — is procured and staged.

For systems that include Reliance WR-D6001 analog output modules or WR-D5002 discrete input modules, the power supply swap must be coordinated with a review of module address assignments. Some legacy Reliance racks use hardware DIP switches or jumper blocks to set module addresses; disturbing the rack during a power supply replacement creates an opportunity to audit and document these settings before the system is returned to service.

Communication link continuity is another key consideration. If the control rack hosts a Reliance WR-D8001 Data Highway adapter or a third-party Modbus RTU gateway, the communication link to the SCADA host or HMI panel will drop during the power cycle. Coordinate with the operations team to place the HMI in manual override or alarm-suppression mode before initiating the swap. After power restoration, verify that all node addresses are correctly recognized by the network master and that the HMI screen data tags are refreshing normally.

Where the retrofit scope extends to I/O expansion — for example, adding a Reliance WR-D5008 discrete output module to an existing rack — the power budget must be recalculated to include the new module’s quiescent and active current draw. Signal isolators, such as inline Phoenix Contact MACX analog signal conditioners, may be required if new field instruments operate at different signal levels than the original design.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy power supply replacement. For the WR-D4001, the recommended approach is a planned maintenance window of no less than two hours, allowing time for safe de-energization, module swap, wiring verification, and controlled power restoration with functional testing before handing the system back to production.

Before de-energizing the rack, export or photograph the current PLC program from the controller memory using the original programming software — whether that is the Reliance AutoMate programming terminal, a legacy serial programming cable, or a modern USB-to-RS232 adapter connected to the CPU module’s programming port. This step protects against the rare but catastrophic scenario where a battery-backed RAM module loses its program during the power interruption. If the CPU module uses a Reliance WR-D1001 processor card with battery-backed CMOS memory, verify the battery voltage before proceeding.

During the swap itself, work methodically: remove the failed power supply, inspect the backplane connector for bent pins or corrosion, seat the WR-D4001 firmly until the locking tab engages, and re-torque all field wiring terminals to the manufacturer’s specified torque value. After power restoration, allow a 30-second stabilization period before enabling outputs, giving the power supply time to reach steady-state regulation and allowing the CPU to complete its self-diagnostic cycle.

Post-swap functional testing should include a DC voltmeter check at the backplane power rails, a review of all module status LEDs, a forced I/O test on critical discrete outputs, and a communications link verification with the SCADA host. Document the date, technician name, and pre/post voltage readings in the panel maintenance log. NINERMAS provides a pre-shipment test certificate with each WR-D4001 unit, which can be retained as part of the site maintenance record.

Retrofit Support FAQ

Q1: Is the WR-D4001 a direct drop-in replacement for the WR-D4000?
In most Reliance AutoMate rack configurations, yes — the WR-D4001 occupies the same single backplane slot and uses the same edge connector pinout as the WR-D4000. However, you must verify that the output current rating of the WR-D4001 meets or exceeds the total load of all modules in the rack. If the WR-D4000 was operating near its rated capacity, a load audit is mandatory before substitution.

Q2: Can the WR-D4001 be used during a phased migration to a newer PLC platform?
Yes. The WR-D4001 is frequently used as an interim power supply during phased migrations where the I/O subsystem is retained while the CPU and communication modules are upgraded. It provides stable DC power to legacy I/O cards — including discrete input, discrete output, and analog modules — while the new controller platform is commissioned in parallel. This approach reduces migration risk and allows production to continue during the transition period.

Q3: What wiring changes are required when installing the WR-D4001 in an existing cabinet?
In most cases, no wiring changes are required if the existing field wiring is within the AWG 12–22 range and the terminal layout matches the WR-D4001’s screw-terminal block. Re-torque all terminals after installation. If the original installation used ferrule-terminated conductors, inspect the ferrules for corrosion and replace any that show signs of oxidation or mechanical damage.

Q4: What does the 12-month warranty cover, and how does NINERMAS handle warranty claims?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is pre-tested before shipment and ships with a test certificate. In the event of a warranty claim, contact NINERMAS at sale@ninermas.com or +0086 187 5021 5667 with the unit serial number and a description of the failure. NINERMAS will arrange for a replacement unit to be dispatched from verified stock, minimizing your system downtime.
