RELIANCE 0-60031-4 Service-Ready Spare Part for Industrial Maintenance

RELIANCE 0-60031-4 Service-Ready Spare Part for Industrial Maintenance

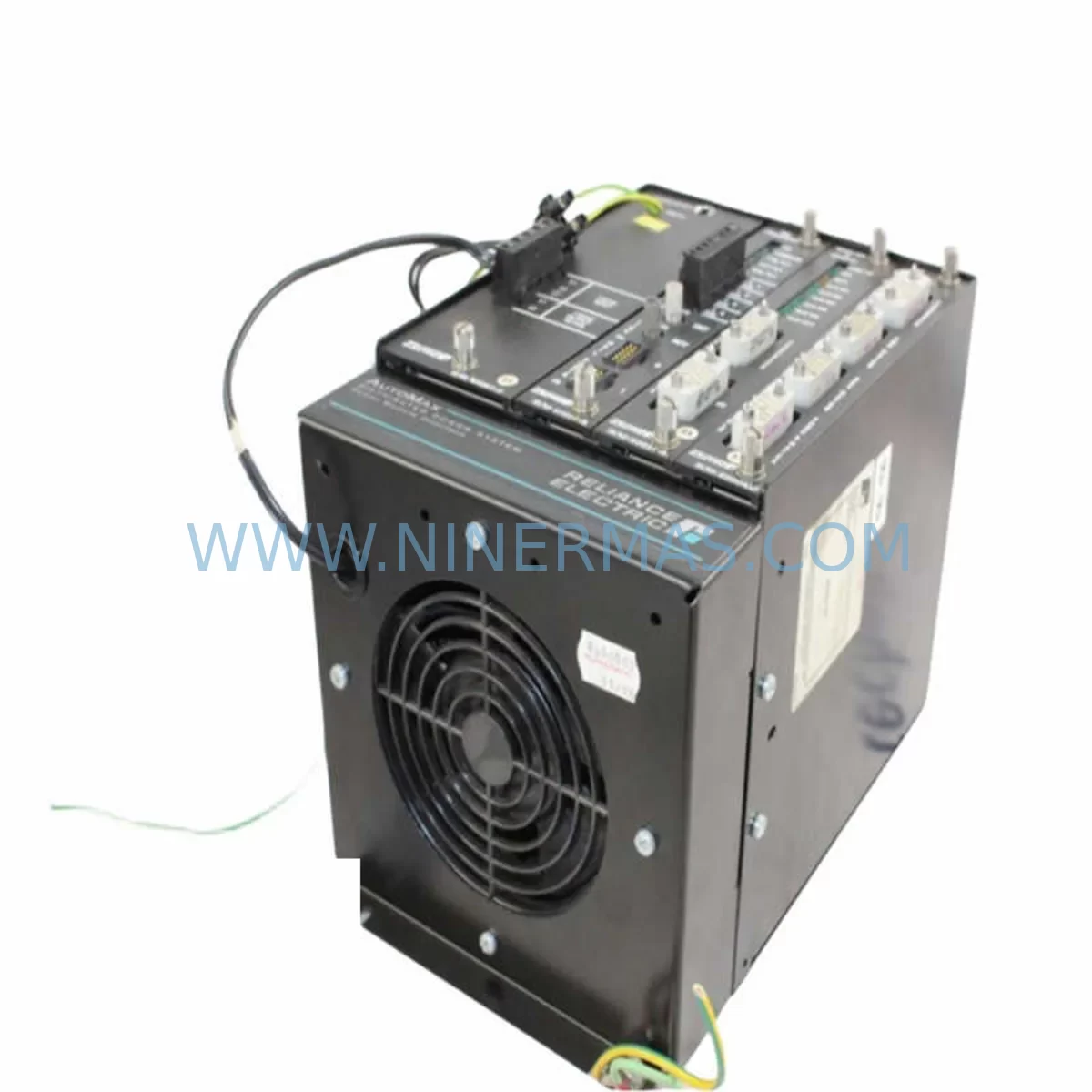

The RELIANCE 0-60031-4 is a ruggedized control module engineered for continuous operation in demanding industrial environments. As a genuine service-ready spare part, it is designed to support rapid field replacement, minimize unplanned downtime, and maintain system integrity across RELIANCE automation platforms. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a proactive spare parts inventory, the 0-60031-4 delivers the reliability and compatibility that maintenance and procurement engineers depend on.

Industrial facilities operating RELIANCE drive systems, motion controllers, and distributed control architectures frequently encounter the challenge of sourcing ruggedized control components that meet original specification tolerances. The 0-60031-4 addresses this directly — it is built to withstand vibration, thermal cycling, and electrical noise typical of heavy manufacturing, process automation, and utility control environments. Its ruggedized construction makes it particularly well-suited for applications where standard commercial-grade modules would fail prematurely.

For maintenance engineers, the 0-60031-4 represents a drop-in replacement that eliminates the need for firmware re-engineering or panel rewiring, provided the host system architecture is confirmed compatible prior to installation. Procurement engineers benefit from NINERMAS’s long-term supply commitment, ensuring this module remains available for legacy system support well beyond typical OEM end-of-life announcements.

All units supplied by NINERMAS are individually tested prior to shipment and covered by a 12-month warranty, giving your maintenance team confidence in every replacement cycle.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the RELIANCE 0-60031-4 control module during a scheduled or emergency maintenance event, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat the module replacement as an opportunity to audit the entire electrical loop.

Begin by verifying the 24VDC or 120VAC control power supply feeding the module rack — a degraded power supply is a common root cause of control module faults and should be tested or replaced as part of the same maintenance window. Inspect all field wiring terminals and terminal blocks for signs of oxidation, loose connections, or insulation breakdown, particularly in high-vibration environments where terminal screws can back off over time.

Check the associated I/O modules in the same rack or backplane for fault indicators. In RELIANCE control architectures, a failing I/O module can generate spurious signals that stress the control module. Similarly, inspect any relay output modules or interposing relays connected to the 0-60031-4’s output circuits — contact wear and coil degradation are frequent contributors to control loop instability.

If the system includes communication modules — such as serial, Ethernet, or fieldbus interface cards — verify their firmware versions and connection integrity. A communication fault upstream of the control module can trigger protective shutdowns that are misdiagnosed as module failures. For systems with signal isolators or signal conditioners on analog I/O channels, confirm that isolation barriers remain intact and that output scaling has not drifted.

Review the condition of the backplane or rack chassis itself. Backplane connector pins can oxidize or sustain mechanical damage in harsh environments, causing intermittent module faults that are difficult to diagnose without physical inspection. Where applicable, inspect fuse holders and circuit protection devices in the control circuit — a nuisance-tripping fuse or a fuse with elevated resistance can cause undervoltage conditions at the module.

For facilities running RELIANCE drive systems in the same electrical panel, confirm that drive-generated electrical noise is adequately filtered and that shielding on signal cables remains continuous. Finally, if an HMI or operator panel is networked to the control module, verify communication parameters and screen functionality after module replacement to confirm end-to-end system restoration before returning the line to production.

Building a spare parts kit around the 0-60031-4 — including a backup power supply module, a set of I/O cards, spare terminal blocks, and key relay modules — is a best practice for facilities that cannot tolerate extended downtime on this control loop.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the host system model, rack slot assignment, and firmware version requirements for the 0-60031-4 before ordering. Cross-reference the existing module’s label and any system documentation to ensure the replacement unit matches all required specifications.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure to de-energize the control panel. Verify zero-energy state with a calibrated voltage tester before opening the enclosure.

Step 3 — Module Removal: Document the existing wiring configuration with photographs before disconnecting any cables. Label all connectors if not already marked. Remove the 0-60031-4 from its slot, noting any mechanical retention clips or backplane locking mechanisms.

Step 4 — Inspection Window: Use this opportunity to inspect the backplane connector, adjacent modules, terminal blocks, and power supply as described in the Maintenance Planning section above. Replace any components showing signs of wear or degradation.

Step 5 — New Module Installation: Insert the RELIANCE 0-60031-4 replacement into the correct slot, ensuring full backplane engagement. Reconnect all field wiring per the documented configuration. Verify terminal torque values per the system’s installation manual.

Step 6 — Power-Up and Functional Test: Re-energize the panel in a controlled sequence. Monitor the module’s status indicators during initialization. Confirm I/O functionality, communication link status, and control loop response before releasing the system to production.

Step 7 — Documentation Update: Record the replacement date, new module serial number, and any additional components replaced in your maintenance management system (CMMS). Update your spare parts inventory to trigger reorder of the consumed 0-60031-4 unit.

Spare Parts Support FAQ

Q1: Is the RELIANCE 0-60031-4 still available for legacy system support?
Yes. NINERMAS maintains dedicated stock of the 0-60031-4 and other RELIANCE control modules to support facilities operating legacy automation systems beyond OEM end-of-life. Contact sale@ninermas.com for current stock status and lead time confirmation.

Q2: How is the 0-60031-4 tested before shipment?
Every unit is individually tested prior to dispatch to verify electrical integrity and functional performance. This pre-shipment testing process is part of NINERMAS’s quality assurance commitment and is covered under the 12-month warranty from the date of shipment.

Q3: How do I confirm compatibility before ordering?
Provide your host system model number, rack configuration, and existing module part number when contacting NINERMAS. Our technical team will verify compatibility and advise on any firmware or configuration requirements before the order is confirmed.

Q4: Can NINERMAS support long-term procurement planning for the 0-60031-4?
Yes. NINERMAS offers long-term supply agreements for critical spare parts including the 0-60031-4, allowing procurement engineers to secure multi-year inventory commitments and reduce sourcing risk for aging automation platforms. Contact our team to discuss volume pricing and scheduled delivery programs.
