PROVIBTECH TM0180-A08-B13-C20-D10 Retrofit Proximity Probe

PROVIBTECH TM0180-A08-B13-C20-D10 Retrofit Proximity Probe: Legacy System Compatible Upgrade

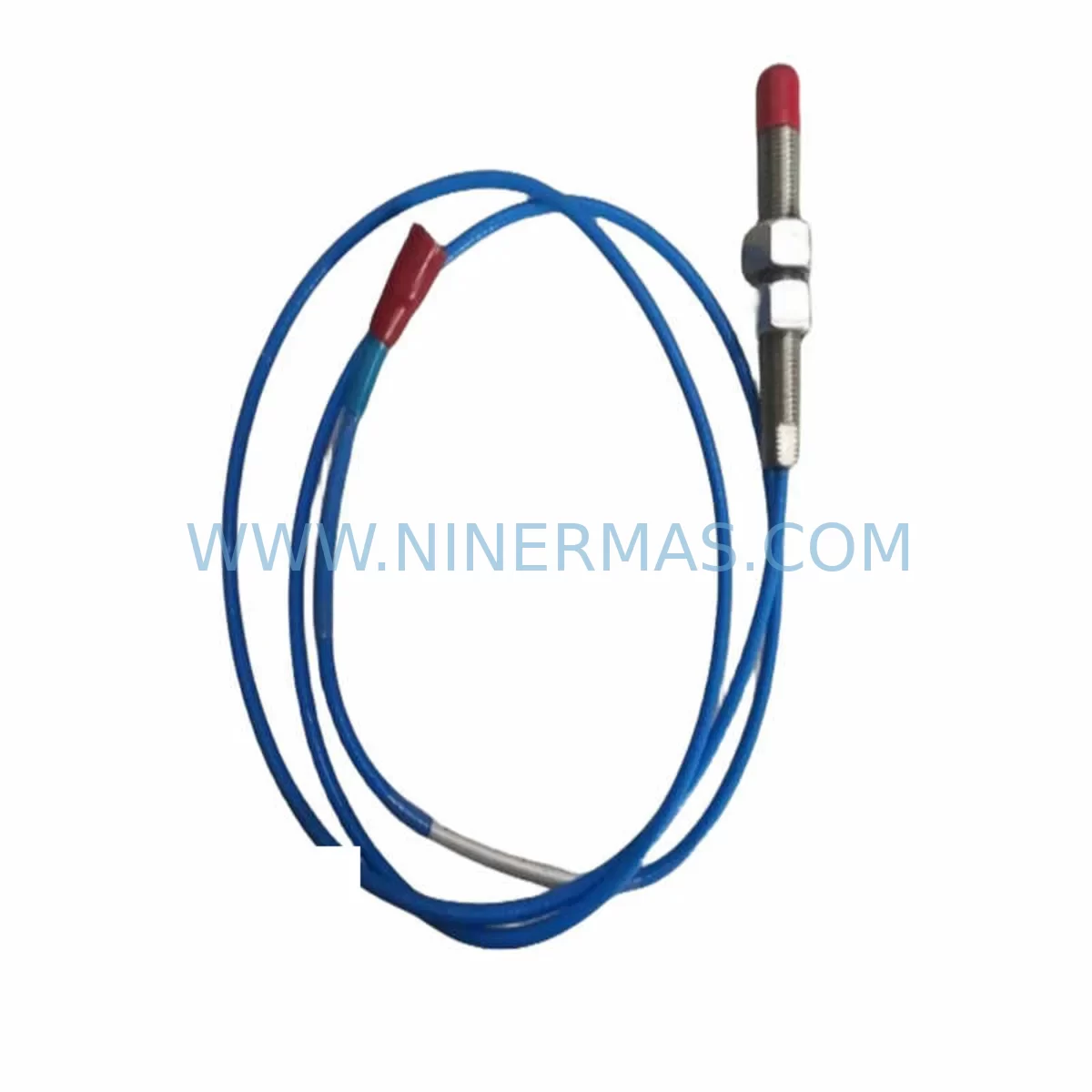

The PROVIBTECH TM0180-A08-B13-C20-D10 is an eddy-current proximity probe engineered for direct retrofit into legacy vibration monitoring and machinery protection systems. With an 8 mm probe tip diameter, 130 mm cable length, 200 mm extension cable, and a 1000 mm armored integral cable, this unit is dimensionally and electrically compatible with discontinued OEM probes commonly found in turbine, compressor, pump, and motor protection panels. Whether you are replacing a failed sensor on an aging DCS-integrated train or upgrading a standalone vibration monitor rack, the TM0180-A08-B13-C20-D10 delivers a drop-in solution that minimizes engineering rework and commissioning time.

Industrial facilities operating legacy Bently Nevada 3300 series, 7200 series, or equivalent third-party eddy-current systems frequently encounter obsolescence challenges when original probes reach end-of-life. The TM0180-A08-B13-C20-D10 is designed to bridge this gap, offering a compatible output signal range of -2 VDC to -18 VDC at standard sensitivity (7.87 V/mm), which aligns with the input specifications of most installed vibration monitors and proximitor drivers still in service. This makes it a practical choice for facilities that cannot justify a full system overhaul but need reliable spare-parts continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TM0180-A08-B13-C20-D10 into an existing machinery protection system begins with a thorough audit of the installed vibration monitoring architecture. In most legacy installations, the probe connects to a proximitor or signal conditioner — such as the PROVIBTECH TM0181 proximitor driver or equivalent third-party units — which in turn feeds a 4–20 mA or voltage signal to a vibration monitor module housed in a 19-inch rack or DIN-rail enclosure. Before removing the failed probe, engineers should document the existing gap voltage (typically -10 VDC ±1 V at the proximitor output terminal), the cable routing path, and the terminal block wiring assignments.

In installations where the TM0180 series probe feeds a PROVIBTECH TM0182 extension cable before reaching the proximitor, the total system cable length must be verified against the driver’s calibration curve. Mixing cable lengths from different system configurations — for example, pairing a 5-meter calibrated driver with a 9-meter total cable assembly — will introduce a linear gap error that can trigger false alarms or mask real vibration events. If the existing extension cable is damaged or corroded, replacing it simultaneously with the probe using a matched TM0182 extension cable of the correct length is strongly recommended.

For control cabinet installations where the proximitor driver is mounted on a DIN rail alongside power supply modules, relay output modules, and signal isolators, the wiring retrofit is straightforward: disconnect the three-conductor shielded cable (supply, signal, and shield/ground) at the driver terminal block, route the new probe cable through the existing conduit or cable tray, and reconnect following the original wiring diagram. In systems where the vibration signal feeds a PLC analog input card — such as a Siemens S7-300 AI module or an Allen-Bradley 1756-IF16 ControlLogix analog input — no changes to the PLC program or I/O address mapping are required, as the signal characteristics remain identical.

Where the vibration monitoring system interfaces with a DCS via HART or 4–20 mA loops, the field device replacement does not affect the HART device descriptor or the DCS tag configuration, since the TM0180-A08-B13-C20-D10 is a passive eddy-current probe with no embedded electronics or device identity. The proximitor driver remains the active signal conditioning element, and its output loop remains unchanged. Engineers should, however, verify that the DCS historian is logging the correct engineering unit scaling (typically 0–100 µm pk-pk or 0–2 mils pk-pk) after the replacement to ensure trend data continuity.

In turbine and compressor protection panels where the vibration signal also feeds an HMI display — such as a Wonderware InTouch or Ignition SCADA screen showing shaft displacement trends — no HMI screen modifications are required. The tag value will reflect the new probe’s output once the gap is correctly set and the proximitor is powered. Operators should be briefed to expect a brief signal interruption during the probe swap and to acknowledge any transient alarms generated during the commissioning gap-setting procedure.

For facilities managing multiple measurement points — radial X/Y vibration, axial thrust position, and phase reference (keyphasor) — the TM0180-A08-B13-C20-D10 is applicable to radial and axial displacement measurements. Keyphasor applications typically require a dedicated once-per-revolution probe with specific gap and cable length requirements; consult the PROVIBTECH TM0180-K series or equivalent for those positions. Radial probe pairs should be replaced as matched sets where possible to maintain consistent sensitivity across the X and Y measurement planes.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement requires careful pre-planning and a disciplined execution sequence. The most effective approach is to prepare all replacement components — including the TM0180-A08-B13-C20-D10 probe, the matched extension cable, and any required mounting hardware — before the maintenance window begins. A pre-shipment functional test, performed at our facility prior to dispatch, confirms that the probe meets sensitivity and linearity specifications, reducing the risk of discovering a defective unit during a live outage.

During the replacement, the original program logic in the PLC or DCS should not be modified. The vibration monitor’s alarm and trip setpoints should be temporarily inhibited or bypassed in the control system — using the monitor’s front-panel inhibit function or a software bypass in the DCS — to prevent a spurious machine trip during the gap-setting procedure. Once the probe is installed and the gap is set to the nominal value (confirmed by the proximitor output voltage), the bypass should be removed and the system returned to normal protection mode before the machine is restarted.

For critical machinery where continuous operation is required, some facilities maintain a hot-standby vibration monitoring channel using a redundant probe and proximitor pair. In these architectures, the standby channel can be switched to active protection while the primary channel probe is replaced, eliminating any protection gap during the maintenance activity. The TM0180-A08-B13-C20-D10 is fully compatible with this redundant channel architecture, as its output characteristics are identical to the primary channel probe.

Post-replacement, a 24-hour trend review of the vibration data is recommended to confirm that the new probe is tracking correctly and that no mechanical changes have occurred during the maintenance activity. Any deviation from the pre-replacement baseline should be investigated before the machine is returned to full load. Our 12-month warranty covers the TM0180-A08-B13-C20-D10 from the date of shipment, providing assurance that any early-life failures will be addressed without additional cost to the facility.

Retrofit Support FAQ

Q1: Is the TM0180-A08-B13-C20-D10 a direct replacement for Bently Nevada 330101 or 330103 series probes?
The TM0180-A08-B13-C20-D10 shares the same 8 mm tip diameter, -24 VDC supply, and 200 mV/mil (7.87 V/mm) sensitivity as the Bently Nevada 330101/330103 family, making it functionally compatible in most installations. However, the physical connector type and cable jacket material may differ. Customers should verify the connector interface at the proximitor driver end and confirm total system cable length before ordering. Our technical team can assist with compatibility verification based on your existing system documentation.

Q2: What commissioning steps are required after installing the TM0180-A08-B13-C20-D10?
Commissioning requires setting the probe-to-target gap to the nominal value specified in your machinery OEM documentation (typically 1.0–1.5 mm for most rotating equipment). Measure the proximitor output voltage with a calibrated multimeter; the nominal output should be -10 VDC ±1 V at the correct gap. Adjust the probe axial position using the locknut until the correct output is achieved, then secure the locknut and verify that the output remains stable. No software configuration, firmware update, or PLC program modification is required.

Q3: Can I use the TM0180-A08-B13-C20-D10 with my existing extension cable, or do I need to replace it as well?
If the existing extension cable is in good condition and its length matches the calibration of your proximitor driver, it can be reused. The TM0180-A08-B13-C20-D10 uses a standard MIL-spec coaxial connector compatible with PROVIBTECH TM0182 series extension cables. If the existing cable shows signs of insulation damage, connector corrosion, or impedance degradation (measurable with a cable tester), replacement with a matched extension cable is strongly recommended to maintain system accuracy.

Q4: What is the lead time and warranty coverage for the TM0180-A08-B13-C20-D10?
We maintain in-stock inventory of the TM0180-A08-B13-C20-D10 to support urgent spare-parts requirements. Standard orders are dispatched within 1–3 business days following order confirmation, with express shipping options available for critical outage situations. Each unit undergoes a factory pre-shipment functional test and is covered by a 12-month warranty from the date of shipment. Warranty claims are processed directly through our technical support team at sale@ninermas.com.
