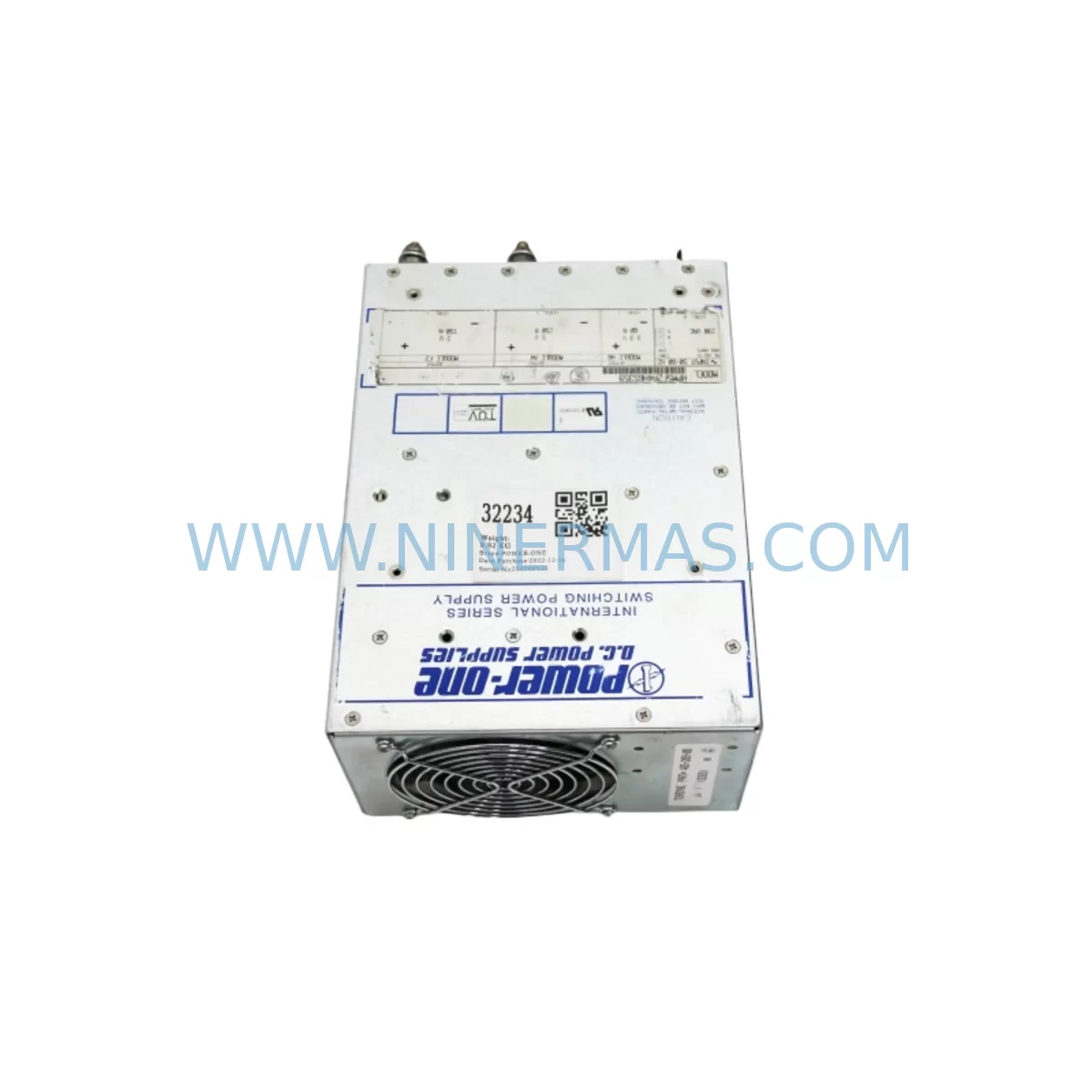

The Power-One HPM5B6BEA1A1F1S235 is a high-density modular power supply from the HPM (High Power Modular) series, originally designed for demanding industrial, military, and mission-critical automation environments. With a dual 2–12V output configuration and a ruggedized form factor, this unit has served as the backbone of countless legacy control cabinets, distributed control systems (DCS), and programmable logic controller (PLC) racks across manufacturing, energy, and process industries. As Power-One’s HPM series reaches end-of-life status and original factory support is discontinued, maintenance engineers and system integrators face the critical challenge of sourcing verified replacement units or planning a structured retrofit migration to maintain production continuity.

NINERMAS maintains ready inventory of the HPM5B6BEA1A1F1S235 and related HPM series modules, each pre-shipment tested and covered by a 12-month warranty. Whether you need a direct drop-in replacement to restore a failed power rail or are planning a phased control cabinet upgrade, this guide covers the key technical, mechanical, and procedural considerations for a successful retrofit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the HPM5B6BEA1A1F1S235 begins well before the replacement unit arrives on site. Engineers should start by auditing the existing power distribution architecture within the control cabinet. In many legacy installations, the HPM chassis hosts multiple modules simultaneously — for example, a companion HPM5B6BEA1A1F1S040 low-power output module may share the same backplane, and its slot addressing must remain undisturbed during the swap. Similarly, if the cabinet includes a Power-One HPM5B6BEA1A1F1S120 intermediate-voltage module feeding a separate I/O bus, the sequencing relationship between these rails must be preserved to avoid logic faults on startup.

Terminal block wiring is a frequent source of retrofit delays. Before disconnecting the HPM5B6BEA1A1F1S235, photograph and document all terminal assignments, including sense lines, remote enable signals, and current-share bus connections. In cabinets where Phoenix Contact or Weidmüller terminal blocks are used for power distribution, verify that the wire gauge and ferrule crimping meet the replacement module’s input current rating — undersized wiring is a common hidden risk in aging installations.

For systems that include a Power-One MAP series or CP series power supply in a parallel redundancy configuration, confirm that the current-share trim potentiometer settings are matched between units after installation. Mismatched share settings can cause one module to carry disproportionate load, reducing service life. If the host system uses a Siemens S7-300 or S7-400 PLC rack with a dedicated 24V DC power supply module (such as the PS 307 or PS 405), verify that the HPM output rail feeding the PLC backplane remains within the ±1% regulation tolerance required for stable CPU operation.

In DCS environments — particularly those using Yokogawa CENTUM VP or Honeywell Experion PKS field controller cabinets — the HPM5B6BEA1A1F1S235 often powers isolated I/O modules and signal conditioners. Before replacement, confirm that any HART-enabled analog input modules or signal isolators (such as those from Pepperl+Fuchs or MTL) remain within their specified supply voltage window during the transition. If the system includes a Beckhoff CX series embedded controller or a B&R X20 I/O node drawing power from the same rail, a brief power interruption during module swap may trigger a warm restart — coordinate with the control room operator to place the affected loop in manual mode before proceeding.

Programming cables and HMI connections should also be considered. If the cabinet hosts a Siemens TP700 or TP900 Comfort Panel, or a Mitsubishi GOT2000 series HMI, these devices typically draw power from a dedicated 24V rail. Confirm that this rail is sourced independently from the HPM5B6BEA1A1F1S235 being replaced, or arrange a temporary UPS bridge to maintain HMI visibility during the swap. For systems using PROFIBUS DP or Modbus RTU communication links, verify that the network repeater or communication module powering the fieldbus segment is not dependent on the module being replaced.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing an end-of-life power supply in a live production environment. The HPM5B6BEA1A1F1S235 is a hot-swap capable module within a properly configured HPM chassis, meaning that in redundant configurations, the failed or degraded unit can be extracted and replaced without de-energizing the entire chassis — provided the companion module is healthy and carrying full load. Before initiating a hot-swap, verify that the remaining module’s output current headroom is sufficient to sustain the full cabinet load; exceeding the single-module rating during the swap window will trigger overcurrent protection and cause an uncontrolled shutdown.

For non-redundant installations, a controlled maintenance window is required. Coordinate with production scheduling to identify the shortest available window — typically a planned shift changeover or scheduled preventive maintenance interval. Prepare the replacement HPM5B6BEA1A1F1S235 unit in advance: inspect the module connector pins, verify the output voltage trim setting matches the outgoing unit’s last recorded value, and confirm the fan operates freely. Having a calibrated multimeter and a current clamp meter on hand allows immediate post-installation verification of output voltage and load current before returning the system to automatic control.

To protect original program logic, ensure that the PLC CPU retains its program in battery-backed RAM or flash memory during the power interruption. For Siemens S7 systems, confirm the memory card is seated and the CPU battery is healthy before the swap. For Mitsubishi MELSEC Q-series or iQ-R series controllers, verify that the built-in flash ROM backup is current. Document the pre-swap state of all analog output modules and restore their last known setpoints after power restoration to avoid process upsets during the return-to-auto sequence.

Retrofit Support FAQ

Q1: Is the HPM5B6BEA1A1F1S235 a direct drop-in replacement for other HPM series modules?
The HPM5B6BEA1A1F1S235 is mechanically and electrically compatible with other HPM5B6 series modules sharing the same chassis slot format. However, output voltage and current ratings differ between SKUs — always verify the specific output configuration (voltage, current, and feature suffix) against your system’s power budget before substitution. NINERMAS can provide a compatibility cross-reference on request.

Q2: What pre-shipment testing is performed on each unit?
Every HPM5B6BEA1A1F1S235 unit supplied by NINERMAS undergoes functional load testing at rated output current, output voltage accuracy verification, overcurrent and overvoltage protection trip-point confirmation, and fan operation check. A test report is available upon request and accompanies units shipped under warranty claim or critical-spares agreements.

Q3: How do I verify wiring compatibility before installation?
Compare the terminal block pinout of the replacement unit against the original installation drawing. Pay particular attention to the remote sense lines (if used), the current-share bus connector, and the remote on/off control signal. If the original drawing is unavailable, NINERMAS can supply the HPM5B6BEA1A1F1S235 datasheet and connector pinout diagram to support your wiring audit.

Q4: What is the warranty coverage and what does it include?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental ratings. NINERMAS provides advance replacement support for critical-spares customers to minimize production downtime during warranty claims.
