Pioneer Magnetics PM3398B-6P-1-3P-E Service-Ready Spare Part

Pioneer Magnetics PM3398B-6P-1-3P-E Service-Ready Spare Part for Industrial Maintenance

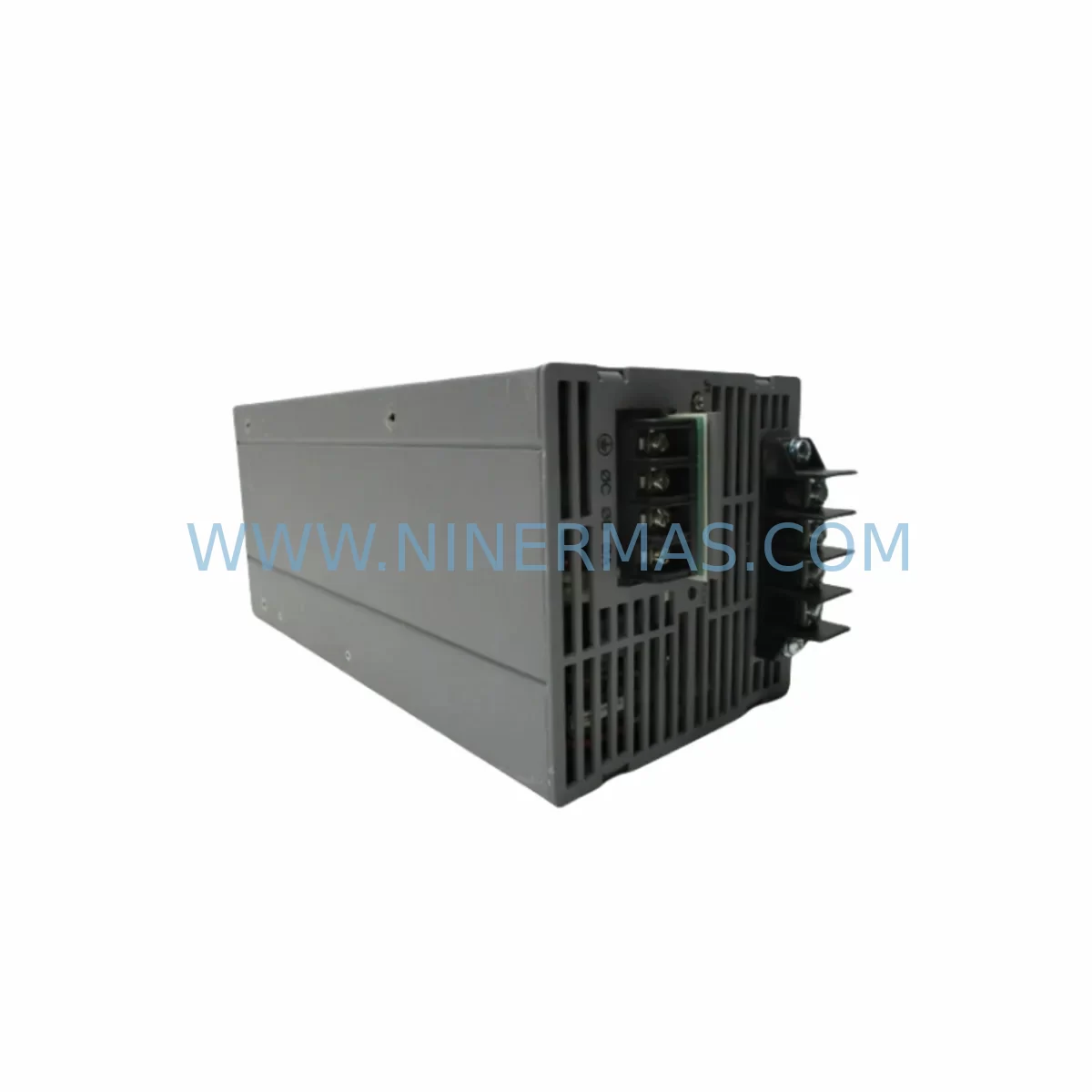

The Pioneer Magnetics PM3398B-6P-1-3P-E is an original-specification AC-DC switching power supply module designed for continuous-duty industrial control environments. As a direct service-ready spare part for the PM3398 series, this unit supports rapid replacement in PLC cabinets, DCS panels, and distributed I/O enclosures where unplanned downtime carries significant operational cost. Each unit is pre-shipment tested and backed by a 12-month warranty, giving maintenance engineers and procurement teams a reliable, low-risk sourcing option for both emergency callouts and planned annual overhaul stock.

Industrial facilities running legacy Pioneer Magnetics PM3398 series power supplies face an increasing challenge: OEM production of original modules has wound down, yet the installed base remains active across process control, machine automation, and building management systems. Sourcing a verified PM3398B-6P-1-3P-E from a specialist spare parts supplier eliminates the risk of counterfeit or non-compliant substitutes entering the control cabinet — a risk that can cause nuisance tripping, insulation failures, or cascading I/O faults that are far more expensive to diagnose than the cost of the original spare.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PM3398B-6P-1-3P-E is flagged for replacement during a routine control cabinet inspection or after a fault event, experienced maintenance engineers treat the power supply swap as a trigger for a broader panel health check. The power supply is the foundation of every downstream component in the cabinet, and a degraded unit often masks secondary issues that will surface shortly after the new module is installed.

Start by verifying the input fusing and circuit breaker upstream of the PM3398B-6P-1-3P-E. A blown or weakened fuse is frequently the first indicator of an output short or inrush surge that damaged the original unit. Next, inspect the 24 VDC distribution terminal blocks and Phoenix Contact or Weidmüller terminal strips for signs of heat discolouration, loose ferrules, or corroded contacts — these are common failure points in cabinets that have been in service for more than five years.

With the new power supply energised, measure output rail voltages before reconnecting the PLC CPU module and I/O expansion racks. For PM3398 series installations paired with Allen-Bradley SLC 500 or MicroLogix platforms, confirm that the 5 VDC and 24 VDC rails are within ±2% tolerance before restoring the digital input (DI) and digital output (DO) modules. Analogue I/O cards — particularly 4–20 mA signal conditioning modules and signal isolators — are sensitive to supply ripple and should be re-zeroed after a power supply replacement.

Communication infrastructure in the same cabinet should also be checked: Profibus DP repeaters, DeviceNet tap connectors, and Ethernet/IP managed switches all draw from the same 24 VDC bus and can exhibit intermittent faults if the new supply has not fully stabilised. If the panel includes a Panel View or similar HMI terminal, verify that the display powers up cleanly and that the communication link to the PLC CPU re-establishes without manual intervention.

For facilities maintaining a formal spare parts inventory, the PM3398B-6P-1-3P-E should be stocked alongside its most common co-failure components: a spare 24 VDC relay output module, a set of replacement fuse cartridges rated to the panel’s input specification, and at least one spare backplane connector or I/O bus terminator for the installed PLC rack. This approach reduces mean time to repair (MTTR) from hours to minutes during an unplanned outage.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Isolate the AC input to the PM3398B-6P-1-3P-E at the upstream MCB or disconnect switch. Confirm zero energy with a calibrated voltage tester before opening the cabinet door.

Step 2 — Document existing wiring: Photograph or sketch the input and output terminal connections. The PM3398 series uses a labelled terminal block layout; confirm wire labels match the as-built drawing before removal. Note the position of any cable duct covers or cable tie anchor points that may need to be repositioned.

Step 3 — Remove the failed unit: Loosen the DIN rail retention clip or panel mount screws. Disconnect input and output terminals in reverse order (outputs first, then input). Retain all hardware for reuse unless the mounting rail itself shows corrosion or deformation.

Step 4 — Install the PM3398B-6P-1-3P-E replacement: Seat the new unit on the DIN rail or panel mount. Reconnect input terminals first, then output rails. Torque all terminals to the manufacturer’s specification — under-torqued connections are a leading cause of premature failure in high-vibration environments.

Step 5 — Pre-energisation checks: Verify input fuse continuity. Confirm no output terminals are shorted. Check that all downstream loads (PLC racks, I/O modules, HMI) are in a safe state before applying power.

Step 6 — Energise and verify: Apply AC input. Measure all output rails under no-load, then under full load. Confirm LED status indicators on the PM3398B-6P-1-3P-E show normal operation. Restore PLC communications and verify that the control program resumes from the correct state.

Step 7 — Document and close out: Update the maintenance log with the replacement date, unit serial number, and post-installation test results. Register the 12-month warranty with the supplier. Schedule the next inspection interval based on the facility’s preventive maintenance calendar.

Spare Parts Support FAQ

Q1: Is the PM3398B-6P-1-3P-E a direct drop-in replacement for all PM3398 series variants?
The PM3398B-6P-1-3P-E is designed as a service replacement for the PM3398 series power supply family. The “B” suffix denotes a revised output configuration (6-position, single 3-phase input topology). Before installation, verify that the output voltage and current ratings match your existing panel load schedule. In most PM3398 series installations, the PM3398B-6P-1-3P-E is a direct mechanical and electrical replacement; however, panels with non-standard output wiring should be reviewed against the original as-built drawings.

Q2: What pre-shipment testing is performed on each unit?
Every PM3398B-6P-1-3P-E shipped by NINERMAS undergoes a full-load burn-in test, output voltage accuracy verification across all rails, protection circuit activation testing (OVP, OCP, SCP), and insulation resistance measurement. A test record is available on request. Units that do not meet original Pioneer Magnetics specification are not shipped. This process underpins the 12-month warranty covering manufacturing defects and functional failure under rated operating conditions.

Q3: How should the PM3398B-6P-1-3P-E be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (10 °C to 35 °C, <70% RH non-condensing). Avoid stacking units without protective packaging. For long-term storage exceeding 12 months, perform a brief power-on test annually to re-form electrolytic capacitors and confirm output rail stability. Label the unit with the storage date and planned inspection interval. NINERMAS maintains ongoing stock of PM3398 series spares to support long-term supply continuity for facilities with extended asset life cycles.

Q4: What is the long-term supply outlook for PM3398 series spare parts?
Pioneer Magnetics has transitioned the PM3398 series to end-of-life status, meaning new production from the OEM is no longer available. NINERMAS specialises in sourcing, testing, and supplying verified spare parts for discontinued industrial power supply series, including the PM3398 family. Procurement engineers are encouraged to establish a multi-year supply agreement or buffer stock arrangement to protect against future scarcity. Contact our team to discuss volume pricing, consignment stock options, and scheduled delivery programmes tailored to your facility’s maintenance cycle.
