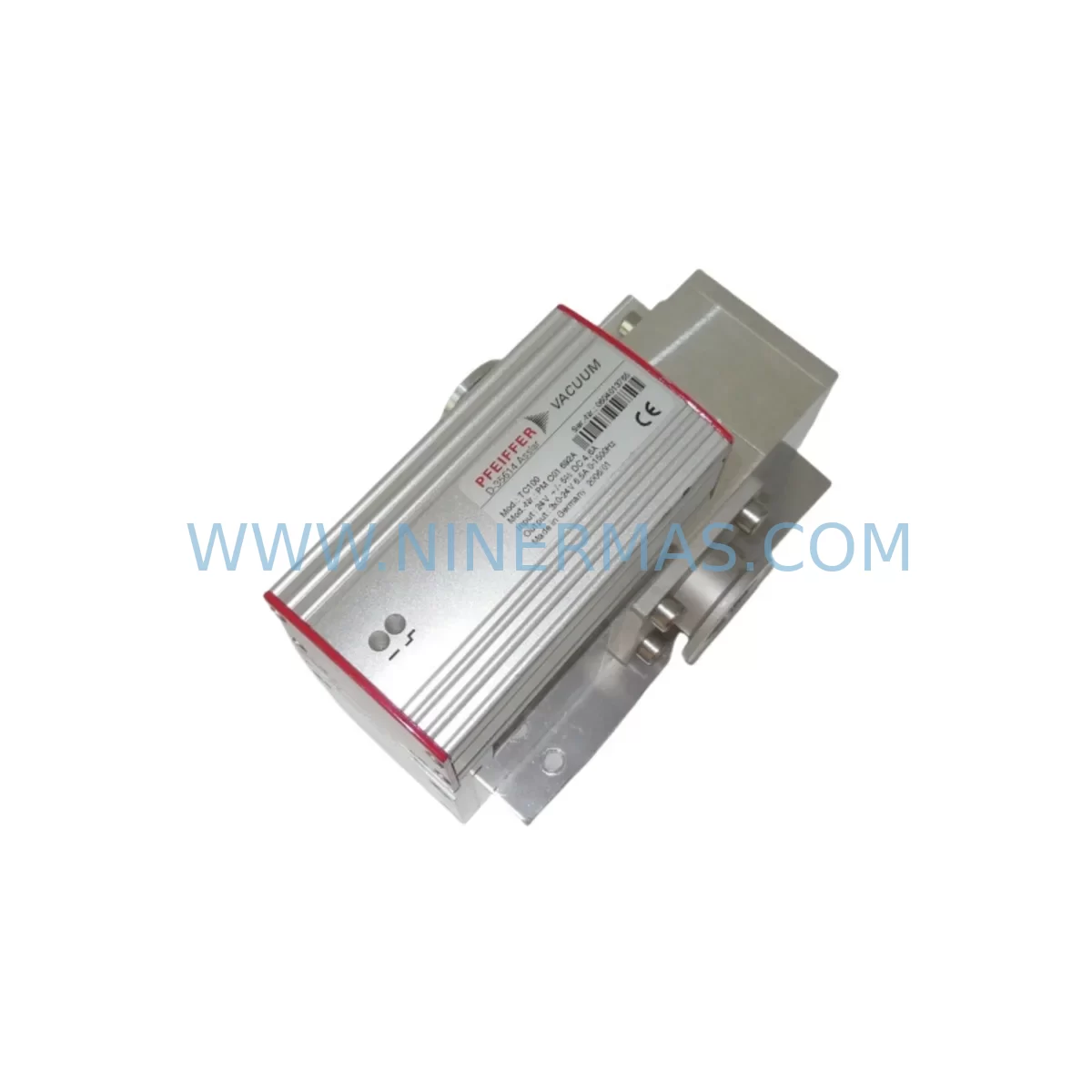

The Pfeiffer Vacuum 741040 AF-Controller for the TC100 series is a precision turbomolecular pump controller designed for demanding industrial vacuum applications. As a service-ready spare part, the 741040 supports rapid field replacement in semiconductor fabrication, analytical instrumentation, coating systems, and research-grade vacuum environments. Maintaining a verified stock of the 741040 is a proven strategy for reducing mean time to repair (MTTR) and protecting continuous production uptime in facilities where vacuum integrity is safety-critical.

The TC100 AF-Controller governs the acceleration, steady-state operation, and protective shutdown of Pfeiffer turbomolecular pumps. When this controller fails or degrades, the entire vacuum circuit is compromised. Procurement engineers and maintenance planners who stock the 741040 as a designated spare eliminate the lead-time risk associated with sourcing a replacement during an unplanned outage. Each unit supplied by NINERMAS undergoes pre-shipment functional verification and is backed by a 12-month warranty from the date of delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 741040 AF-Controller in the field is rarely an isolated task. Maintenance engineers conducting a scheduled or corrective replacement of the TC100 controller should simultaneously inspect and, where appropriate, stock the following associated components to prevent secondary failures and avoid repeat shutdowns.

The TC400 Electronic Drive Unit is the higher-capacity sibling of the TC100 series and shares similar interface logic. Facilities operating mixed pump fleets should maintain cross-compatible controller spares for both the TC100 and TC400 to cover a wider range of turbomolecular pump sizes. The DCU 002 Display and Control Unit connects directly to the TC100 AF via the RS-485 bus; a failed DCU can mask controller faults and should be verified during any TC100 replacement event.

Power integrity is critical to controller longevity. The TPS 300 Turbo Pumping Station integrates a backing pump, controller, and power supply in a single chassis — understanding its internal power rail architecture helps engineers isolate whether a 741040 failure originated from the controller itself or from an upstream power fault. Inline PM Z01 252 connection cables and PM 016 174 ET interface cables should be inspected for insulation damage, connector corrosion, and pin continuity whenever the controller is removed. Degraded cabling is a common root cause of intermittent controller faults that are misdiagnosed as controller failures.

On the vacuum measurement side, the PKR 251 Full Range Gauge and TPR 280 Pirani Gauge provide the pressure feedback signals that the TC100 AF uses for protective logic. A faulty gauge can trigger false over-pressure shutdowns or prevent the controller from reaching operating speed. Both gauges should be calibrated and leak-tested as part of any TC100 maintenance event. The OmniControl Measurement and Control System is frequently used in conjunction with TC100-based vacuum circuits to centralize gauge readings and controller status — its firmware and communication settings should be verified after a controller swap.

For facilities using the MVP 015-2 Diaphragm Backing Pump as the fore-vacuum stage, the backing pump’s ultimate pressure performance directly affects TC100 controller behavior during pump-down sequences. A worn diaphragm set in the MVP 015-2 will extend pump-down time and may cause the TC100 to log speed-ramp timeout faults. Stocking diaphragm service kits alongside the 741040 controller spare is a cost-effective preventive measure. Additionally, the DPS 300 Sputtering Power Supply used in PVD coating systems shares the same control cabinet space as the TC100 in many installations; its EMI output should be evaluated as a potential interference source if the 741040 exhibits unexplained resets or communication errors.

Terminal blocks, 24 V DC auxiliary power supplies, and signal isolation modules within the control cabinet should be inspected for loose connections and thermal discoloration during any TC100 service event. Fuse holders on the controller’s input power rail are a low-cost consumable that should be replaced proactively when the 741040 is swapped.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow site lock-out/tag-out (LOTO) procedures. Vent the vacuum system to atmosphere through the designated vent valve. Confirm zero pressure differential before disconnecting any flanges or electrical connectors.

Step 2 — Documentation: Record the existing TC100 AF parameter set using the DCU display or RS-232 terminal before powering down. Parameters include acceleration ramp time, speed setpoint, vent valve delay, and error log history. This data is essential for configuring the replacement 741040 to match the original system behavior.

Step 3 — Electrical Disconnection: Label and photograph all cable connections to the 741040 before removal. Disconnect the pump motor cable, the RS-485 / RS-232 interface cable, the 24 V DC auxiliary supply, and any analog I/O wiring. Inspect each connector for pin damage or corrosion.

Step 4 — Controller Removal and Installation: Remove the failed 741040 from its DIN rail or panel mount. Install the replacement unit and reconnect all cables in reverse order. Verify that the motor cable phase sequence matches the original installation — incorrect phasing will prevent the turbomolecular pump from reaching operating speed.

Step 5 — Parameter Restore and Commissioning: Upload the saved parameter set to the new 741040 via the DCU or serial terminal. Perform a controlled pump-down sequence and monitor speed ramp, bearing temperature (if available), and fore-vacuum pressure. Confirm that the controller reaches and holds the rated operating speed without fault codes.

Step 6 — System Validation: Log the replacement event in the site maintenance management system (CMMS). Update the spare parts inventory to reflect the consumed 741040 unit and initiate a replenishment order to restore buffer stock. NINERMAS supports long-term supply agreements and reserved inventory programs to ensure the 741040 remains available for future maintenance cycles without extended lead times.

Spare Parts Support FAQ

Q1: Is the NINERMAS 741040 an original Pfeiffer Vacuum component?
Yes. NINERMAS supplies original Pfeiffer Vacuum spare parts sourced through verified industrial channels. Each 741040 unit is inspected and functionally tested prior to shipment. The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions.

Q2: How do I confirm compatibility between the 741040 and my existing turbomolecular pump?
The TC100 AF-Controller is compatible with Pfeiffer TMH, TMU, and HiPace series turbomolecular pumps that specify the TC100 interface. Verify compatibility by cross-referencing the pump’s nameplate model number against the TC100 AF compatibility matrix in the Pfeiffer Vacuum product documentation. Contact NINERMAS with your pump model number for pre-purchase compatibility confirmation.

Q3: What is the recommended inventory strategy for the 741040 in a multi-pump facility?
Facilities operating three or more Pfeiffer turbomolecular pumps on TC100 AF controllers should maintain a minimum of one 741040 spare per five installed controllers, with a floor of one unit regardless of fleet size. For safety-critical or continuous-process applications, a one-to-one spare ratio is recommended. NINERMAS offers reserved inventory programs that guarantee stock availability and fixed pricing over a defined contract period, eliminating procurement risk during peak demand or supply chain disruptions.

Q4: What testing is performed before the 741040 is shipped?
Each 741040 unit undergoes a pre-shipment functional verification that includes power-on self-test, communication interface check (RS-232 / RS-485), and output signal validation. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained for traceability. The 12-month warranty period begins on the date of delivery to the customer’s facility.
