Pepperl+Fuchs MB-16U5L-103681 Safety-Reliable DI Module for Critical Control Sites

Pepperl+Fuchs MB-16U5L-103681 Safety-Reliable DI Module for Critical Control Sites

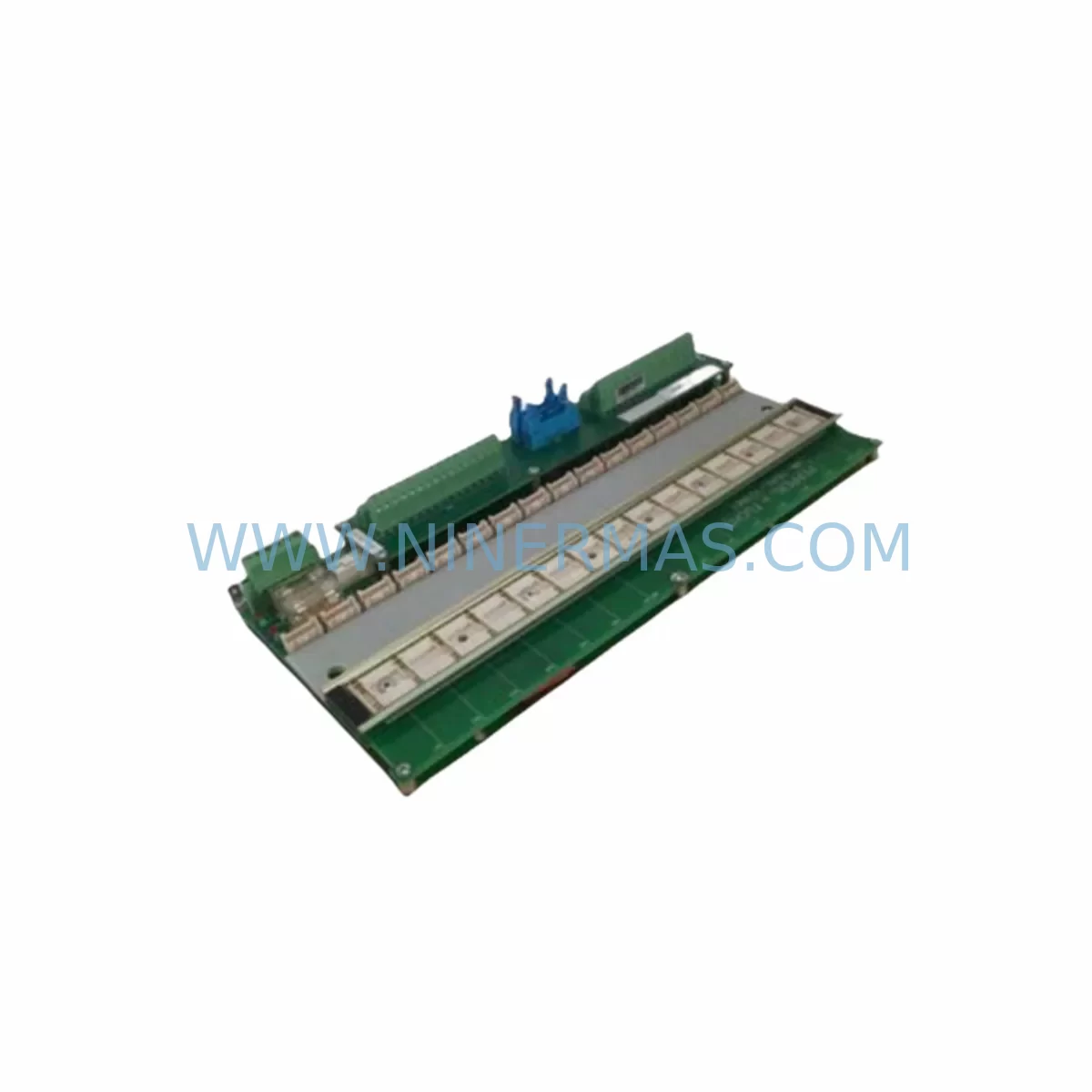

The Pepperl+Fuchs MB-16U5L-103681 (MB-C3-DI32-AKB-131969) is a 32-channel digital input module engineered for the MB-C3 modular remote I/O platform, purpose-built to deliver uncompromising signal integrity and control reliability in the most demanding industrial environments. Designed for continuous production facilities, critical safety interlocks, and high-density control cabinets, this module addresses the core risks that threaten uptime: signal drift, electromagnetic interference, power fluctuation, and unplanned process shutdowns. Whether deployed in petrochemical plants, power generation facilities, mining operations, or water treatment infrastructure, the MB-16U5L-103681 provides the field-proven performance that safety-critical applications demand.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-density control cabinets serving continuous process industries, a single failed digital input channel can cascade into a full safety interlock trip, halting production lines and triggering costly emergency shutdowns. The MB-16U5L-103681 mitigates this risk through its 32-channel architecture with galvanic isolation, ensuring that a fault on one field device does not propagate across adjacent channels or corrupt the process controller’s input scan.

When integrated within the MB-C3 platform alongside the MB-C3-DO16-AKB digital output module, the system forms a complete I/O loop capable of handling both discrete sensing and actuator control within a single backplane — reducing wiring complexity and the associated risk of loose terminations under vibration. For applications requiring analog process variables alongside discrete safety signals, pairing this module with the MB-C3-AI8-AKB analog input module provides a unified data acquisition layer that eliminates the need for separate signal conditioners prone to drift in high-temperature environments.

Power supply stability is equally critical. Deploying the MB-16U5L-103681 in cabinets powered by a Pepperl+Fuchs FIELDBUS POWER HUB (FPH) or a compatible 24 V DC redundant power supply ensures that voltage sags and surge events — common in heavy motor-start environments — do not cause spurious input state changes. For surge protection at the field terminal level, integrating Pepperl+Fuchs P-LB surge protection barriers on each input loop provides an additional layer of transient suppression, protecting both the module and the field wiring from lightning-induced or switching transients.

In PROFIBUS DP architectures, the MB-C3 gateway head — such as the MB-C3-DP-GW gateway module — manages cyclic data exchange between the MB-16U5L-103681 and the PLC or DCS. Ensuring the gateway is configured with watchdog timeout supervision means that a communication interruption triggers a defined safe state rather than leaving outputs in an indeterminate condition. For PROFINET-based plants, the equivalent MB-C3-PN-GW PROFINET gateway provides the same deterministic behavior with media redundancy protocol (MRP) support, critical for ring-topology networks in power substations and offshore platforms.

Complementing the digital input layer with Pepperl+Fuchs KFD2-series isolated barriers on intrinsically safe field loops — particularly in Zone 1 or Zone 2 hazardous areas — ensures that the MB-16U5L-103681 receives clean, conditioned signals from sensors operating in explosive atmospheres. This combination is widely specified in petrochemical and LNG terminal control systems where SIL 2 loop integrity is a regulatory requirement.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The MB-16U5L-103681 is deployed in emergency shutdown (ESD) and fire-and-gas (F&G) systems where 32-channel DI modules must reliably capture the state of pressure switches, flame detectors, and valve position feedback under continuous high-temperature and high-vibration conditions. Its galvanic isolation prevents ground loops from corrupting safety-critical input states in facilities with extensive grounding networks.

Power Generation and Substations: In coal-fired, gas turbine, and hydroelectric generation facilities, the module monitors turbine protection inputs, generator breaker status, and transformer tap-changer positions. Its high EMI immunity — essential in environments saturated with high-frequency switching noise from variable frequency drives (VFDs) and high-voltage bus bars — ensures that input state readings remain accurate without requiring additional signal filtering hardware.

Mining and Mineral Processing: Conveyor belt safety interlocks, crusher overload protection, and ventilation fan status monitoring in underground and open-pit mining operations demand modules that withstand dust ingress, mechanical shock, and wide ambient temperature swings. The MB-16U5L-103681’s robust construction and wide operating temperature range make it a reliable choice for these harsh surface and underground installations.

Water and Wastewater Treatment: Pump station control panels, chemical dosing interlock systems, and level switch monitoring in water treatment facilities benefit from the module’s resistance to high-humidity environments and its compatibility with PROFIBUS DP and PROFINET networks used in SCADA-integrated water infrastructure.

Metallurgy and Steel Production: In electric arc furnace (EAF) control systems and rolling mill automation, where electromagnetic interference levels are among the highest in any industrial environment, the MB-16U5L-103681’s EMC-hardened design ensures that discrete input signals from position sensors, limit switches, and safety mats are captured without noise-induced false triggering that could cause equipment damage or personnel injury.

Port and Marine Applications: Ship-to-shore crane control systems, bulk material handling terminals, and vessel automation panels operating in salt-laden, high-humidity coastal environments rely on the MB-C3 platform’s sealed cabinet deployment capability. The module’s corrosion-resistant design and wide humidity tolerance support reliable long-term operation in these challenging maritime conditions.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the MB-16U5L-103681?
The 12-month warranty covers all manufacturing defects, channel signal failure, backplane connector integrity, and component-level faults identified under normal operating conditions. Each unit undergoes pre-shipment functional testing — including channel-by-channel input verification and isolation resistance checks — before dispatch. Warranty claims are supported with direct technical assistance and expedited replacement to minimize control system downtime.

Q2: How is the MB-16U5L-103681 tested before shipment?
Every unit is subjected to a comprehensive outgoing quality inspection that includes power-on functional verification of all 32 input channels, isolation voltage testing between channel groups, and backplane communication handshake confirmation. Units that do not meet Pepperl+Fuchs factory acceptance criteria are quarantined and not dispatched. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the MB-16U5L-103681 compatible with existing MB-C3 base carriers and gateway heads?
Yes. The MB-C3-DI32-AKB-131969 is fully compatible with all standard MB-C3 base carriers and gateway modules, including PROFIBUS DP, PROFINET, and Modbus TCP variants. No firmware upgrade or hardware modification is required for integration into existing MB-C3 installations. Compatibility extends to mixed I/O configurations where DI, DO, AI, and AO modules share the same backplane segment.

Q4: Can long-term supply of the MB-16U5L-103681 be guaranteed for ongoing maintenance programs?
NINERMAS maintains dedicated safety stock of the MB-16U5L-103681 to support long-term spare parts programs for plants operating MB-C3-based control systems. For facilities with multi-year maintenance contracts or planned turnaround schedules, we offer forward stocking agreements and priority allocation to ensure that replacement modules are available when needed — eliminating the lead-time risk associated with end-of-life or allocation-constrained components.
