Panasonic MADKT1505E Retrofit-Compatible Servo Driver for Legacy Systems

Panasonic MADKT1505E Retrofit-Compatible Servo Driver for Legacy Systems

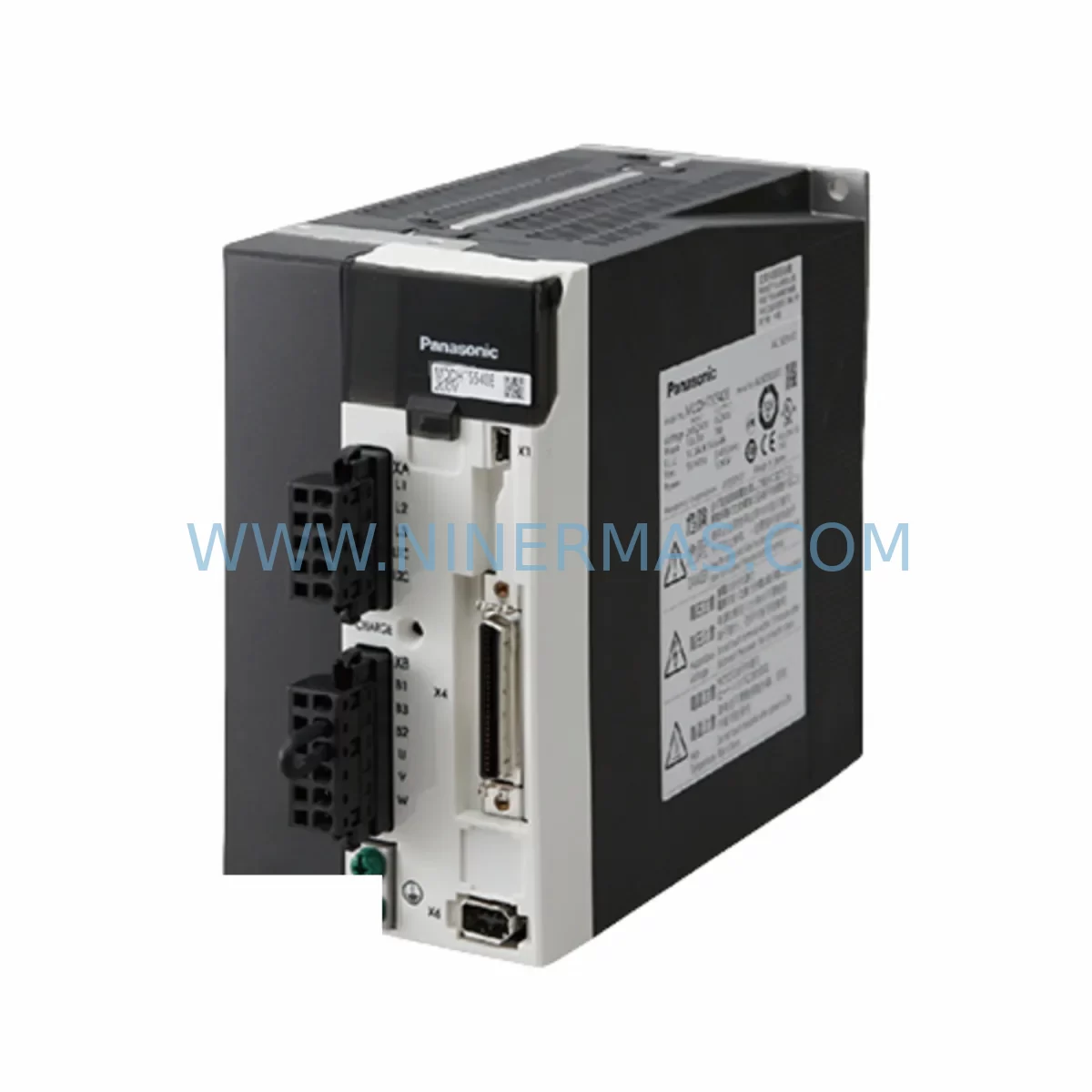

The Panasonic MADKT1505E is a high-performance servo driver from the MINAS A5 series, engineered to deliver precise motion control in demanding industrial environments. As legacy automation lines age and original equipment manufacturers discontinue support for older servo platforms, the MADKT1505E has become a critical retrofit component for engineers tasked with modernizing existing control architectures without full system replacement. Its compatibility with established Panasonic servo motor families, combined with its robust communication interface support, makes it a preferred choice for brownfield upgrade projects across manufacturing, packaging, semiconductor handling, and precision assembly industries.

Whether you are replacing a discontinued MADDT1207 or MADDT1505 driver in an aging servo axis, or migrating a multi-axis gantry system from an older MINAS A4 platform to the A5 generation, the MADKT1505E provides a well-documented upgrade path. Engineers can retain existing motor cabling in many configurations, reducing rewiring time and minimizing the risk of introducing wiring errors during changeover. The driver supports both pulse-train and full closed-loop control modes, allowing integration with a wide range of host controllers including Mitsubishi MELSEC Q-series PLCs, Omron NJ/NX controllers, and Siemens S7-300 systems via appropriate interface modules.

Before committing to a retrofit using the MADKT1505E, engineers should verify several key parameters against the existing installation. Power supply capacity is the first checkpoint: the MADKT1505E requires a stable 200–240 VAC single-phase or three-phase input, and the existing control cabinet power distribution must be confirmed to support the inrush and continuous current demands of the new driver. Terminal block wiring should be reviewed against the MADKT1505E connector pinout — particularly the CN X5 encoder feedback connector and the CN X6 I/O interface — as pin assignments may differ from older MADDT-series drivers. Backplane slot compatibility is not applicable for this standalone driver, but DIN rail mounting dimensions and panel cutout requirements should be confirmed against the existing cabinet layout before installation.

Module address configuration is handled via front-panel rotary switches and parameter settings accessed through the Panasonic PANATERM setup software. If the host PLC program references axis addresses or device numbers tied to the previous driver, these must be remapped in the ladder logic or motion program before commissioning. HMI screens that display servo status, alarm codes, or axis position data may also require updates if the alarm code structure differs between the old and new driver generations. Communication link integrity should be verified end-to-end: if the system uses RTEX (Real-Time Express) network communication — a common protocol in Panasonic MINAS A5 multi-axis configurations — the network topology, node addresses, and cable termination resistors must all be confirmed before powering up the updated axis.

Installation space confirmation is essential in compact control cabinets. The MADKT1505E has defined height, width, and depth dimensions that must be checked against available panel space, particularly when replacing a driver of a different form factor. Adequate clearance for cooling airflow above and below the driver must be maintained per Panasonic’s installation guidelines to prevent thermal shutdown during continuous duty cycles.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful MADKT1505E retrofit begins with a thorough audit of the existing servo axis and its surrounding control architecture. In a typical legacy panel, the servo driver is one node in a larger ecosystem that includes the host PLC (such as a Mitsubishi Q172DSCPU motion controller or an Omron CJ2M-CPU31), a servo motor (such as a Panasonic MSMD082G1U or MHMD082G1U), encoder feedback cabling, and a distributed I/O rack that may include modules like the Panasonic AFP0RC32T or similar compact I/O units.

When planning the retrofit, engineers should map out all signal connections at the existing driver’s terminal block. The enable signal, alarm output, servo-ready output, and position command pulse inputs are the most critical to verify. If the existing system uses a Panasonic MFECA0050EAM encoder cable or a similar shielded feedback cable, compatibility with the MADKT1505E’s CN X5 connector should be confirmed by comparing the cable’s connector type and pin assignment against the MADKT1505E wiring diagram.

For systems that include a regenerative resistor — common in high-inertia or vertical axis applications — the external braking resistor connection terminals on the MADKT1505E must be wired correctly, and the regenerative energy capacity must be recalculated if the motor or load inertia has changed. Signal isolators, such as those used to interface 24VDC PLC outputs with the driver’s pulse input stage, should also be reviewed to ensure signal voltage and timing compatibility.

In multi-axis systems, the RTEX network backbone connecting the host controller to multiple MADKT-series drivers requires careful node address assignment. Each driver on the RTEX network must have a unique node address set via its front-panel rotary switch before the network is initialized. If the system also includes a Panasonic MINAS A5 HMI interface or a third-party HMI panel (such as a Proface GP4000 or Hakko V9 series), the HMI tag database may need to be updated to reflect any changes in servo alarm codes or status register addresses between driver generations.

Power supply modules feeding the servo driver section of the control cabinet — such as a Panasonic AFP0RE16RS power supply or a dedicated 24VDC SMPS for control logic — should be load-tested after the new driver is installed to confirm that inrush current during driver initialization does not cause nuisance tripping of upstream circuit breakers. Programming cables such as the Panasonic USB-RS232 adapter (MFATCBLE03) are required for initial parameter configuration via PANATERM and should be on hand during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any servo driver replacement on a live production line. A structured changeover plan for the MADKT1505E retrofit should begin with a full parameter backup of the existing driver using PANATERM before any hardware is disconnected. This backup preserves all tuning parameters — including gain settings, filter coefficients, and I/O function assignments — that have been optimized for the specific machine and load over years of operation.

Once the parameter file is saved, the replacement MADKT1505E should be pre-configured on the bench: parameters loaded, node address set, and a basic I/O check performed using a test jig or a spare PLC output card before the unit is installed in the cabinet. This bench pre-commissioning approach can reduce in-cabinet commissioning time from several hours to under 30 minutes in straightforward axis replacements.

During the physical swap, the original motor cable, encoder cable, and I/O wiring should be labeled and photographed before disconnection. Terminal block wiring should be transferred one signal at a time, with continuity checks performed at each step. After installation, the servo axis should be jogged at low speed under manual control before returning to automatic program execution, allowing the engineer to verify that direction of rotation, encoder feedback polarity, and limit switch responses are all correct before the machine resumes production.

If the host PLC program references the servo driver through a motion module such as a Mitsubishi QD75MH4 or a Yaskawa SGDV-series compatible interface, the axis parameters in the PLC motion configuration may also need to be updated to match the MADKT1505E’s electronic gear ratio settings and encoder resolution. Keeping the original PLC program logic unchanged — and only updating the axis parameter tables — is the safest approach to preserving control continuity and reducing the risk of introducing new faults during the migration.

All MADKT1505E units supplied by NINERMAS COMPANY LIMITED are pre-shipment tested under load conditions and backed by a 12-month warranty, providing documented assurance of unit functionality before the driver reaches the field. In-stock availability supports rapid deployment for emergency replacements where extended lead times are not acceptable.

Retrofit Support FAQ

Q1: Is the MADKT1505E a direct drop-in replacement for the MADDT1505?
The MADKT1505E and MADDT1505 share the same rated output class but differ in their communication interface and parameter structure. The MADKT1505E supports the RTEX network protocol and uses a different CN X5 encoder connector pinout. A direct swap requires verification of encoder cable compatibility, I/O wiring, and parameter re-entry via PANATERM. Motor compatibility should be confirmed against the MADKT1505E’s supported motor table before installation.

Q2: What commissioning tools are required for the MADKT1505E?
Initial parameter configuration requires a PC running Panasonic PANATERM software connected to the driver’s RS-232 port via a USB-RS232 adapter (such as the MFATCBLE03 programming cable). A digital oscilloscope or servo analyzer is recommended for gain tuning on high-inertia or high-speed axes. The RTEX network configuration is managed through the host controller’s motion setup utility.

Q3: Can the existing motor and encoder cable be reused after replacing the driver?
In many cases, yes — provided the replacement motor is from the Panasonic MINAS A5-compatible motor family and the encoder cable connector type matches the MADKT1505E’s CN X5 interface. Cable length, shielding integrity, and connector pin assignment must all be verified. Cables showing signs of insulation degradation or connector wear should be replaced during the retrofit to avoid intermittent encoder faults after commissioning.

Q4: What warranty and supply assurance does NINERMAS provide for the MADKT1505E?
All MADKT1505E units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify drive output, encoder interface, and I/O response before dispatch. NINERMAS maintains in-stock inventory to support both planned retrofit projects and emergency replacement requirements, with documented lead times available on request. Contact sale@ninermas.com or +0086 187 5021 5667 for availability and technical pre-sales support.
