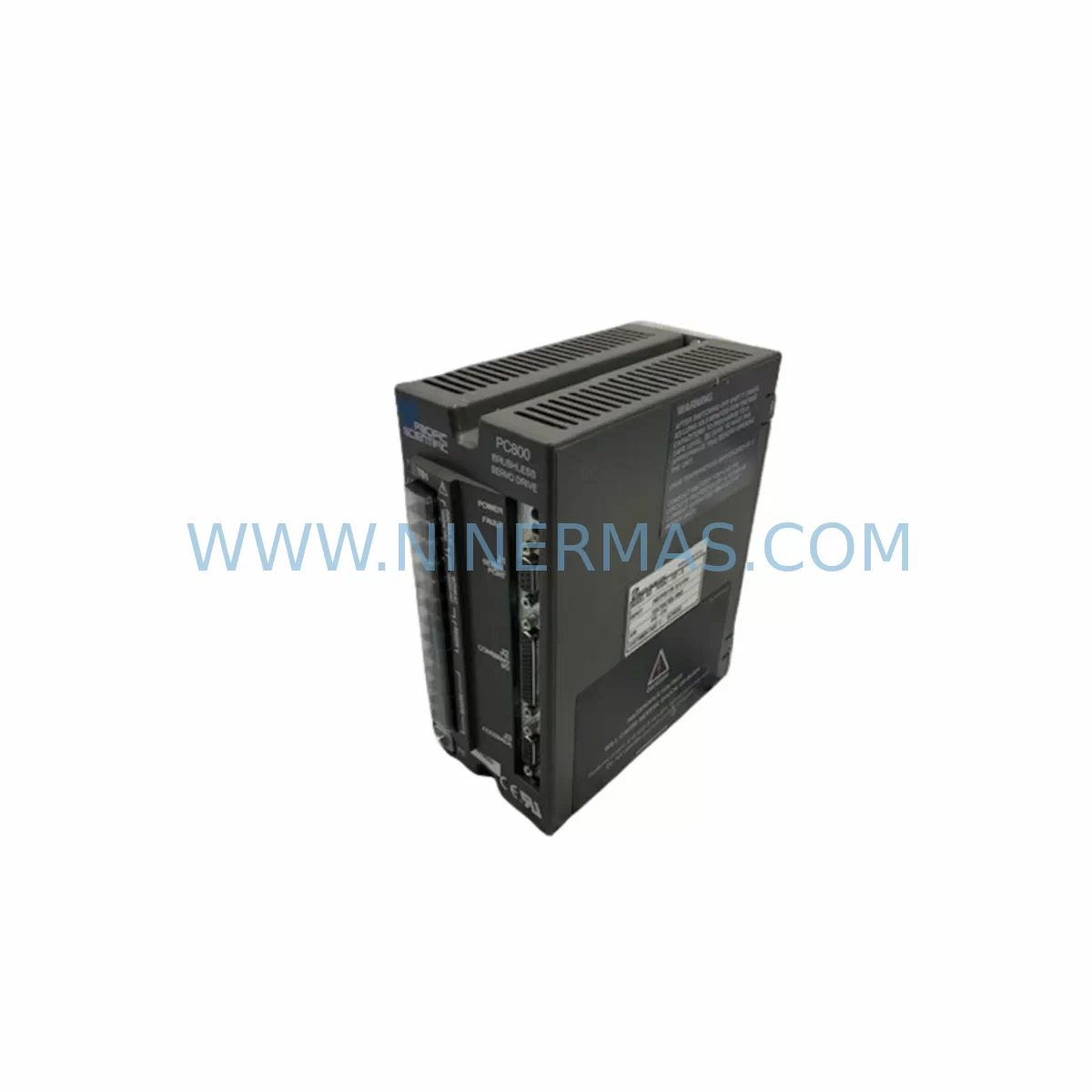

Pacific Scientific PC834-107-N Retrofit-Compatible Servo Drive

Pacific Scientific PC834-107-N Retrofit-Compatible Servo Drive for Legacy Automation Systems

The Pacific Scientific PC834-107-N is a retrofit-compatible servo drive engineered for seamless integration into aging industrial automation platforms. As a direct replacement within the PC834 series, this unit addresses the growing demand for discontinued spare parts in process control, packaging, and precision motion applications. Whether you are managing a planned upgrade or responding to an unplanned failure, the PC834-107-N provides a reliable, tested solution that minimises engineering rework and reduces total downtime exposure.

Pacific Scientific’s PC834 series drives were widely deployed across multi-axis servo systems in the 1990s and 2000s. With OEM support now discontinued, sourcing a verified replacement has become a critical challenge for maintenance engineers. NINERMAS supplies the PC834-107-N from managed inventory, pre-tested prior to shipment, and backed by a 12-month warranty — giving procurement and engineering teams the confidence to proceed without extended lead times.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a PC834-107-N in an operational production environment requires careful pre-work to avoid extended downtime. The drive typically operates within a multi-axis servo system controlled by a motion controller or PLC — commonly a Pacific Scientific SC902 or SC750 series motion controller, or a third-party controller outputting analogue velocity or torque commands. Before removal, engineers should document all existing wiring at the drive’s terminal block, including the motor power leads (U, V, W), feedback cable routing, enable signal, fault relay, and any external inhibit or brake control wiring.

In systems where the PC834-107-N is paired with a Pacific Scientific R-series brushless servo motor (such as the R32, R42, or R63 frame sizes), the motor feedback connector pinout must be verified against the replacement unit’s feedback interface. Resolver-based motors require a resolver-to-digital converter circuit within the drive; encoder-based motors use a differential line receiver. Mismatching feedback type is the most common commissioning error in PC834 series replacements.

For systems using a Pacific Scientific 6410 or 6420 series indexer as the upstream motion command source, the step-and-direction signal interface should be confirmed at the drive’s logic input terminals. Signal voltage levels (5 V TTL vs. 24 V differential) must match the indexer’s output specification. In some legacy installations, a signal isolator or opto-coupler interface board was inserted between the indexer and the drive — this intermediate component should be retained and tested independently during the retrofit.

Power supply capacity is another critical checkpoint. The PC834-107-N draws both a logic supply (typically 24 VDC) and an AC bus supply. If the existing control panel power supply or transformer is already operating near capacity — particularly in multi-axis cabinets where several drives share a common bus — the replacement drive’s inrush current and continuous current draw must be confirmed against available headroom. In some cases, a regenerative braking resistor or bus capacitor bank may need inspection or replacement as part of the retrofit scope.

Where the PC834-107-N is integrated into a system also containing Pacific Scientific SC300 or SC400 series drives on adjacent axes, the shared communication bus (if any) and common fault interlock wiring should be mapped before the swap. Fault relay contacts from the PC834 are often wired into a machine safety circuit or PLC digital input — these must remain functional throughout the replacement to avoid nuisance faults on adjacent axes.

Finally, if the system includes an HMI panel (such as a legacy operator terminal connected via RS-232 or RS-485 to the motion controller), verify that the drive replacement does not affect any drive-status feedback displayed on the HMI. Some HMI screens display drive fault codes or axis status sourced from the controller’s I/O map — these should be tested after commissioning to confirm correct display.

Downtime Control During System Migration

Minimising production downtime during a PC834-107-N replacement begins with preparation, not installation. A structured pre-swap checklist — covering parameter backup, wiring documentation, spare fuse and connector inventory, and a confirmed test procedure — can reduce the physical swap window to under two hours in most installations.

Before powering down the system, capture all existing drive configuration parameters. For PC834 series drives configured via potentiometer, photograph or record each pot position. For units with PC-based configuration software, export the parameter file and store it with the maintenance record. This data is essential for restoring servo loop performance after the replacement unit is installed.

During the swap, label every wire before disconnection. Use the drive’s terminal block diagram (available in the PC834 series hardware manual) to verify each connection point. Pay particular attention to the enable input, fault output, and motor thermal switch wiring — these are frequently omitted during rushed replacements and cause post-installation faults that are difficult to diagnose under time pressure.

After installation, perform a no-load motor rotation test before reconnecting the mechanical load. Confirm correct motor direction, smooth velocity response, and absence of fault codes. Only after a clean no-load test should the mechanical coupling be re-engaged and a loaded test cycle run. This staged commissioning approach protects both the replacement drive and the connected mechanical system from damage caused by incorrect wiring or parameter settings.

For critical production lines where even a two-hour window is unacceptable, NINERMAS recommends maintaining a pre-tested, shelf-ready PC834-107-N spare on-site as part of a structured spare parts programme. This eliminates lead time from the downtime equation entirely and allows the replacement to proceed as a planned maintenance activity rather than an emergency response.

Retrofit Support FAQ

Q1: Is the PC834-107-N a direct drop-in replacement for my existing unit?
In most cases, yes — provided the motor feedback type, input voltage, and signal interface match. NINERMAS recommends sharing your existing drive’s nameplate data and wiring diagram for confirmation before ordering. Our technical team can cross-reference the -107-N suffix against your installation to confirm compatibility.

Q2: Has this unit been tested before shipment?
Yes. Every PC834-107-N supplied by NINERMAS undergoes a functional pre-shipment test. A test report is available on request. The unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions.

Q3: What is your typical lead time and stock availability?
The PC834-107-N is held in managed inventory. Standard lead time for in-stock units is 3–7 business days for international shipment. Contact sale@ninermas.com for real-time stock confirmation and expedited shipping options for urgent requirements.

Q4: Can NINERMAS assist with commissioning or wiring queries?
Yes. Our technical support team can provide wiring guidance, parameter setting recommendations, and commissioning checklists based on your specific installation. We also assist with cross-referencing adjacent PC834 series variants and identifying compatible motor and controller combinations for your retrofit project.
