Pacific Scientific K42HLHN-LNK-NS-01 Service-Ready Spare Part

Pacific Scientific K42HLHN-LNK-NS-01 Service-Ready Spare Part for Industrial Maintenance

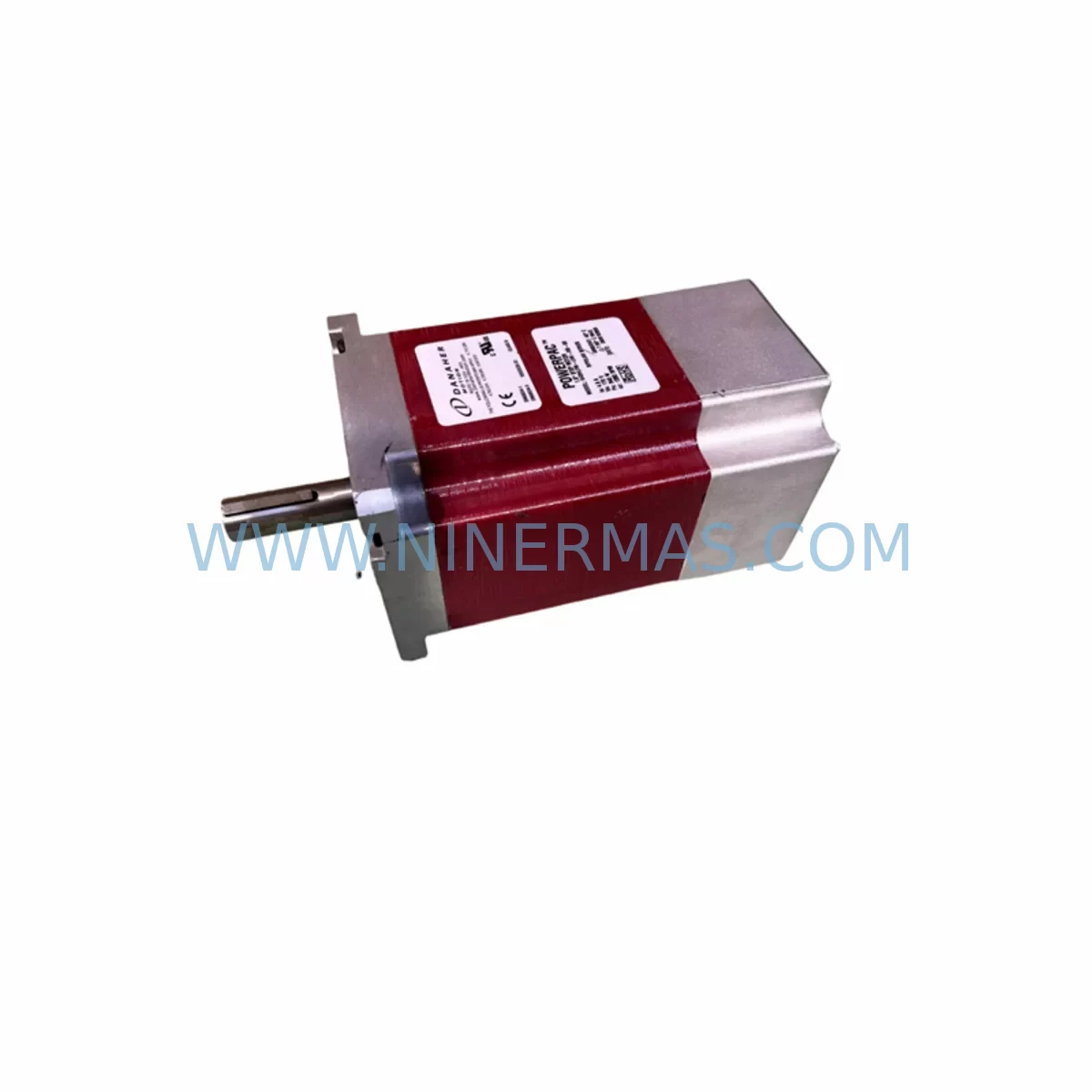

The Pacific Scientific K42HLHN-LNK-NS-01 is a ruggedized safety stepper motor engineered for demanding industrial automation environments. As a direct-replacement spare part, it is designed to restore motion control performance in critical production lines, processing equipment, and legacy control systems with minimal downtime. NINERMAS maintains verified stock of this unit, pre-tested and ready for fast dispatch to support your planned maintenance schedules or emergency breakdown recovery.

Stepper motors of this series are widely deployed in axis-positioning, conveyor indexing, valve actuation, and precision feed applications across oil & gas, chemical processing, power generation, and discrete manufacturing. When a K42HLHN-LNK-NS-01 fails or approaches end-of-life, rapid replacement with a service-ready original spare is the most reliable path to restoring system availability and avoiding extended unplanned outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the K42HLHN-LNK-NS-01 stepper motor, maintenance engineers should treat the task as part of a broader motion control system audit rather than an isolated swap. The motor operates within an electrical and mechanical ecosystem where adjacent components directly affect its performance and longevity.

Begin by inspecting the Pacific Scientific SC Series stepper drive or Gemini GV/GT drive paired with this motor. Drive output current settings, microstepping resolution, and fault history logs should be reviewed before the new motor is energized. A drive that has been running in a degraded state may have caused the motor failure in the first place, and installing a fresh spare into a faulty drive will shorten its service life immediately.

Check the motor power cable and encoder/feedback cable for insulation breakdown, connector corrosion, or pin damage — particularly in high-vibration or high-humidity environments. Damaged cabling is a leading cause of premature motor failure and is frequently overlooked during emergency replacements. Ensure the motor connector and mating plug are clean, properly seated, and torqued to specification.

Inspect the 24 VDC control power supply feeding the drive’s logic board. Voltage ripple or brownout conditions can cause erratic step counts, missed pulses, and thermal stress on the motor windings. A stable, regulated DC supply — such as a Phoenix Contact QUINT or TRIO series power supply — is recommended for critical axis applications.

Review the I/O interface between the PLC or motion controller and the drive. Step/direction signal integrity, differential line driver levels, and cable shielding should be verified. If the system uses a Kollmorgen or Parker motion controller upstream, confirm that the axis parameters (steps/rev, acceleration ramp, current limits) are correctly configured for the K42HLHN-LNK-NS-01’s torque-speed curve.

For systems with safety interlocks, verify the safety relay or safety PLC module — such as a Pilz PNOZ or Sick safety relay — is functioning correctly and that the motor’s safe-torque-off (STO) or enable circuit is properly wired. The “NS” designation in this SKU suggests a specific safety or non-safety configuration; confirm wiring against the original panel drawing before commissioning.

Also inspect terminal blocks and DIN rail wiring within the control cabinet for loose connections, oxidation, or overheating signs at the motor drive terminals. Loose power terminals are a common root cause of intermittent motor faults in aging panels. Replace any discolored or brittle terminal blocks as part of the corrective maintenance cycle.

If the system includes a regenerative braking resistor or dynamic braking module connected to the drive’s DC bus, inspect it for signs of thermal fatigue. A failed braking resistor can cause DC bus overvoltage faults that damage the replacement motor during deceleration cycles.

Finally, update your spare parts register to include a minimum of one K42HLHN-LNK-NS-01 unit on-hand at all times, alongside the paired drive module and associated cabling. For multi-axis systems, consider a site-level blanket order to ensure consistent availability across all identical axes.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the drive and motor circuit. Apply LOTO to the main disconnect and the 24 VDC control supply. Confirm zero-energy state with a calibrated meter before opening the cabinet.

Step 2 — Documentation: Photograph the existing motor nameplate, wiring connections, and cable routing before disassembly. Record the drive parameter set (or export via the drive’s configuration software) to ensure identical re-commissioning of the replacement unit.

Step 3 — Mechanical Removal: Disconnect the motor power and signal cables. Remove the motor mounting bolts (NEMA 42 pattern). Carefully extract the motor from the mechanical coupling or gearbox, noting the shaft orientation and any shim or spacer arrangement.

Step 4 — Inspection of Mating Components: Inspect the coupling, gearbox input shaft, and motor mounting face for wear, misalignment, or contamination. Clean the mounting surface and verify the coupling is within tolerance before installing the replacement.

Step 5 — Installation of K42HLHN-LNK-NS-01: Mount the replacement motor, torque bolts to specification, and reconnect cables per the original wiring diagram. Verify cable shielding is grounded at one end only to prevent ground loops.

Step 6 — Drive Parameter Verification: Power up the drive in a controlled state. Confirm motor current, microstepping, and ramp parameters match the motor specification. Run a low-speed jog test before returning the axis to full production speed.

Step 7 — Functional Test & Sign-off: Execute a full-cycle test under load. Monitor drive fault codes, motor temperature, and position accuracy. Document the replacement in the maintenance management system (CMMS) and update the spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the K42HLHN-LNK-NS-01 a direct drop-in replacement for the original Pacific Scientific unit?
Yes. NINERMAS supplies original Pacific Scientific K42HLHN-LNK-NS-01 units that are dimensionally and electrically identical to the factory specification. No modification to the drive parameters or mechanical mounting is required for a like-for-like replacement. Always verify the motor winding configuration (unipolar/bipolar) and current rating against your drive’s output specification before installation.

Q2: What pre-shipment testing is performed on each unit?
Every K42HLHN-LNK-NS-01 dispatched by NINERMAS undergoes winding resistance measurement, phase-to-phase insulation resistance testing, and a step-accuracy functional check. A test record is available upon request. Units are packed in anti-static, moisture-resistant packaging to maintain condition during international transit.

Q3: Can NINERMAS support a long-term spare parts program for this motor?
Yes. We offer blanket purchase orders and scheduled delivery programs for customers who require guaranteed stock availability across multi-year maintenance contracts. This is particularly valuable for facilities operating multiple identical axes or managing aging Pacific Scientific motion control systems where OEM supply has become unreliable. Contact our team to discuss volume pricing and consignment stock arrangements.

Q4: What is covered under the 12-month warranty?
All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions. Warranty claims require the unit to be returned for inspection. Failures caused by incorrect installation, drive misconfiguration, overvoltage, or mechanical overload are assessed on a case-by-case basis. NINERMAS provides technical support throughout the warranty period to assist with root cause analysis and replacement logistics.
