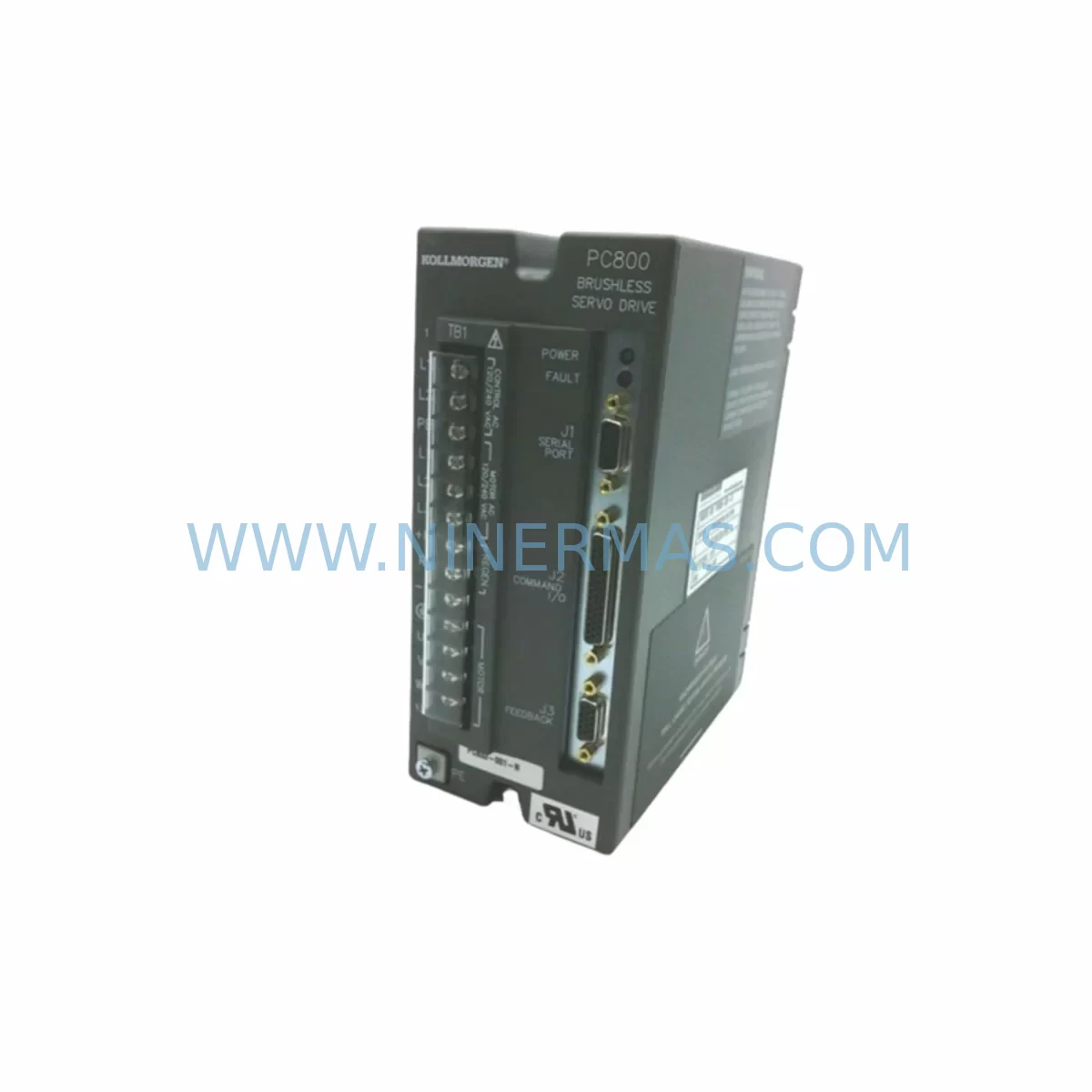

Pacific Scientific PC832-001-T Retrofit-Compatible Servo Drive

Pacific Scientific PC832-001-T Retrofit-Compatible Servo Drive for Legacy System Modernization

The Pacific Scientific PC832-001-T is a ruggedized servo drive module engineered for demanding industrial environments. As legacy motion control systems age and original spare parts become increasingly difficult to source, the PC832-001-T serves as a proven retrofit-compatible replacement for aging Pacific Scientific servo drive platforms. Whether you are managing a planned upgrade of an existing servo axis, responding to an unplanned drive failure, or executing a phased modernization of a multi-axis control cabinet, the PC832-001-T provides a reliable, field-validated path to restoring and extending system uptime without requiring a full machine redesign.

This module is widely deployed in processing industries including food and beverage, packaging, printing, semiconductor handling, and precision assembly. Its ruggedized construction makes it suitable for environments with elevated vibration, temperature cycling, and airborne contaminants — conditions that frequently accelerate wear on standard commercial servo drives. For maintenance engineers managing aging production lines, the PC832-001-T represents a cost-effective alternative to full servo system replacement, preserving existing motor wiring, feedback cabling, and machine program logic wherever possible.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the PC832-001-T into an existing servo system requires careful pre-installation planning across several interdependent subsystems. Before removing the failed or end-of-life drive, maintenance teams should document all existing parameter settings using the Pacific Scientific commissioning software or a compatible RS-232 terminal session. Parameter files should be archived to a secure location as they will be required to restore axis tuning, velocity limits, current limits, and fault response behavior after the replacement drive is installed.

Terminal wiring is a critical checkpoint. The PC832-001-T uses a defined terminal block layout for power input, motor output, feedback signals, and control I/O. Technicians should compare the existing wiring diagram against the PC832-001-T terminal assignment before disconnecting any conductors. Pay particular attention to the enable input, fault output, analog command signal (typically ±10 VDC from the host controller or PLC analog output module), and the resolver or encoder feedback connector. Incorrect feedback wiring is one of the most common causes of commissioning delays during servo drive replacement.

For systems where the PC832-001-T interfaces with a programmable logic controller — such as a GE Fanuc Series 90 PLC, a Siemens S5 or S7 controller, or an Allen-Bradley SLC 500 or ControlLogix platform — the analog output scaling and enable logic in the PLC program should be verified before the new drive is powered. In multi-axis systems, the PC832-001-T may share a common DC bus with adjacent drives such as the Pacific Scientific SC903 power supply module or other PC830-series axes. Bus voltage levels and regenerative load balance should be confirmed before energizing the replacement drive.

Where the existing system includes a motion controller or CNC kernel communicating over RS-232 or RS-485, the serial communication parameters of the PC832-001-T must be configured to match the host: baud rate, data bits, stop bits, and device address. In installations where the original drive communicated with an HMI panel — such as a Wonderware InTouch station or a Siemens OP/TP operator panel — the drive status tags and fault code mappings in the HMI project may need to be reviewed to ensure alarm displays and diagnostic screens remain functional after the drive swap.

For I/O-intensive retrofit projects, the PC832-001-T’s digital I/O points should be mapped against the existing control cabinet wiring. If the original installation used a dedicated I/O expansion module or a distributed I/O node on a DeviceNet or Profibus segment, the I/O address assignments in the PLC program must be preserved. Signal isolators may be required where long cable runs or mixed voltage levels exist between the drive and the control panel. In some installations, a signal conditioning module is inserted between the analog command output of the PLC and the drive command input to eliminate ground loop interference.

Backplane and rack considerations apply where the PC832-001-T is installed in a multi-slot servo amplifier rack. Confirm that the rack backplane connector is undamaged and that the slot address configuration matches the axis number expected by the motion controller. In systems using a Pacific Scientific SC800-series multi-axis rack, the slot assignment directly affects the axis addressing in the motion program and must not be changed without corresponding updates to the control software.

Downtime Control During System Migration

Minimizing production downtime during a servo drive replacement requires a structured approach that begins well before the maintenance window opens. The most effective strategy is to pre-stage the PC832-001-T with all parameters loaded and verified on the bench before the machine is taken offline. Using the Pacific Scientific commissioning software, technicians can pre-load the archived parameter file into the replacement drive, confirm that all settings are correctly applied, and perform a no-load functional test using a motor simulator or a spare motor on the bench. This pre-commissioning step eliminates the most time-consuming phase of the replacement — parameter entry and initial tuning — from the critical path on the production floor.

During the actual replacement, a structured lockout/tagout procedure should be followed. After de-energizing the cabinet and confirming zero voltage on the DC bus capacitors (allow adequate discharge time per the drive’s technical manual), the failed drive can be removed and the PC832-001-T installed. Reconnect all terminal wiring in sequence: power input first, then motor output, then feedback, then control I/O. Verify each connection against the wiring diagram before proceeding to the next group.

On power-up, monitor the drive’s status indicators and fault display before enabling the axis. Clear any initialization faults, confirm that the feedback signal is being received correctly (resolver or encoder counts should be stable), and verify that the enable input is in the correct state. Enable the axis at low speed first and confirm that the motor rotates in the correct direction with stable velocity response. Adjust velocity loop gain if oscillation is observed. Once the axis is confirmed stable, restore the machine to automatic mode and run a short production cycle under supervision before returning to full production.

For systems where the servo axis is part of a synchronized multi-axis motion sequence — such as a flying shear, a registration control loop, or a coordinated packaging machine — the re-synchronization procedure should be documented in advance and tested at reduced speed before full production is resumed. Keeping the original PLC program and HMI project unchanged during the drive replacement is strongly recommended; any program modifications should be deferred to a separate planned maintenance window to isolate variables and simplify fault diagnosis if issues arise.

Retrofit Support FAQ

Q: Is the PC832-001-T a direct drop-in replacement for other PC830-series drives?
A: The PC832-001-T is designed within the Pacific Scientific PC830 platform and shares the same mechanical footprint and terminal layout as other PC832-series variants. However, power rating, feedback type, and communication options may differ between sub-models. Always cross-reference the full model number of the drive being replaced against the PC832-001-T specification sheet before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q: What pre-shipment testing is performed on the PC832-001-T?
A: Each PC832-001-T unit undergoes a functional test prior to shipment, including power-on verification, parameter load confirmation, and I/O signal check. A test report is available upon request. The unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: How do I retrieve and restore parameters from the original drive before replacement?
A: Pacific Scientific drives in the PC830 series support parameter upload and download via the RS-232 serial port using the manufacturer’s commissioning software. Connect a laptop with the appropriate software to the drive’s serial port, upload the parameter file, and save it to a secure location before removing the drive. After installing the PC832-001-T, download the saved parameter file to the new drive and verify all values before enabling the axis. If the original drive is non-functional and parameters cannot be retrieved, our team can assist with parameter reconstruction based on motor nameplate data and application specifications.

Q: What is the typical lead time and stock availability for the PC832-001-T?
A: The PC832-001-T is maintained in stock to support urgent replacement requirements. Standard orders ship within 1–3 business days. For large-quantity orders or long-term spare parts programs, please contact our sales team to discuss inventory reservation and scheduled delivery arrangements. We support global shipping with export documentation for multinational manufacturing customers.
