ORMEC SAC-SW217/EP Service-Ready Spare Part for Industrial Maintenance

ORMEC SAC-SW217/EP Service-Ready Spare Part for Industrial Maintenance

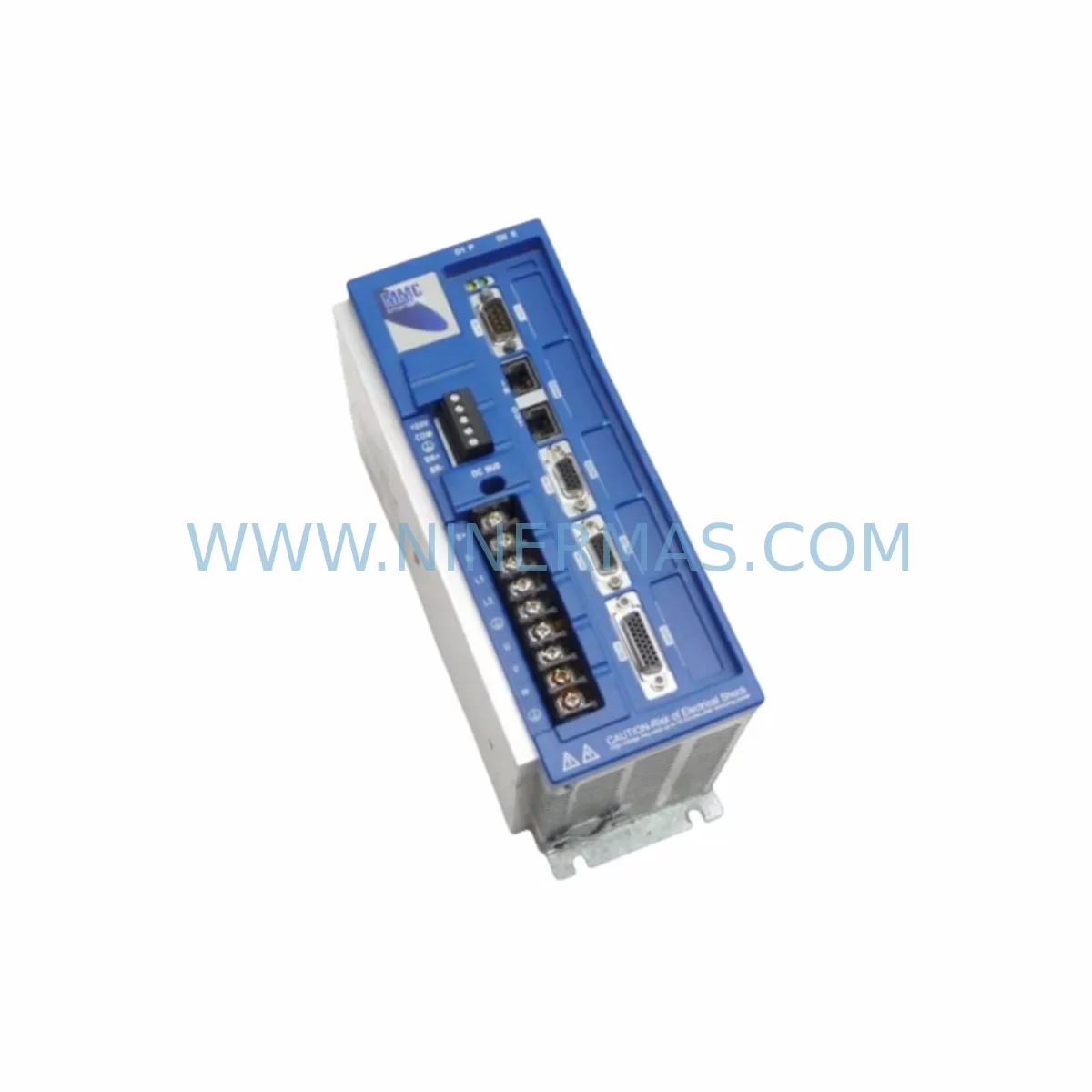

The ORMEC SAC-SW217/EP and its companion variant SAC-SW217/E are ruggedized servo drive modules engineered for demanding industrial environments where uptime is non-negotiable. Designed as integral components of ORMEC’s SAC-series servo control architecture, these modules deliver precise motion control for legacy and active production lines alike. When a servo drive failure triggers an unplanned shutdown, having a verified, service-ready replacement on the shelf is the single most effective strategy for minimizing mean time to repair (MTTR) and restoring production continuity.

At NINERMAS, every SAC-SW217/EP and SAC-SW217/E unit is sourced from authorized supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts buffer for a multi-axis ORMEC servo system, this listing provides a reliable, traceable procurement path.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A servo drive module failure rarely occurs in isolation. In ORMEC SAC-series installations, the SAC-SW217/EP interfaces directly with the servo bus backplane, the axis controller board, and the power supply rail. When replacing this module during a corrective or preventive maintenance event, experienced maintenance engineers systematically inspect the surrounding components to prevent repeat failures and confirm system integrity before restart.

Begin with the SAC-series backplane itself — inspect connector pins for oxidation, mechanical damage, or intermittent contact that may have contributed to the drive fault. The ORMEC SAC power supply module (typically a dedicated DC bus supply within the same control cabinet) should be load-tested to confirm it is delivering stable voltage within specification; an under-voltage condition is a common root cause of servo drive trips. Check the 24 VDC logic supply feeding the controller rack, as voltage sag on the logic rail can cause spurious faults that mimic drive hardware failure.

Inspect all servo feedback cables — encoder cables and resolver wiring routed between the SAC-SW217/EP and the motor — for insulation damage, connector wear, and shield continuity. Degraded feedback signals are a leading cause of premature servo drive failure in high-cycle applications. At the same time, verify the motor power cables for phase-to-phase and phase-to-ground insulation resistance; a winding fault in the servo motor will destroy a replacement drive if not identified before commissioning.

Within the control cabinet, review the terminal blocks and DIN rail wiring associated with the drive’s enable, fault reset, and I/O circuits. Loose terminations on the drive enable signal or the fault relay output are a frequent source of nuisance trips. If the installation includes an ORMEC HMI or operator panel communicating with the SAC controller, confirm that the communication link is stable and that no parameter corruption has occurred in the controller’s non-volatile memory.

For multi-axis systems, also inspect the neighboring SAC-SW217 axis modules on the same backplane — a bus fault on one axis can stress adjacent drives. Check the system fuses and circuit breakers protecting the servo bus supply; replace any that show signs of thermal stress. If the installation uses signal isolators between the PLC analog outputs and the ORMEC drive reference inputs, verify isolator output accuracy with a calibrated meter. Finally, confirm that any EMC filters or line reactors on the AC input to the servo power supply are intact and correctly rated — these components protect the drive from line transients and are often overlooked during reactive maintenance.

Site Replacement Workflow

Replacing the SAC-SW217/EP or SAC-SW217/E in a live production environment requires a structured approach to minimize downtime and avoid commissioning errors. Follow this sequence to ensure a safe, efficient swap:

1. Fault Documentation: Before de-energizing, record all active fault codes from the ORMEC controller display or HMI. Photograph the existing wiring and connector positions on the drive module for reference during reinstallation.

2. Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the servo bus power supply and the 24 VDC logic rail. Confirm zero energy state with a calibrated meter before touching any connector.

3. Module Removal: Disconnect the backplane connector and any external wiring harnesses. Note the slot position — in multi-axis SAC racks, axis addressing is slot-dependent. Remove the module and retain it for failure analysis if required.

4. Inspection Window: Use the access opportunity to clean the backplane slot, inspect connector contacts, and perform the surrounding component checks described in the Maintenance Planning section above.

5. New Module Installation: Seat the SAC-SW217/EP firmly into the correct backplane slot. Reconnect all wiring harnesses in the documented sequence. Verify that the module’s configuration switches or firmware version match the system requirements — consult the ORMEC SAC-series installation manual for axis parameter settings.

6. Power-Up and Verification: Restore power in sequence — logic supply first, then servo bus. Monitor the controller for fault codes. Perform a low-speed jog test on the affected axis before returning the machine to automatic mode. Confirm encoder feedback, velocity loop stability, and torque limit behavior match pre-fault baselines.

7. Documentation and Spare Replenishment: Log the replacement in your maintenance management system (CMMS). Immediately initiate a purchase order for a replacement spare to restore your buffer stock — a single-unit spare strategy leaves the system exposed during the procurement lead time.

Spare Parts Support FAQ

Q1: Is the SAC-SW217/EP a direct replacement for the SAC-SW217/E, and are they interchangeable?
The SAC-SW217/EP and SAC-SW217/E are closely related variants within the ORMEC SAC servo drive family. The “/EP” designation typically indicates an enhanced or extended-performance variant. Before substituting one for the other, verify the axis parameter configuration in your ORMEC controller and confirm with the OEM documentation or our technical team that the firmware and hardware revision are compatible with your specific installation. We can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed, and how does the 12-month warranty work?
Every SAC-SW217/EP and SAC-SW217/E unit dispatched by NINERMAS undergoes functional verification testing before shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team; units must not show evidence of physical damage, incorrect installation, or operation outside rated parameters. Contact sale@ninermas.com to initiate a warranty inquiry.

Q3: Can you support long-term or blanket purchase orders for ongoing spare parts inventory?
Yes. NINERMAS supports long-term supply agreements for critical spare parts including the SAC-SW217/EP and SAC-SW217/E. For facilities managing multiple ORMEC servo axes or operating extended maintenance cycles, we recommend establishing a standing order or blanket PO to ensure priority allocation and stable lead times. Contact our sales team to discuss volume pricing and supply continuity arrangements.

Q4: How do I confirm compatibility before ordering if my system uses an older ORMEC SAC controller revision?
Provide your controller model number, backplane revision, and existing drive firmware version (if accessible) when contacting us. Our team will cross-reference against known compatibility matrices for the ORMEC SAC series and advise on any configuration steps required. We do not recommend ordering without compatibility confirmation for legacy systems where the controller revision is unknown — this protects both your investment and your production schedule.
