ORIENTAL E2-500-250-A Service-Ready Spare Part

ORIENTAL E2-500-250-A Service-Ready Spare Part for Industrial Maintenance

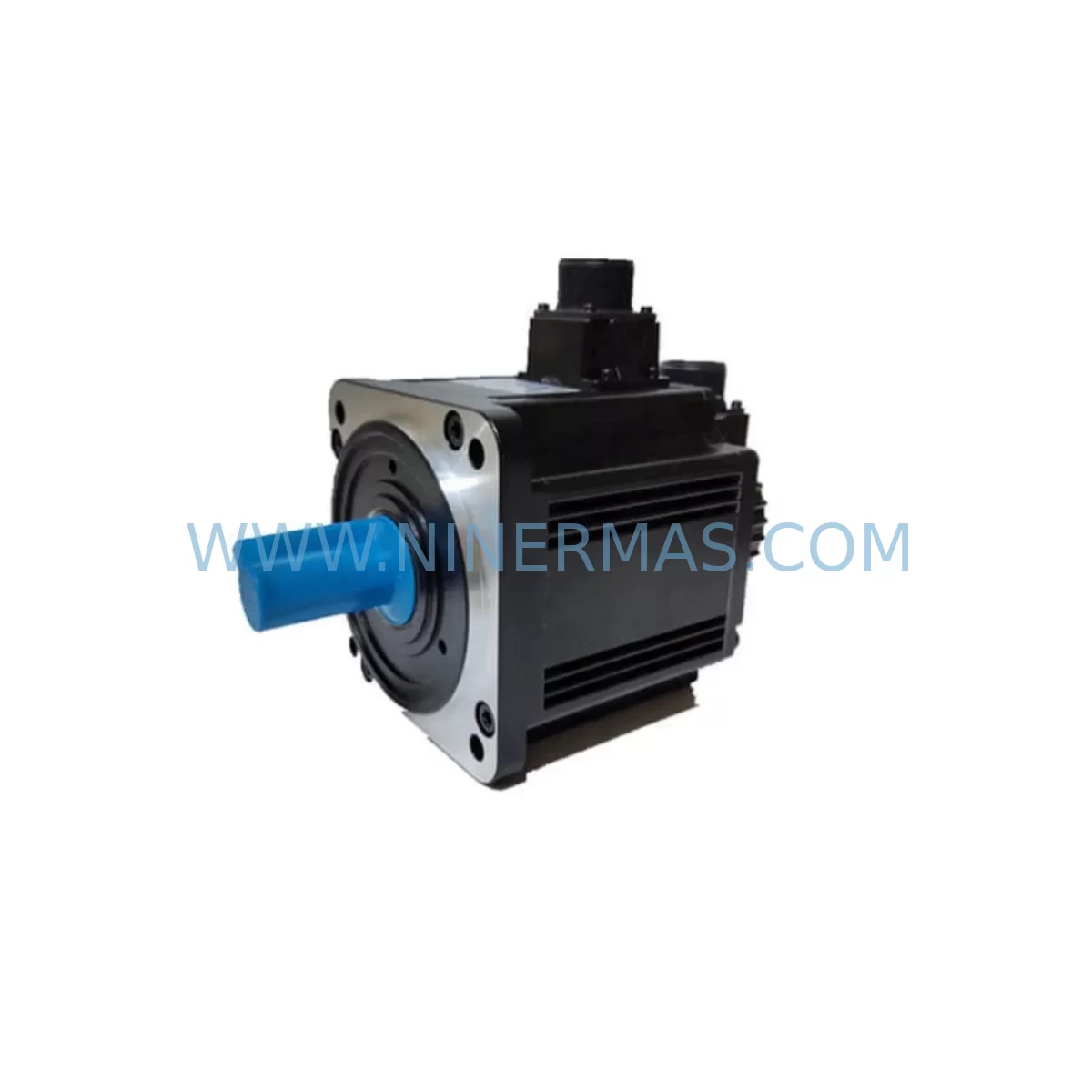

The ORIENTAL E2-500-250-A is a precision 5-phase stepping motor designed for demanding industrial automation environments where positional accuracy, torque consistency, and long-term mechanical reliability are non-negotiable. As a direct service-ready spare part, the E2-500-250-A supports rapid replacement in motion control systems, robotic positioning stages, semiconductor handling equipment, and precision manufacturing lines. Whether you are managing a scheduled annual overhaul or responding to an unplanned motor failure, having a verified E2-500-250-A in your spare parts inventory is a critical element of any maintenance strategy aimed at minimizing mean time to repair (MTTR).

The E2-500-250-A belongs to ORIENTAL MOTOR’s E2 series of 5-phase stepping motors, recognized across the industry for their smooth micro-step resolution, low vibration characteristics, and compatibility with a wide range of 5-phase driver modules. The motor’s 500 oz-in holding torque and 250 mm frame specification make it well-suited for applications requiring high torque density in a compact form factor. Alternate cross-reference part numbers including A3723-9215, E2-500-250-NE-D-A-B, and 4022.436.8816 confirm broad OEM compatibility across multiple system generations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the E2-500-250-A in a live production environment, maintenance engineers should treat the motor swap as an opportunity to audit the entire motion axis for latent faults. The stepping motor does not operate in isolation — it is part of an integrated drive-motor system, and the health of surrounding components directly affects the replacement motor’s service life and positional accuracy.

Begin by inspecting the paired 5-phase driver module, typically an ORIENTAL MOTOR UDX5107N or UDX5114N, for signs of overheating, capacitor bulge, or output stage degradation. A faulty driver delivering irregular current waveforms will shorten the life of a new E2-500-250-A within weeks. Simultaneously, verify the 24 VDC or 48 VDC power supply feeding the driver — units such as the ORIENTAL MOTOR PSA series or equivalent DIN-rail switching power supplies should be load-tested to confirm stable output under full motor current demand.

Check the motor cable and connector harness for insulation breakdown, particularly at flex points near cable carriers. Damaged motor cables introduce phase imbalance that causes missed steps and premature bearing wear. If the system uses a signal isolator between the PLC pulse output and the driver step/direction inputs, verify the isolator’s propagation delay is within specification — units such as Phoenix Contact PSI-MOS or equivalent optocoupler-based isolators should be replaced on a 5-year cycle in high-cycle applications.

For systems using an ORIENTAL MOTOR RK series controller or a third-party motion controller such as a Mitsubishi QD75 positioning module or an Omron CJ1W-NC series axis card, confirm that the pulse output frequency and acceleration ramp parameters are correctly configured for the E2-500-250-A’s torque-speed curve. Incorrect ramp settings are a leading cause of stall events that are misdiagnosed as motor failures.

Terminal blocks on the driver input side — such as Phoenix Contact UK series or Weidmuller WDU series — should be inspected for loose connections and oxidation. A single high-resistance terminal connection on a 5-phase motor winding circuit can cause asymmetric phase current, resulting in vibration, noise, and eventual winding failure. Fuse holders protecting the driver’s AC input, typically 250V/5A ceramic fuses in a Littelfuse or Schurter holder, should be checked and replaced if the fuse shows any signs of thermal discoloration.

If the system includes an HMI panel such as a Proface GP4000 series or Siemens KTP series for operator position monitoring, verify that the position feedback display is correctly zeroed after motor replacement. For closed-loop stepping systems using an encoder feedback card, confirm encoder alignment and re-run the auto-tuning sequence before returning the axis to production.

Site Replacement Workflow

Replacing the E2-500-250-A follows a structured sequence designed to minimize downtime and eliminate re-work. Before beginning, confirm the replacement unit’s part number against the system’s BOM and cross-reference the A3723-9215 or E2-500-250-NE-D-A-B alternate numbers if the original label is worn. Photograph the existing motor’s wiring harness routing and connector orientation before disconnection.

Power down the driver module and discharge any bus capacitors per the driver’s safety procedure — typically a 5-minute wait after power removal. Disconnect the motor cable, remove the motor mounting bolts, and extract the motor from the coupling or gearbox. Inspect the coupling insert for wear and replace if necessary before installing the new E2-500-250-A.

After mechanical installation, reconnect the motor cable and verify phase wiring sequence against the driver’s wiring diagram. For ORIENTAL MOTOR 5-phase systems, incorrect phase sequence will cause the motor to vibrate without producing useful torque. Power up the driver in offline test mode, command a low-speed jog, and confirm smooth rotation and correct direction before returning the axis to automatic mode.

Document the replacement in the site’s maintenance management system (CMMS) with the new motor’s serial number, installation date, and pre-installation test results. This record supports warranty claims and provides data for predictive maintenance interval optimization. All E2-500-250-A units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment and have undergone full electrical and mechanical verification prior to dispatch.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the E2-500-250-A supplied by NINERMAS?
All E2-500-250-A units are covered by a 12-month warranty from the date of shipment. Each unit undergoes full electrical and mechanical pre-shipment testing. In the event of a warranty claim, NINERMAS provides replacement or repair support with documented test records.

Q2: How do I confirm compatibility between the E2-500-250-A and my existing 5-phase driver?
The E2-500-250-A is compatible with ORIENTAL MOTOR’s UDX and RK series 5-phase drivers, as well as third-party drivers designed for 5-phase hybrid stepping motors with equivalent winding impedance. Provide your driver model number and current system configuration to NINERMAS for a compatibility confirmation before ordering.

Q3: Can NINERMAS supply the E2-500-250-A for long-term maintenance contracts or reserved inventory programs?
Yes. NINERMAS supports long-term supply agreements and reserved inventory programs for critical spare parts including the E2-500-250-A. Reserved stock arrangements ensure availability for planned shutdowns and emergency replacements without exposure to spot-market lead time risk.

Q4: What cross-reference part numbers are accepted for the E2-500-250-A?
The E2-500-250-A is cross-referenced as A3723-9215, E2-500-250-NE-D-A-B, and 4022.436.8816. All cross-reference numbers refer to the same motor specification and are accepted when placing orders with NINERMAS.
