Oriental CDN127R-9 Service-Ready Spare Part for Maintenance

Oriental CDN127R-9 Service-Ready Spare Part for Maintenance: Minimizing Downtime Risk in CDN Series Stepper Systems

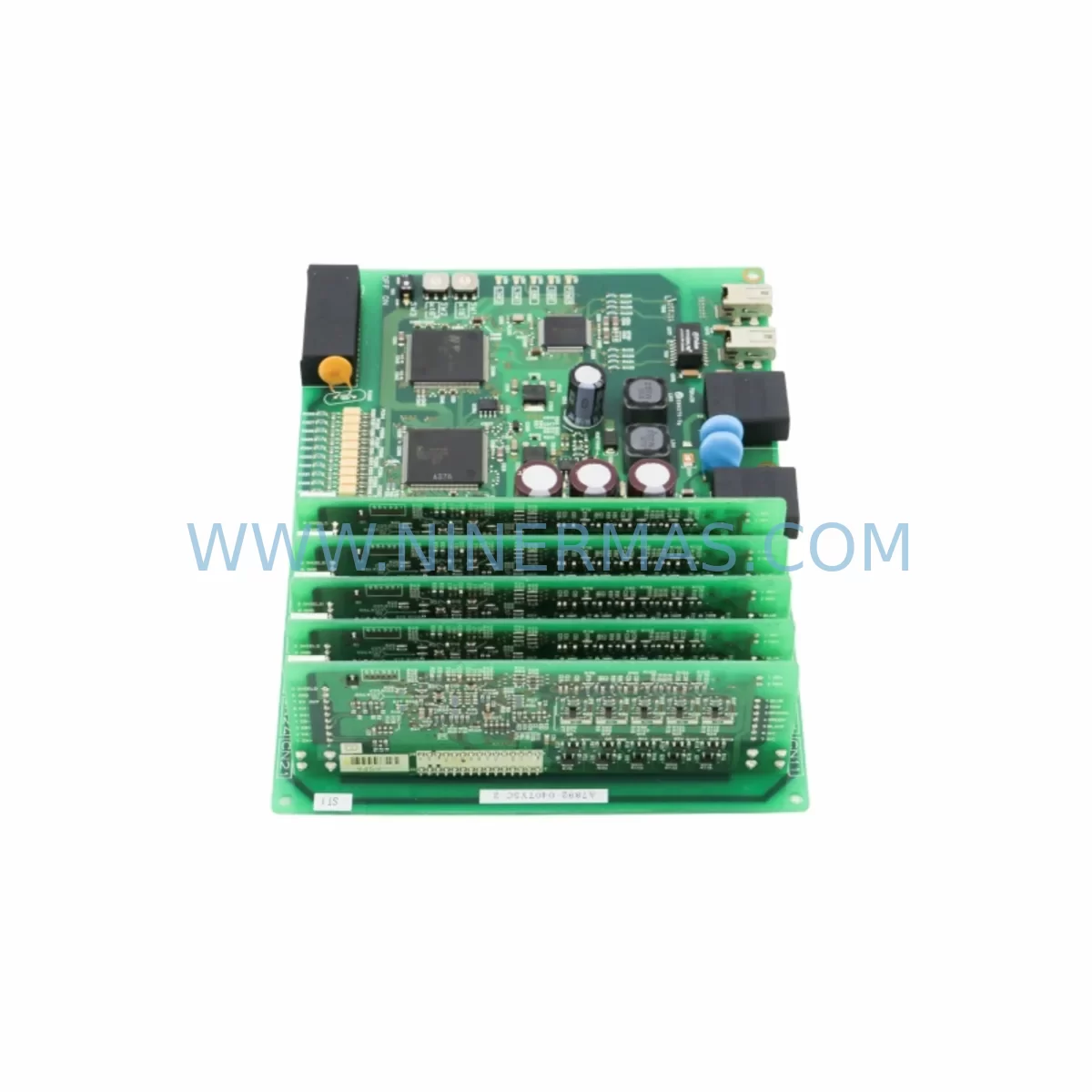

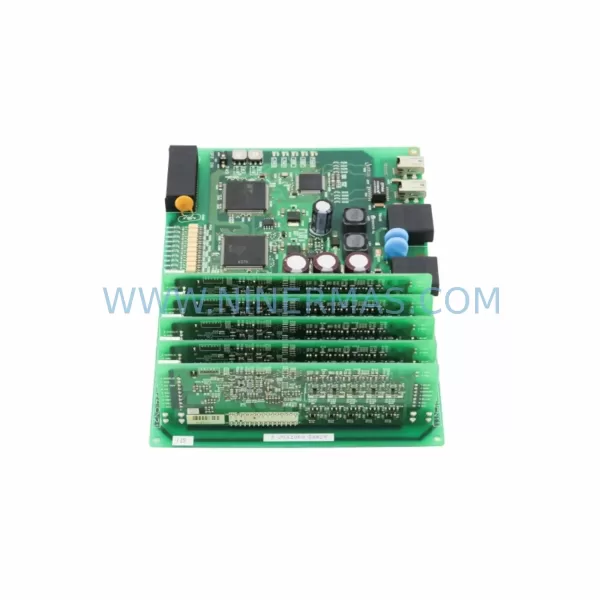

The Oriental Motor CDN127R-9 is a critical motor driver PCB designed for use within the CDN series stepper motor control systems. In industrial environments where continuous operation is non-negotiable, the availability of a verified, service-ready CDN127R-9 spare part is a frontline defense against unplanned downtime. Whether you are managing a high-throughput assembly line, a precision positioning system, or a legacy automation cell, the CDN127R-9 represents a key node in your electrical control architecture — and its failure without a pre-stocked replacement can translate directly into hours or days of lost production.

At NINERMAS, every CDN127R-9 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford lead-time uncertainty on end-of-life or hard-to-source components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CDN127R-9 motor driver PCB is flagged for replacement — whether during a routine control cabinet inspection, a fault isolation procedure, or an emergency shutdown recovery — experienced maintenance engineers know that the PCB itself is rarely the only component that warrants attention. A systematic approach to spare parts planning around this driver board significantly reduces the risk of repeat failures and secondary downtime events.

Begin by inspecting the 24VDC or 48VDC power supply module feeding the CDN series driver rack. Power supply degradation is a leading cause of driver PCB stress and premature failure. If the CDN127R-9 has failed due to overvoltage or ripple, the upstream power supply — often an Oriental Motor PS series or equivalent industrial DIN-rail unit — should be tested and potentially replaced in the same maintenance window.

Next, verify the motor connection cables and encoder feedback wiring. The CDN series uses dedicated motor cables with specific shielding requirements; damaged or improperly terminated cables can induce noise that corrupts the driver’s control signals. Inspect the CC-series motor connection cables and their connector housings for signs of wear, heat damage, or intermittent contact.

The I/O interface board connected to the CDN127R-9 should also be checked. In many CDN-series installations, a dedicated I/O expansion module or terminal block assembly (such as Oriental Motor’s DG-series terminal units) routes pulse and direction signals from the host PLC or motion controller. Loose terminal screws, corroded contacts, or failed optocouplers on these boards can mimic driver PCB faults and should be verified before and after the CDN127R-9 swap.

For systems using a CRD5114P or UDK5114 5-phase driver in adjacent axes, cross-check those units during the same inspection cycle. Multi-axis stepper systems often share a common power bus, and a fault on one axis can stress neighboring driver boards. Similarly, if your installation includes a CDN127R-5 variant on a parallel axis, confirm its status and add it to your active spare inventory.

Communication modules — particularly RS-485 or pulse-train interface cards used to connect the CDN driver to a host PLC or HMI — should be tested for signal integrity. A failed communication interface can prevent the replacement CDN127R-9 from receiving motion commands, leading to a misdiagnosis of the new spare as defective. Verify the signal isolator or opto-isolation board in the signal path if intermittent communication errors were present before the failure.

Finally, inspect the fuse and circuit protection components within the driver enclosure. Blown fuses or tripped thermal breakers upstream of the CDN127R-9 are often the first indicator of a driver fault and must be replaced as part of the corrective maintenance procedure. Ensure the replacement fuse ratings match the OEM specification for the CDN series driver rack.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Follow your site’s lockout/tagout (LOTO) procedure. Confirm zero energy state on the CDN series driver enclosure before opening the cabinet.

Step 2 — Document the existing configuration. Photograph connector positions, DIP switch settings, and any jumper configurations on the original CDN127R-9 board. These settings define motor current, step resolution, and self-test modes and must be replicated on the replacement unit.

Step 3 — Remove the failed PCB. Disconnect all connectors in sequence. Handle the PCB by its edges to avoid ESD damage. Place the failed unit in an anti-static bag for return or failure analysis.

Step 4 — Install the replacement CDN127R-9. Verify DIP switch and jumper settings match the documented configuration. Reconnect all connectors firmly. Confirm the motor cable shield is properly grounded at the driver end.

Step 5 — Power-up and functional test. Restore power in stages. Monitor for fault indicators on the driver panel. Run a low-speed jog command to confirm motor response before returning the axis to full production speed.

Step 6 — Update maintenance records. Log the replacement date, part serial number, and any observations. Schedule the next inspection interval per your preventive maintenance plan.

Spare Parts Support FAQ

Q1: Is the CDN127R-9 still available as a new original spare, or is it a refurbished unit?
All CDN127R-9 units supplied by NINERMAS are original spare parts sourced from verified industrial supply channels. Each unit undergoes pre-shipment functional testing. We do not supply refurbished or remanufactured boards without explicit disclosure. A 12-month warranty applies from the date of shipment.

Q2: How do I confirm compatibility between the CDN127R-9 and my existing CDN series driver enclosure?
Compatibility is confirmed by matching the full part number — CDN127R-9 — against your existing PCB label and the driver unit’s service manual. Cross-reference numbers A7892-0407Y5C and 3870-02203 can also be used to verify the correct board revision. If you are unsure, contact our technical team with your driver unit model number and we will confirm compatibility before shipment.

Q3: What is your lead time and do you maintain long-term stock for end-of-life Oriental Motor components?
The CDN127R-9 is currently in stock and ships within 1–3 business days. NINERMAS maintains reserved inventory agreements for critical end-of-life components to support customers with long-term maintenance contracts. Contact us to discuss reserved stock arrangements for your facility’s annual spare parts budget.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Each CDN127R-9 is powered up and tested for basic driver functionality prior to shipment. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with a replacement-first policy to minimize your downtime.
