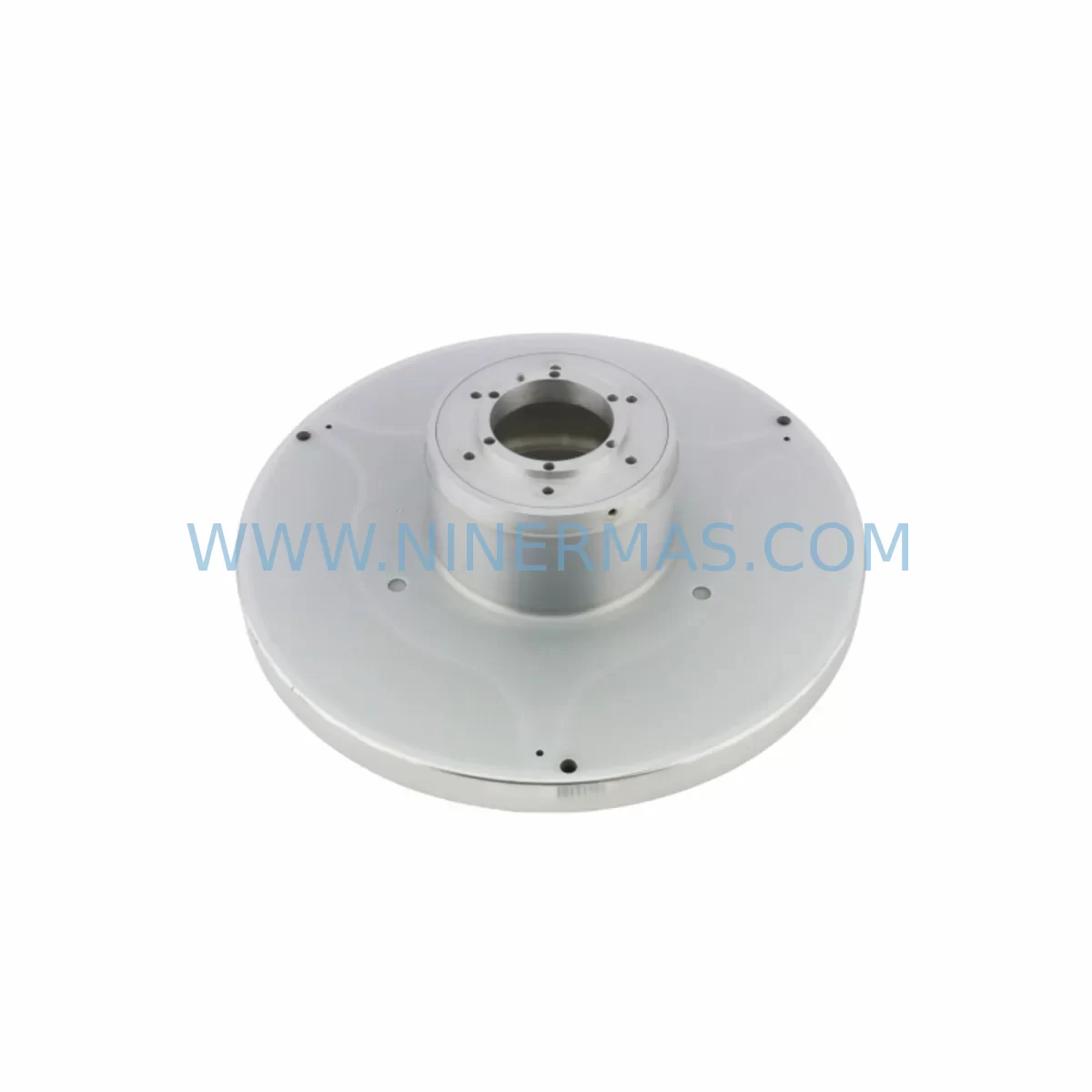

The Novellus 15-274468-00 is an original base chuck mount spare part engineered for semiconductor CVD (Chemical Vapor Deposition) process chambers within the NW40 platform. Cross-referenced under assembly identifiers N-7557-019, 01232-KA44-0001, and 1874A0306, this component serves as a critical mechanical and thermal interface between the wafer support structure and the chamber base assembly. In high-throughput semiconductor fabrication environments, an unplanned failure of the base chuck mount can halt an entire process line within minutes. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path to restoring uptime and protecting production yield.

NINERMAS maintains reserved inventory of the Novellus 15-274468-00 to support emergency replacement, scheduled preventive maintenance, and long-term spare parts programs. Every unit undergoes pre-shipment functional inspection and dimensional verification before dispatch, ensuring that the part arriving on-site is ready for immediate installation without additional qualification delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Novellus 15-274468-00 base chuck mount is rarely an isolated task. Maintenance engineers working on NW40 CVD chambers understand that a chuck mount replacement is an opportunity to inspect and, where necessary, refresh the surrounding subsystems that share the same maintenance window. Failing to address adjacent components during the same downtime event is one of the most common causes of repeat unplanned outages within weeks of a primary repair.

During a base chuck mount replacement, the following components should be inspected and staged as contingency spares in your on-site inventory:

• Novellus 15-274467-00 Upper Chuck Assembly — the mating upper chuck works in direct contact with the base mount; inspect for surface wear, flatness deviation, and thermal damage at every chuck replacement event.
• NW40 RF Generator Interface Module — RF power delivery to the chuck assembly passes through connectors adjacent to the mount; verify connector integrity and RF shielding gaskets during disassembly.
• Chamber Heater Element and Thermocouple Sensor Assembly — thermal uniformity across the chuck depends on heater element condition; a degraded heater element will cause process drift even after a successful chuck mount replacement.
• Pneumatic Valve Assemblies (Chuck Lift and Purge Lines) — the chuck lift mechanism relies on pneumatic actuators; inspect valve seats and actuator seals for leakage during the PM window.
• Mass Flow Controller (MFC) Units for Process Gas Lines — process gas delivery accuracy directly affects deposition uniformity; calibrate or replace MFCs showing drift beyond specification during the same maintenance cycle.
• Vacuum Pump Interface Flanges and Foreline Isolation Valves — base pressure recovery after chuck replacement depends on foreline integrity; inspect flange O-rings and valve seats before chamber pump-down.
• Chamber O-Ring and Seal Kit (NW40 Series) — all elastomeric seals exposed during chuck mount removal should be replaced as a matter of standard PM practice to prevent vacuum leaks after reassembly.
• Endpoint Detection Module and Optical Window Assembly — optical windows adjacent to the process zone accumulate deposition residue; clean or replace during the same downtime to maintain endpoint signal quality.
• Power Distribution Unit (PDU) and Fuse Block for Chamber Subsystems — verify fuse ratings and PDU output voltages for all chamber subsystems before returning the chamber to process; a marginal fuse or PDU output can cause intermittent faults post-maintenance.
• I/O Signal Isolation Modules and Terminal Block Assemblies — inspect signal wiring, terminal torque, and isolation module status for all chuck-related I/O channels; loose terminals are a leading cause of false fault alarms after mechanical maintenance.

Maintaining a structured spare parts kit that covers these components alongside the 15-274468-00 reduces mean time to repair (MTTR) and eliminates secondary call-outs caused by adjacent failures discovered after the chamber is returned to production.

Site Replacement Workflow

The following workflow is intended to guide maintenance engineers through a structured replacement of the Novellus 15-274468-00 base chuck mount, minimizing downtime and ensuring system compatibility is preserved throughout the process.

Step 1 — Pre-Replacement Verification: Confirm the incoming 15-274468-00 part number and cross-reference identifiers (N-7557-019, 01232-KA44-0001, 1874A0306) against the chamber’s bill of materials and the OEM service manual revision applicable to your NW40 chamber configuration. Verify that the replacement unit has passed pre-shipment inspection and that the warranty documentation is included.

Step 2 — Chamber Isolation and Lockout/Tagout: Follow site LOTO procedures. Vent the chamber to atmosphere, isolate RF power, disable pneumatic supply lines, and allow the chuck assembly to reach safe handling temperature before beginning disassembly. Semiconductor process chambers operate at elevated temperatures and pressures; thermal and chemical hazards must be controlled before any mechanical work begins.

Step 3 — Disassembly and Inspection: Remove the upper chuck assembly and set aside for inspection. Document the condition of the base chuck mount being removed — note any signs of deformation, corrosion, vacuum leak paths, or thermal damage. This documentation supports root cause analysis and informs future PM intervals.

Step 4 — Surface Preparation and Installation: Clean all mating surfaces to OEM cleanliness standards. Install new O-rings and seals from the NW40 seal kit. Position the replacement 15-274468-00 base chuck mount and torque all fasteners to the values specified in the OEM service documentation. Do not substitute fastener grades or torque values.

Step 5 — Reassembly, Pump-Down, and Leak Check: Reinstall the upper chuck assembly and all subsystem connections. Perform a controlled pump-down sequence and conduct a helium or residual gas leak check before proceeding to process qualification. A verified base pressure within OEM specification confirms seal integrity.

Step 6 — Process Qualification and Return to Production: Run the chamber qualification recipe as defined by your process engineering team. Verify deposition uniformity, temperature stability, and endpoint signal quality before releasing the chamber to production. Log the replacement in the equipment maintenance management system (CMMS) with part number, serial reference, and date.

This structured approach replaces legacy trial-and-error maintenance practices with a repeatable, documented workflow that supports both safety compliance and production reliability objectives.

Spare Parts Support FAQ

Q1: Is the Novellus 15-274468-00 an original OEM part or an aftermarket equivalent?
The 15-274468-00 units supplied by NINERMAS are original Novellus (Lam Research) spare parts sourced through verified industrial supply channels. Each unit is inspected prior to shipment to confirm part number, dimensional integrity, and surface condition. We do not supply uncertified aftermarket substitutes for safety-critical semiconductor equipment components.

Q2: What is the warranty coverage and what does it include?
All 15-274468-00 units ship with a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and part integrity under normal operating conditions consistent with the NW40 CVD platform specifications. Warranty claims are supported by NINERMAS with replacement or credit, subject to inspection of the returned unit. Contact sale@ninermas.com to initiate a warranty inquiry.

Q3: Can NINERMAS support a long-term reserved inventory program for this part?
Yes. NINERMAS offers reserved stock programs for high-criticality spare parts including the 15-274468-00. Under a reserved inventory arrangement, units are allocated to your account and held against agreed lead times, protecting your maintenance program from spot-market shortages and extended OEM lead times. Contact our procurement team to discuss minimum quantities and commitment terms.

Q4: How do I verify compatibility before ordering if my chamber has been modified from the original NW40 configuration?
Provide your chamber serial number, current BOM revision, and any known engineering change orders (ECOs) applied to the chuck assembly when contacting NINERMAS. Our technical team will cross-reference the 15-274468-00 against your specific chamber configuration and confirm compatibility or identify the correct superseding part number before the order is placed. This pre-order compatibility check is provided at no charge and eliminates the risk of receiving a part that cannot be installed without additional modification.
