NORDAC SK700E-112-340-A-GBB-EL Service-Ready Spare Part

NORDAC SK700E-112-340-A-GBB-EL Service-Ready Spare Part for Industrial Maintenance

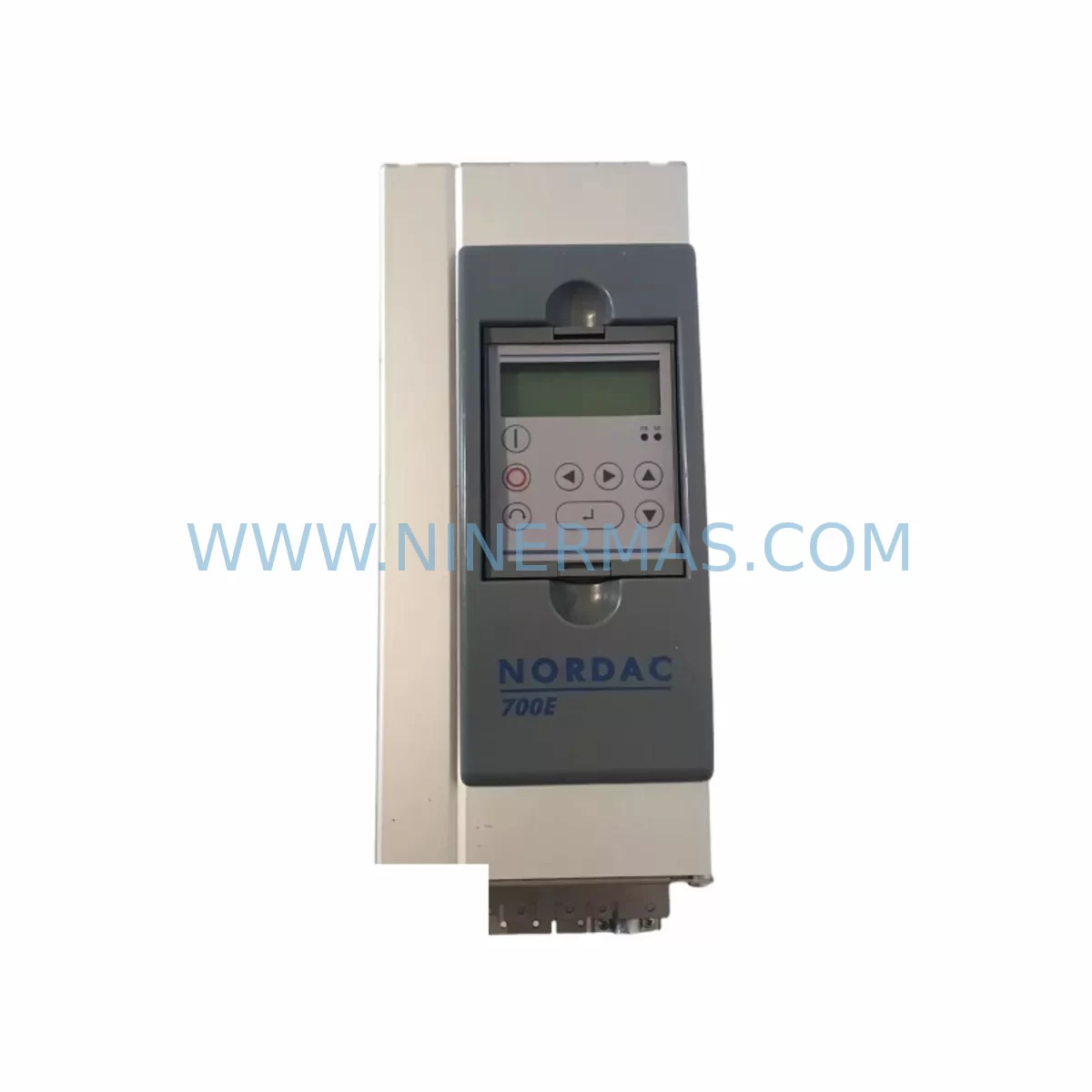

The NORDAC SK700E-112-340-A-GBB-EL is a service-ready variable frequency drive (VFD) spare part sourced for industrial maintenance, emergency replacement, and planned downtime recovery. As part of the proven SK700E series from NORDAC (Nord Drivesystems), this unit delivers reliable motor speed control for demanding production environments. Whether you are managing a scheduled annual overhaul, responding to an unplanned drive fault, or building a strategic spare parts inventory for a legacy control cabinet, the SK700E-112-340-A-GBB-EL represents a direct, compatible replacement that minimises engineering risk and restores production continuity with confidence.

Maintenance engineers and procurement teams working with NORDAC SK700E installations understand the operational cost of unplanned downtime. A failed frequency inverter on a conveyor line, pump station, or HVAC system can halt production for hours or days if a qualified spare is not immediately available. Stocking the SK700E-112-340-A-GBB-EL as a critical spare eliminates that risk and supports a proactive maintenance culture aligned with ISO 55000 asset management principles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SK700E-112-340-A-GBB-EL in the field, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure long-term system reliability. Maintenance engineers should treat a drive replacement as an opportunity to audit the entire motor control section of the control cabinet.

Begin with the input power supply: verify that the incoming three-phase voltage is within the rated tolerance and that phase imbalance does not exceed 2%. A degraded or undersized line reactor or EMC input filter upstream of the drive is a common root cause of premature inverter failure — inspect and replace these components if they show signs of overheating or insulation breakdown. Check the main circuit breaker and input fuses for correct rating and condition; an incorrectly rated fuse can allow transient overcurrents that stress the drive’s rectifier bridge.

On the output side, inspect the motor cable for insulation integrity, particularly in environments with high vibration or chemical exposure. Excessive cable length without a properly rated output choke (dU/dt filter) can generate voltage spikes that degrade motor windings and shorten drive life. If the installation uses a braking resistor connected to the EL braking transistor terminal, verify the resistor’s ohmic value and power rating against the SK700E application data.

For control circuit integrity, inspect the 24 V DC control power supply feeding the drive’s logic board and any connected I/O expansion modules. Verify that all digital input and output terminals are correctly wired and that signal cables are routed away from power conductors to prevent interference. If the installation uses a PROFIBUS DP or CANopen fieldbus module (consistent with the GBB suffix), confirm that the bus termination resistors are correctly placed and that the network address is documented before removal of the old unit.

In multi-drive control cabinets, also inspect the terminal blocks and DIN rail assemblies for loose connections, corrosion, or thermal discolouration. Check any signal isolators or analogue input conditioning modules used for speed reference signals — a drifting 4–20 mA signal can cause erratic drive behaviour that is often misdiagnosed as a drive fault. Review the PLC or DCS I/O card that interfaces with the drive’s run/stop and fault relay outputs; a faulty relay output on the drive side can prevent proper fault acknowledgement in the control system.

Finally, if the control cabinet houses an HMI panel or operator keypad used for local drive parameter access, verify that the parameter set is backed up before the swap. The SK700E series supports parameter upload/download via the NORDAC programming unit or compatible software, which eliminates the risk of losing application-specific tuning data during a drive exchange.

Site Replacement Workflow

Step 1 — Documentation: Before de-energising the system, photograph or record all wiring connections, parameter settings, and fieldbus address configurations. Download the parameter set from the existing drive using the NORDAC programming tool if the unit is still partially functional.

Step 2 — Safe Isolation: Isolate the drive from the main supply using the upstream isolator or circuit breaker. Wait a minimum of 5 minutes after power-off before opening the cabinet to allow the DC bus capacitors to discharge. Verify zero voltage with a calibrated multimeter before touching any terminals.

Step 3 — Physical Removal: Disconnect all power and control wiring systematically, labelling each conductor. Remove the drive from its mounting position — DIN rail clip or panel mount screws as applicable.

Step 4 — Inspection: With the drive removed, inspect the mounting surface, cable entry points, and adjacent components for signs of heat damage, moisture ingress, or contamination. Address any root-cause issues before installing the replacement unit.

Step 5 — Installation of SK700E-112-340-A-GBB-EL: Mount the replacement drive in the same position. Reconnect all power and control wiring in reverse order of removal, referencing your documentation. Confirm that the fieldbus address and termination settings match the original configuration.

Step 6 — Parameter Restore: Upload the saved parameter set to the new drive. If the original parameters are unavailable, configure from the application documentation or NORDAC default settings and re-commission the drive with a no-load test before connecting the motor.

Step 7 — Functional Test: Re-energise the system and perform a controlled start sequence. Verify motor direction, speed reference response, fault relay operation, and fieldbus communication status before returning the system to production.

This structured replacement workflow reduces mean time to repair (MTTR), eliminates wiring errors, and ensures the replacement SK700E-112-340-A-GBB-EL is commissioned to the same specification as the original unit — maintaining full system compatibility and operational safety.

Spare Parts Support FAQ

Q1: Is the SK700E-112-340-A-GBB-EL a direct drop-in replacement for my existing NORDAC SK700E installation?
Yes. The SK700E-112-340-A-GBB-EL is designed as a direct mechanical and electrical replacement within the SK700E series. The mounting footprint, terminal layout, and control interface are consistent with the series standard. Confirm the power rating (11 kW / 3-phase 340–480 V) and fieldbus variant (GBB — integrated bus module) match your existing installation before ordering. If your site uses a different communication protocol, verify the GBB suffix compatibility with your fieldbus network.

Q2: What pre-shipment testing is performed on this unit?
Every SK700E-112-340-A-GBB-EL unit undergoes a functional pre-shipment test prior to dispatch. This includes power-on verification, output voltage symmetry check, and basic control signal response testing. Units that do not pass the test protocol are not shipped. A 12-month warranty covering manufacturing defects is included with every unit, providing procurement teams with confidence in long-term supply reliability.

Q3: How should I manage SK700E spare parts inventory for a multi-drive installation?
For facilities operating multiple SK700E drives, a recommended strategy is to maintain at least one spare unit per five installed drives, or one spare per critical process line — whichever results in a higher stock level. Given the SK700E series’ widespread use in conveyor, pump, and HVAC applications, a single spare can cover multiple motor circuits of the same power rating. Coordinate with your procurement engineer to establish a replenishment trigger point based on lead time and criticality classification.

Q4: What is the long-term supply availability for the SK700E-112-340-A-GBB-EL?
The SK700E series has been a mainstay of NORDAC’s industrial drive portfolio, and spare units remain available through specialist industrial automation parts suppliers. For legacy systems where the SK700E has been superseded by newer NORDAC generations, sourcing from a dedicated spare parts supplier ensures continued availability beyond the manufacturer’s standard support window. Contact our team to discuss long-term supply agreements, scheduled delivery programmes, or bulk procurement pricing for multi-site maintenance contracts.
