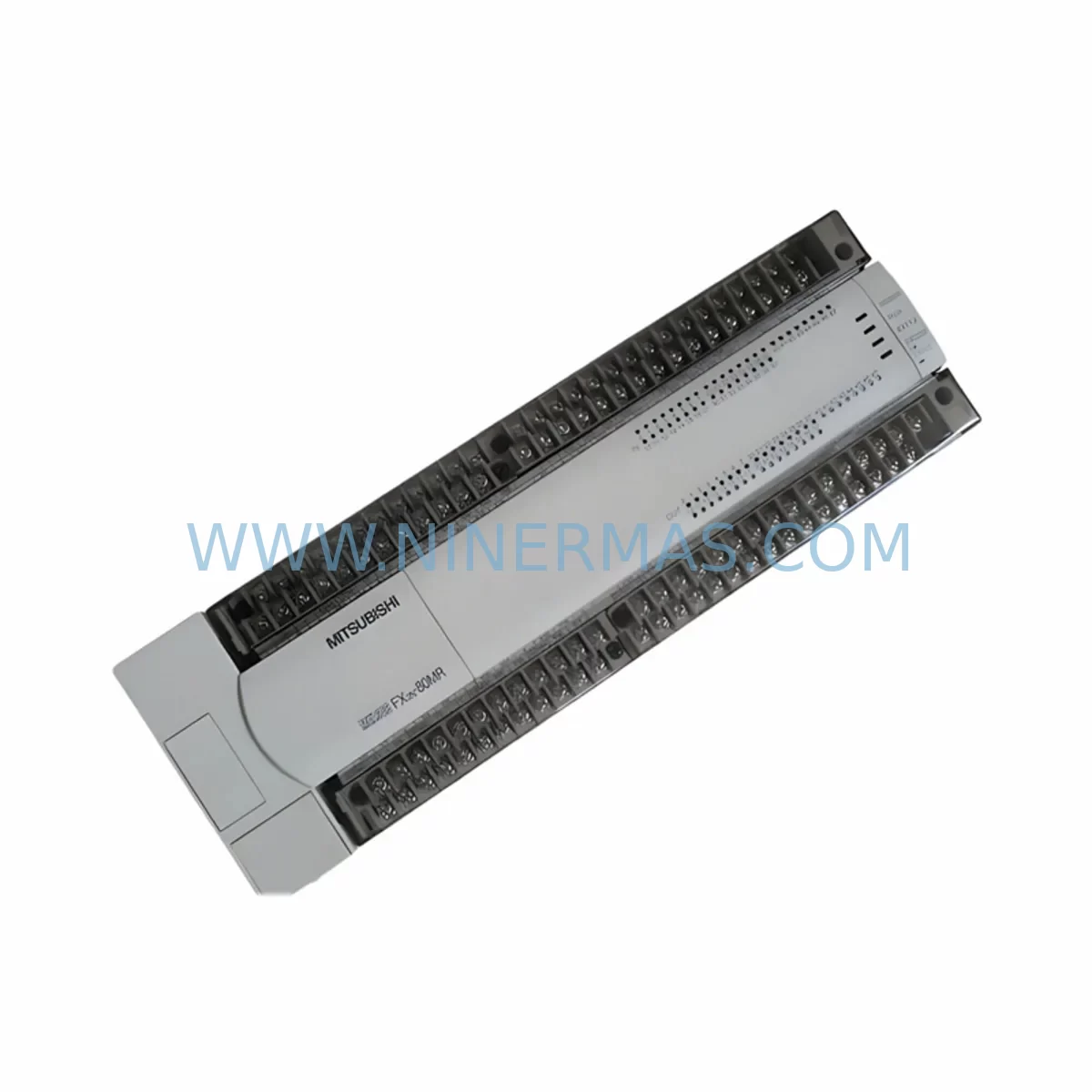

NINERMAS FX2N-80MR-001 Retrofit-Compatible Relay Output PLC

NINERMAS FX2N-80MR-001 Retrofit-Compatible Relay Output PLC for Legacy System Modernization

The FX2N-80MR-001 is a high-density relay output programmable logic controller from the Mitsubishi MELSEC FX2N series, widely deployed across manufacturing, packaging, material handling, and process control industries since the late 1990s. As original equipment manufacturers have discontinued this model, plant engineers and maintenance teams face increasing pressure to source reliable retrofit-compatible replacements that preserve existing wiring, ladder logic programs, and HMI screen configurations without triggering a full-scale control system overhaul.

NINERMAS supplies the FX2N-80MR-001 as a verified retrofit-compatible unit, tested against original factory specifications and validated for drop-in installation into existing FX2N-series control cabinets. Each unit ships with a 12-month warranty and undergoes pre-shipment functional testing covering I/O response, relay contact integrity, power-on self-diagnostics, and communication port verification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FX2N-80MR-001 into a legacy control environment requires a structured pre-installation assessment. Engineers should begin by auditing the existing control cabinet for available DIN rail space and verifying that the installed power supply — typically an FX2N-1PS-5V or equivalent 5V DC bus supply — can sustain the additional current draw of any connected expansion modules such as the FX2N-8EX input expansion block or FX2N-8EYR relay output extension.

Terminal wiring on the FX2N-80MR-001 follows the original Mitsubishi screw-terminal layout, meaning field wiring from sensors, pushbuttons, and actuators can be reconnected directly to the replacement unit without re-labeling or re-routing. Maintenance teams should photograph or document the existing terminal assignments before disconnection, particularly for shared common terminals on the output side where multiple relay groups share a COM point.

For sites running analog I/O — such as temperature loops controlled via FX2N-4AD analog input modules or FX2N-2DA analog output modules — the expansion bus connection on the right side of the main unit must be inspected for pin alignment and connector seating. These modules communicate over the FX2N proprietary expansion bus and do not require separate configuration after the main CPU is replaced, provided the ladder program’s FROM/TO instructions reference the correct module positions.

Communication-dependent installations — particularly those using FX2N-485-BD RS-485 communication boards or FX2N-232-BD RS-232 interface boards for SCADA connectivity — should verify that the board is reseated correctly into the option slot of the replacement unit. The MC Protocol station number and baud rate settings stored in the PLC’s special data registers (D8120 onward) are preserved within the transferred program and do not require manual re-entry.

Sites operating GOT1000 or GOT2000 series HMI panels connected via RS-422 should confirm that the GOT communication driver is set to the FX CPU direct connection mode. No changes to the GT Designer project are required, and existing alarm histories, recipe data, and screen navigation logic remain intact after the CPU swap.

For installations that include a FX2N-CNV-BD conversion board enabling connection of FX0N-series special function modules, the board should be transferred from the old unit to the replacement unit during the changeover window. This preserves compatibility with legacy signal isolators, pulse counters, and positioning modules already wired into the panel.

Downtime Control During System Migration

Minimizing production downtime during a PLC replacement is the primary concern for most plant engineers. With the FX2N-80MR-001, the changeover process is designed to be completed within a single planned maintenance window — typically two to four hours for a standard 80-point installation without complex analog or communication expansion.

The recommended procedure begins with a full program backup using GX Developer or GX Works2 via the SC-09 or FX-USB-AW programming cable connected to the RS-422 port. The backup should include the main program, parameter file, device comments, and any file register data. Once the backup is confirmed, the field wiring can be documented and disconnected terminal block by terminal block, with the old unit removed and the replacement unit mounted in the same position.

After reconnecting field wiring and reseating any expansion modules or communication boards, the backed-up program is written to the new unit and a forced I/O test is performed to verify that all input signals are read correctly and all output relays actuate as expected. The HMI communication link — whether via RS-422 direct connection to a GOT panel or via an RS-485 network to a SCADA system — should be verified last before returning the line to automatic mode.

For critical processes where even a brief interruption is unacceptable, NINERMAS recommends pre-programming and bench-testing the replacement FX2N-80MR-001 off-site before the maintenance window, using a simulator or a spare I/O panel to validate all output sequences and interlocks. This approach reduces on-site commissioning time to under one hour in most cases.

Each unit supplied by NINERMAS undergoes pre-shipment testing that includes power cycling, relay contact load testing, RS-422 communication verification, and a 48-hour burn-in cycle. Units are shipped with original-style packaging and include a test report confirming functional status prior to dispatch.

Retrofit Support FAQ

Q1: Is the FX2N-80MR-001 a direct drop-in replacement for the original Mitsubishi unit?
Yes. The NINERMAS FX2N-80MR-001 is dimensionally and electrically compatible with the original Mitsubishi MELSEC FX2N-80MR-001. Terminal layout, DIN rail mounting dimensions, expansion bus interface, and communication port positions are identical. Existing ladder programs created in GX Developer or GX Works2 can be written directly to the replacement unit without modification.

Q2: What programming cable and software are required for commissioning?
The FX2N-80MR-001 uses an RS-422 programming port compatible with the SC-09 cable or the FX-USB-AW USB-to-RS422 adapter. GX Developer version 8.x or GX Works2 is required for program upload, download, and online monitoring. Both software packages support the FX2N CPU type natively.

Q3: Can this unit be used with existing FX2N expansion modules and communication boards?
Yes. The FX2N-80MR-001 supports the full range of FX2N-series right-side expansion modules including the FX2N-8EX, FX2N-8EYR, FX2N-4AD, FX2N-2DA, and FX2N-1PG positioning module. Left-side option boards including the FX2N-232-BD, FX2N-485-BD, and FX2N-CNV-BD are also fully supported.

Q4: What does the 12-month warranty cover, and what is the stock availability?
The 12-month warranty covers manufacturing defects, relay contact failure under rated load conditions, power supply faults, and communication port malfunctions. NINERMAS maintains in-stock inventory of the FX2N-80MR-001 to support urgent replacement requirements. Units are typically dispatched within 1–3 business days. For volume orders or scheduled maintenance programs, contact our sales team to confirm allocation and lead time.
