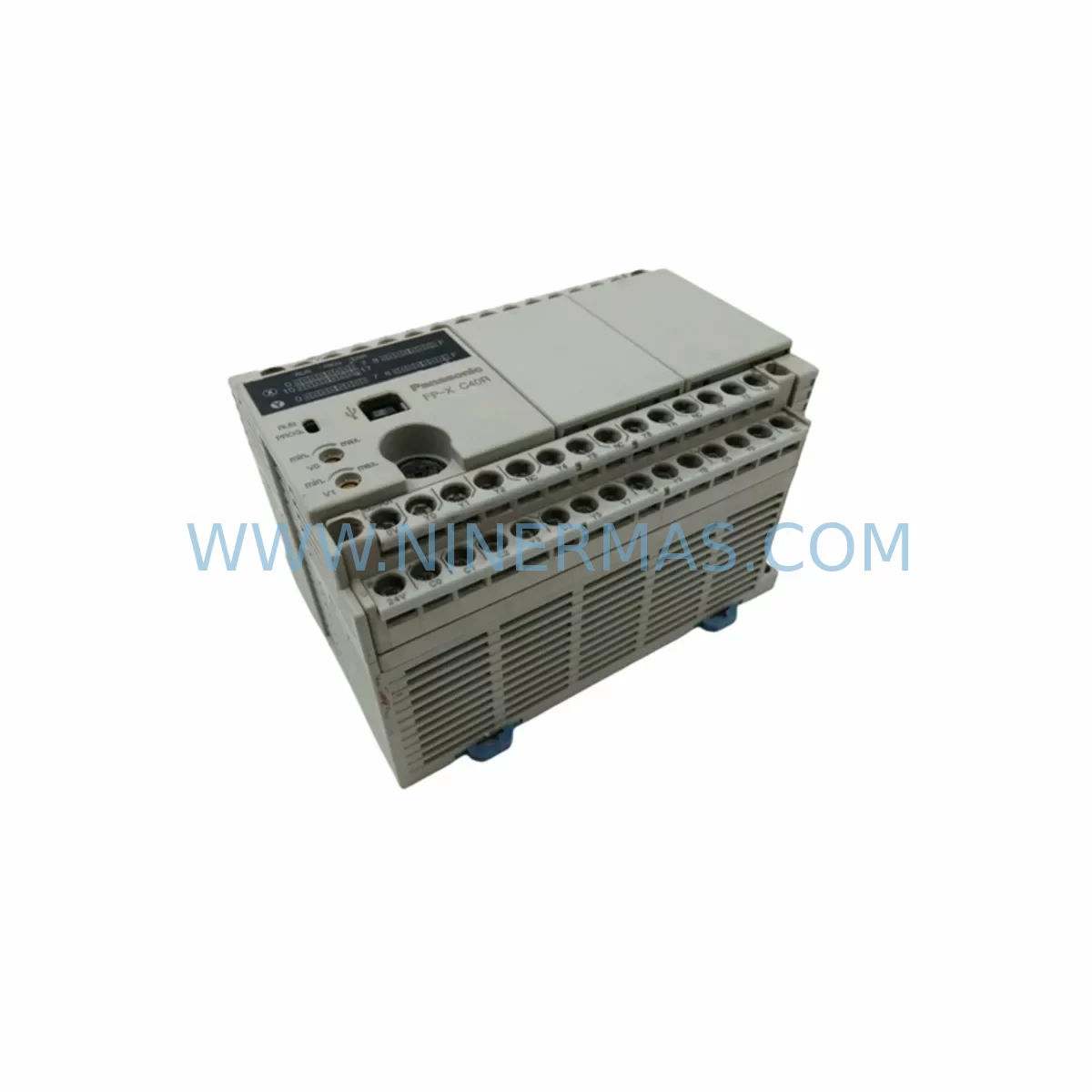

The Panasonic AFPX-C40R-F is a compact, ruggedized programmable logic controller from the FP-X series, engineered for demanding industrial environments where temperature extremes, vibration, and electrical noise are constant operational realities. As legacy FP2, FP3, and FP-M series controllers reach end-of-life and spare parts become increasingly scarce, the AFPX-C40R-F has emerged as a preferred retrofit-ready replacement for engineers tasked with modernizing aging control cabinets without full system redesigns.

With 40 I/O points (24 inputs / 16 relay outputs), onboard high-speed counters, pulse outputs, and a compact DIN-rail form factor, this unit integrates directly into existing panel layouts with minimal rewiring. Its compatibility with FPWIN Pro programming software ensures that existing ladder logic programs can be migrated, adapted, and re-validated with minimal engineering overhead — a critical advantage when downtime windows are measured in hours, not days.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AFPX-C40R-F into a legacy control system begins well before the unit arrives on-site. Engineers should start by auditing the existing control cabinet for available DIN rail space, verifying that the 24 VDC power supply — often a Panasonic AFP0RC14RS or a third-party IDEC PS5R-series unit — can deliver sufficient current for both the CPU and any planned AFPX-E series expansion modules. The AFPX-C40R-F draws approximately 200 mA at 24 VDC under typical load; adding an AFPX-E16R expansion unit increases this demand and must be factored into the power budget before installation.

Terminal block wiring is the next critical checkpoint. Legacy FP-M and FP2 systems often use screw-terminal I/O blocks with non-standard pitch spacing. When migrating to the AFPX-C40R-F, technicians should document every field device connection — sensors, solenoids, motor starters, and signal isolators — and map them to the new terminal layout. Phoenix Contact or Weidmüller terminal adapters are commonly used to bridge pitch differences without cutting and re-terminating field cables, significantly reducing retrofit time.

For systems that previously relied on FP2 backplane-mounted I/O modules, the transition to the FP-X architecture requires a rethink of the I/O expansion strategy. The AFPX-C40R-F supports up to three AFPX-E series expansion units connected via the right-side expansion connector, providing up to 128 additional I/O points. Engineers replacing multi-slot FP2 racks should map legacy module addresses to the new AFPX-E unit assignments and update the program’s I/O allocation table accordingly in FPWIN Pro.

Communication migration is another area requiring careful planning. Many legacy FP2 and FP-M installations use RS232C links to JTEKT or Pro-face HMI panels, SCADA gateways, or barcode readers. The AFPX-C40R-F provides both a USB tool port and a configurable COM port supporting RS232C and RS485 at baud rates up to 115,200 bps. When replacing an older controller, verify the HMI driver version — for example, a GT Designer3-configured Mitsubishi GOT panel or a Hakko V-series HMI may require a driver update or communication parameter adjustment to recognize the new CPU. Updating the HMI screen’s PLC type setting and re-mapping any device addresses that shifted during migration is standard practice.

Pulse output and high-speed counter functions deserve special attention in motion-adjacent applications. The AFPX-C40R-F provides two 100 kHz pulse outputs suitable for driving Panasonic MINAS A5 or MINAS A6 servo amplifiers via open-collector signals. If the legacy system used an FP-X C32T (transistor output) for positioning, and the replacement is the relay-output AFPX-C40R-F, the pulse output capability is retained through dedicated transistor output channels on the CPU — but relay outputs cannot be used for pulse trains. This distinction must be confirmed during the pre-retrofit engineering review.

Signal isolation is frequently overlooked during rapid retrofits. Where legacy wiring runs long cable distances or passes through electrically noisy environments — common in press lines, welding cells, and conveyor systems — installing DIN-rail signal isolators such as the Phoenix Contact MINI MCR series between field devices and the AFPX-C40R-F inputs protects the CPU from transient damage and reduces nuisance faults. This is especially relevant when the F-grade ruggedized variant is selected for its extended temperature tolerance, as the operating environment often correlates with higher electrical noise levels.

Downtime Control During System Migration

Minimizing production downtime during a PLC retrofit requires a structured migration methodology. The recommended approach for AFPX-C40R-F installations is a parallel commissioning strategy: the new CPU is wired and programmed offline, with the existing FP2 or FP-M controller remaining in control of the line until the replacement unit has been fully validated in simulation mode using FPWIN Pro’s online monitoring and forced I/O functions.

Before the cutover window, the engineering team should export the complete program from the legacy controller — including all data registers, timer presets, counter values, and communication parameters — and import or manually re-enter these into the AFPX-C40R-F project file. FPWIN Pro’s cross-reference and address usage tools help identify any instruction set differences between the legacy and new CPU, flagging obsolete instructions that require substitution. Particular attention should be paid to special relay (R) and data register (DT) assignments, as these may differ between FP-M and FP-X architectures.

During the cutover itself, a structured I/O verification sequence — energizing each output individually and confirming field device response before enabling automatic mode — reduces the risk of unexpected machine motion. Relay output contact ratings on the AFPX-C40R-F (2A per point, 8A common) should be verified against the actual load of each connected device; oversized loads require interposing relays. After cutover, a minimum 30-minute supervised run in automatic mode with an engineer monitoring FPWIN Pro online is standard practice before handing the system back to production.

For multi-node networks where the AFPX-C40R-F replaces a master or slave station in an existing MEWTOCOL or Modbus RTU network, the new unit’s station address, baud rate, and data format must be configured to match the network parameters exactly. Failure to do so will cause communication timeouts that may trigger safety interlocks or production stops on connected nodes.

Retrofit Support FAQ

Q: Is the AFPX-C40R-F a direct drop-in replacement for the AFPX-C40R?
A: Yes, with one key distinction: the F-grade suffix indicates an extended operating temperature range (-10°C to +55°C vs. 0°C to +55°C for the standard variant). The I/O count, terminal layout, expansion connector, and programming interface are identical. No program changes are required when substituting the F-grade unit into an existing AFPX-C40R installation.

Q: Can I connect existing FP2 expansion I/O modules to the AFPX-C40R-F?
A: No. FP2 backplane-mounted I/O modules are not electrically or mechanically compatible with the FP-X expansion bus. The AFPX-C40R-F uses AFPX-E series expansion units (e.g., AFPX-E16R, AFPX-E16T, AFPX-E30R) connected via the right-side expansion connector. I/O point mapping must be reconfigured in FPWIN Pro to reflect the new expansion unit assignments.

Q: What pre-shipment testing is performed on this unit?
A: Every AFPX-C40R-F supplied by NINERMAS undergoes pre-shipment functional verification, including power-on self-test, I/O point continuity check, communication port validation, and firmware version confirmation. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: How quickly can this unit be sourced, and is stock available?
A: NINERMAS maintains inventory of the AFPX-C40R-F to support urgent retrofit and breakdown replacement scenarios. Lead times for in-stock units are typically 3–7 business days for international shipment. For large-quantity orders or scheduled maintenance programs, contact our team at sale@ninermas.com to confirm availability and arrange priority dispatch.
