Nikon 5964C2MAFQ5KA Retrofit-Compatible 100x ELWD Objective for Legacy Inspection Systems

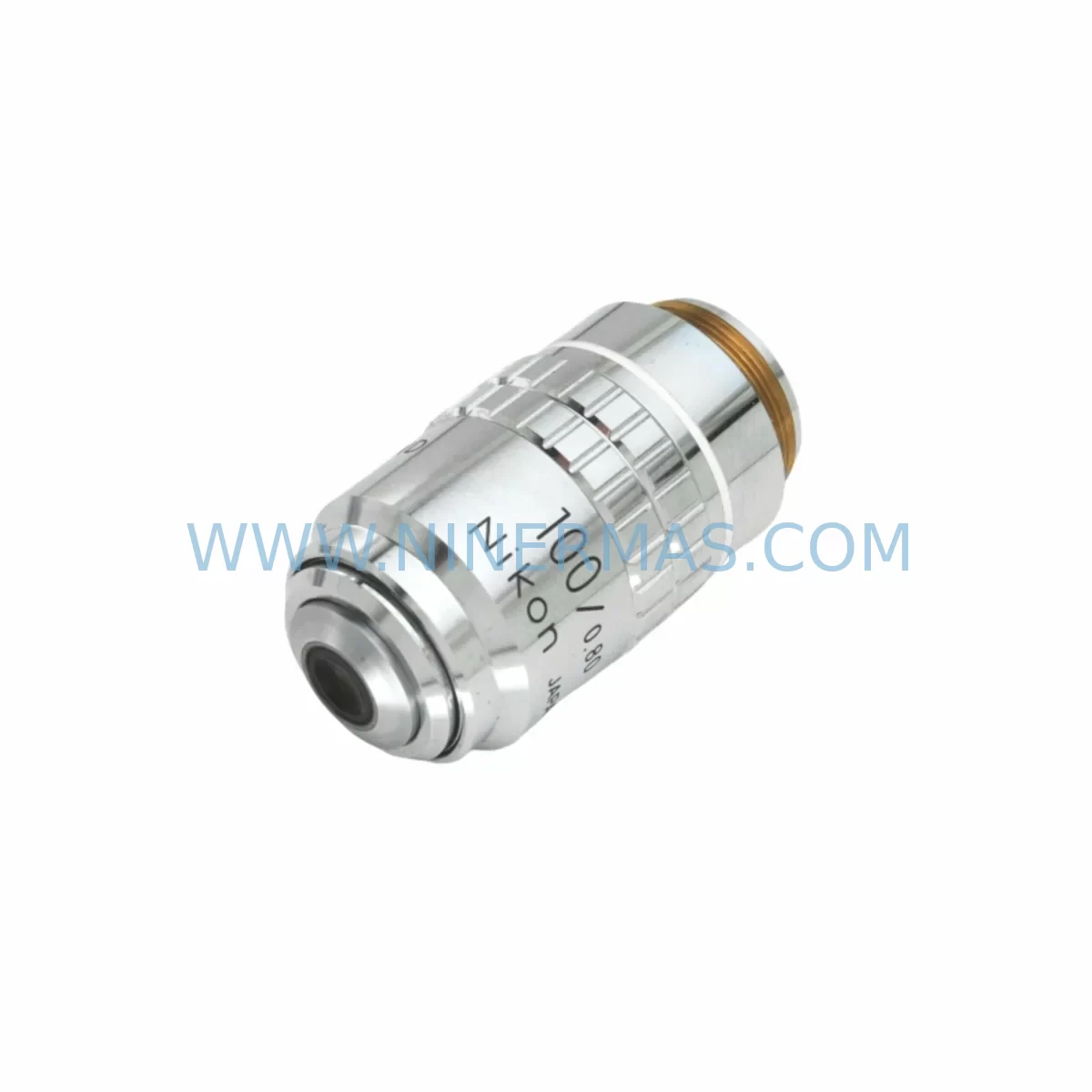

The Nikon 100/0.80 ELWD M Plan objective — referenced under part numbers 5964C2MAFQ5KA (GAS HE atmosphere variant) and 5964C2MAGU5KA (GAS NF3 atmosphere variant) — is a high-magnification, extra-long working distance objective designed for non-contact surface inspection in semiconductor fabrication, flat panel display production, and precision industrial metrology. As Nikon progressively transitions its legacy M Plan optical platform, procurement teams and process engineers face increasing pressure to source verified drop-in replacements that maintain optical alignment, parfocal height, and illumination coupling without triggering a full system requalification.

NINERMAS maintains pre-tested inventory of this objective and its direct retrofit equivalents, supporting facilities that operate legacy Nikon Optiphot, Epiphot, Eclipse LV, and Measurescope UM series platforms. Each unit shipped undergoes pre-shipment functional verification and is covered by a 12-month warranty from the date of delivery.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a high-magnification objective in a live production inspection cell requires careful coordination across optical, mechanical, and software layers. The 5964C2MAFQ5KA and 5964C2MAGU5KA objectives are typically installed on automated wafer inspection platforms or inline PCB AOI stations where the objective turret is driven by a motorized nosepiece controller — often a Nikon HJ motorized nosepiece or equivalent encoded turret. Before removal of the legacy objective, engineers should record the current parfocal offset stored in the inspection recipe software, as this value will need to be re-entered or re-calibrated after installation of the replacement unit.

The host microscope body — whether a Nikon Eclipse LV150, Nikon Optiphot 200, or a custom OEM integration — must be confirmed for thread compatibility. M Plan objectives use a specific body thread pitch; mixing CFI60 and legacy RMS threads will prevent proper seating and can damage the nosepiece. A Nikon objective thread adapter may be required if the platform was originally configured for a different optical family.

Illumination is a critical dependency. The 100x ELWD M Plan objective operates under coaxial epi-illumination, typically sourced from a Nikon LV-UEPI2 epi-illuminator or a fiber-coupled Nikon C-HGFI mercury fiber illuminator. If the existing illumination module has degraded — a common issue in systems that have operated for 8–12 years — this is an appropriate time to replace the lamp house or transition to an LED-based illumination module such as the Nikon C-FLED, which eliminates mercury lamp replacement cycles and stabilizes intensity output for automated image analysis.

Image acquisition is handled downstream by a CCD or CMOS camera module — frequently a Nikon DS-Ri2 or a third-party GigE Vision camera mounted via a Nikon C-mount TV adapter. Camera calibration files tied to the previous objective’s magnification factor must be updated in the image processing software after the objective swap. Facilities using Nikon NIS-Elements or equivalent metrology software should update the objective calibration table and re-run the spatial calibration routine using a certified stage micrometer.

For systems that include automated Z-focus or autofocus modules — such as a Nikon Perfect Focus System (PFS) or a laser triangulation autofocus board — the focus offset and search range parameters stored in the motion controller firmware must be adjusted to reflect the new objective’s working distance. Failure to update these parameters can result in focus hunting, stage collision risk, or systematic measurement error across the inspection batch.

Where the inspection platform integrates with a PLC-based material handling system — for example, a Siemens S7-300 or S7-1500 series controller managing wafer cassette loading — the objective change does not affect the PLC program logic directly, but the recipe management system that links PLC states to inspection parameters must be updated to reference the new objective slot assignment and associated image acquisition settings.

Downtime Control During System Migration

Objective replacement on a production inspection tool is a planned maintenance event that, when properly prepared, can be completed within a single shift window. The key to minimizing unplanned downtime is pre-staging: the replacement 5964C2MAFQ5KA or 5964C2MAGU5KA unit should be received, inspected, and held in a cleanroom-compatible storage container before the maintenance window opens. NINERMAS ships objectives in manufacturer-equivalent protective packaging with individual optical surface inspection records included.

Prior to the maintenance window, the engineering team should export the current inspection recipe set from the host software, back up the motion controller parameter file, and photograph the existing objective installation for reference. During the swap, the nosepiece should be cleaned with appropriate optical-grade solvents before the new objective is threaded in. Torque should be applied by hand only — no tools — to avoid stress fractures in the objective barrel or nosepiece thread.

Post-installation, the minimum verification sequence includes: parfocal height confirmation against a reference objective in an adjacent turret slot, Koehler illumination alignment, spatial calibration using a certified reticle, and a sample inspection run against a known-good reference wafer or test coupon. This sequence typically requires 30–90 minutes depending on platform complexity. If the autofocus system requires re-tuning, allow an additional 30–60 minutes for focus offset optimization.

By sourcing the replacement objective from NINERMAS with confirmed pre-shipment testing, facilities eliminate the risk of receiving an optically defective unit that would extend the maintenance window. All units are tested for transmission uniformity, centration, and mechanical runout before dispatch.

Retrofit Support FAQ

Q1: Is the 5964C2MAGU5KA a direct drop-in replacement for the 5964C2MAFQ5KA?
A: The two part numbers differ in their atmosphere compatibility — GAS HE (helium) versus GAS NF3 (nitrogen trifluoride). Optically and mechanically they are equivalent. Confirm your process chamber atmosphere before selecting the correct variant. If your system operates in a standard air or nitrogen purge environment, consult NINERMAS for the appropriate substitute.

Q2: How do I verify thread compatibility before installation?
A: Check the nosepiece specification plate on your microscope body. M Plan objectives use a specific thread standard. If your platform was originally configured for CFI60 optics, a thread adapter will be required. NINERMAS can advise on adapter availability based on your microscope model and serial number.

Q3: What does the 12-month warranty cover?
A: The NINERMAS 12-month warranty covers optical transmission defects, coating delamination, mechanical barrel damage present at delivery, and centration errors exceeding Nikon’s published specification. It does not cover damage resulting from improper installation, contamination, or use outside the specified atmosphere environment. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can NINERMAS confirm stock availability and lead time before I raise a purchase order?
A: Yes. Contact NINERMAS directly at sale@ninermas.com or +0086 187 5021 5667 with your required quantity, delivery address, and target delivery date. Stock status and lead time confirmation is provided within 24 hours on business days. Reserved inventory agreements are available for facilities with recurring demand.
