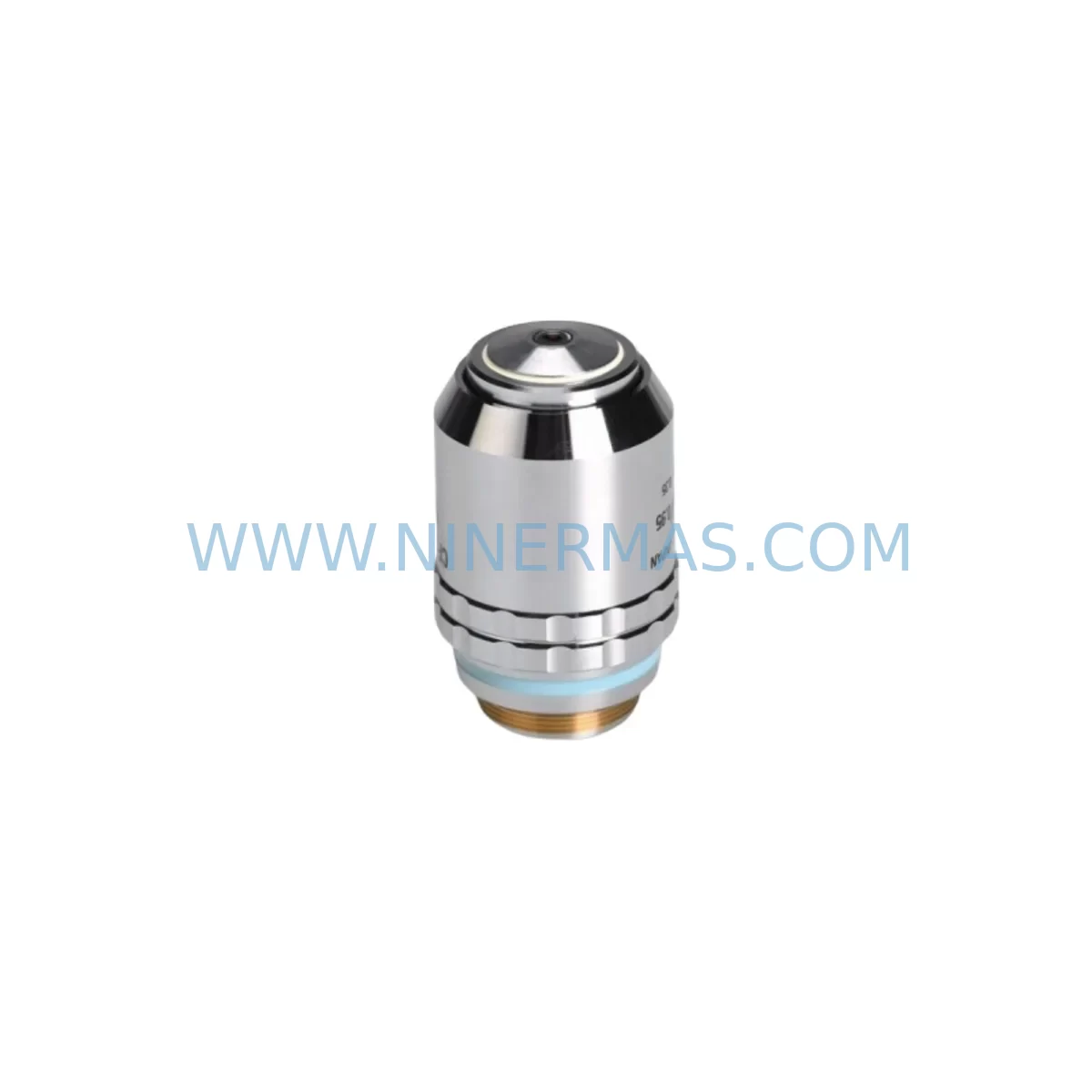

The Nikon CF Plan Apo 150X/0.90 WD 0.29 is a high-precision apochromatic plan objective engineered for demanding industrial inspection, semiconductor metrology, and precision optical measurement environments. With a numerical aperture of 0.90 and a working distance of 0.29 mm, this objective delivers diffraction-limited resolution critical for wafer surface inspection, thin-film analysis, and micro-defect detection on production lines. Maintaining a verified service-ready spare of this objective — complete with matched spacers 0040-76219, 0040-76221 (200/300 Right), and 0040-76220 (200/300 Left) — is a non-negotiable element of any serious industrial maintenance strategy.

For maintenance engineers and procurement teams managing Nikon CF series optical systems, unplanned downtime caused by objective failure or contamination can halt entire inspection lines. A pre-tested, in-stock replacement eliminates the multi-week lead time typically associated with sourcing precision optics from OEM channels. NINERMAS maintains long-term inventory agreements for this SKU, ensuring consistent availability for emergency replacement, scheduled overhaul cycles, and multi-site spare parts standardization programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the CF Plan Apo 150X/0.90 objective in a Nikon industrial inspection system, a disciplined maintenance engineer will not stop at the objective itself. The surrounding optical and mechanical subsystems must be evaluated simultaneously to prevent repeat failures and ensure the replacement restores full system performance.

Begin with the objective turret or nosepiece: worn turret detents or misaligned click-stop mechanisms will cause the new objective to seat inconsistently, degrading image quality and accelerating wear on the mounting thread. Inspect and clean the turret before installation. Next, verify the condition of the Nikon CF Plan Apo 100X/0.95 and CF Plan Apo 50X/0.55 objectives sharing the same turret — contamination or mechanical shock that damaged the 150X unit may have affected adjacent objectives as well.

The illumination path is equally critical. Fiber optic light guides feeding the epi-illumination port should be inspected for bundle degradation; a deteriorated light guide reduces effective NA utilization and can mask the performance improvement from a new objective. Halogen or LED lamp housings, including the Nikon LV-UEPI2 epi-illumination unit or equivalent, should be checked for alignment and lamp life. Condenser assemblies and beam splitter cubes in the reflected-light path are also common wear items that should be assessed during the same maintenance window.

For systems using motorized Z-axis focus controllers or piezo-driven focus stages, verify encoder feedback and stage repeatability after objective replacement — the higher NA of the 150X objective makes focus stability more sensitive to stage drift. CCD or CMOS camera adapters and C-mount couplers should be inspected for play or contamination, as any mechanical looseness will appear as image instability at 150X magnification.

Stage micrometers and calibration targets used for objective qualification should be on hand before the replacement is commissioned. Objective qualification at 150X requires a certified stage micrometer with 1 µm graduation or finer. Additionally, review the condition of the anti-vibration table or isolation platform supporting the system — at 150X, floor vibration coupling is a primary source of image degradation that is often misattributed to the objective itself.

Finally, confirm that the matched spacers (0040-76219, 0040-76221 for the right side; 0040-76219, 0040-76220 for the left side) are included and undamaged. These spacers are precision-ground components that establish the correct parfocal distance for the 200/300 tube length configuration. Substituting non-matched spacers will shift the parfocal plane and require full system re-calibration.

Site Replacement Workflow

Replacing the Nikon CF Plan Apo 150X/0.90 in a live production environment requires a structured workflow to minimize downtime and avoid introducing new faults during the swap.

Step 1 — Pre-replacement verification: Confirm the replacement unit matches the original SKU, tube length configuration (200 or 300 mm), and spacer set. Cross-reference the part number on the objective barrel with the procurement record. Do not accept a unit without the matched spacers.

Step 2 — System power-down and ESD precautions: Power down the inspection system and allow the lamp housing to cool. Use ESD-safe gloves when handling the objective. Optical surfaces are susceptible to electrostatic particle attraction.

Step 3 — Objective removal: Unscrew the failed objective counter-clockwise. Inspect the turret thread for debris or damage. Clean with lens-grade IPA and a lint-free swab if contamination is present.

Step 4 — Spacer installation: Install the correct spacers for the tube length configuration before threading in the new objective. Torque to finger-tight plus a quarter turn — do not over-torque.

Step 5 — Optical qualification: Power up the system and perform a focus check using a stage micrometer. Verify parfocal alignment with adjacent objectives on the turret. Document the qualification result in the maintenance log.

Step 6 — System handover: Return the system to production only after qualification is complete. Log the replaced part number, serial number (if available), date, and technician ID for traceability.

This workflow is compatible with Nikon ECLIPSE LV, ECLIPSE MA, and ECLIPSE MX series industrial inspection platforms, as well as third-party OEM systems using Nikon CF-series objectives with standard M25 × 0.75 mounting threads.

Spare Parts Support FAQ

Q1: Is this objective compatible with both 200 mm and 300 mm tube length systems?
Yes. The CF Plan Apo 150X/0.90 is supplied with two spacer sets — one for 200 mm tube length (0040-76219 + 0040-76221, right; 0040-76219 + 0040-76220, left) and one for 300 mm configurations. Confirm your system’s tube length before ordering to ensure the correct spacer set is included. NINERMAS can advise on compatibility based on your system model.

Q2: How does NINERMAS verify the condition of this objective before shipment?
Every unit undergoes pre-shipment optical inspection including resolution check, surface cleanliness verification, and mechanical thread inspection. Units that do not meet acceptance criteria are quarantined and not shipped. A 12-month warranty covers optical and mechanical defects arising under normal operating conditions.

Q3: What is the recommended spare parts holding strategy for this objective?
For production environments running single-shift inspection, a minimum of one spare unit is recommended. Multi-shift or 24/7 operations should hold two units to cover both emergency replacement and scheduled overhaul cycles. Given the long OEM lead times for precision objectives, procurement teams should initiate reorder when the spare count drops to one unit.

Q4: Can NINERMAS support long-term supply agreements for this SKU?
Yes. NINERMAS offers reserved inventory agreements for critical spare parts including the CF Plan Apo 150X/0.90. Long-term supply contracts provide price stability, guaranteed availability, and priority shipment for registered customers. Contact our team to discuss volume requirements and lead time commitments.
