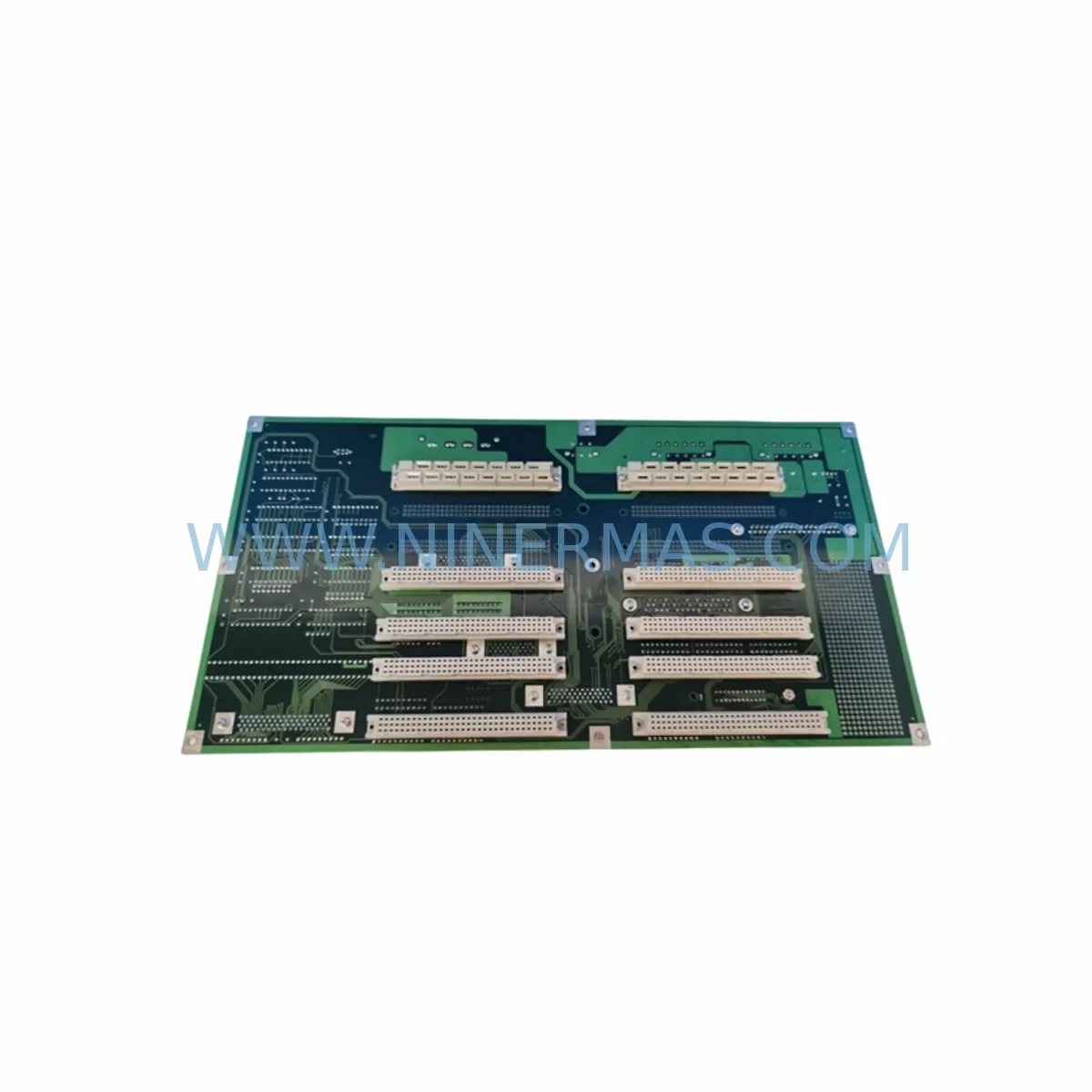

The NIKON 4S018-659 is a precision-engineered backplane interface board designed for use in NIKON industrial and semiconductor equipment systems. As a critical interconnect component within the control backplane, the 4S018-659 manages signal routing, power distribution, and I/O communication between installed modules. When this board fails or degrades, the result is immediate system downtime — making rapid, verified replacement essential for any maintenance team managing production continuity.

NINERMAS supplies the NIKON 4S018-659 as a service-ready spare part, fully tested prior to shipment and backed by a 12-month warranty. Each unit undergoes functional verification to confirm backplane signal integrity, connector condition, and board-level electrical performance before dispatch. Our inventory is maintained to support both emergency breakdown response and planned annual maintenance programs, ensuring your procurement team can secure stock without lead-time risk.

For maintenance engineers managing aging NIKON systems — including lithography, alignment, and precision motion platforms — the 4S018-659 represents a high-priority line item in any spare parts register. Backplane interface boards are subject to thermal cycling stress, connector wear, and signal degradation over time, particularly in cleanroom environments where access for inspection is limited. Proactive stocking of this component reduces the risk of unplanned outages during critical production windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the NIKON 4S018-659 backplane interface board is rarely an isolated task. In practice, maintenance engineers performing a board-level replacement should treat the intervention as an opportunity to inspect and verify the condition of all adjacent components within the same control cabinet or equipment chassis.

Begin with the power supply module feeding the backplane — voltage rail stability directly affects board longevity, and a degraded PSU can cause repeated interface board failures. Verify output voltages against NIKON specifications before installing the replacement 4S018-659. Similarly, inspect the backplane bus connector and slot guides for mechanical damage or oxidation, as poor contact at the backplane level is a common root cause of interface board faults.

Check all I/O modules seated in adjacent backplane slots. A failing I/O card can generate bus contention that stresses the interface board. If the system uses communication modules — such as PROFIBUS, DeviceNet, or proprietary NIKON serial interfaces — verify their firmware version and connector integrity at the same time. Signal isolators on analog input channels should also be inspected, particularly in environments with high electromagnetic interference.

For systems incorporating HMI panels connected via the backplane or a dedicated communication bus, confirm that display and operator input functions are restored after board replacement and that no residual fault codes remain in the HMI event log. Relay output modules and terminal blocks connected to the I/O side of the backplane should be checked for loose wiring and contact wear — these are frequently overlooked during board-level replacements but are a common source of post-maintenance faults.

If the system includes fuse protection on individual backplane power rails, replace any fuses that show signs of thermal stress. For equipment using industrial UPS or battery backup modules, verify that backup power transfer is functioning correctly after the maintenance intervention. Finally, review the cable harness connecting the backplane to external I/O field wiring — connector strain relief and insulation condition should be confirmed before returning the system to production.

A structured checklist approach — covering the 4S018-659 replacement alongside power, I/O, communication, relay, HMI, and protection components — significantly reduces the risk of repeat callouts and supports a faster, more confident return to full operation.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow your site LOTO procedure. De-energise the control cabinet and confirm zero-energy state before opening the backplane enclosure.

Step 2 — Document Current Configuration: Photograph the existing board position, connector orientation, and any labelling on adjacent modules. Record any active fault codes from the HMI or system diagnostic log before power-down.

Step 3 — Remove the Faulty 4S018-659: Release the board retention mechanism (refer to NIKON maintenance manual for your specific platform). Extract the board carefully, avoiding lateral stress on the backplane connector.

Step 4 — Inspect the Backplane Slot: Check the backplane slot connector for bent pins, debris, or oxidation. Clean with appropriate contact cleaner if required. Do not install the replacement board into a damaged slot without remediation.

Step 5 — Install the Replacement Board: Align the NIKON 4S018-659 replacement with the slot guide rails. Seat firmly and evenly until the retention latch engages. Confirm connector seating is complete before re-energising.

Step 6 — Power-Up and Functional Verification: Restore power in the correct sequence per NIKON system documentation. Monitor the HMI for fault codes. Verify I/O, communication, and signal functions are restored. Run a system self-test if available.

Step 7 — Documentation and Stock Update: Record the replacement in your maintenance log. Update your spare parts inventory to reflect consumption of the 4S018-659 unit and initiate a reorder to maintain minimum stock levels.

This workflow supports minimal downtime, maintains system compatibility, and ensures the replacement is performed in a manner consistent with NIKON equipment standards and your site safety requirements.
