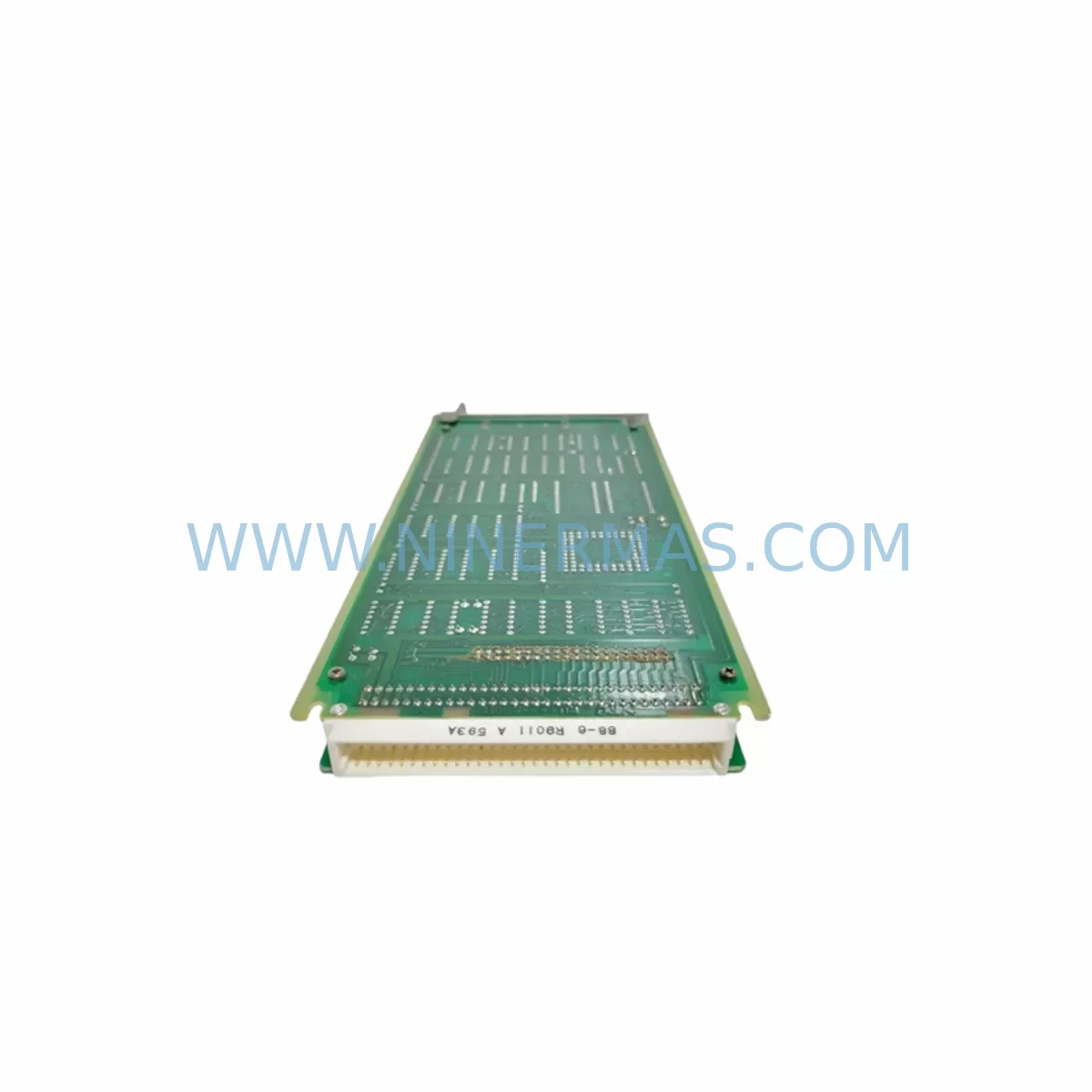

NEC Y72A03 R8520 NDR064RTP872 Retrofit-Compatible I/O Module

NEC Y72A03 R8520 NDR064RTP872 Retrofit-Compatible I/O Module for Legacy R8500 Systems

The NEC Y72A03 R8520 NDR064RTP872 is a retrofit-compatible digital I/O module engineered to extend the operational life of NEC R8500 Series programmable logic controller platforms. As NEC progressively phases out legacy R8500 hardware, facilities running continuous process lines, utilities infrastructure, and discrete manufacturing cells face mounting pressure to source verified replacement modules without committing to a full control system overhaul. This module addresses that challenge directly — offering a proven drop-in upgrade path that preserves existing rack architecture, terminal wiring, and ladder logic programs while restoring full I/O channel capacity.

Sourced through authorized industrial channels and pre-shipment tested against NEC factory specifications, each unit is supplied with a 12-month warranty and full traceability documentation. NINERMAS maintains buffer stock of the Y72A03 R8520 NDR064RTP872 to support emergency breakdown orders, planned maintenance windows, and long-term spare parts programs for multi-site operators.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the NEC Y72A03 R8520 NDR064RTP872 into an aging R8500 control cabinet requires a structured pre-retrofit assessment. Engineers should begin by auditing the existing rack configuration — identifying occupied and spare slots across the NEC R8520 base rack and any expansion racks connected via the R8500 I/O bus. Where the installation involves a multi-rack system, the rack address jumpers on each chassis must be verified to avoid address conflicts with the replacement module.

Power budget validation is a critical early step. The NEC R8520 power supply module — typically installed in the leftmost slot of the base rack — must have sufficient headroom to support the additional current draw of the replacement I/O module. In aging systems, power supply modules such as the NEC R8PS1 or equivalent R8500-series PSU units may themselves be approaching end-of-life and should be inspected or replaced concurrently to prevent nuisance trips after the I/O module swap.

Terminal wiring on the field side should be photographed and documented before any module removal. The NDR064RTP872 terminal block layout is consistent with the original NEC R8500 I/O module family, meaning existing field cables — including 24 VDC digital input wiring, relay output commons, and shield drain connections — can be reconnected to the replacement module without re-termination in most standard installations. Where cable lengths are marginal, a short extension using the same wire gauge and shielding specification is recommended to maintain signal integrity.

For facilities that have integrated NEC R8500 controllers with third-party SCADA or DCS platforms via serial communication links — such as Modbus RTU over RS-485 or NEC’s proprietary programming port — the communication module installed in the rack (for example, an NEC R8CM1 or similar serial interface card) remains unaffected by the I/O module replacement. However, engineers should confirm that the SCADA polling cycle does not generate false alarms during the brief offline window when the module is swapped. Coordinating with the control room operator to suppress relevant alarms for the duration of the swap is standard practice.

Where the R8500 system interfaces with an NEC-compatible HMI panel — such as units in the NEC Industrial Terminal series — the tag database linked to the replaced I/O module’s channel addresses does not require modification, provided the module address configuration is preserved. Confirm the DIP switch or rotary address selector position on the replacement Y72A03 R8520 NDR064RTP872 matches the original module before powering the rack. A mismatch will cause the CPU module — typically an NEC R8CPU or R8CPU2 — to log a configuration fault on startup.

In systems where I/O expansion is handled through remote I/O drops connected via the NEC R8500 field bus, the local base rack module replacement does not affect remote drop addressing or wiring. However, if the retrofit scope includes adding I/O capacity — for example, expanding from 32 to 64 digital channels — additional NEC R8500-compatible I/O modules and a corresponding update to the CPU’s I/O configuration table will be required. Signal isolators, such as DIN-rail-mounted 24 VDC signal conditioners, may be needed where field sensors operate at non-standard voltage levels or where long cable runs introduce noise susceptibility.

Programming cable access during commissioning is straightforward: the NEC R8500 programming port accepts the standard NEC R8CBL programming cable, which connects to a laptop running NEC’s ladder logic development environment. A backup of the existing program should be taken before the module swap and verified against the live system after commissioning to confirm all I/O channel assignments are correctly mapped.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a module in a live R8500 control system. The recommended approach is a planned maintenance window — ideally aligned with a scheduled production break or shift changeover — during which the affected control loop is placed in manual mode or bypassed at the field level before the module is removed from the rack.

Before powering down the rack slot, the CPU module should be placed in STOP mode to prevent spurious output activations during the module exchange. The existing program logic is retained in the CPU’s battery-backed RAM and does not require re-download after the replacement module is installed, provided the CPU battery — typically a lithium cell mounted on the NEC R8CPU board — is in good condition. A battery status check should be part of the pre-retrofit checklist.

Once the replacement NEC Y72A03 R8520 NDR064RTP872 is seated in the rack and the terminal block is reconnected, the CPU can be returned to RUN mode. I/O channel status should be verified against the SCADA or HMI display before releasing the process back to automatic control. A structured loop check — confirming each digital input and output channel against the field device — typically takes 15 to 45 minutes depending on channel count and site access conditions. This structured approach keeps total controlled downtime well within a standard two-hour maintenance window for most R8500 installations.

For critical processes where even a brief controlled shutdown is unacceptable, a hot-standby or redundant CPU configuration — where the R8500 platform supports it — allows the replacement to be performed on the standby module while the primary remains in control. Consult the NEC R8500 system manual for redundancy switchover procedures specific to your firmware revision.

Retrofit Support FAQ

Q1: Is the NEC Y72A03 R8520 NDR064RTP872 a direct drop-in replacement for the original OEM module?
Yes. The retrofit-compatible Y72A03 R8520 NDR064RTP872 is designed to fit directly into the NEC R8500 rack backplane without mechanical or electrical modification. Terminal block pinout, module address configuration, and backplane connector are consistent with the original NEC specification. Pre-shipment functional testing confirms compatibility before dispatch.

Q2: What wiring changes are required during installation?
In standard retrofit scenarios, no field wiring changes are required. The terminal block layout of the NDR064RTP872 preserves the original NEC R8500 I/O module wiring convention. Engineers should document existing terminations before removal and reconnect field cables to the corresponding terminals on the replacement module. Where terminal blocks are removable, the entire block can be transferred directly, further reducing reconnection time and the risk of wiring errors.

Q3: How is compatibility with the existing PLC program verified?
The replacement module operates on the NEC R8500 internal bus using the same I/O addressing scheme as the original. Provided the module address selector is configured to match the original module’s address, the CPU will recognize the replacement module without requiring program modification or re-download. A full I/O loop check after installation is recommended to confirm all channel assignments are functioning as expected before returning the system to automatic operation.

Q4: What does the 12-month warranty cover, and what is the stock availability?
Each NEC Y72A03 R8520 NDR064RTP872 supplied by NINERMAS is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains dedicated buffer stock of this module to support both emergency breakdown orders and planned spare parts programs. Lead times for in-stock units are typically 3–7 business days for international shipments. Contact sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and arrange a long-term supply agreement.
