Moxa EDS-208A Retrofit-Compatible Unmanaged Switch

Moxa EDS-208A Retrofit-Compatible Unmanaged Switch: Seamless Legacy System Upgrade

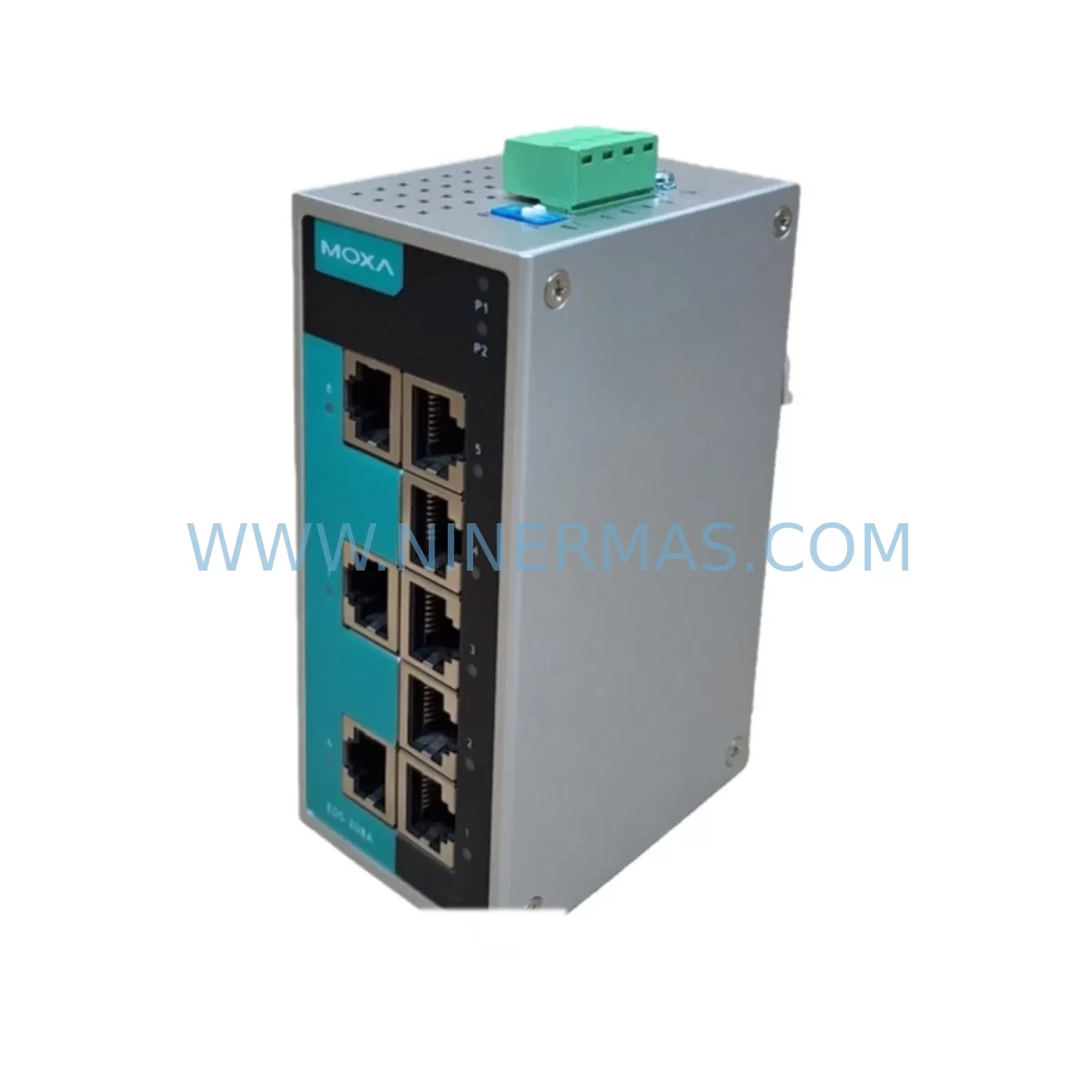

The Moxa EDS-208A is an 8-port ruggedized unmanaged industrial Ethernet switch engineered for harsh-environment automation networks. Designed as a retrofit-compatible replacement for aging or discontinued network infrastructure, the EDS-208A integrates directly into existing control cabinets, DIN-rail enclosures, and field junction boxes without requiring software reconfiguration or PLC program changes. Whether you are modernizing a legacy SCADA network, replacing an end-of-life switch in a distributed I/O ring, or expanding Ethernet connectivity across a multi-drop fieldbus migration, the EDS-208A delivers the reliability and form-factor compatibility that industrial retrofit projects demand.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the EDS-208A into a legacy automation environment begins with a thorough audit of the existing network topology and cabinet layout. In most retrofit scenarios, the EDS-208A replaces an aging unmanaged switch — such as the earlier Moxa EDS-208 or EDS-205A — that has reached end-of-life or is no longer available as a spare. Before removal of the legacy unit, engineers should document all active port connections, label each Ethernet cable by destination device (PLC, HMI, remote I/O, or gateway), and photograph the terminal block wiring for the 24 VDC power feed.

Power supply compatibility is the first critical checkpoint. The EDS-208A accepts 12–48 VDC or 24 VAC on its redundant power inputs. In cabinets already equipped with a Moxa DR-4524 or similar DIN-rail 24 VDC power supply, the existing wiring can typically be reused without modification. Where the legacy switch drew power from a shared 24 VDC bus alongside a Moxa ioLogik E1212 remote I/O module or a Moxa NPort 5150A serial device server, confirm that the bus has sufficient current headroom after accounting for all connected loads.

Terminal block wiring on the EDS-208A uses a removable connector, which simplifies pre-wiring on the bench before cabinet installation. This is particularly valuable in retrofit projects where minimizing live-cabinet work time is a priority. Once the power connector is pre-wired and tested on the bench, the switch can be snapped onto the 35 mm DIN rail and the Ethernet cables reconnected in sequence, restoring network links one port at a time to verify continuity without a full system shutdown.

In systems where the EDS-208A is being introduced to extend Ethernet reach to a previously serial-only segment — for example, replacing a Moxa NPort 5610-8 serial-to-Ethernet gateway arrangement — engineers must confirm that the upstream PLC or SCADA host, such as a Siemens S7-300 or Allen-Bradley MicroLogix 1100, has an available Ethernet port or that an existing Moxa MGate MB3180 Modbus gateway is already bridging the legacy serial devices onto the Ethernet backbone. The EDS-208A itself is protocol-agnostic at Layer 2, so it will transparently forward Modbus TCP, EtherNet/IP, PROFINET, or any other Ethernet-encapsulated industrial protocol without configuration.

For I/O expansion projects where additional Moxa ioLogik E1214 or ioLogik E1241 remote I/O modules are being added to an existing network segment, the EDS-208A provides the additional switch ports needed to accommodate the new nodes without requiring a managed switch or VLAN reconfiguration. This makes it an ideal choice for incremental capacity additions in brownfield plants where budget and downtime constraints preclude a full network redesign.

Cabinet space is frequently a constraint in legacy panel retrofits. The EDS-208A’s compact DIN-rail form factor — identical to the earlier EDS-208 — means it occupies the same rail segment as its predecessor. Where space is extremely tight, the absence of a fan (fanless convection cooling) eliminates the need for ventilation clearance above and below the unit, allowing it to be mounted adjacent to terminal blocks, Moxa EDS-G308 Gigabit uplink switches, or other DIN-rail components without thermal risk.

Downtime Control During System Migration

Minimizing production downtime is the primary concern in any live-system retrofit. For EDS-208A installations replacing an in-service switch, the recommended approach is a parallel commissioning strategy: mount and power the new EDS-208A on an adjacent DIN-rail segment, connect it to the upstream network via a spare port on the existing infrastructure, and verify all link LEDs and end-device connectivity before cutting over. This allows the original switch to remain in service until the moment of final cutover, reducing the network outage window to the time required to move Ethernet cables — typically under five minutes for an 8-port switch.

Where the legacy PLC program references specific IP addresses for remote I/O or HMI panels — for example, a Weintek MT8071iE HMI or a Moxa ioLogik E1212 — no program changes are required when replacing an unmanaged switch, since the EDS-208A introduces no new IP addresses or managed network elements. The PLC’s Ethernet communication to all downstream devices continues uninterrupted through the new switch once cables are transferred.

For systems using ring topology with RSTP or proprietary redundancy protocols on a managed backbone, confirm that the EDS-208A’s unmanaged ports are connected only to end devices (not to other switches in the ring), to avoid introducing loops. In such architectures, the EDS-208A functions as an access-layer switch feeding end nodes, while the ring backbone is maintained by managed switches such as the Moxa EDS-510A or EDS-G512E.

Pre-shipment functional testing is performed on every EDS-208A unit before dispatch. Each port is verified for link establishment and traffic forwarding, and the power input terminals are tested at both minimum and maximum rated voltages. This ensures that units arrive ready for immediate installation, reducing on-site commissioning time and the risk of discovering a defective unit during a scheduled maintenance window.

Retrofit Support FAQ

Q1: Is the EDS-208A a direct drop-in replacement for the EDS-208 and EDS-205A?
Yes. The EDS-208A shares the same DIN-rail mounting footprint, 24 VDC power terminal pinout, and RJ45 port layout as the EDS-208. The EDS-205A can also be replaced by the EDS-208A, with three additional ports available for future expansion. No software or PLC program changes are required for an unmanaged switch replacement.

Q2: What wiring checks are required before installation?
Verify that the existing 24 VDC supply can deliver at least 150 mA for the EDS-208A. Confirm polarity on the power terminal block (V+ and V-), and check that all Ethernet cables are Cat5e or better with intact RJ45 connectors. Label all cables before disconnecting from the legacy switch to ensure correct port reassignment.

Q3: Does the EDS-208A support PROFINET, Modbus TCP, and EtherNet/IP simultaneously?
Yes. As an unmanaged Layer 2 switch, the EDS-208A forwards all Ethernet frames regardless of the application-layer protocol. PROFINET, Modbus TCP, EtherNet/IP, and other industrial Ethernet protocols can coexist on the same switch without any configuration. Bandwidth and latency performance are determined by the connected devices and network load, not by the switch.

Q4: What does the 12-month warranty cover, and is stock available for immediate shipment?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with DOA (dead-on-arrival) replacement processed within 5 business days of confirmed fault. Stock is maintained for immediate shipment; lead time for in-stock units is typically 1–3 business days. Contact sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory and arrange expedited dispatch for urgent retrofit projects.
