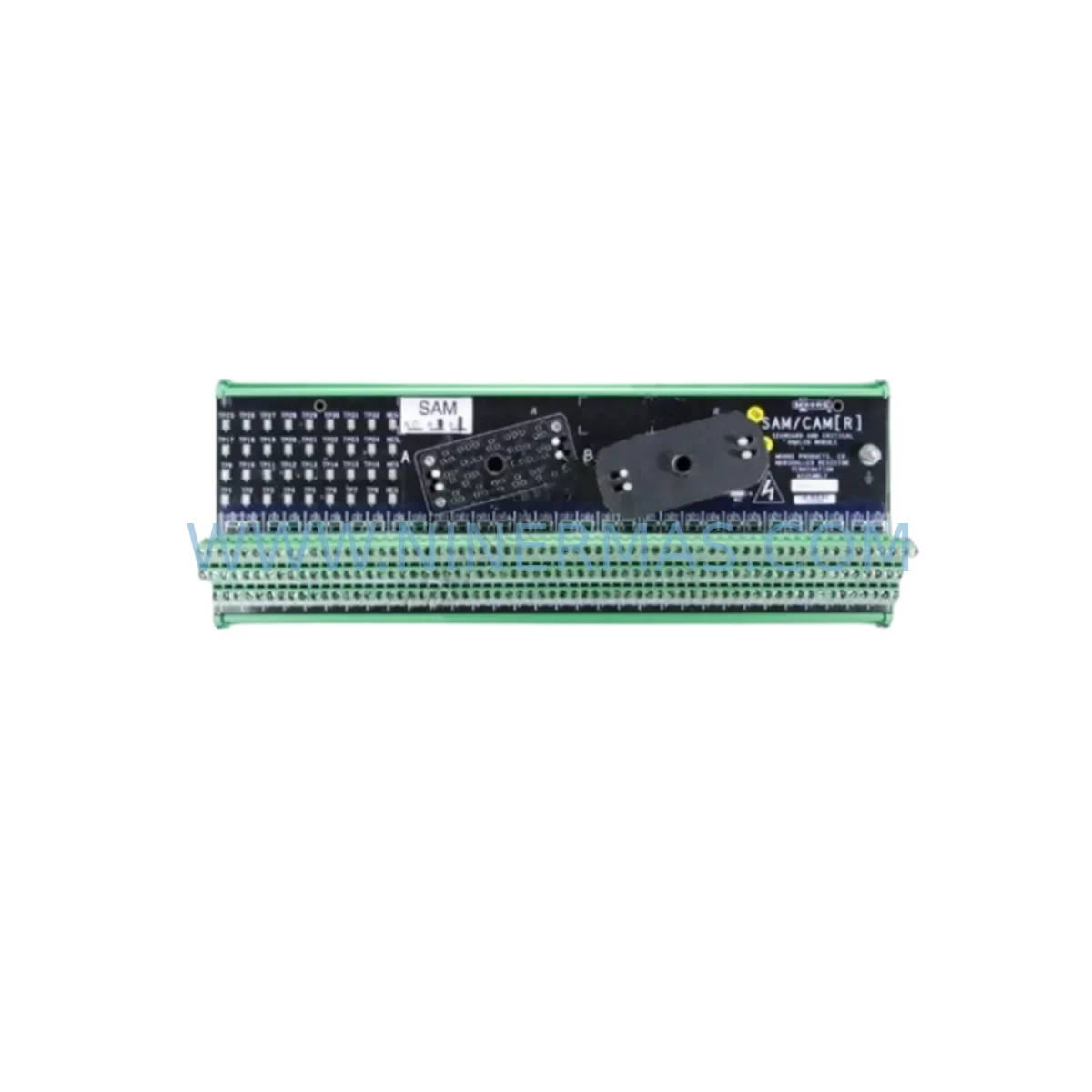

The Moore Industries 16416-1-2 is a service-ready spare part designed for marshalled termination systems widely deployed in DCS, PLC, and process control environments. Sourced as an original-specification replacement component, the 16416-1-2 supports rapid field substitution to minimize unplanned downtime and restore control loop integrity without requiring panel redesign or rewiring. Each unit is pre-shipment tested and backed by a 12-month warranty, making it a reliable choice for both emergency stock replenishment and planned annual maintenance programs.

Maintenance engineers managing legacy Moore Industries installations recognize the 16416-1-2 as a critical interface component within marshalled I/O cabinets. Its role in signal conditioning and termination makes it a high-priority item on any spare parts list for facilities operating continuous process lines, batch reactors, or utility distribution systems where signal integrity is non-negotiable.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the Moore Industries 16416-1-2 in a marshalled termination cabinet, a thorough site inspection should extend beyond the module itself. Experienced maintenance engineers treat a single component replacement as an opportunity to audit the surrounding electrical environment and reduce the risk of repeat failures.

Begin by verifying the 24 VDC loop power supply feeding the marshalling rack — a degraded or undersized power module is a common root cause of premature signal isolator failure. Inspect the field terminal blocks and cable ferrules at the marshalling panel for signs of oxidation, loose crimps, or thermal discoloration. Check the shielded signal cables running from field instruments to the termination module; damaged shielding introduces noise that can mask a failing isolator and complicate fault diagnosis.

For DCS-connected installations, review the I/O module on the controller side — particularly any analog input cards or HART multiplexer modules that interface with the 16416-1-2 signal path. A faulty I/O card can produce symptoms identical to a failed termination module, leading to unnecessary replacements. Similarly, inspect any intrinsic safety barriers or Zener barriers installed in the same loop, as these components share the signal path and degrade over time in high-cycle environments.

If the installation includes signal splitters or loop-powered transmitter isolators from the Moore Industries NCS or SPA series, verify their output accuracy with a calibrated loop calibrator before closing out the work order. Inspect relay output modules and discrete I/O termination assemblies in adjacent slots — mechanical relay contacts in marshalled panels accumulate wear independently of the analog signal modules and are frequently overlooked during targeted replacements.

For facilities running PROFIBUS DP or FOUNDATION Fieldbus segments through the same cabinet, check the fieldbus segment coupler and termination resistors at both ends of the bus. A loose termination resistor in a shared cabinet can introduce reflections that affect all devices on the segment. Finally, review the fuse holders and miniature circuit breakers protecting each loop — these are low-cost components that are frequently deferred and represent a disproportionate share of nuisance trips in aging marshalling panels.

Stocking a small buffer of 16416-1-2 units alongside complementary components — including loop power supplies, terminal block sets, and analog I/O cards — enables maintenance teams to resolve the majority of marshalling cabinet faults within a single shift, avoiding extended production losses.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a valid work permit and isolate the affected loop at the field instrument and at the DCS I/O card. Confirm loop de-energization with a calibrated multimeter before opening the marshalling cabinet.

Step 2 — Documentation: Photograph the existing wiring and record terminal assignments before disconnecting any conductors. Cross-reference against the as-built loop drawing to confirm the 16416-1-2 channel mapping.

Step 3 — Module removal: Release the plug-in termination block and slide the 16416-1-2 from its DIN rail carrier. Inspect the carrier and backplane connector for contamination or mechanical damage before installing the replacement unit.

Step 4 — Replacement installation: Seat the new 16416-1-2 firmly into the carrier. Reconnect the termination block and verify conductor seating. Restore loop power and confirm 4–20 mA signal continuity at the DCS engineering workstation.

Step 5 — Functional verification: Simulate a full-range input signal from the field instrument side and confirm the DCS receives the expected engineering unit value within tolerance. Document the as-found and as-left readings on the maintenance record.

Step 6 — System restoration: Return the loop to automatic control, update the spare parts inventory log, and initiate a replenishment order to restore buffer stock. The entire replacement sequence can typically be completed within one to two hours by a qualified instrument technician, keeping unplanned downtime to a minimum.

Spare Parts Support FAQ

Q1: Is the 16416-1-2 a direct drop-in replacement for the original Moore Industries unit?
Yes. The 16416-1-2 is supplied to original Moore Industries specifications and is designed for direct substitution in existing MTS marshalling installations without modification to wiring, carrier hardware, or DCS configuration. Compatibility should always be confirmed against the site-specific loop drawing and the installed system revision before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 16416-1-2 unit undergoes functional signal verification and isolation resistance testing prior to dispatch. Test records are available upon request. Units are packaged in anti-static protective packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the rated operating range. Warranty claims are processed directly through our support team at sale@ninermas.com.

Q4: Can we place a blanket order for long-term supply assurance?
Yes. We support multi-unit blanket purchase orders for facilities that require guaranteed stock availability across maintenance cycles. Contact our procurement team to discuss lead times, minimum order quantities, and scheduled delivery arrangements suited to your annual maintenance calendar.
