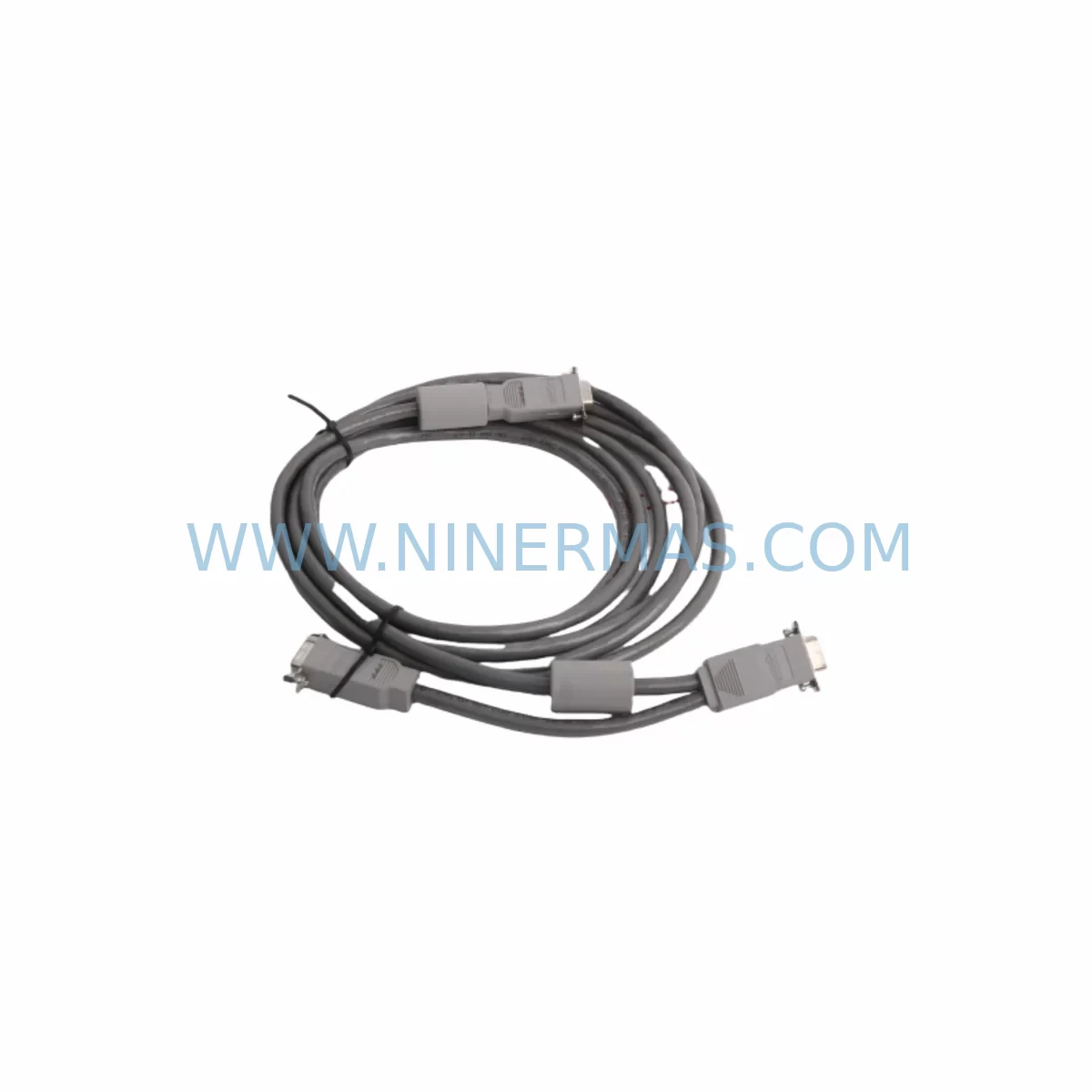

MOORE 16137-174 Retrofit-Compatible Communication Module for Legacy Systems

MOORE 16137-174 Retrofit-Compatible Communication Module for Legacy Systems

The MOORE 16137-174 is a retrofit-ready communication module engineered to serve as a direct replacement for discontinued components within legacy distributed control systems (DCS), programmable logic controller (PLC) platforms, and industrial automation cabinets. As original equipment manufacturers phase out support for aging control architectures, the 16137-174 provides a reliable, tested, and immediately deployable solution for facilities that must maintain operational continuity without committing to a full platform migration. Whether you are managing a brownfield upgrade, restoring a failed communication link, or extending the service life of an existing control cabinet, this module is stocked, pre-shipment tested, and backed by a 12-month warranty.

MOORE Industries has long been recognized for producing signal conditioning, communication, and interface hardware that bridges legacy field instrumentation with modern control networks. The 16137-174 fits within this lineage — designed to interface reliably within existing rack and backplane environments while supporting the communication protocols and wiring conventions already present in the plant. For engineers managing retrofit projects under tight downtime windows, this means fewer surprises during commissioning and a shorter path to restored production.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MOORE 16137-174 into an existing control system begins well before the module arrives on site. Retrofit planning should account for the full scope of the communication chain — from the field device or sensor input, through the I/O module and backplane, to the controller and HMI display. In many legacy installations, the communication module acts as the bridge between field-level signals and the supervisory layer, meaning a failed or discontinued module can isolate entire process segments from operator visibility.

Before removing the existing module, document the current terminal wiring layout, including signal type (4–20 mA, discrete, RTD, thermocouple, or digital), wire gauge, and shield grounding practice. If the original module used a proprietary backplane connector, confirm that the 16137-174 uses a compatible footprint or that an adapter bracket is available. In installations where the control cabinet also houses a MOORE 535 Trip Amplifier or a MOORE SPA Signal Processor, the wiring topology may share a common terminal rail — take care not to disturb adjacent signal paths during module swap.

For systems running on older Modbus RTU or RS-485 communication backbones, verify that the 16137-174’s communication port configuration matches the existing baud rate, parity, and stop-bit settings stored in the PLC or DCS configuration. In multi-drop RS-485 networks, module address conflicts are a common commissioning issue — confirm that the replacement module’s address is set to match the original before powering the network. If the plant uses a HART-enabled field network, check whether the existing HART multiplexer or HART modem requires re-registration after the module swap.

Power supply capacity is another critical checkpoint. Legacy control cabinets often run on 24 VDC bus rails shared across multiple modules, including analog input cards, relay output modules, and communication interfaces. Before installing the 16137-174, calculate the total current draw of all modules on the shared rail and confirm that the existing power supply — whether a MOORE or third-party 24 VDC unit — has sufficient headroom. If the cabinet also contains a MOORE 785 Isolator or a MOORE 940 Transmitter, their combined load must be factored into the power budget.

HMI screen updates are frequently overlooked during communication module replacements. If the original module was mapped to specific tag addresses in the SCADA or DCS historian, those tag mappings must be verified after the swap. In Wonderware, FactoryTalk, or similar platforms, a communication module replacement can trigger tag loss alarms if the new module’s device ID or node address differs from the original. Coordinate with the controls engineer to update the I/O map and perform a live tag scan before returning the system to automatic mode.

For installations where the 16137-174 is being used to extend the life of a legacy rack system — such as an older MOORE rack-mount enclosure or a third-party 19-inch rack chassis — confirm that the physical slot dimensions, backplane bus voltage, and module locking mechanism are compatible. In some cases, a MOORE rack adapter or slot filler plate may be required to maintain proper airflow and EMI shielding within the enclosure.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer managing a communication module replacement in a live production environment. The MOORE 16137-174 is stocked and pre-shipment tested specifically to support rapid deployment scenarios where lead time on a new or refurbished module is the critical path item. With same-day or next-business-day dispatch available for in-stock units, facilities can compress the gap between failure detection and module restoration to hours rather than weeks.

To further reduce downtime risk, prepare a module swap checklist before the maintenance window opens. This should include: confirmation of the replacement module’s firmware or hardware revision compatibility, a printed copy of the original terminal wiring diagram, a verified backup of the PLC or DCS program (including communication configuration blocks), and a contact list for the controls integrator or OEM support line in case unexpected issues arise during commissioning. If the system uses a redundant communication path — for example, a primary and secondary RS-485 loop — plan the swap to occur on the standby path first, allowing the primary path to remain active during the transition.

After installing the 16137-174, perform a structured commissioning sequence: power up the module in isolation if possible, verify the communication link indicator status, confirm that the PLC or DCS is receiving valid data from the module’s assigned address, and check that all downstream HMI tags are updating correctly. Log the commissioning results and retain the original failed module for failure analysis if root cause investigation is required. All units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment, providing additional assurance during the post-installation period.

For facilities managing multiple simultaneous retrofit projects — for example, replacing communication modules across several control cabinets in a phased shutdown — consider staging replacement units on-site in advance. Holding a small buffer stock of the 16137-174 and related components such as MOORE signal isolators, terminal blocks, and DIN rail power supplies reduces the risk of a single module failure extending into a multi-day outage.

Retrofit Support FAQ

Q: Is the MOORE 16137-174 a direct drop-in replacement for the original discontinued module?
A: The 16137-174 is designed as a retrofit-compatible replacement for legacy MOORE communication modules in the same series. In most installations, the physical form factor, terminal wiring convention, and communication interface are compatible with the original slot. However, we recommend verifying the backplane connector type, module address configuration, and communication protocol settings against your existing system documentation before installation. Our technical team can assist with compatibility confirmation prior to order.

Q: What pre-shipment testing is performed on each unit?
A: Every MOORE 16137-174 unit supplied by NINERMAS undergoes functional pre-shipment testing to verify communication link integrity, power input response, and signal output accuracy before dispatch. Units are shipped with a test record and are covered by a 12-month warranty from the date of shipment. If a unit fails within the warranty period, we provide replacement or repair support with priority handling.

Q: How do I confirm wiring compatibility before installing the replacement module?
A: Refer to the original MOORE 16137-174 installation manual or the as-built wiring diagram for your control cabinet. Key checkpoints include terminal block pin assignments, signal type (mA, voltage, digital), shield grounding, and power supply polarity. If the original documentation is unavailable, our team can provide reference wiring guidance based on the module’s known terminal configuration. Do not energize the replacement module until wiring has been verified against the reference diagram.

Q: What is the typical lead time and do you maintain stock?
A: The MOORE 16137-174 is maintained in stock for immediate dispatch. Standard lead time for in-stock units is 1–3 business days depending on destination. For urgent requirements, contact our sales team directly to confirm current stock levels and arrange expedited shipping. We maintain buffer inventory specifically to support emergency replacement and planned retrofit projects.
