MOOG G392-006-020-001 Safety-Reliable Servo Drive for Critical Control

MOOG G392-006-020-001 Safety-Reliable Servo Drive for Critical Control Sites

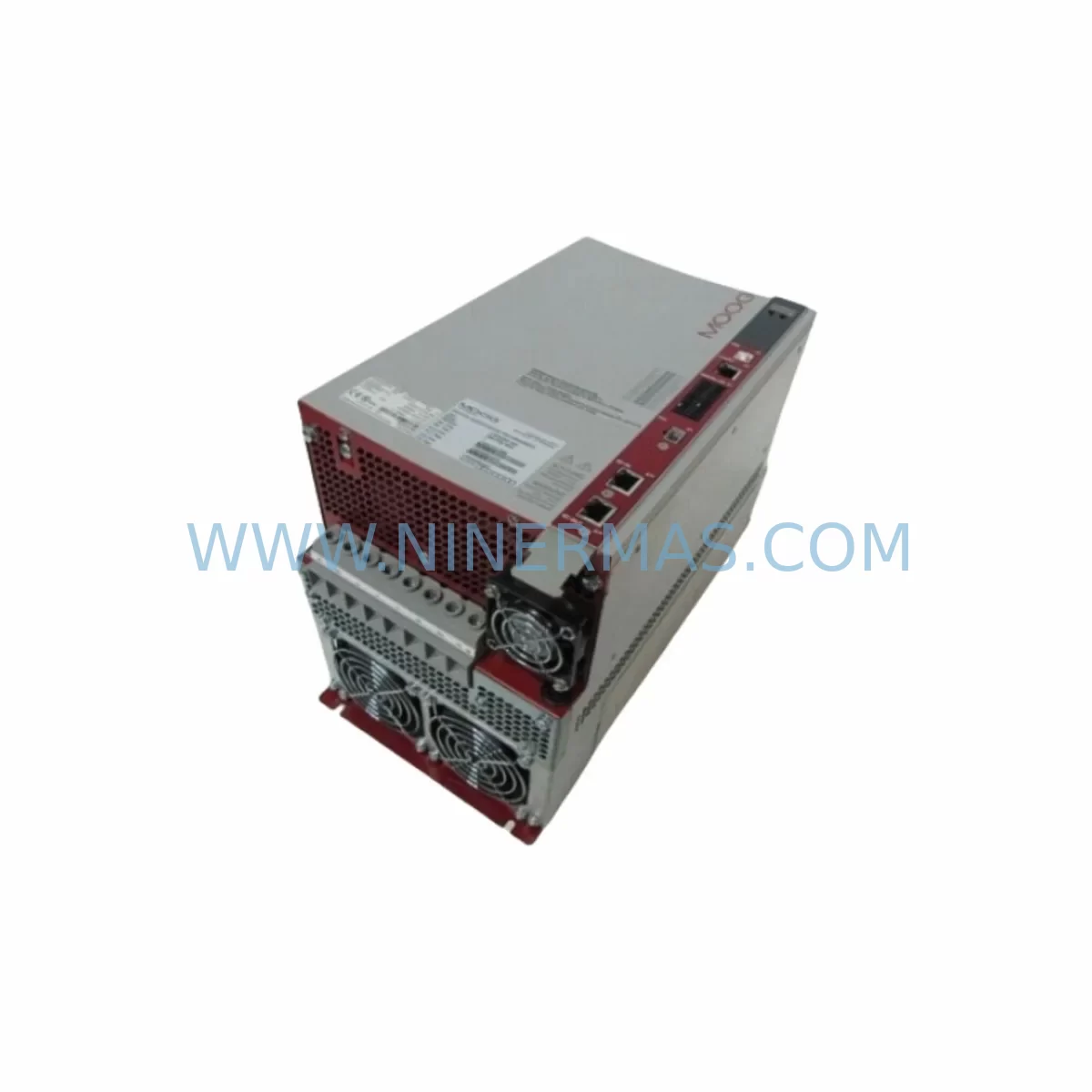

The MOOG G392-006-020-001 is a precision servo drive engineered for demanding industrial environments where control loop integrity and operational continuity are non-negotiable. As a direct replacement and upgrade solution within the MOOG G392 Series, this unit delivers the closed-loop performance, signal fidelity, and fault-tolerant architecture required in critical interlock systems, heavy-duty control cabinets, and continuous-process installations. Whether deployed in petrochemical facilities, power generation plants, metallurgical operations, or port automation systems, the G392-006-020-001 is built to sustain reliable servo control under the most adverse field conditions.

Industrial sites operating legacy MOOG G392 servo systems face persistent risks: unplanned downtime from aging drive components, signal drift under high electromagnetic interference, power supply fluctuations that trigger nuisance trips, and communication anomalies that compromise safety interlocks. The G392-006-020-001 addresses each of these failure vectors with robust hardware design, validated firmware, and a form-factor that enables drop-in replacement without extensive re-engineering of existing control cabinet wiring or PLC configurations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the servo drive is never an isolated component — it is the dynamic core of a coordinated protection architecture. When integrating the MOOG G392-006-020-001 into a critical control system, the surrounding component selection is equally important for achieving system-level safety and uptime.

On the power input side, pairing the G392-006-020-001 with a MOOG T200 Series line filter or equivalent EMI suppression module significantly reduces conducted interference from variable-frequency drives and switching power supplies sharing the same distribution panel. For sites with unstable grid voltage — common in mining substations and port crane installations — an upstream AC line reactor or isolation transformer protects the drive’s rectifier stage from voltage spikes and harmonic distortion that would otherwise accelerate capacitor aging and trigger overcurrent faults.

The feedback loop is equally critical. The G392-006-020-001 relies on clean resolver or encoder signals to maintain position accuracy and prevent runaway conditions. In high-vibration environments such as steel rolling mills or offshore platforms, shielded feedback cables with MOOG-compatible resolver connectors and proper cable management — including ferrite cores at both ends — are essential to prevent signal drift and nuisance fault trips. Where encoder signals must travel more than 10 meters, a differential line driver repeater should be inserted to maintain signal integrity.

For the safety interlock circuit, the G392-006-020-001’s Safe Torque Off (STO) input should be wired through a safety relay module — such as a Pilz PNOZ or equivalent dual-channel safety relay — to ensure that emergency stop commands are executed within the required response time and that the STO function is monitored for welded contact faults. In Category 3 / PLd applications, this architecture prevents uncontrolled motion during E-stop events, a critical requirement in chemical injection systems and turbine control loops.

Communication integrity between the G392-006-020-001 and the supervisory PLC or DCS is protected by using optically isolated RS-422 converters on the serial interface, eliminating ground loop currents that cause data corruption in large industrial plants with multiple earthing points. Where the site has migrated to fieldbus architectures, a MOOG-compatible PROFIBUS DP or EtherCAT gateway module enables seamless integration without replacing the drive hardware. Alongside the servo drive, the control cabinet typically houses a 24 VDC SITOP or equivalent DIN-rail power supply for logic circuits, a 24 V UPS buffer module to ride through momentary power dips, and a surge protection device (SPD) on the 24 V bus to absorb transients from inductive load switching on the same panel.

For thermal management — a leading cause of premature servo drive failure in enclosed cabinets — a cabinet cooling unit or heat exchanger rated for the total power dissipation of all installed drives and power supplies is strongly recommended. In dusty or humid environments such as cement plants or water treatment facilities, a sealed cabinet with air-to-air heat exchanger prevents particulate ingress while maintaining safe operating temperatures for the G392-006-020-001 and co-installed components including MOOG servo motors and associated brake resistor assemblies.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where control loop interruption can trigger hazardous material releases or pressure excursions, the MOOG G392-006-020-001 provides the closed-loop torque control and STO safety function required for valve actuator drives, compressor control systems, and emergency shutdown (ESD) valve positioners. Its EMI-hardened design withstands the high-frequency interference generated by variable-speed pump drives and large motor starters common in refinery motor control centers (MCCs).

Power Generation & Turbine Control: Gas and steam turbine governor systems demand sub-millisecond servo response and zero tolerance for nuisance trips. The G392-006-020-001’s resolver feedback compatibility and robust fault diagnostics make it a reliable replacement in turbine fuel valve actuator drives, where an unplanned trip can result in grid instability or costly restart procedures.

Mining & Mineral Processing: Dragline excavators, conveyor drive systems, and ore crusher controls operate in environments with extreme vibration, dust, and electrical noise from large DC drives and thyristor rectifiers. The G392-006-020-001’s vibration-rated design and surge-protected power input ensure continuous operation in these high-stress conditions, reducing the frequency of unplanned maintenance interventions.

Water & Wastewater Treatment: Pump station automation and sluice gate control systems in water treatment facilities require drives that can operate reliably in high-humidity, corrosive-atmosphere environments. The G392-006-020-001, when installed in a properly sealed control cabinet, delivers the positional accuracy and fault-tolerant operation needed for flow control and level regulation in critical water infrastructure.

Metallurgy & Steel Production: Rolling mill main drives, continuous casting machine controls, and ladle transfer car systems impose severe demands on servo drive reliability. High ambient temperatures, intense electromagnetic fields from arc furnaces, and mechanical shock from heavy rolling loads are all conditions the G392-006-020-001 is designed to withstand, supporting uninterrupted production in 24/7 steel plant operations.

Port & Marine Automation: Container crane hoist and trolley drives, ship-to-shore crane controls, and offshore platform motion compensation systems rely on servo drives that can handle rapid load changes and operate in salt-air environments. The G392-006-020-001’s robust construction and compatibility with MOOG G392 Series motor systems make it a proven choice for port automation upgrades and marine control system refurbishments.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the MOOG G392-006-020-001?
Every unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and component failures under normal operating conditions. Our technical team provides remote diagnostic support to assist with fault identification and, where applicable, facilitates warranty replacement to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Each MOOG G392-006-020-001 unit undergoes a full functional test prior to shipment, including power-on verification, closed-loop servo response testing, fault code register check, and STO input validation. Units that do not meet MOOG factory performance specifications are not dispatched. A test record is available upon request.

Q3: Is the G392-006-020-001 a direct drop-in replacement for existing MOOG G392 Series installations?
Yes. The G392-006-020-001 is designed as a form-fit-function replacement for MOOG G392 Series servo drives with matching current ratings. It retains the same connector pinout, feedback interface, and parameter structure as the original unit, enabling replacement without rewiring the control cabinet or reprogramming the host PLC. For sites with customized parameter sets, our technical team can assist with parameter migration.

Q4: Can long-term spare parts supply be guaranteed for critical site maintenance planning?
We maintain dedicated stock of the MOOG G392-006-020-001 and related G392 Series components to support planned maintenance schedules and emergency replacement requirements. For sites with critical uptime obligations, we recommend establishing a consignment stock arrangement or scheduled replenishment agreement to ensure spare parts availability without lead-time risk. Contact our team to discuss supply continuity options tailored to your maintenance strategy.
