MOOG C16303-001 Service-Ready Spare Part for Industrial Maintenance

MOOG C16303-001 Service-Ready Spare Part for Industrial Maintenance

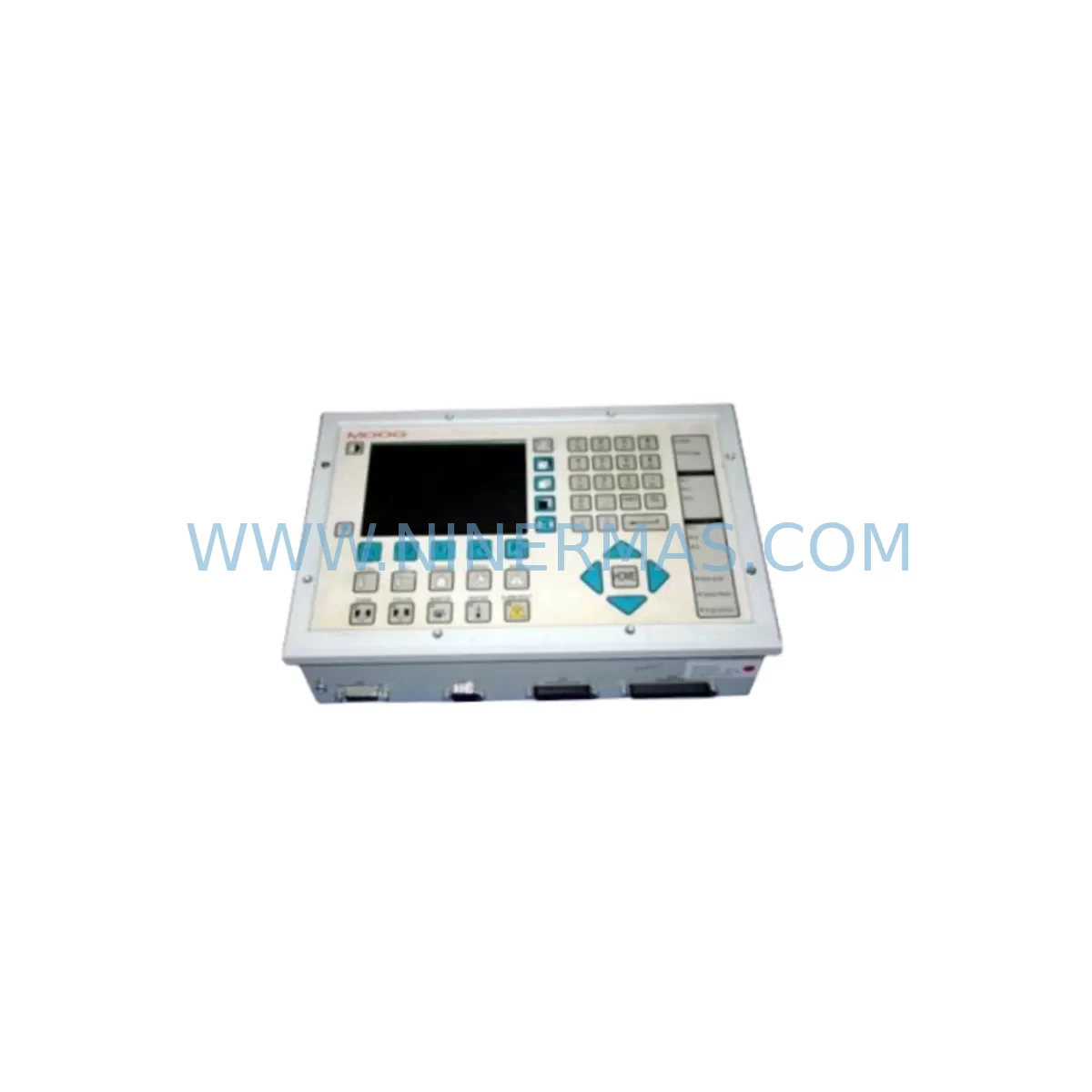

The MOOG C16303-001 is an original operating control panel designed for demanding industrial automation environments. As a service-ready spare part, it is engineered to support rapid replacement during unplanned downtime events, scheduled annual overhauls, and preventive maintenance cycles across servo-driven machinery, motion control systems, and precision manufacturing lines. Sourced directly from verified supply channels, each unit undergoes pre-shipment functional testing to confirm electrical integrity, interface compatibility, and operational readiness before dispatch.

Maintenance engineers and procurement teams managing MOOG-based motion control systems recognize the C16303-001 as a critical panel-level component. Its role spans operator interface, system status indication, and local control command execution — functions that are indispensable during fault isolation, axis recovery, and emergency stop reset procedures. Holding a qualified spare in inventory eliminates the lead-time risk associated with sourcing obsolete or long-lifecycle MOOG components on short notice, protecting production continuity and reducing mean time to repair (MTTR).

For facilities operating MOOG servo amplifiers, motion controllers, or multi-axis drive systems, the C16303-001 integrates within established cabinet architectures without requiring firmware reconfiguration or mechanical adaptation. This plug-compatible design reduces technician intervention time and minimizes the risk of commissioning errors during emergency replacement scenarios.

NINERMAS maintains long-term stock commitments for the C16303-001 and related MOOG spare parts, supporting lifecycle extension programs for systems that have passed original manufacturer end-of-life dates. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MOOG C16303-001 control panel during a scheduled or emergency maintenance event, a thorough inspection of the surrounding electrical and control infrastructure is essential to prevent repeat failures and ensure system stability. Maintenance engineers should verify the condition of the MOOG servo amplifier power supply module, confirming that input voltage rails are within specification and that no transient overvoltage events have stressed the panel interface circuitry.

The 24VDC control power supply feeding the panel should be load-tested and its output ripple measured before the replacement unit is energized. Wiring harnesses and connector assemblies linking the C16303-001 to the main servo drive backplane should be inspected for insulation degradation, pin corrosion, and mechanical stress fractures — particularly in high-vibration environments. Terminal blocks and DIN-rail mounted relay modules within the same cabinet zone should be checked for contact wear and proper torque on screw terminals.

I/O modules interfacing with the control panel — including digital input cards, output relay modules, and analog signal conditioning boards — should be functionally verified after panel replacement to confirm that all command and feedback signals are correctly routed. If the system includes a MOOG motion controller or axis controller card, its firmware version and parameter set should be confirmed against the site’s baseline configuration document before returning the axis to automatic mode.

Communication interfaces such as CANopen, EtherCAT, or PROFIBUS adapters connected to the same control network segment should be checked for address conflicts and bus termination integrity. Signal isolators protecting analog feedback channels from ground loops should be inspected and replaced if their isolation resistance has degraded. Fuse holders and miniature circuit breakers protecting the panel supply circuit should be tested for continuity and rated interrupting capacity.

For facilities maintaining a comprehensive spare parts inventory, the following component categories are recommended alongside the C16303-001: MOOG servo drive power modules, axis controller cards, encoder feedback interface boards, 24VDC SMPS units, DIN-rail terminal blocks, shielded motion control cables, CANopen or EtherCAT communication modules, digital I/O expansion cards, panel-mount HMI display units, and signal isolation barriers for analog feedback circuits. Maintaining these components as qualified spares reduces the risk of cascading failures during a single-component replacement event.

Site Replacement Workflow

Step 1 — Isolation: De-energize the control cabinet following site LOTO (Lockout/Tagout) procedures. Confirm zero-energy state on all supply rails before opening the panel enclosure.

Step 2 — Documentation: Photograph the existing C16303-001 wiring, connector positions, and label orientation before disconnection. Record the current firmware or parameter version displayed on any associated HMI or drive keypad.

Step 3 — Removal: Disconnect all harness connectors from the panel in sequence. Remove panel mounting fasteners and extract the unit from the enclosure. Inspect the mounting surface and connector backshells for damage.

Step 4 — Installation: Mount the replacement C16303-001 and reconnect all harnesses in reverse order. Verify connector locking engagement and cable routing clearance from heat sources and moving parts.

Step 5 — Verification: Re-energize the cabinet in stages. Confirm panel power-on indication, verify all I/O signal states against the baseline, and perform a controlled axis jog test before returning the system to automatic production mode.

Step 6 — Documentation Closure: Update the site maintenance log with the replacement date, part serial number, and technician sign-off. Register the unit under the 12-month warranty with NINERMAS for ongoing support coverage.

This workflow is applicable to both emergency replacement scenarios — where minimizing downtime is the primary objective — and planned annual overhaul events where full cabinet inspection and component life assessment are conducted concurrently.

Spare Parts Support FAQ

Q1: Is the MOOG C16303-001 available for long-term supply beyond the original manufacturer’s active production period?
Yes. NINERMAS maintains a dedicated stock commitment program for long-lifecycle MOOG spare parts, including the C16303-001. This program supports facilities operating legacy motion control systems that require continued spare parts availability beyond standard OEM support windows. Minimum order quantities and lead times are confirmed at the time of inquiry.

Q2: What pre-shipment testing is performed on the C16303-001 before dispatch?
Each unit undergoes functional power-on verification, interface connectivity checks, and visual inspection for mechanical integrity before shipment. Test records are available upon request for quality-critical procurement processes. Units that do not meet functional acceptance criteria are quarantined and not dispatched.

Q3: How is compatibility with existing MOOG servo systems confirmed before installation?
Compatibility is verified by cross-referencing the C16303-001 part number against the site’s existing panel assembly drawing and MOOG system documentation. NINERMAS technical support can assist with compatibility confirmation based on the customer’s system model number, cabinet layout, and application description prior to order placement.

Q4: What does the 12-month warranty cover, and how are warranty claims processed?
The 12-month warranty covers manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. Warranty claims are initiated by contacting NINERMAS with the original order reference, a description of the failure mode, and photographic evidence of the installation condition. Replacement units or repair services are coordinated on a case-by-case basis to minimize site downtime.
