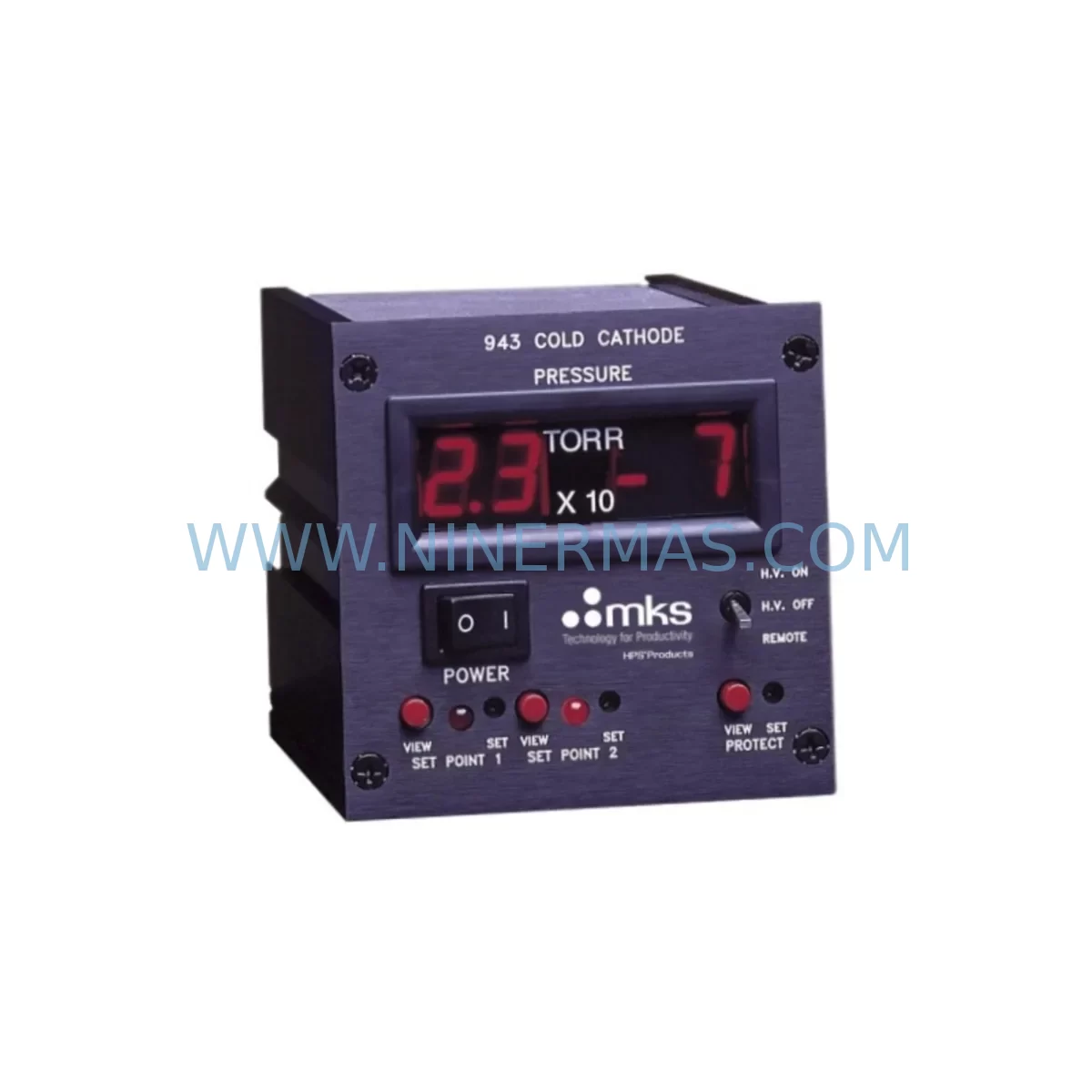

The MKS MLS-943-A-120V60-TR-PC-0270-20069-CPA-1 is an original cold cathode pressure gauge transducer from MKS Instruments, engineered for high-vacuum measurement in demanding industrial and semiconductor manufacturing environments. As a service-ready spare part, this unit is pre-tested, fully calibrated, and available for immediate deployment — minimizing unplanned downtime and restoring vacuum system integrity with confidence. Whether you are managing a scheduled annual overhaul, responding to an emergency gauge failure, or building a strategic spare parts inventory for a multi-chamber vacuum system, the MKS 943 series remains one of the most trusted cold cathode measurement solutions in the field.

Maintenance engineers and procurement teams operating legacy vacuum systems — including CVD reactors, PVD sputtering systems, ion implant platforms, and industrial leak detection rigs — rely on the 943 series for its wide measurement range, robust Penning discharge design, and compatibility with MKS vacuum system controllers. Sourcing a verified, original spare with documented traceability is critical when system uptime is non-negotiable. This unit ships with a 12-month warranty and full pre-shipment functional testing, providing procurement teams with the assurance needed for long-term supply planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MKS MLS-943-A-120V60-TR-PC-0270-20069-CPA-1 during a planned or emergency maintenance event, a thorough inspection of the surrounding vacuum system components is essential to prevent repeat failures and ensure measurement accuracy after recommissioning. Maintenance engineers should treat gauge replacement as an opportunity to audit the full vacuum measurement and control circuit.

Begin by verifying the integrity of the MKS 946 Vacuum System Controller or equivalent multi-gauge controller connected to this transducer. A faulty controller input card can cause premature gauge failure or erratic readings. Simultaneously, inspect the MKS PDR900 Pressure Display and Readout unit for firmware version compatibility and calibration drift. If the system uses a MKS Type 247 Four-Channel Power Supply, confirm that the output channel supplying the 943 gauge is within specification — voltage irregularities are a leading cause of cold cathode gauge degradation.

Check all vacuum-rated signal cables and transducer interconnect cables between the gauge and the controller. Damaged shielding or corroded connectors introduce noise into the analog output signal, producing false pressure readings that can trigger unnecessary process aborts. Replace any cables showing insulation cracking or connector pin corrosion. For systems with extended cable runs, consider installing a signal isolation barrier to eliminate ground loop interference between the gauge and the control panel.

In multi-chamber systems, also inspect the MKS 925 MicroPirani Vacuum Transducer or similar Pirani gauges used for roughing range measurement. These companion gauges share the same vacuum manifold and are subject to the same contamination and thermal cycling stresses. A failing Pirani gauge can mask true system pressure during pump-down, leading to premature cold cathode gauge activation at pressures outside its safe operating range.

For control cabinet integrity, inspect the 24VDC DIN-rail power supply modules powering the I/O and relay circuits associated with the vacuum interlock system. Verify that relay modules controlling the roughing pump, turbo pump, and gate valve sequences are operating within contact rating. Worn relay contacts cause intermittent interlock faults that can interrupt the pump-down sequence and expose the cold cathode gauge to atmospheric pressure events. Additionally, check terminal block assemblies and fuse holders in the gauge power circuit for signs of overheating or loose terminations — these are common failure points in high-cycle industrial environments.

If the system includes a MKS 972B DualMag Transducer for combined Pirani and cold cathode measurement, cross-reference its readings against the 943 gauge output during the post-replacement commissioning check. Discrepancies greater than half a decade at crossover pressure indicate either a calibration issue or residual contamination in the vacuum chamber. Finally, confirm that the HMI panel or SCADA system displaying vacuum status has been updated with the new gauge’s calibration offset if applicable, and that all alarm setpoints remain correctly configured for the restored measurement range.

Site Replacement Workflow

Replacing the MKS MLS-943-A-120V60-TR-PC-0270-20069-CPA-1 on-site follows a structured sequence designed to minimize system downtime and ensure measurement continuity from the first pump-down cycle after installation.

Step 1 — Isolation and Safe Venting: Isolate the gauge from the vacuum chamber using the appropriate gate valve or isolation valve. Vent the gauge port to dry nitrogen or clean dry air — never ambient atmosphere — to prevent moisture and particulate contamination of the electrode assembly.

Step 2 — Electrical Disconnection: Power down the MKS controller or power supply channel supplying the gauge. Disconnect the transducer cable at the CPA-1 connector. Label the cable to prevent reconnection errors in multi-gauge cabinets.

Step 3 — Mechanical Removal: Unbolt the gauge from the flange. Inspect the flange sealing surface for scoring or contamination. Replace the ConFlat or KF flange gasket as a matter of course — reusing old gaskets is a leading cause of post-maintenance vacuum leaks.

Step 4 — New Unit Installation: Mount the MLS-943-A-120V60-TR-PC-0270-20069-CPA-1 replacement unit. Torque flange bolts to specification in a star pattern. Reconnect the transducer cable. Restore power to the controller channel.

Step 5 — Commissioning and Verification: Initiate pump-down. Monitor the gauge output through the full pressure range from rough vacuum to high vacuum. Confirm that the controller displays a stable, noise-free reading at base pressure. Log the commissioning date and gauge serial number in the maintenance record for warranty tracking.

This workflow is compatible with legacy system configurations and does not require firmware changes to the MKS 946 or PDR900 controller when replacing a like-for-like 943 series unit, significantly reducing recommissioning time compared to cross-series gauge substitutions.

Spare Parts Support FAQ

Q1: Is the MLS-943-A-120V60-TR-PC-0270-20069-CPA-1 a direct drop-in replacement for the original MKS 943 series gauge in my system?
Yes. This unit is an original MKS 943 series cold cathode gauge in the TR transducer configuration with CPA-1 connector, designed for direct replacement in systems originally equipped with the 943-A-120V60 variant. No wiring modifications or controller reconfiguration are required for like-for-like substitution. Always verify the connector type and power supply voltage against your system documentation before installation.

Q2: What pre-shipment testing is performed, and what documentation is included?
Every unit undergoes functional testing prior to shipment, including high-voltage ignition verification and analog output signal check across the measurement range. A pre-shipment test report is available upon request. The 12-month warranty covers manufacturing defects and covers the unit from the date of delivery, providing procurement teams with a documented quality assurance baseline for spare parts inventory management.

Q3: How should I manage long-term spare parts inventory for the MKS 943 series given its end-of-life status?
For facilities operating multiple vacuum systems with 943 series gauges, we recommend maintaining a minimum of two service-ready units per production line as buffer stock. Given the extended lead times associated with legacy MKS components, forward purchasing for 12–24 months of anticipated consumption is advisable. Coordinate with your procurement team to establish a reserved inventory agreement to ensure supply continuity without capital overcommitment.

Q4: Can this gauge be used as a long-term replacement if the MKS 943 series is discontinued?
Original MKS 943 series units remain available through authorized spare parts channels. For facilities planning system life extension beyond the availability window of original parts, compatibility assessment with the MKS 972B DualMag or equivalent modern transducer should be conducted in parallel with continued sourcing of original 943 units. This dual-track approach ensures uninterrupted production while a validated upgrade path is established.
