MKS 683B-24617 Retrofit Throttle Valve for Legacy Systems

MKS 683B-24617 Retrofit Throttle Valve for Legacy Systems: Legacy-Compatible Upgrade for Vacuum Process Control

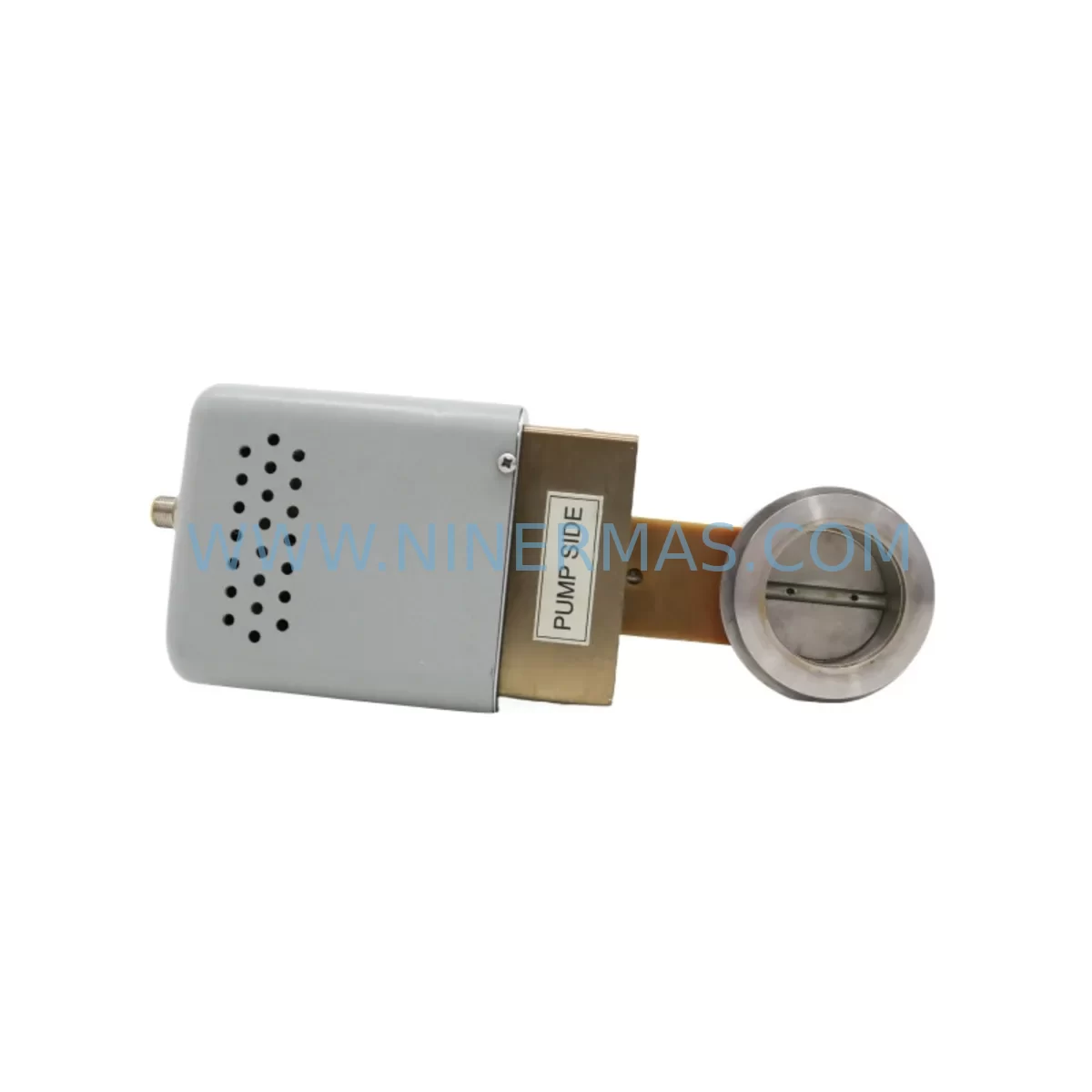

The MKS Instruments 683B-24617 is a ruggedized exhaust throttle control valve engineered for demanding vacuum process environments. Originally deployed in semiconductor fabrication, flat panel display manufacturing, and industrial coating systems, the Type 683 and 683B series established a benchmark for reliable pressure control in harsh-environment chambers. As original equipment manufacturers phase out support for legacy vacuum platforms, the 683B-24617 remains a critical retrofit component for facilities seeking to extend the operational life of existing process tools without committing to full system replacement.

For maintenance engineers and system integrators managing aging vacuum lines, sourcing a verified replacement for the 683B-24617 is often the difference between a controlled upgrade and an unplanned production halt. NINERMAS maintains ready inventory of this valve, pre-shipment tested and backed by a 12-month warranty, ensuring that retrofit projects can proceed on schedule with confidence in component reliability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 683B-24617 into an existing vacuum system requires a structured approach that accounts for upstream and downstream dependencies across the process tool. Before removing the legacy valve, engineers should document the current pressure setpoint profile stored in the MKS 651C digital throttle valve controller or the older MKS 252E exhaust valve controller. These controllers retain position calibration data that must be re-entered or verified after the new valve is installed and mechanically seated.

On the foreline side, confirm that the turbomolecular pump or dry scroll pump interface remains undisturbed. If the system uses an MKS 627D Baratron capacitance manometer for process pressure feedback, verify that the transducer zero offset has not drifted during the valve swap interval. Pressure feedback accuracy is critical for closed-loop control stability, and any offset error will manifest as process pressure instability immediately after recommissioning.

For systems where the 683B-24617 is paired with an MKS 1179A mass flow controller or an MKS 1259C mass flow controller on the gas inlet side, the flow-pressure control loop must be revalidated after valve replacement. The throttle valve position response curve may differ slightly between individual units due to manufacturing tolerances, and the PID parameters in the upstream controller may require minor adjustment to restore loop stability.

In control cabinet configurations where the valve actuator signal is routed through an MKS 946 vacuum system controller or a third-party PLC I/O module, inspect the analog output card terminal assignments before disconnecting the legacy valve. Mislabeled terminals are a common source of commissioning delays in retrofit projects. If the cabinet uses a Brooks SLA5800 series mass flow controller alongside the MKS throttle valve, ensure that the shared analog ground reference is maintained to prevent signal interference after reconnection.

Where the process tool HMI displays valve position as a percentage or in engineering units, verify that the display scaling matches the new valve’s actuator feedback signal range. Some legacy HMI configurations, particularly those running on older SCADA platforms, store valve position scaling in a separate configuration file that is not automatically updated when the physical valve is replaced. Updating this parameter prevents false alarms and ensures that operators can monitor valve status accurately during the post-retrofit production run.

For installations where the 683B-24617 is mounted in a confined equipment bay, measure the available clearance for the actuator housing before ordering. The ruggedized actuator on the 683B series is dimensionally similar to the standard Type 683, but the external cable routing may differ depending on the revision level of the unit in stock. NINERMAS can provide dimensional drawings upon request to support pre-installation planning.

If the retrofit scope includes replacing adjacent components such as a VAT Series 64 gate valve on the chamber isolation side or an MKS Type 153 control valve on a secondary process line, coordinate the replacement sequence to minimize the number of pump-down cycles required. Each additional pump-down cycle adds time to the overall retrofit schedule and increases the risk of contamination if the system is not properly purged between cycles.

Downtime Control During System Migration

Minimizing unplanned downtime during a throttle valve retrofit requires preparation that begins well before the maintenance window opens. The first priority is to obtain a verified replacement unit — such as the 683B-24617 from NINERMAS stock — and confirm its pre-shipment test results before scheduling the outage. Units shipped from NINERMAS are functionally tested for actuator response, leak integrity, and position feedback accuracy, reducing the risk of discovering a defective component after the legacy valve has already been removed from the line.

Before the maintenance window, back up the current controller configuration from the MKS 651C or equivalent throttle valve controller. Export the pressure setpoint table, PID parameters, and any custom alarm thresholds to a portable storage device. This backup ensures that the control system can be restored to its pre-retrofit state within minutes if an unexpected issue arises during commissioning.

During the valve swap, keep the pump running in bypass mode if the system architecture permits. This approach maintains the foreline vacuum and reduces the time required to re-establish base pressure after the new valve is installed. If bypass operation is not possible, coordinate with the process team to schedule the retrofit during a planned product changeover to avoid impacting in-process wafers or substrates.

After mechanical installation, perform a slow pump-down with the throttle valve in manual position control mode before switching to automatic pressure regulation. This step allows the engineer to verify actuator response and confirm that the valve is seating correctly before the closed-loop controller takes over. Document the commissioning results — including the final PID settings and the achieved base pressure — as part of the retrofit record for future reference.

Retrofit Support FAQ

Q1: Is the 683B-24617 a direct drop-in replacement for the original MKS Type 683 valve?
A: In most configurations, yes. The 683B-24617 shares the same flange standard, actuator signal interface, and body dimensions as the original Type 683 series. However, engineers should verify the specific bore size and actuator voltage range against the system documentation before installation, as multiple sub-variants exist within the Type 683 family.

Q2: What commissioning steps are required after installing the 683B-24617?
A: After mechanical installation and leak check, perform a position calibration using the connected throttle valve controller (typically the MKS 651C or MKS 252E). Set the valve to the fully open and fully closed positions to establish the actuator travel limits, then re-enter the operating pressure setpoint and verify closed-loop stability under process conditions.

Q3: Has the 683B-24617 been tested before shipment?
A: Yes. All units shipped by NINERMAS undergo pre-shipment functional testing covering actuator response, position feedback accuracy, and leak integrity. Test records are available upon request and accompany the unit as part of the shipment documentation.

Q4: What warranty coverage applies to the 683B-24617?
A: NINERMAS provides a 12-month warranty covering parts and workmanship from the date of shipment. This warranty applies to units used within their specified operating parameters. For warranty claims or technical support, contact NINERMAS directly.
