Lam Research 810-802799-010 Retrofit Module for Legacy Systems

Lam Research 810-802799-010 Retrofit Module for Legacy Systems

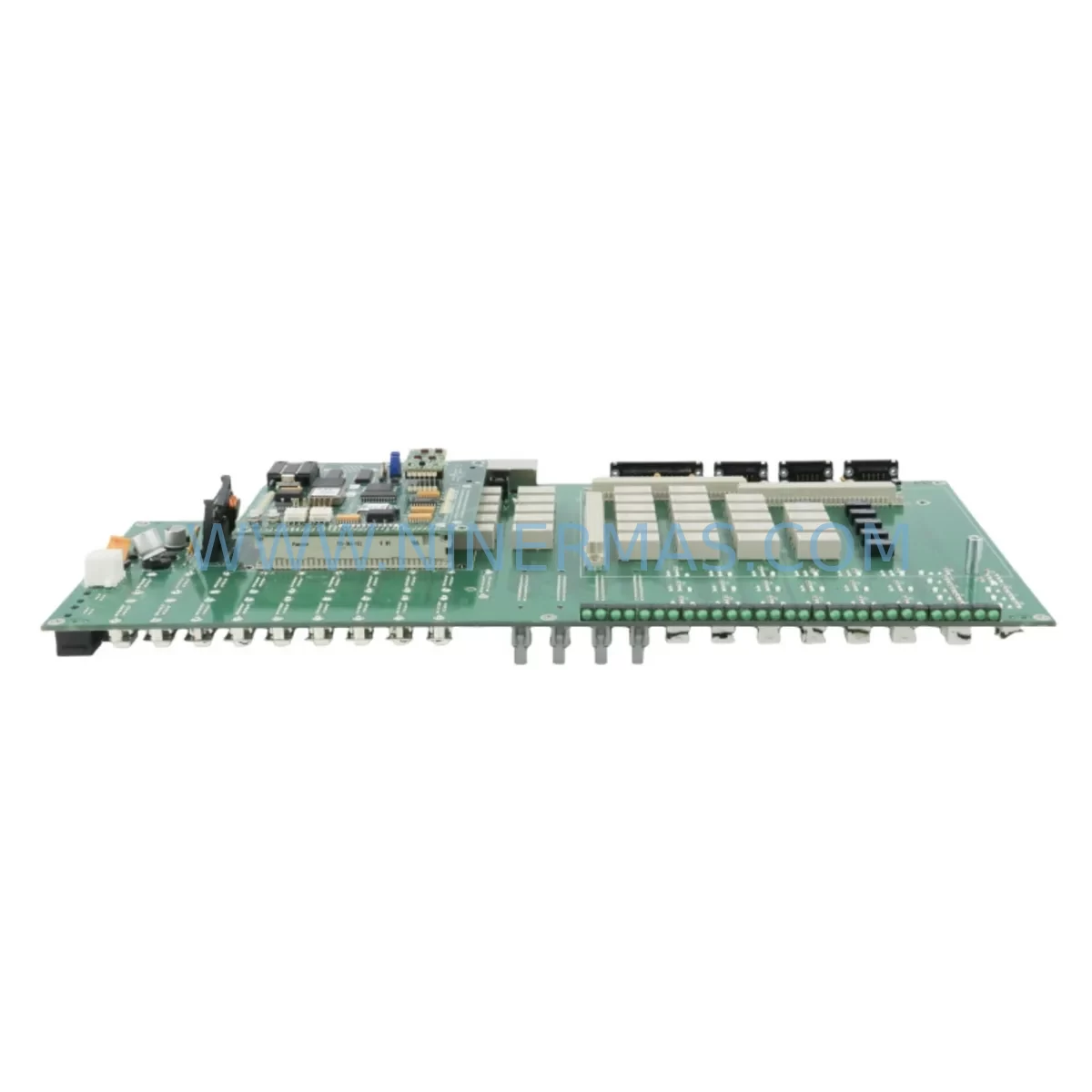

The Lam Research 810-802799-010 is a retrofit-compatible control module engineered for integration into legacy IGS series semiconductor processing platforms. As original equipment manufacturers phase out support for aging process control architectures, facilities operating Lam Research Integrity, Rainbow, and TCP etch systems face increasing pressure to source verified replacement components that preserve original program logic, maintain process repeatability, and extend equipment service life without requiring full platform replacement. The 810-802799-010 addresses this need directly, offering a pre-tested, warranty-backed solution for engineers managing controlled modernization of installed semiconductor equipment.

This module is cross-referenced against discontinued part numbers including 810-031325-003, 0021-28413, and 0021-32929, making it a direct candidate for drop-in evaluation in systems where the original assembly has reached end-of-life or is no longer available through standard distribution channels. Procurement teams managing long-term spare parts programs for semiconductor fabs, research institutions, and contract equipment service providers will find this module suitable for reserved inventory strategies designed to reduce unplanned downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 810-802799-010 into an existing IGS series platform requires a structured pre-installation review covering power capacity, terminal wiring, backplane interface, module addressing, program compatibility, HMI screen mapping, communication link integrity, physical installation space, and field commissioning sequence. Skipping any of these steps introduces risk of process interruption, data loss, or equipment damage during the changeover window.

Begin with a power audit of the control cabinet. The backplane supplying the 810-802799-010 must deliver stable +5 VDC and ±12 VDC rails within OEM tolerance. If the existing power supply — such as an 810-800256-003 or 810-800256-005 — is already operating near rated capacity due to additional I/O expansion or upgraded communication modules, a load calculation must be completed before the new module is installed. Overloading the power rail is a common cause of intermittent faults in retrofitted systems.

Terminal wiring should be documented from the original assembly before removal. In IGS series cabinets, field wiring to process gas panels, RF match networks, and endpoint detection systems is typically routed through dedicated I/O backplanes. Modules such as the 810-800082-004 and 810-800082-005 handle analog and digital I/O respectively, and their wiring maps must be preserved exactly during any module swap to avoid process recipe mismatches after restart.

Backplane slot addressing is critical. The 810-802799-010 uses jumper-configurable addressing in most IGS rack configurations. The original module’s address settings must be recorded and replicated on the replacement unit. Failure to match the address will prevent the host controller — typically a VME-based processor card such as the 810-495659-001 — from recognizing the module during the boot sequence, resulting in a system fault that halts process recovery.

Program compatibility verification is the next priority. The process recipe files stored on the host controller reference specific module addresses and I/O channel assignments. Before the replacement module is powered on, the engineering team should confirm that the active recipe set does not contain hardcoded references to firmware-specific behavior of the original 810-802799-010 revision. Where firmware differences exist between the original and replacement unit, a controlled recipe validation run in manual mode is recommended before returning the chamber to production.

HMI screen mapping should also be reviewed. In systems using Lam Research operator interface panels connected via the internal serial communication bus, screen elements tied to the replaced module’s status registers may require re-mapping if the replacement module reports status through a different register offset. Communication link integrity between the HMI, the host controller, and downstream modules — including any 853-032798-001 communication interface cards — should be verified using the system’s built-in diagnostic utilities before the chamber is released for production wafers.

Physical installation space in the control cabinet must be confirmed. The 810-802799-010 occupies a standard IGS rack slot, but adjacent modules including signal isolators, programming cables such as the 810-028295-150, and any recently added expansion backplanes must not obstruct airflow or connector access. Thermal management in the control cabinet directly affects module reliability, particularly in high-utilization fab environments where the system runs continuous process cycles.

Field commissioning should follow a defined sequence: power-off removal of the original module, installation of the 810-802799-010 with address jumpers set, power-on with system diagnostics active, confirmation of module recognition by the host controller, manual I/O verification against the wiring map, and a controlled process recipe dry-run before returning to production. This sequence minimizes the risk of undetected faults reaching the wafer processing stage.

Downtime Control During System Migration

Minimizing downtime during a module replacement on an IGS series platform requires preparation that begins well before the scheduled maintenance window. The 810-802799-010 should be on-site and pre-inspected before the chamber is taken offline. A pre-shipment functional test is performed on every unit prior to dispatch, reducing the probability of receiving a non-functional module and eliminating the need for an emergency re-order during an active maintenance event.

Original program logic must be backed up before any hardware is removed. The host controller’s recipe files, module configuration parameters, and calibration data should be exported to a secure storage location. This backup protects against data loss in the event of an unexpected power event during the swap and provides a reference point for post-installation verification.

Field control continuity during the migration window depends on the scope of the replacement. If the 810-802799-010 controls a non-critical I/O function, the chamber may be able to remain in a safe idle state while the swap is completed. If the module is part of the primary process control path — for example, managing gas flow control signals or RF power interlocks — the chamber must be fully isolated from process gas and RF sources before work begins, in accordance with the facility’s lockout/tagout procedures.

Post-installation verification should be completed within the planned maintenance window. A structured commissioning checklist covering module recognition, I/O channel verification, communication link status, and a manual process dry-run will confirm that the replacement is functioning correctly before the chamber is returned to production. Reserving inventory of the 810-802799-010 as a long-term spare reduces future downtime exposure and supports a predictable maintenance schedule for the installed equipment base.

Retrofit Support FAQ

Q1: Is the 810-802799-010 a direct replacement for 810-031325-003, 0021-28413, and 0021-32929?
The 810-802799-010 is cross-referenced against these part numbers and is offered as a retrofit-compatible replacement candidate. Customers are advised to verify backplane slot compatibility, address jumper settings, and firmware revision alignment before installation. Pre-installation technical review is recommended for safety-critical process control applications.

Q2: What commissioning steps are required after installing the 810-802799-010?
After installation, confirm module address recognition by the host controller, verify all I/O channel assignments against the original wiring map, check communication link status to the HMI and downstream modules, and perform a controlled manual process dry-run before returning the chamber to production. Document all settings for future reference.

Q3: Has the 810-802799-010 been tested before shipment?
Yes. Every unit undergoes a functional pre-shipment test prior to dispatch. This test verifies basic operational integrity and reduces the risk of receiving a non-functional module. A 12-month warranty is included with each unit, covering defects in materials and workmanship under normal operating conditions.

Q4: Is reserved inventory available for long-term spare parts programs?
Yes. Reserved inventory commitments are available for customers managing long-term maintenance programs for IGS series equipment. Advance reservation reduces lead time exposure and supports predictable maintenance scheduling. Contact our team to discuss inventory reservation terms and supply continuity arrangements for your installed equipment base.
