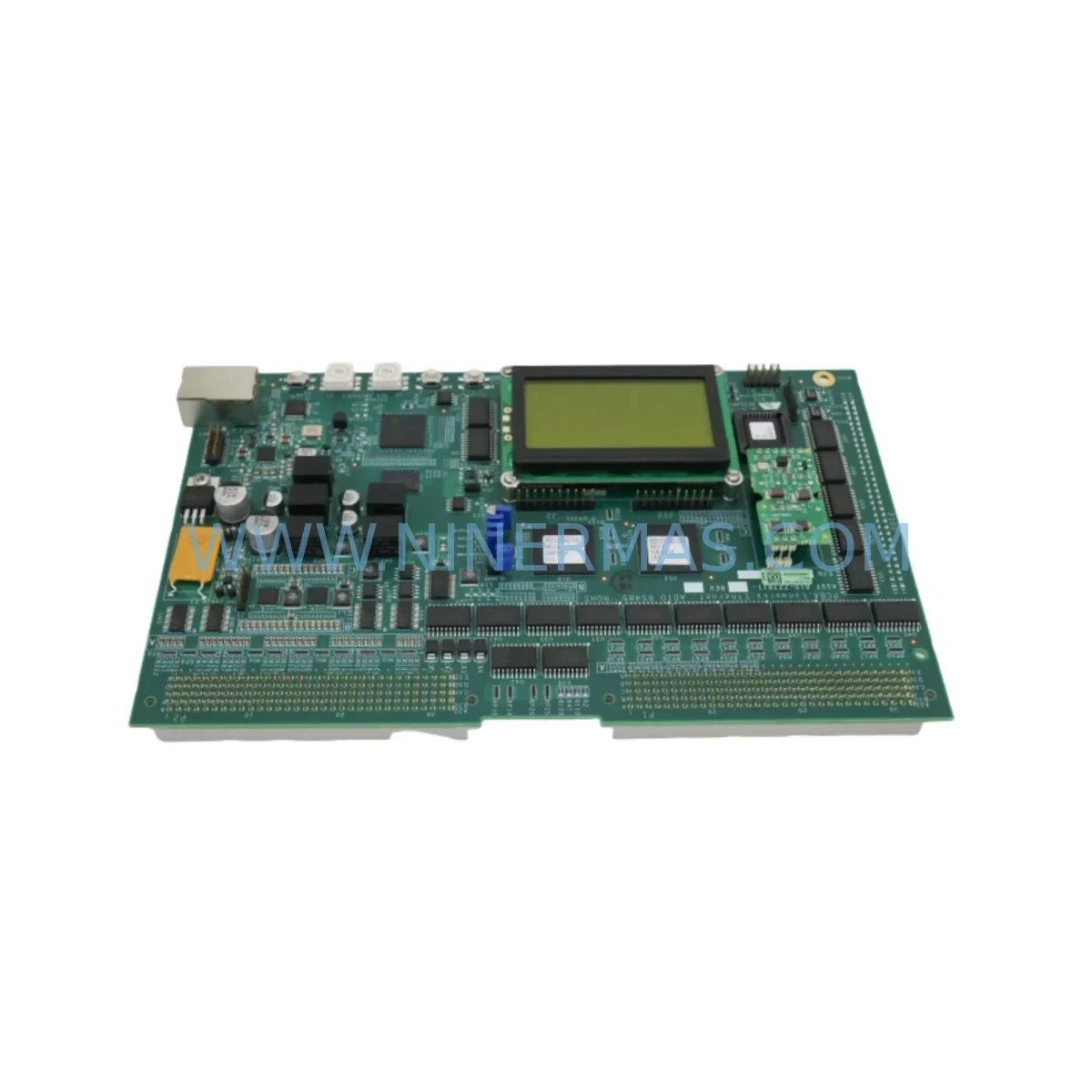

Lam Research 810-227611-003 Retrofit ADIO RS485 Board for Legacy Systems

Lam Research 810-227611-003 Retrofit ADIO RS485 Board for Legacy Systems

The Lam Research 810-227611-003 ADIO RS485 board is a critical analog/digital I/O interface module used across multiple generations of Lam Research semiconductor processing equipment. As original equipment manufacturers phase out support for legacy platforms, maintenance engineers and system integrators face increasing pressure to source verified replacement boards that maintain full electrical and functional compatibility with existing control architectures. NINERMAS supplies the 810-227611-003 from pre-tested, traceable inventory, backed by a 12-month warranty and pre-shipment functional verification — ensuring your retrofit project proceeds with confidence and minimal unplanned downtime.

The ADIO RS485 board serves as the primary communication and I/O bridge between the host controller and field-level actuators, sensors, and process endpoints. Its RS485 serial interface supports multi-drop configurations across long cable runs typical in cleanroom environments, making it a foundational component in chamber control, endpoint detection, and process recipe execution. When this board fails or becomes unavailable through OEM channels, the entire process module may be rendered inoperable — underscoring the urgency of maintaining a qualified spare parts pipeline.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 810-227611-003 in an active production environment requires careful pre-planning across several interdependent subsystems. Before removing the failed board, engineers should document the existing RS485 bus topology, including the number of nodes, cable lengths, and termination points. The ADIO board communicates with the system’s main controller — typically a Lam Research 810-013872-001 CPU board or equivalent processor module — via a defined register map. Any mismatch in firmware revision between the replacement ADIO board and the host CPU can result in communication faults or incorrect I/O state reporting.

The backplane into which the 810-227611-003 is installed — often a Lam Research 810-800256-003 or similar multi-slot card cage — must be inspected for bent connector pins, oxidation, or mechanical damage before the new board is seated. Backplane integrity directly affects signal quality on both the RS485 bus and the analog I/O channels. If the backplane shows wear, it is advisable to replace it concurrently to avoid repeat failures.

Power supply capacity is another critical checkpoint. The 810-227611-003 draws regulated DC power from the system’s internal power distribution module. If the existing power supply — such as a Lam Research 810-495659-001 or equivalent — is already operating near its rated output, adding a replacement board without verifying headroom can cause voltage droop and intermittent faults across other modules sharing the same rail, including I/O expansion cards and signal conditioning modules like the 810-800082-001.

For systems that also include a Lam Research 810-028296-001 I/O expansion board or a 810-017003-001 communication interface module, the retrofit plan must account for address conflicts. Each module on the RS485 bus is assigned a unique node address via hardware jumpers or DIP switches. When installing the 810-227611-003 replacement, confirm that its address configuration matches the original unit exactly — failure to do so will prevent the host controller from recognizing the module and may trigger system-level alarms.

HMI screens connected to the process module — whether a legacy Lam Research 810-802901-001 operator panel or a third-party touchscreen running a mirrored process display — should be validated post-installation to confirm that all I/O status indicators, alarm annunciations, and recipe parameter displays reflect accurate real-time data from the new board. In some configurations, the HMI communicates indirectly through the ADIO board’s RS485 link, making this validation step non-negotiable before returning the system to production.

Finally, if the retrofit involves migrating from an older RS232-based communication architecture to RS485, additional signal isolation hardware may be required. Signal isolators and protocol converters compatible with the Lam Research control platform should be sourced and bench-tested before installation to avoid introducing ground loops or common-mode noise into the analog I/O channels.

Downtime Control During System Migration

Minimizing downtime during a board-level replacement on a semiconductor processing tool requires a structured approach that begins well before the maintenance window opens. The first priority is preserving the original program logic. Before any hardware is disturbed, a full backup of the process controller’s recipe database, I/O configuration tables, and communication parameters should be saved to an external storage medium. This ensures that if the replacement board requires a firmware update or address reconfiguration, the original logic can be restored without relying on operator memory or incomplete documentation.

During the physical swap, electrostatic discharge (ESD) protocols must be strictly observed. The 810-227611-003 contains sensitive analog front-end circuitry that can be permanently damaged by static discharge during handling. Use grounded wrist straps, ESD-safe mats, and anti-static packaging when transporting the replacement board from storage to the tool.

Once the new board is installed and powered, a structured commissioning sequence should be followed: first verify DC power rail voltages at the board’s test points, then confirm RS485 bus continuity, then validate each analog and digital I/O channel against the process I/O map before enabling automatic control. This step-by-step approach isolates potential issues to specific subsystems and prevents cascading faults that could extend the maintenance window.

For facilities operating multiple tools of the same model, maintaining at least one pre-tested spare 810-227611-003 in local inventory is strongly recommended. NINERMAS can support reserved inventory agreements and long-term supply commitments to ensure that critical spare boards are available on demand, reducing mean time to repair (MTTR) and protecting production throughput.

Retrofit Support FAQ

Q1: Is the 810-227611-003 a direct replacement for earlier revisions such as 810-227611-001 and 810-227611-002?
In most configurations, yes. The -003 revision incorporates minor component updates but maintains the same connector pinout, board dimensions, and register map as earlier revisions. However, firmware compatibility with the host CPU board should be verified before installation, particularly on older tool generations where the controller firmware may not support features introduced in the -003 revision.

Q2: What pre-shipment testing does NINERMAS perform on the 810-227611-003?
Each unit undergoes a full functional test covering RS485 communication integrity, analog I/O channel accuracy, digital I/O switching, and power consumption verification. Test results are documented and available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I configure the RS485 termination and module address before installation?
The 810-227611-003 uses hardware jumpers to set the RS485 bus termination resistor (typically 120Ω at the last node) and the module’s node address. Before installation, photograph or document the jumper configuration on the failed board. If the original board is non-functional and the configuration is unknown, refer to the system’s wiring diagram or contact NINERMAS technical support for guidance based on your tool model and serial number.

Q4: Can NINERMAS supply multiple units for a fleet-wide spare parts program?
Yes. NINERMAS maintains stock of the 810-227611-003 and can support bulk orders, reserved inventory agreements, and scheduled delivery programs for facilities managing multiple Lam Research tools. Contact our team to discuss lead times, pricing, and long-term supply commitments tailored to your maintenance strategy.
