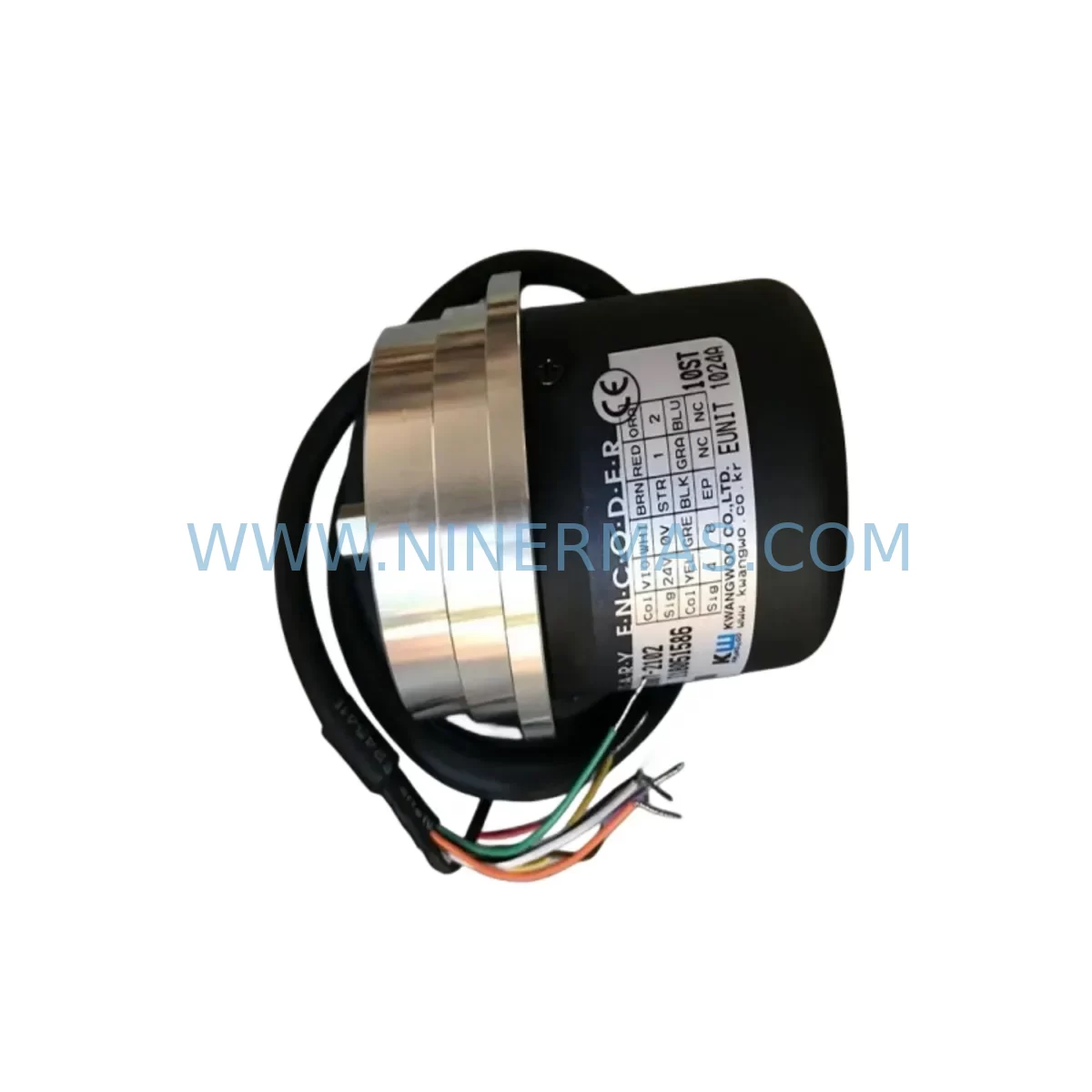

KWANGWOO RAA-001007-2102 Retrofit-Compatible Rotary Encoder

KWANGWOO RAA-001007-2102 Retrofit-Compatible Rotary Encoder for Legacy System Upgrades

The KWANGWOO RAA-001007-2102 is an industrial-grade incremental rotary encoder engineered for seamless integration into legacy automation environments. Whether you are replacing a discontinued encoder on an aging production line, upgrading a control cabinet to meet current safety standards, or migrating from an obsolete feedback device to a modern motion control platform, the RAA-001007-2102 delivers the dimensional compatibility, signal integrity, and long-term supply assurance that retrofit engineers demand.

Sourced directly from KWANGWOO’s industrial encoder series, this unit is designed to serve as a direct or near-direct replacement for end-of-life encoders commonly found in servo drive systems, CNC machine tools, conveyor indexing stations, and packaging line actuators. Its compact shaft-mount form factor and standard A/B/Z incremental output make it compatible with a wide range of legacy PLCs, motion controllers, and drive amplifiers without requiring firmware modification or signal conditioning hardware.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the RAA-001007-2102 into a legacy automation system begins well before the encoder arrives on site. A structured pre-retrofit assessment should cover the following areas to eliminate surprises during the maintenance window.

Power Supply Capacity: Confirm that the existing 24 VDC encoder power rail — typically sourced from a dedicated MEAN WELL SDR-120-24 or similar DIN-rail power supply inside the control cabinet — can support the additional current draw of the replacement encoder. Most 58 mm incremental encoders draw under 100 mA, but aging PSUs operating near capacity may require derating checks before adding any new load.

Terminal Wiring and Cable Routing: The RAA-001007-2102 uses a standard color-coded cable (Brown = VCC, Blue = GND, Green = A, White = B, Yellow = Z, Shield = PE). Cross-reference this against the original encoder’s wiring diagram stored in the machine documentation. If the legacy harness uses a different pin assignment — common with older OMRON E6B2-CWZ series or Autonics E50S encoders — prepare a wiring adapter or re-terminate the cable ends before installation.

Backplane and Rack Interface: For systems where the encoder feeds directly into a high-speed counter module — such as a Mitsubishi QD62 or Siemens FM350-1 installed in a modular rack — verify that the module’s input frequency rating accommodates the RAA-001007-2102’s maximum pulse output at full shaft speed. Exceeding the counter module’s rated input frequency will cause missed counts and position drift.

Module Address and PLC Parameter Alignment: After physical installation, navigate to the drive or PLC parameter table and update the encoder PPR setting to match the RAA-001007-2102. On Mitsubishi MR-J4 or Yaskawa Sigma-7 servo amplifiers, this is typically set in the electronic gear ratio parameters. On Siemens S7-300 or S7-1500 systems using PROFIBUS DP or PROFINET IO, confirm that the encoder’s I/O address mapping in the hardware configuration reflects the correct slot assignment.

Program Logic Compatibility: Review the existing ladder logic or function block diagram for any encoder-dependent sequences — homing routines, position compare outputs, cam switch functions, or speed monitoring blocks. The RAA-001007-2102’s A/B/Z incremental output is electrically and logically equivalent to the original encoder, so no program changes are typically required. However, if the legacy system used a proprietary encoder with embedded serial data (e.g., EnDat 2.2 or BiSS-C absolute protocol), a signal converter or encoder interface module will be needed to bridge the protocol gap.

HMI Screen Verification: After encoder replacement, cycle through all HMI screens — particularly position display pages, alarm history, and diagnostic overlays — to confirm that position feedback values are reading correctly. On Weintek MT8000 or Proface GP4000 series panels communicating via Modbus RTU or Ethernet/IP, position register values should stabilize within one homing cycle.

Communication Link Integrity: If the encoder signal is routed through a signal isolator or frequency doubler — such as a Phoenix Contact MCR-F series or Weidmuller ACT20P — inspect the isolator’s input range settings and confirm they are compatible with the RAA-001007-2102’s output voltage swing. Mismatched isolator thresholds are a common source of intermittent count errors after encoder replacement.

Installation Space Confirmation: The RAA-001007-2102’s 58 mm body diameter and radial cable exit require adequate clearance behind the mounting flange. In compact control cabinets or machine enclosures where space is constrained, verify that the cable bend radius is maintained above the minimum specified value to prevent signal degradation from cable stress.

Field Commissioning Sequence: Begin commissioning with a manual jog at 10% of rated speed. Monitor the encoder count in the PLC’s diagnostic buffer or the drive’s encoder monitor screen. Confirm that count direction matches the expected axis positive direction — if reversed, swap the A and B channels at the terminal block rather than modifying the program. Perform a full homing cycle, verify the Z-pulse reference position, and then run a production-speed trial before releasing the machine to normal operation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing an encoder replacement on a live production system. The RAA-001007-2102’s drop-in compatibility with standard 58 mm incremental encoder mounting arrangements means that mechanical swap time is typically under 30 minutes for a trained technician — provided that the replacement unit, wiring documentation, and commissioning tools are staged in advance.

To protect the original program logic, always create a full PLC backup — including the program, data blocks, and hardware configuration — before disconnecting any field device. On Siemens S7 systems, use TIA Portal’s Upload from Device function to archive the current project state. On Mitsubishi Q-series or iQ-R systems, use GX Works3’s Read from PLC function and save the project to a local drive. This backup serves as the recovery baseline if commissioning reveals unexpected behavior after the encoder swap.

For systems where continuous process control is critical — such as tension control loops on winding machines or synchronization axes on multi-axis gantries — consider scheduling the encoder replacement during a planned maintenance window rather than responding reactively to encoder failure. Proactive replacement of aging encoders, particularly those from discontinued product lines, is a core element of spare parts lifecycle management. Maintaining a buffer stock of the RAA-001007-2102 alongside related components such as a compatible DIN-rail power supply, shielded encoder cable, and flexible shaft coupling ensures that the next replacement can be completed within a single shift without waiting for parts procurement.

After the replacement is complete and the system has been returned to normal operation, document the encoder serial number, installation date, and commissioning parameters in the machine’s maintenance log. This record supports future warranty claims and provides the data needed to plan the next preventive replacement interval.

Retrofit Support FAQ

Q1: Is the RAA-001007-2102 a direct drop-in replacement for my existing encoder?
In most cases, yes — provided your existing encoder uses a standard 58 mm flange mount, 6 mm shaft, and incremental A/B/Z output. Confirm the PPR value, supply voltage, and connector pin-out before installation. If your legacy encoder uses a different resolution or an absolute output protocol, contact our technical team at sale@ninermas.com to confirm compatibility before ordering.

Q2: What pre-shipment testing is performed on the RAA-001007-2102?
Each unit undergoes functional output verification — confirming A, B, and Z channel signal integrity at rated voltage and speed — before dispatch. Units are individually inspected and packed to prevent transit damage. A test report is available upon request for critical applications.

Q3: How do I verify wiring compatibility with my existing control cabinet?
Request the wiring diagram for your legacy encoder from the machine OEM or retrieve it from the machine’s electrical documentation folder. Compare the color code and pin assignment against the RAA-001007-2102’s cable specification. If a direct match is not possible, prepare a wiring adapter at the terminal block level — do not modify the encoder cable itself, as this may void the warranty.

Q4: What does the 12-month warranty cover, and what is the stock availability?
