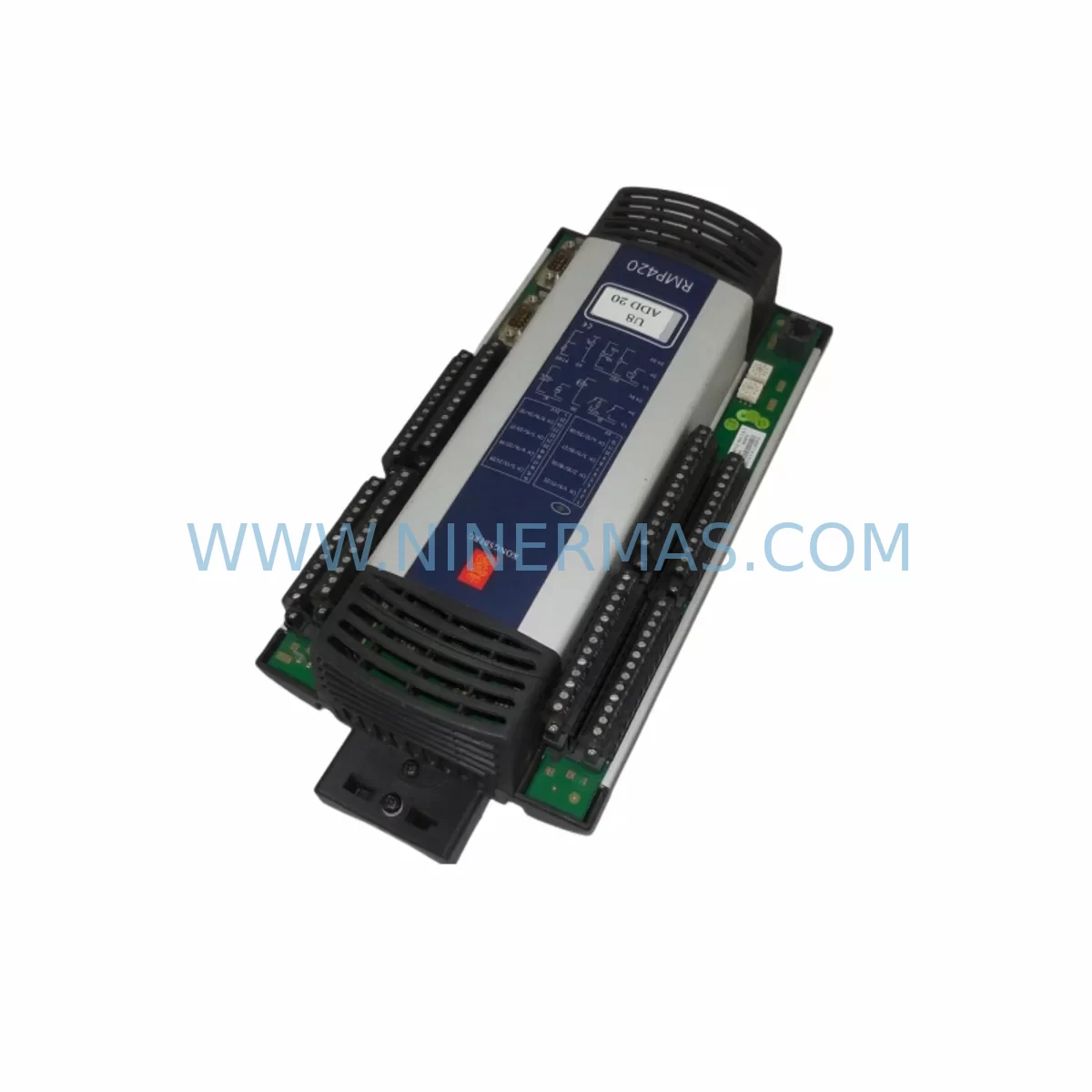

Kongsberg RMP420 306712 Retrofit Remote I/O for Legacy Systems

Kongsberg RMP420 306712 Retrofit Remote I/O for Legacy Systems

The Kongsberg RMP420 306712 is a retrofit-compatible Remote I/O module engineered for seamless integration into aging Kongsberg automation platforms and legacy distributed control architectures. As original Kongsberg RMP-series hardware reaches end-of-life and spare parts become increasingly scarce, the RMP420 306712 provides a reliable, pre-tested replacement path that preserves existing wiring infrastructure, backplane slot assignments, and field device addressing — minimizing engineering rework and unplanned downtime during system migration.

This module is particularly suited for facilities operating legacy Kongsberg SDP, K-Chief, or similar maritime and industrial control platforms where I/O expansion, signal conditioning, and remote terminal unit (RTU) functions are distributed across control cabinets. Engineers undertaking panel upgrades, control cabinet consolidation, or communication protocol migration will find the RMP420 306712 a dependable anchor point for maintaining field I/O continuity while transitioning upstream controller logic.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Kongsberg RMP420 306712 into a live or recently decommissioned control system requires a structured retrofit assessment. Before removing the original module, site engineers should document the existing rack slot position, module address configuration, and all field terminal assignments. In Kongsberg distributed architectures, the RMP420 typically interfaces with a dedicated Kongsberg RMP backplane or rack chassis — confirm that the replacement unit’s edge connector and mechanical keying match the installed rack before proceeding.

Power supply capacity is a critical pre-check. The control cabinet’s 24 VDC power supply module — often a Kongsberg PSU or equivalent DIN-rail unit — must be verified to support the RMP420’s rated current draw, particularly when multiple I/O modules share the same bus segment. If the cabinet also houses a Kongsberg CPU or controller module, confirm that the backplane communication bandwidth is not saturated by the addition or replacement of the RMP420 in that slot.

For systems undergoing communication protocol migration — for example, transitioning from legacy Kongsberg proprietary serial links to Modbus RTU or Profibus DP — the RMP420 306712 may serve as a stable I/O endpoint while the upstream communication gateway module or protocol converter is upgraded independently. This staged approach allows field I/O to remain live during the protocol transition, reducing the risk of full-system outages.

I/O channel mapping should be re-validated after module swap. If the system includes a Kongsberg HMI panel or operator workstation running SCADA graphics tied to specific I/O tag addresses, confirm that the new module’s channel assignments align with the existing tag database. Mismatched I/O addressing is a common source of post-retrofit alarm floods and requires careful cross-referencing against the original I/O list and loop drawings.

Where the retrofit involves expanding I/O capacity — for example, adding new field instruments to an existing Kongsberg remote I/O node — engineers should also assess whether additional signal isolator modules or terminal block assemblies are required to protect the new I/O channels from field-side voltage transients. In marine and offshore environments, this is especially important for analog input channels connected to sensors in hazardous areas.

If the control system includes a Kongsberg programming cable or dedicated engineering workstation port, ensure that the programming interface remains accessible during the retrofit window. Retaining the ability to upload, download, and verify the PLC or controller program without interrupting field I/O is essential for maintaining control continuity. Where possible, a full program backup should be taken from the original controller before any hardware is disturbed.

Downtime Control During System Migration

Minimizing production interruption during a Kongsberg RMP420 306712 replacement requires a disciplined pre-outage preparation sequence. Begin by creating a full backup of the controller program, I/O configuration, and HMI tag database. Capture a snapshot of all active alarms and interlock states so that post-restart verification is straightforward. Where the process permits, schedule the module swap during a planned maintenance window rather than responding reactively to a module failure — this allows time for bench-testing the replacement unit against a known-good configuration before it is installed in the live rack.

During the swap itself, label all field wiring before disconnection, even if the terminal layout is nominally identical to the original module. Wiring errors introduced during a rushed replacement are among the most time-consuming faults to diagnose in a distributed I/O system. Once the RMP420 306712 is seated in the rack and field wiring is reconnected, power the module in isolation if the rack architecture permits, and verify that the module’s status LEDs indicate normal operation before re-enabling the communication link to the upstream controller.

Post-restart, perform a structured I/O verification scan: confirm that each input channel reflects the correct field signal state and that each output channel drives its actuator or indicator as expected. Cross-reference against the pre-outage I/O snapshot to identify any discrepancies before returning the system to automatic control. This structured commissioning approach — combined with the pre-shipment functional testing performed on every RMP420 306712 unit dispatched — significantly reduces the risk of extended downtime caused by latent hardware defects.

Retrofit Support FAQ

Q1: Is the Kongsberg RMP420 306712 a direct replacement for the original discontinued unit?
In most Kongsberg RMP-series installations, the RMP420 306712 is a slot-compatible replacement. However, firmware revision compatibility should be confirmed with your site engineer or Kongsberg documentation before installation, particularly in systems where the controller performs firmware version handshaking with remote I/O nodes.

Q2: What wiring changes are required during the retrofit?
The RMP420 306712 is designed to retain the original field terminal layout. In the majority of retrofit scenarios, no re-termination is required. Engineers should verify terminal block pinout against the original module’s wiring diagram and confirm that cable ferrules and termination torque meet the replacement module’s specifications.

Q3: How is the module tested before shipment?
Every Kongsberg RMP420 306712 unit undergoes a 100% functional pre-shipment test covering power-on self-test, I/O channel verification, and communication link integrity. A test report is available upon request. All units are dispatched with a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and stock availability?
The RMP420 306712 is maintained in stock to support urgent retrofit and breakdown replacement requirements. Standard dispatch is within 2–5 business days. For time-critical shutdowns or planned maintenance windows, contact our team directly to confirm current inventory levels and expedited shipping options.
