Kongsberg RDIOR420S Retrofit-Compatible Remote Digital I/O

Kongsberg RDIOR420S Retrofit-Compatible Remote Digital I/O for Legacy Systems

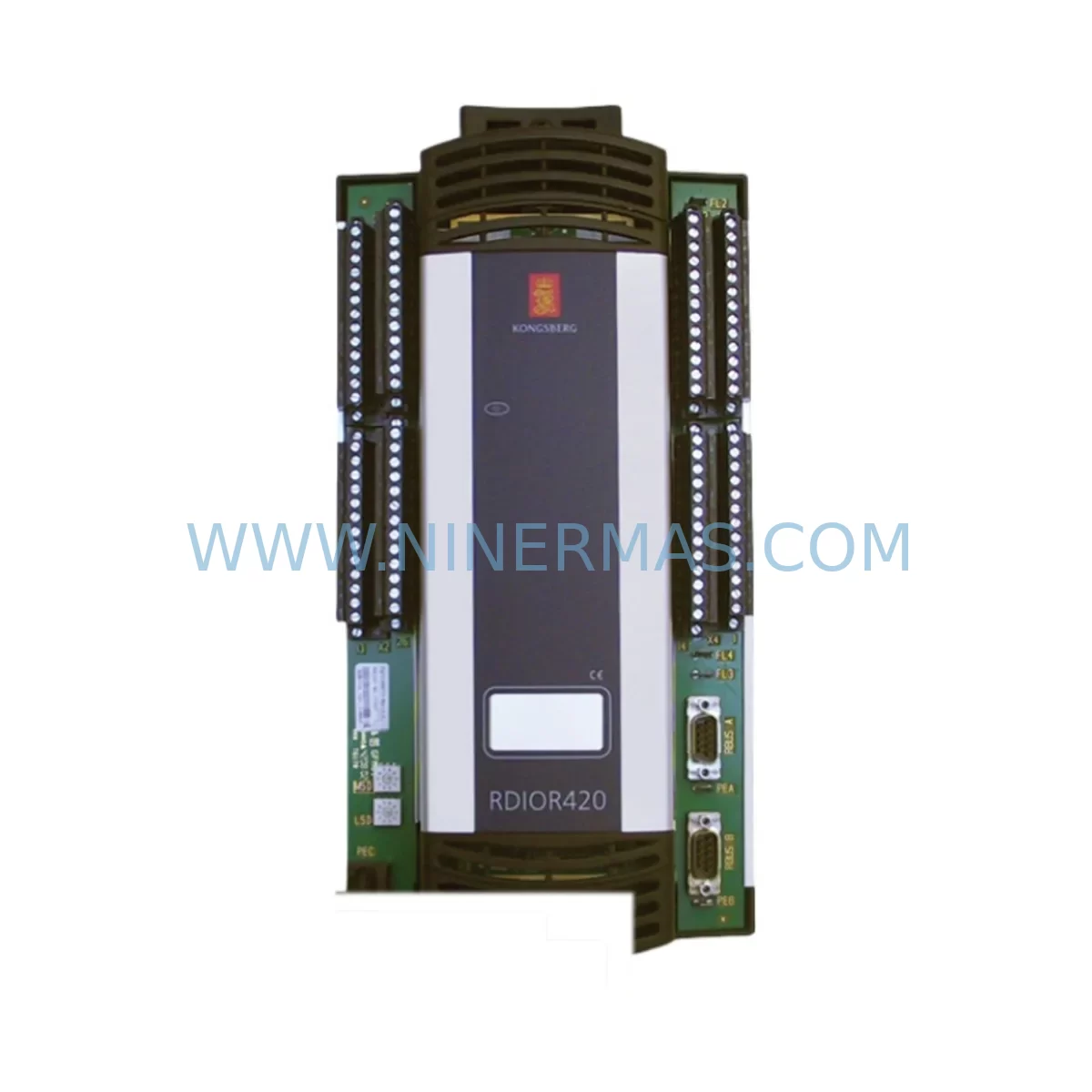

The Kongsberg RDIOR420S is a remote digital I/O module designed for integration within Kongsberg’s distributed control and automation platforms. As legacy control architectures age and OEM support windows close, the RDIOR420S has become a critical retrofit component for engineers tasked with extending the operational life of existing control cabinets, upgrading I/O infrastructure, and maintaining system continuity without full platform migration. Whether you are replacing a failed unit, building a spare parts buffer, or executing a phased modernization of a legacy automation system, the RDIOR420S provides a verified, pre-shipment tested solution backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the RDIOR420S into an existing control architecture requires a structured approach that accounts for both hardware compatibility and software continuity. Before removing the legacy unit, engineers should document the existing terminal wiring layout, confirm the backplane slot assignment, and photograph the current DIP switch or jumper configuration. This prevents address conflicts when the replacement module is seated.

Power supply capacity is a common oversight in retrofit projects. The control cabinet’s 24 VDC rail must be verified to support the additional or replacement load of the RDIOR420S alongside co-installed modules such as the Kongsberg RDAOR series analog output modules, RDIIR digital input interface modules, and any co-located communication gateway units. If the existing Kongsberg PSU module is operating near its rated output, a supplementary power supply module should be added to the cabinet before the I/O swap is performed.

Terminal block wiring should be mapped against the original I/O list. Field signals — including limit switches, solenoid valve feedback, motor run/stop status, and interlock signals — must be re-terminated to the RDIOR420S channel-for-channel. Where the original wiring uses screw-type terminals, confirm that the replacement module’s terminal pitch is compatible or plan for a terminal adapter. In systems where the RDIOR420S interfaces with a Kongsberg operator station or HMI panel, the HMI tag database should be reviewed to confirm that I/O addresses remain consistent after module replacement; mismatched addresses will cause alarm floods and incorrect status displays at the operator workstation.

Communication link integrity is equally important. The RDIOR420S communicates over the system’s internal data highway or fieldbus segment. Before powering down for replacement, note the baud rate, node address, and any termination resistor settings on the existing segment. Co-installed modules such as Kongsberg communication interface modules, remote I/O controllers, and network bridge units must remain undisturbed during the swap to avoid segment faults. After installation, a loopback or segment scan using the system’s engineering workstation or a dedicated fieldbus diagnostic tool should confirm that the RDIOR420S is visible on the network before field signals are re-energized.

For systems undergoing broader modernization — for example, migrating from a legacy Kongsberg proprietary bus to a standard Modbus RTU or Profibus DP backbone — the RDIOR420S can serve as a stable interim I/O node while the communication layer is upgraded in phases. This approach allows individual control loops to be migrated without taking the entire system offline, significantly reducing production downtime. In such projects, signal isolators and protocol converters are often installed in parallel with existing I/O modules to validate signal integrity before the legacy wiring is cut over.

Installation space should be confirmed before ordering. The RDIOR420S occupies a defined number of rack slots; if the existing cabinet has been modified or additional modules have been added since the original build, available slot count must be physically verified. Where space is constrained, a rack extension or a secondary remote I/O enclosure may be required. Kongsberg rack and backplane assemblies compatible with the RDIO series should be sourced alongside the module to avoid installation delays on site.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a remote digital I/O module in a live production environment. The recommended approach is to perform the replacement during a scheduled maintenance window, with a pre-staged RDIOR420S that has been bench-tested and address-configured before it arrives on site. Pre-shipment functional testing — included with every unit supplied — confirms that the module powers up correctly, responds to I/O scan commands, and reports no internal faults before it leaves the warehouse.

Prior to the maintenance window, the control system’s program logic should be reviewed to identify any scan-time dependencies or watchdog timers that may trigger on I/O module loss. In Kongsberg systems, the controller may generate a module fault alarm or initiate a safe-state output sequence when a remote I/O node drops off the network. Understanding this behavior allows the maintenance team to pre-configure the controller to suppress non-critical alarms during the swap interval, protecting the original program logic from unintended modifications.

HMI screens associated with the affected I/O points should be placed in maintenance mode or clearly flagged to operators before work begins. This prevents operators from acting on stale or transitional signal states during the module changeover. Once the RDIOR420S is installed and the communication link is confirmed, a point-by-point I/O verification should be performed — energizing each field device in sequence and confirming correct status at both the controller and the HMI. Only after full I/O verification is complete should the system be returned to automatic control mode.

For critical processes where even a brief interruption is unacceptable, a hot-standby or redundant I/O architecture should be evaluated. In such configurations, the RDIOR420S can be installed in a redundant slot while the primary module remains active, with switchover tested before the legacy unit is removed. This approach is particularly relevant in marine automation, offshore platform control, and process industries where continuous operation is contractually or safety-mandated.

Retrofit Support FAQ

Q1: Is the RDIOR420S a direct drop-in replacement for other modules in the Kongsberg RDIO series?
The RDIOR420S is designed for use within the Kongsberg RDIO remote digital I/O family. Compatibility with adjacent variants depends on channel count, signal voltage level, and backplane connector version. Always cross-reference the original module’s part number and system documentation before ordering. Our technical team can assist with compatibility verification based on your system’s build records.

Q2: What commissioning steps are required after installing the RDIOR420S?
After physical installation, the module address must be set to match the original unit’s node assignment — typically via DIP switches or software configuration through the engineering workstation. A communication scan should confirm the module is visible on the data highway. I/O points should then be verified individually against the system’s I/O list before returning the system to service. Pre-shipment testing ensures the module is functional on arrival, reducing on-site commissioning time.

Q3: How is the 12-month warranty applied, and what does it cover?
Every RDIOR420S unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a pre-shipment functional test before dispatch. Warranty claims are handled directly — contact sale@ninermas.com with your order reference and a description of the fault for rapid assessment and replacement coordination.

Q4: Can you supply the RDIOR420S for long-term spare parts inventory or multi-unit retrofit projects?
Yes. We maintain stock of the RDIOR420S to support both single-unit emergency replacements and multi-unit retrofit programs. For projects requiring multiple modules, phased delivery schedules can be arranged to align with your maintenance windows. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels, lead times, and volume pricing.
