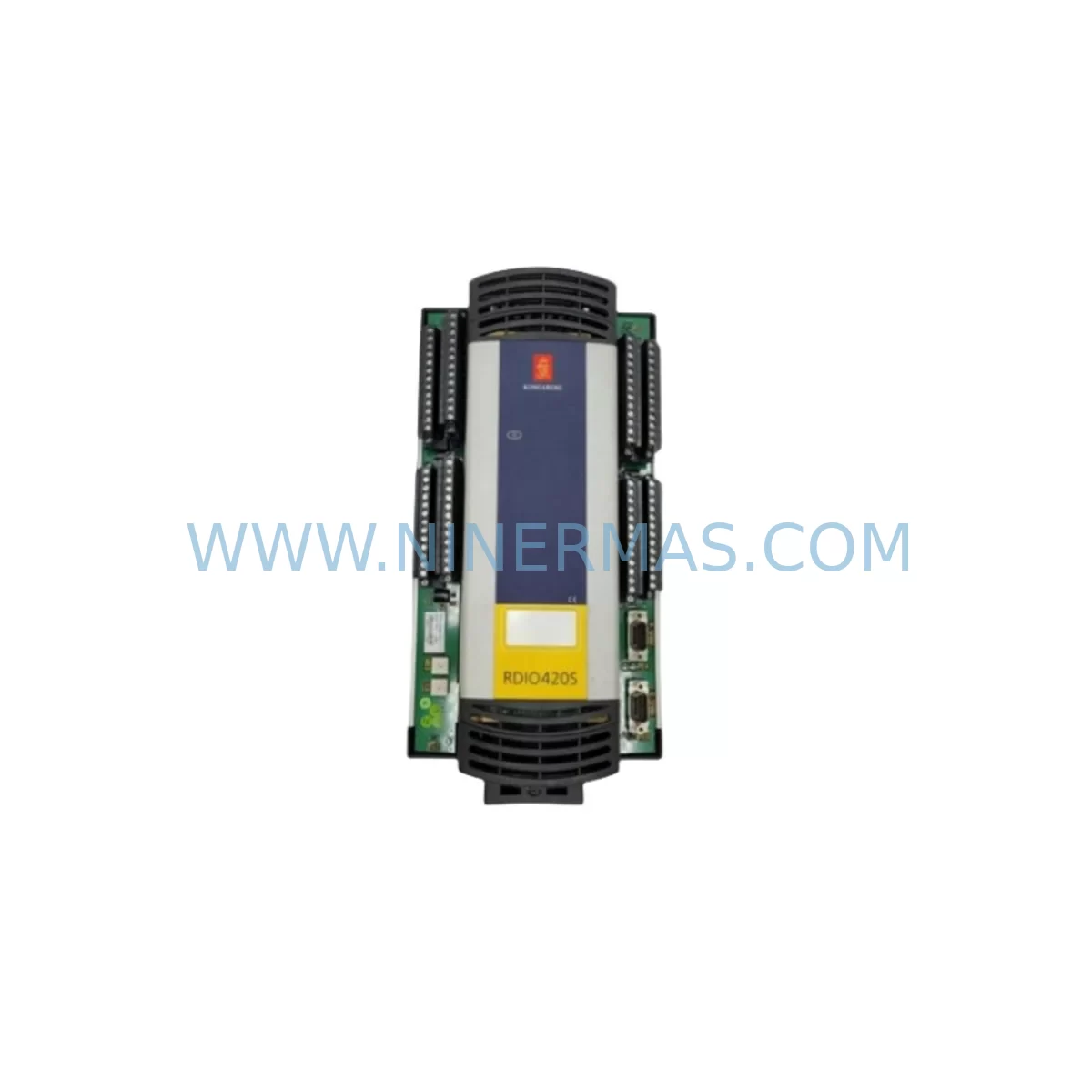

The Kongsberg RDIO420S 316564 is a ruggedized remote digital I/O module engineered for continuous-duty operation in demanding marine, offshore, and industrial automation environments. Designed as an integral node within Kongsberg’s distributed control architecture — including the K-Chief vessel management system and SDP dynamic positioning platforms — this module handles digital input and output signal conditioning across critical control loops. When an RDIO420S 316564 fails or reaches end-of-service life, the downstream impact is immediate: loss of digital I/O visibility, alarm suppression, and potential shutdown of automated sequences that depend on discrete signal feedback. Sourcing a verified, original spare unit before failure occurs is the single most effective strategy for protecting uptime and avoiding unplanned dry-dock or production stoppages.

NINERMAS maintains stock of the RDIO420S 316564 to support emergency replacement, planned annual overhaul, and long-term spare parts inventory programs. Every unit is functionally tested prior to dispatch, ships with full documentation, and is covered by a 12-month warranty against manufacturing defects. Lead times are confirmed at order placement, and long-term supply agreements are available for fleet operators and EPC contractors managing multiple vessels or installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The RDIO420S 316564 does not operate in isolation. It is one node in a layered digital I/O architecture that spans the entire control cabinet, and a disciplined maintenance plan must account for every component in that signal chain. When scheduling replacement of this module, maintenance engineers should simultaneously inspect the following associated components to prevent secondary failures from undermining the repair.

The KONGSBERG RDIO420S power supply module feeding the remote I/O rack should be load-tested and its output voltage verified within tolerance before the new RDIO420S 316564 is commissioned. A marginal power supply that was masked by the failed module’s reduced load draw will cause premature failure of the replacement unit. Similarly, the 24 VDC distribution fuse block and individual channel fuses within the I/O cabinet should be inspected and replaced if any show signs of thermal stress or intermittent continuity.

Signal wiring integrity is equally critical. The field terminal blocks — typically Phoenix Contact or equivalent DIN-rail mounted terminal strips — connected to the RDIO420S digital input channels should be torque-checked and inspected for corrosion, particularly in high-humidity engine room environments. Any signal isolation barriers or galvanic isolators in the digital input loops should be verified for correct threshold voltage and response time, as degraded isolators can cause false digital states that mimic module faults.

On the communication side, the KONGSBERG fieldbus communication cable connecting the RDIO420S to the main I/O controller or backplane should be inspected for chafe, connector pin integrity, and correct termination resistance. If the installation uses a KONGSBERG remote I/O controller module or concentrator node upstream of the RDIO420S, its firmware version and diagnostic log should be reviewed to confirm no latent faults were attributed to the I/O module rather than the controller itself.

For installations where the RDIO420S 316564 feeds digital status signals into a KONGSBERG K-Chief alarm and monitoring panel or an HMI operator station, the alarm configuration and I/O mapping should be verified after replacement to confirm that all channel assignments are correctly restored. Operators have occasionally found that a module swap without configuration verification results in inverted alarm logic or unmapped channels that pass functional test but fail during live operation.

Finally, if the RDIO420S is installed in a cabinet that also houses KONGSBERG relay output modules, analog I/O modules, or communication gateway modules, a full cabinet inspection during the same maintenance window is strongly recommended. Replacing a single failed module while deferring inspection of adjacent units in the same thermal and vibration environment is a common source of repeat callouts within 6–12 months of the initial repair.

Site Replacement Workflow

Replacing the RDIO420S 316564 on site requires a structured approach to minimize downtime and ensure system compatibility is maintained throughout the process. The following workflow is recommended for maintenance engineers performing a like-for-like replacement in a live or recently isolated control cabinet.

Step 1 — Pre-replacement verification: Confirm the replacement unit part number (316564) and model (RDIO420S) match the installed unit exactly. Cross-reference the cabinet wiring diagram and the K-Chief or SDP system I/O list to identify all channels assigned to this module. Document current alarm states and any active channel faults before isolation.

Step 2 — System isolation: Follow the vessel or plant lockout/tagout procedure for the affected I/O cabinet. Isolate the 24 VDC supply to the RDIO420S rack segment. Do not assume that removing the module from the backplane is sufficient isolation — verify with a multimeter that all field-side terminals are de-energized before disconnecting wiring.

Step 3 — Module removal and inspection: Remove the failed RDIO420S 316564 from the backplane or DIN rail mount. Inspect the backplane connector for bent pins, corrosion, or debris. Clean the connector with appropriate contact cleaner before installing the replacement. Retain the failed module for failure analysis if root cause investigation is required.

Step 4 — Replacement installation: Seat the new RDIO420S 316564 firmly into the backplane connector. Reconnect all field wiring to the terminal blocks, verifying wire labeling against the wiring diagram. Restore the 24 VDC supply and observe the module’s status indicators for normal initialization sequence.

Step 5 — Functional verification: From the K-Chief or SDP operator station, verify that all digital input channels assigned to the replaced module are reading correct states. Actuate each connected field device through its full operating range to confirm correct digital output response. Clear any latched alarms generated during the replacement procedure and confirm the system returns to normal operating status.

Step 6 — Documentation: Record the replacement in the vessel or plant maintenance management system, including the new module serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement stock unit, maintaining the minimum on-hand quantity defined in the maintenance plan.

Spare Parts Support FAQ

Q: Is the RDIO420S 316564 supplied as an original Kongsberg part or an aftermarket equivalent?
A: NINERMAS supplies original Kongsberg RDIO420S 316564 modules sourced through authorized industrial spare parts channels. Each unit is verified against the manufacturer part number before dispatch. We do not substitute aftermarket or reverse-engineered equivalents for safety-critical I/O modules.

Q: What pre-shipment testing is performed on the RDIO420S 316564?
A: Each RDIO420S 316564 unit undergoes functional I/O channel verification prior to dispatch. This includes power-on initialization check, digital input channel continuity verification, and output channel actuation test. A test report is available upon request. Units that do not pass functional verification are not dispatched.

Q: How should we manage long-term spare parts inventory for the RDIO420S 316564 given Kongsberg’s product lifecycle?
A: For vessels or installations with multiple RDIO420S nodes, we recommend maintaining a minimum of one spare unit per control cabinet as a rotating stock strategy. NINERMAS offers long-term supply agreements that lock in availability and pricing for 12–36 month periods, protecting against end-of-life stock depletion. Contact our team to discuss fleet-level inventory programs.

Q: What is covered under the 12-month warranty, and what is the process for a warranty claim?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as defined in the Kongsberg RDIO420S installation specification. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact NINERMAS with the unit serial number, installation date, and a description of the failure mode. We will arrange return logistics and replacement dispatch with minimal delay.
