KEBA KVME AT8/486/25B 40240 GEB Retrofit Ethernet Backplane

KEBA KVME AT8/486/25B 40240 GEB Retrofit Ethernet Backplane Module: Legacy System Compatible Upgrade

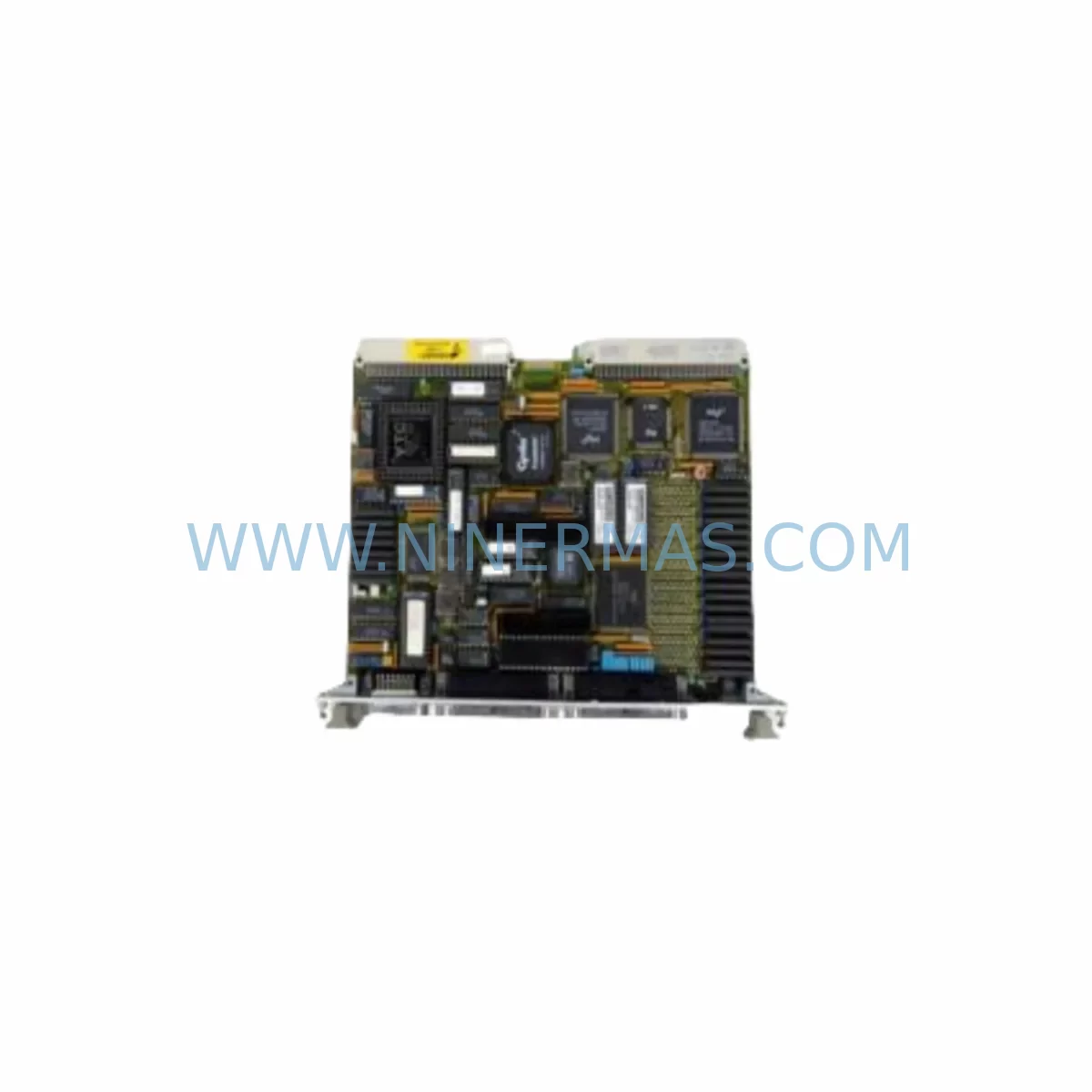

The KEBA KVME AT8/486/25B 40240 GEB is a ruggedized Ethernet backplane module engineered for demanding industrial environments and designed to serve as a direct retrofit-compatible replacement within legacy KEBA AT8 control architectures. As automation systems age and original equipment manufacturers discontinue support for older platforms, the KVME AT8/486/25B 40240 GEB provides a reliable, field-proven solution for engineers and procurement teams seeking to extend the operational life of existing control cabinets without committing to a full platform migration.

This module integrates into the KEBA AT8 backplane rack system, providing Ethernet communication capability across the backplane bus. Its ruggedized construction — with conformal coating and extended temperature tolerance — makes it suitable for harsh production environments including foundries, press lines, heavy assembly, and outdoor enclosures where vibration, humidity, and thermal cycling are constant concerns.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the KVME AT8/486/25B 40240 GEB into an existing KEBA AT8 control system, a structured retrofit plan is essential to ensure continuity of machine operation and minimize risk during the changeover. The AT8 platform is a modular architecture, meaning the backplane module works in concert with several other components that must be assessed before and during the replacement process.

Begin by auditing the existing rack configuration. The AT8 backplane rack typically houses a combination of the KEBA AT8/486 CPU module, digital and analog I/O modules such as the KEBA KVDI and KEBA KVAI series, and the system power supply — commonly a KEBA PS24/10A or similar 24 VDC rail-mount unit. Confirm that the power supply has sufficient headroom to support the KVME AT8/486/25B 40240 GEB alongside existing modules; total backplane current draw must remain within rated limits.

Terminal wiring on the Ethernet port must be verified against the existing network topology. If the legacy system used a dedicated industrial Ethernet switch — such as a managed switch supporting PROFINET or Modbus TCP — confirm that the replacement module’s MAC address and IP configuration are updated in the network switch’s port table and in the PLC program’s communication configuration. In systems where the KEBA KeStudio programming environment was used, the hardware configuration file (HWC) must reflect the new module’s slot position and firmware revision to avoid initialization errors at startup.

For systems that also include KEBA KVME fieldbus gateway modules or KEBA KeDrive motion controllers communicating over the backplane, verify that the Ethernet backplane module’s node address does not conflict with existing device assignments. In multi-rack configurations using a KEBA AT8 rack extension cable, the module address must be set correctly via DIP switch or software parameter before installation.

If the control cabinet also contains third-party components — such as a Siemens TP700 or TP900 HMI panel communicating via Ethernet to the KEBA controller — confirm that the HMI’s PLC connection tag remains valid after the module swap. HMI screen variables linked to communication status bits may need to be re-validated. Similarly, if a signal isolator or HART multiplexer is present in the I/O chain, verify that the Ethernet path to the asset management system is unaffected.

For cabinets with limited space, measure the available slot depth and confirm that the KVME AT8/486/25B 40240 GEB’s physical dimensions match the original module. In retrofit scenarios where the original module has been physically damaged or corroded, inspect the backplane connector pins for deformation before inserting the replacement unit. A KEBA programming cable or USB-to-serial adapter compatible with KeStudio may be required for initial firmware verification and online diagnostics after installation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any spare-parts retrofit involving a backplane communication module. Because the KVME AT8/486/25B 40240 GEB sits at the heart of the AT8 rack’s Ethernet communication infrastructure, its replacement requires a controlled shutdown sequence to protect program integrity and field device states.

Before powering down the rack, perform a full backup of the PLC program using KeStudio or the appropriate AT8 programming tool. Save the hardware configuration, symbol table, and any retain variable data to a secure location. If the system uses a KEBA memory card or onboard flash for program storage, verify that the backup copy is complete and readable on a separate engineering workstation.

Coordinate the replacement window with production scheduling to align with a planned maintenance interval. In continuous-process environments, arrange for manual override or bypass of affected control loops where safety regulations permit. Notify downstream systems — including SCADA, MES, or historian platforms — that the controller will be offline to prevent false alarms or data gaps in trend logs.

After installing the KVME AT8/486/25B 40240 GEB, perform a cold-start sequence and monitor the system diagnostic LEDs for normal initialization. Reconnect the Ethernet cable and verify communication status in the KeStudio online view. Confirm that all I/O modules — including any KEBA KVDO digital output modules or KEBA KVAO analog output modules — are recognized by the CPU and reporting correct status. Run a functional test of all critical outputs before returning the machine to automatic mode.

All units supplied by NINERMAS are pre-tested and verified against original KEBA factory specifications prior to shipment, reducing the risk of DOA failures and shortening commissioning time on site. Stock availability is maintained for rapid dispatch, supporting just-in-time spare-parts programs for maintenance teams managing multiple KEBA AT8 installations across facilities.

Retrofit Support FAQ

Q1: Is the KEBA KVME AT8/486/25B 40240 GEB a direct replacement for the original module?
A: Yes. The KVME AT8/486/25B 40240 GEB is a 1:1 form-fit-function replacement for the original KEBA module of the same part number. No hardware modification to the rack or backplane is required in standard AT8 configurations. Confirm firmware compatibility with your KeStudio version before commissioning.

Q2: What pre-shipment testing is performed on this module?
A: Every unit undergoes functional verification including power-on self-test, Ethernet port continuity check, and backplane interface validation before dispatch. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How do I confirm wiring and terminal compatibility before installation?
A: Refer to the KEBA AT8 hardware manual for your rack revision. The KVME AT8/486/25B 40240 GEB uses a standard RJ45 Ethernet port and connects to the backplane via the AT8 edge connector. No additional terminal adapters are required. Verify that the existing Ethernet cable is Cat5e or better and that the network switch port is configured for the correct VLAN and speed settings.

Q4: What is the lead time and stock availability?
A: NINERMAS maintains inventory of the KEBA KVME AT8/486/25B 40240 GEB to support urgent spare-parts requirements. Standard orders are dispatched within 1–3 business days. For long-term procurement planning or blanket orders covering multiple KEBA AT8 installations, contact our sales team to discuss stock reservation and volume pricing.
