Kawasaki AVR50630-0033 Safety-Reliable AC Servo for Critical Sites

Kawasaki AVR50630-0033 Safety-Reliable AC Servo for Critical Control Sites

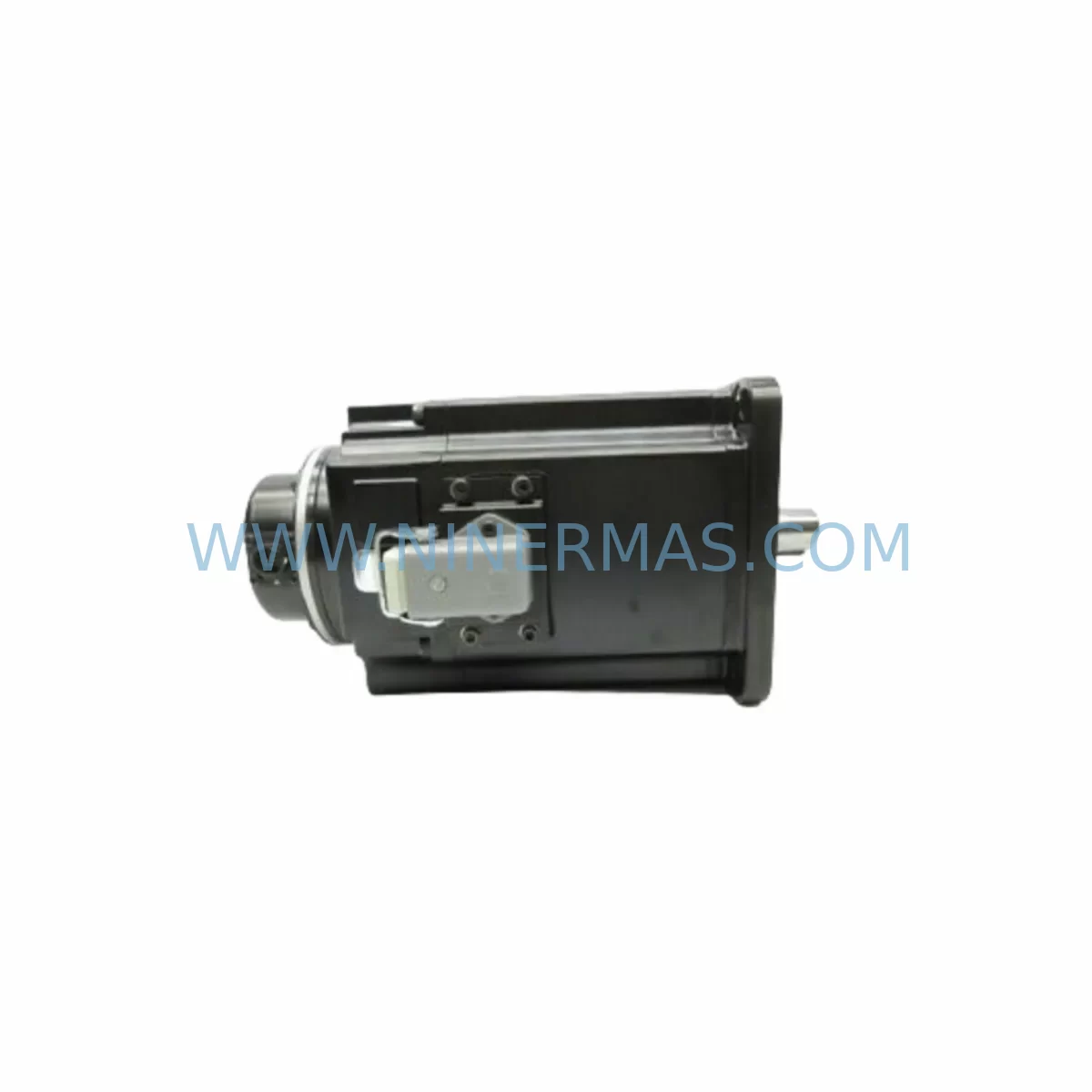

The Kawasaki AVR50630-0033 (also referenced as 50632-1066 and paired with the Sanyo Denki R2AA13200LCPKZ AC servo motor) is a precision-engineered servo drive and motor assembly designed for deployment in safety-critical industrial automation environments. This unit serves as a direct replacement and upgrade solution for Kawasaki robot controller systems where uninterrupted motion control, signal integrity, and axis positioning accuracy are non-negotiable operational requirements. Whether integrated into a continuous production line, a critical interlock circuit, or a heavy-duty control cabinet subject to high electromagnetic interference, the AVR50630-0033 delivers the servo performance and electrical resilience that modern industrial safety standards demand.

Industrial facilities operating Kawasaki robotic systems — including those in petrochemical processing, automotive body welding, metal casting, and semiconductor handling — depend on servo drive assemblies that maintain stable torque output and encoder feedback under adverse conditions. The R2AA13200LCPKZ servo motor, rated at 1.3 kW in the Sanyo Denki R2AA series, provides high-resolution encoder feedback and low-cogging torque characteristics that are essential for precise axis control in safety-rated motion sequences. When this motor is paired with the AVR50630-0033 axis drive board within the Kawasaki D-series or E-series controller, the result is a servo loop capable of sustaining positional accuracy even during power fluctuations, thermal cycling, and mechanical vibration events common to heavy industrial sites.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Maintaining servo axis reliability in a Kawasaki robot controller cabinet requires a systems-level approach to risk reduction. The AVR50630-0033 axis drive board operates within a tightly integrated control architecture where the failure of any single component — from the power supply to the communication bus — can trigger an unplanned shutdown or, in worst cases, an unsafe motion event. To mitigate these risks, facilities should evaluate the condition of all interdependent components within the same control cabinet.

The Kawasaki 50999-2439 I/O interface board manages digital signal routing between the robot controller and field devices. Degraded I/O boards are a common source of spurious fault signals that can be misdiagnosed as servo axis failures. Similarly, the Kawasaki 50607-0223 CPU board governs the motion planning and safety interlock logic; a CPU board with corrupted firmware or failing memory can cause erratic axis behavior that places undue stress on the AVR50630-0033 drive circuit.

On the power side, the Kawasaki 1HY-V0028 power supply board provides regulated DC bus voltage to the servo amplifier section. Voltage ripple or dropout events from a failing power supply are a leading cause of servo drive overcurrent faults and encoder signal corruption. Pairing a replacement AVR50630-0033 with a verified 1HY-V0028 power supply board eliminates this risk vector. For sites with unstable incoming AC power, the addition of a Phoenix Contact TRABTECH surge protection module on the incoming AC line provides a first line of defense against transient overvoltage events that can damage servo drive input stages.

The Kawasaki 50630-1006 axis control board coordinates multi-axis servo sequencing and is responsible for distributing position commands to individual drive boards including the AVR50630-0033. In multi-robot cells or synchronized motion applications, a degraded axis control board can introduce timing errors that compromise both production quality and safety interlock timing. The Kawasaki 50999-0037 communication board handles fieldbus and serial communication between the controller and external safety PLCs or SCADA systems; communication anomalies at this level can prevent safety commands from reaching the servo drive in time-critical scenarios.

For encoder signal integrity, the Kawasaki 60614-1036 encoder cable assembly provides the shielded signal path between the R2AA13200LCPKZ motor encoder and the drive board. Damaged or improperly shielded encoder cables are a primary source of position feedback errors and servo fault alarms in high-EMI environments such as welding cells or induction heating stations. Replacing the encoder cable alongside the servo motor and drive board is a best practice for restoring full system reliability. The Kawasaki 1HA-V0028 brake control unit manages the motor holding brake circuit; a faulty brake unit can cause axis drop events during E-stop sequences, representing a direct safety hazard in vertical-axis or overhead robot configurations. Finally, an Omron G9SA-321 safety relay module, when integrated into the E-stop circuit connected to the AVR50630-0033 drive enable input, provides IEC 62061-compliant safety loop monitoring that satisfies SIL 2 requirements for robot cell guarding.

Critical Industrial Safety Applications

The Kawasaki AVR50630-0033 and R2AA13200LCPKZ servo assembly finds application across a broad range of safety-critical industrial environments where servo axis reliability directly impacts process safety and production continuity.

In petrochemical and refinery facilities, Kawasaki robots equipped with this servo assembly perform valve actuation, pipe handling, and inspection tasks in classified hazardous zones. Servo faults in these environments can interrupt safety-critical sequences and trigger process shutdowns with significant economic and safety consequences. The pre-tested AVR50630-0033 replacement unit allows maintenance teams to restore servo axis function within a planned maintenance window, avoiding extended unplanned outages.

In automotive body-in-white welding lines, Kawasaki robots perform high-cycle spot welding and material handling tasks where servo axis repeatability directly determines weld quality and structural integrity. The R2AA13200LCPKZ motor’s low-cogging torque and high encoder resolution support the sub-millimeter positional accuracy required for consistent weld gun placement across thousands of cycles per shift.

In power generation and electrical utility applications, Kawasaki robotic systems perform cable handling, switchgear assembly, and transformer winding tasks. These environments expose servo drives to elevated electromagnetic interference from high-voltage switching equipment. The EMI-hardened design of the AVR50630-0033 drive board, combined with proper encoder cable shielding, maintains signal integrity in these demanding conditions.

In mining and mineral processing facilities, robots operating in dusty, high-vibration environments rely on servo assemblies with robust mechanical and electrical protection. The IP54-rated R2AA13200LCPKZ motor body resists particulate ingress and moisture, supporting reliable operation in ore handling and crushing plant automation. In water and wastewater treatment plants, Kawasaki robots perform chemical dosing, valve operation, and pipe inspection in corrosive, high-humidity environments where servo reliability is essential for maintaining continuous treatment processes and regulatory compliance.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the AVR50630-0033 and R2AA13200LCPKZ?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes technical support for installation and commissioning. Warranty claims are processed promptly to minimize downtime at critical production sites.

Q2: What pre-shipment testing is performed on this servo assembly?
Every AVR50630-0033 drive board and R2AA13200LCPKZ servo motor undergoes a full functional test prior to dispatch. Testing includes power-on verification, encoder signal integrity check, drive enable and fault response validation, and load simulation where applicable. Test records are available upon request for quality documentation purposes.

Q3: Is this unit compatible with all Kawasaki D-series and E-series robot controllers?
The AVR50630-0033 is designed for use in specific Kawasaki robot controller configurations. Compatibility depends on the robot model, axis configuration, and controller revision. NINERMAS technical staff can verify compatibility based on your robot serial number and controller model before shipment. Cross-reference part numbers 50632-1066 and R2AA13200LCPKZ are provided to assist with identification.

Q4: Can NINERMAS support long-term supply commitments for this part?
Yes. NINERMAS maintains reserved inventory programs for critical spare parts including the AVR50630-0033 and R2AA13200LCPKZ. Long-term supply agreements are available for facilities operating multiple Kawasaki robot systems, ensuring predictable lead times and eliminating the risk of stockouts during planned maintenance cycles or emergency breakdowns. Contact our team to discuss reserved stock arrangements tailored to your maintenance schedule.
