Kawasaki 50817-0066 Service-Ready Industrial Spare Part

Kawasaki 50817-0066 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

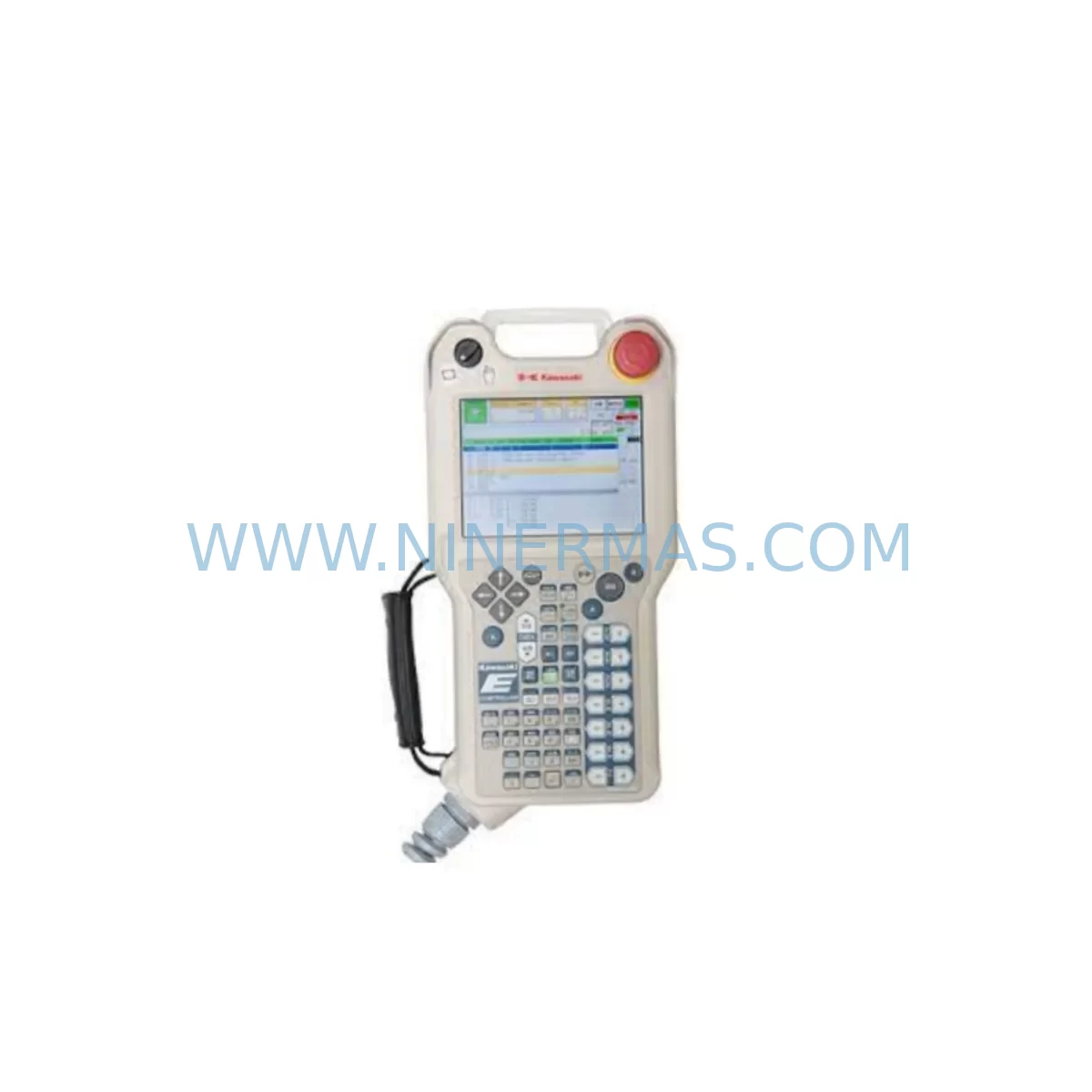

The Kawasaki 50817-0066 is a ruggedized teach pendant safety module designed for use in Kawasaki industrial robot controller systems. In high-availability manufacturing environments — automotive assembly, arc welding cells, material handling lines, and precision machining — the teach pendant safety module is a critical interface component. Its failure can immediately halt robot operation, triggering unplanned downtime that cascades across the production line. Maintaining a verified, service-ready spare of the Kawasaki 50817-0066 is a fundamental element of any responsible maintenance strategy for Kawasaki robot installations.

This original spare part is sourced through established industrial supply channels, inspected prior to shipment, and backed by a 12-month warranty. It is intended for maintenance engineers and procurement teams managing Kawasaki D-series and E-series robot controllers, where the teach pendant assembly — including the safety module — must remain fully operational to enable safe manual jogging, program editing, and emergency stop functions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Kawasaki 50817-0066 safety module requires replacement, experienced maintenance engineers treat the event as an opportunity to audit the broader teach pendant assembly and controller interface. The teach pendant connects to the robot controller via the Kawasaki 50817-0040 pendant cable — a component subject to wear from repeated flexing during daily jogging operations. Inspecting and, where necessary, replacing this cable alongside the safety module eliminates a common secondary failure point.

Within the controller cabinet, the D-series and E-series systems rely on a structured power distribution architecture. The 1JO-43 series controller power supply module provides regulated DC power to the control board and I/O subsystems; any instability in this supply can manifest as erratic teach pendant behavior before a hard failure occurs. Maintenance teams should verify power supply output voltages during the same service window.

The I/O interface boards — including Kawasaki 50607-series digital I/O modules — handle signal exchange between the robot controller and external safety PLCs, light curtains, and area scanners. These modules should be inspected for connector corrosion and secure seating on the backplane. The 50607-0010 backplane itself is a passive but critical component; damaged backplane connectors can cause intermittent I/O faults that are difficult to diagnose without a spare for substitution testing.

Safety relay units integrated into the controller’s emergency stop circuit are another priority inspection item. These relays enforce the safety category requirements of the robot cell and must be verified for correct operation after any teach pendant safety module replacement. Terminal blocks on the safety circuit wiring should be checked for tightness and signs of thermal stress.

For systems using external communication — DeviceNet, EtherNet/IP, or PROFIBUS — the corresponding communication module (such as the Kawasaki 50999-series communication interface cards) should be confirmed as operational, since controller reboots following maintenance can occasionally expose latent communication faults. Encoder cables, particularly the 50999-0025 series, should be inspected for shielding integrity, as signal degradation here can cause axis faults that are incorrectly attributed to the teach pendant or safety circuit.

Where the robot cell includes an HMI panel for operator interaction, the HMI’s connection to the controller should be verified post-replacement to ensure that safety status signals are correctly displayed. Signal isolators on analog I/O channels, if present, should also be confirmed as functional, particularly in environments with high electrical noise from welding equipment or variable frequency drives.

Procurement engineers managing multi-robot facilities are advised to maintain a minimum stock level of one Kawasaki 50817-0066 per robot cell cluster, supplemented by critical cable assemblies and at least one spare I/O module per controller type. This inventory posture supports a target mean-time-to-repair of under four hours for teach pendant-related faults, which is consistent with best practice for high-utilization robot installations.

Site Replacement Workflow

Replacing the Kawasaki 50817-0066 safety module on-site follows a structured procedure to minimize downtime and ensure system compatibility is maintained throughout the process.

Step 1 — Preparation and Safety Isolation: Before beginning any work, place the robot controller in E-stop and lock out / tag out (LOTO) the controller cabinet power. Confirm that all axes are at rest and that the teach pendant is disconnected from the controller.

Step 2 — Compatibility Verification: Confirm that the replacement 50817-0066 unit matches the part number on the existing module label. Cross-reference the controller firmware version against Kawasaki’s compatibility documentation for the D-series or E-series system in use. In most cases, the 50817-0066 is a direct replacement requiring no parameter changes.

Step 3 — Module Removal: Disconnect the teach pendant cable from the controller port. Remove the safety module from the teach pendant housing following the disassembly sequence in the Kawasaki maintenance manual for the relevant controller series. Note the orientation and connector positions before removal.

Step 4 — Installation of Replacement Unit: Install the new 50817-0066 module, ensuring all connectors are fully seated and retention hardware is secured to the specified torque. Reconnect the teach pendant cable to the controller.

Step 5 — Functional Verification: Restore controller power and perform a controlled power-on sequence. Verify that the teach pendant displays correctly, that the deadman switch and emergency stop functions operate as expected, and that the safety relay circuit confirms a healthy state. Run a short manual jog sequence on each axis to confirm normal operation before returning the robot to automatic mode.

Step 6 — Documentation: Record the replacement in the maintenance log, including the date, part number, serial number of the replaced unit, and the technician’s name. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to restore stock levels.

Spare Parts Support FAQ

Q1: What is the expected service life of the Kawasaki 50817-0066, and when should it be proactively replaced?
The 50817-0066 safety module does not have a fixed calendar-based replacement interval under normal operating conditions. Proactive replacement is recommended when the teach pendant shows intermittent safety circuit faults, when the module housing shows physical damage from drops or impacts, or when the robot cell undergoes a major overhaul. For high-utilization cells operating two or three shifts per day, a condition-based inspection every 12 to 18 months is advisable.

Q2: How do I verify compatibility between the 50817-0066 and my specific Kawasaki controller?
Compatibility is primarily determined by the controller series (D-series or E-series) and the teach pendant model in use. The part number 50817-0066 is associated with ruggedized teach pendant assemblies for these series. Before ordering, confirm the existing module’s part number from the label on the unit itself, and cross-reference with your controller’s bill of materials or the Kawasaki maintenance documentation. Our team can assist with compatibility verification prior to shipment.

Q3: What pre-shipment checks are performed on the 50817-0066 before delivery?
Each unit undergoes a visual inspection for physical damage, connector integrity, and label legibility before shipment. Units are packaged in anti-static protective packaging suitable for sensitive electronic components. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can you support long-term supply of the 50817-0066 for multi-year maintenance contracts?
Yes. We maintain sourcing relationships that support ongoing supply of original Kawasaki spare parts, including end-of-life and legacy components. For facilities managing fleets of Kawasaki robots on long-term maintenance contracts, we recommend establishing a framework agreement to secure priority access to critical spare parts such as the 50817-0066, pendant cables, and controller I/O modules. Contact our team to discuss volume pricing and reserved stock arrangements.
